TM1502 15'' Touch Screen POS DisplayTM1502 15'' Touch Screen POS DisplayTM1502 15'' Touch Screen POS DisplayTM1502 15'' Touch Screen POS DisplayTM1502 15'' Touch Screen POS DisplayTM1502 15'' Touch Screen POS Display

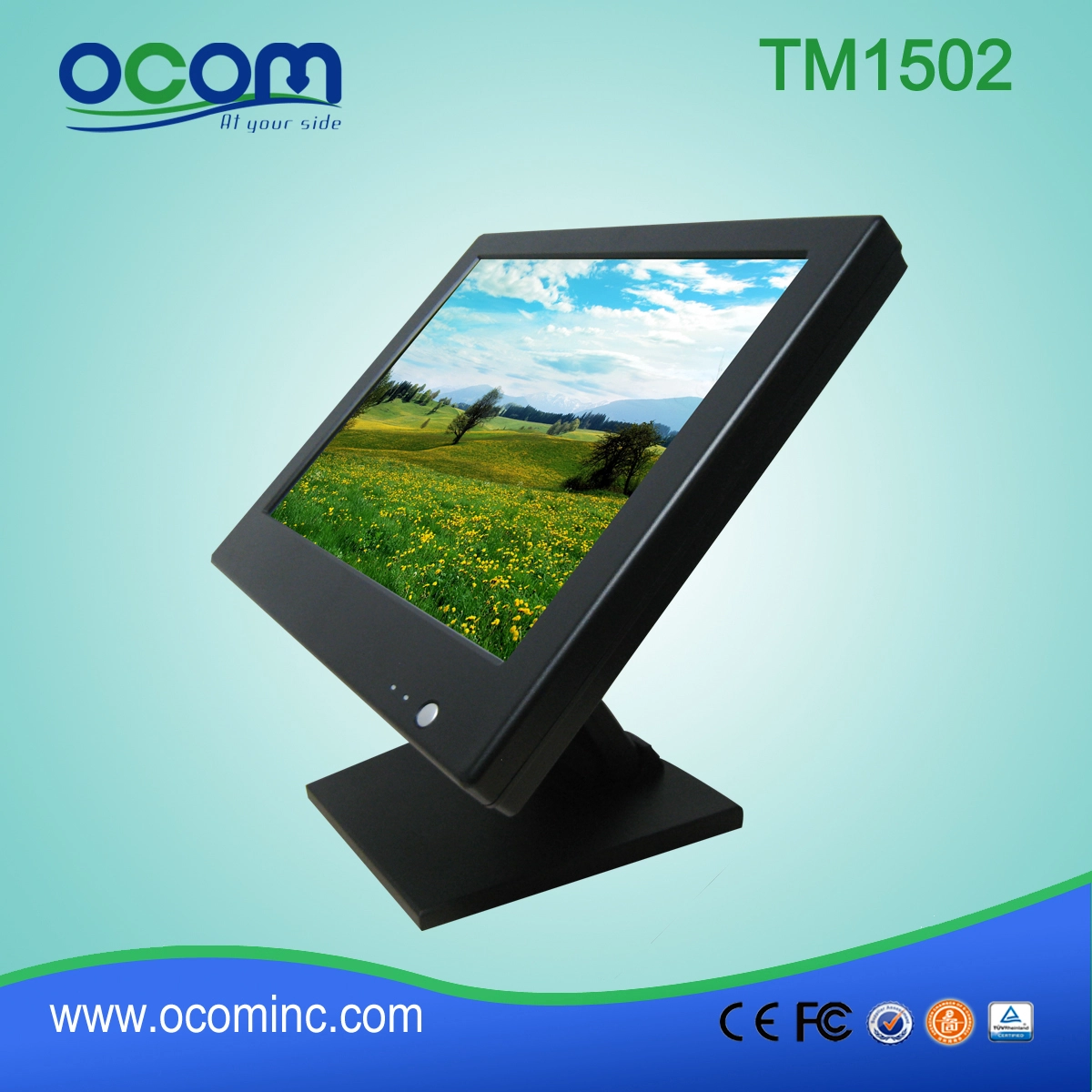

TM1502 15'' Touch Screen POS Display

  • FEATURES:
  • 1.High resolution: Support 1024*768 / 1280*1024;
  • 2.Grade A LCD panel;
  • 3.5/4 touch panel for option with water-proof;
  • 4.Lifetime: 50 million touch;

TM1502 15'' Touch Screen POS Display

(Model No: TM1502)

FEATURES:

led monitor,touch monitor,led monitor price




   High resolution: Support 1024*768 / 1280*1024;

 Grade A LCD panel;

 5/4 touch panel for option with water-proof;

 Lifetime: 50 million touch;

led monitor,touch monitor,led monitor price

    SPECIFICATION:

    led monitor,touch monitor,led monitor price

    LCD Screen Size

    15"

    Aspect Ratio

    4:3

    Resolution

    1024×768

    Pixel Pitch(mm)

    0.297

    Active Area(mm)

    304.1×228.1

    Number of colors

    16.2M

    Contrast Ratio

    700/1

    Brightness

    250cd/m²

    Viewing Angle

    150/135

    Response Time

    8ms

    Touch Panel Size

    15" 4-wire

    Outside Dimension

    247mm×322mm

    Viewing area

    235mm×310mm

    Active area

    228mm×304mm

    Surface Hardness

    3H

    Optical Clarity

    80%

    Operating Temperature

    -10C ~60C

    Endurance Test strikes

    Over 10millions

    Operating Voltage

    DC5V

    Resistance

    200Ω~900Ω

    Linearity

    1.50%

    Faceplate Surface

    Anti-glare coating,glare coating

    Film Thickness

    0.175mm, 0.188mm

    Glass Thickness

    0.7mm, 1.1mm,1.8mm

    Operation Pressure

    20~150g

    Storage Temperature

    -30℃ ~80 ℃

    Operating Current

    5mA~25mA

    Humidity

    <95%

    Isolation Resistance

    20MΩ @ DC25V

    Sealable against

    Dust ,water, oil , static
