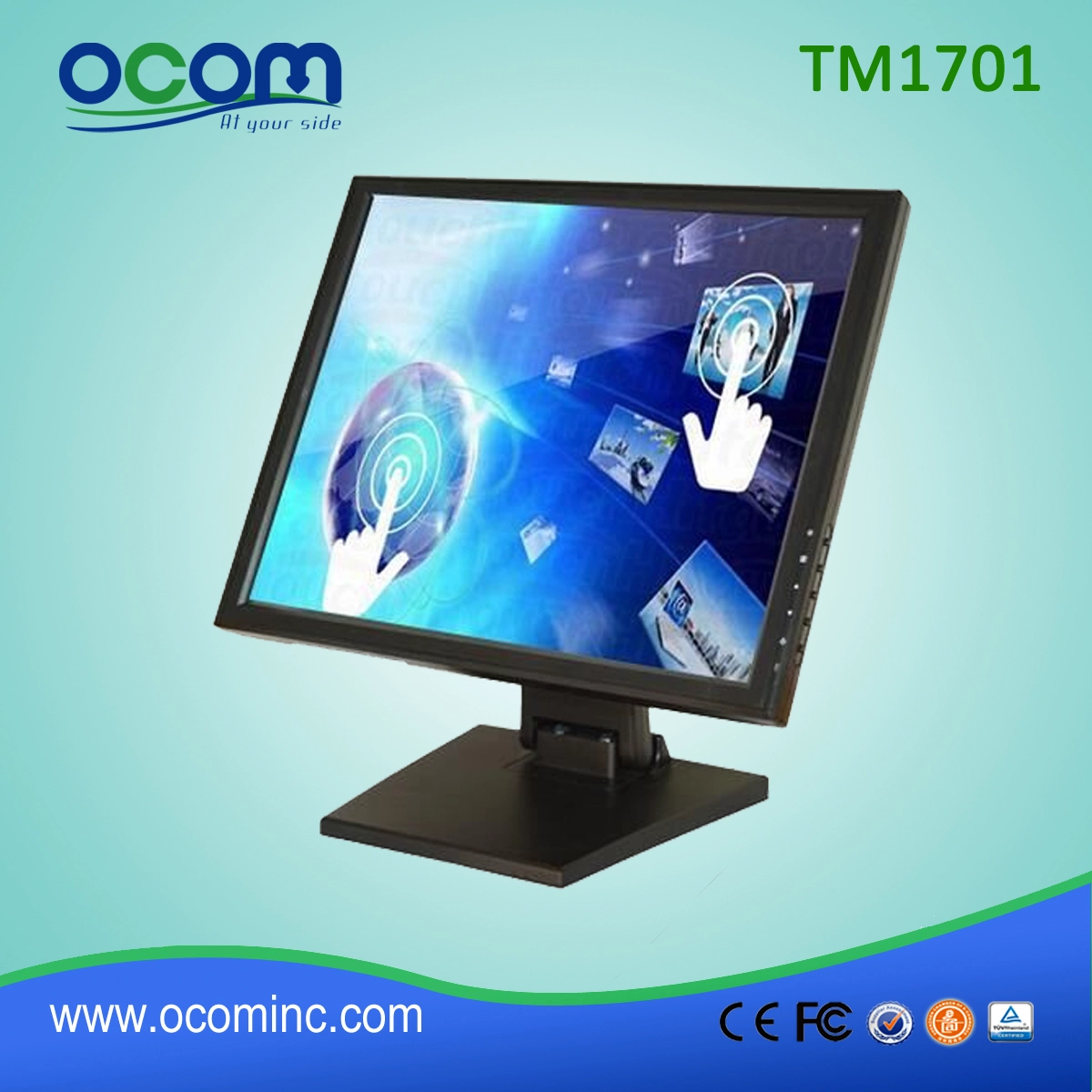

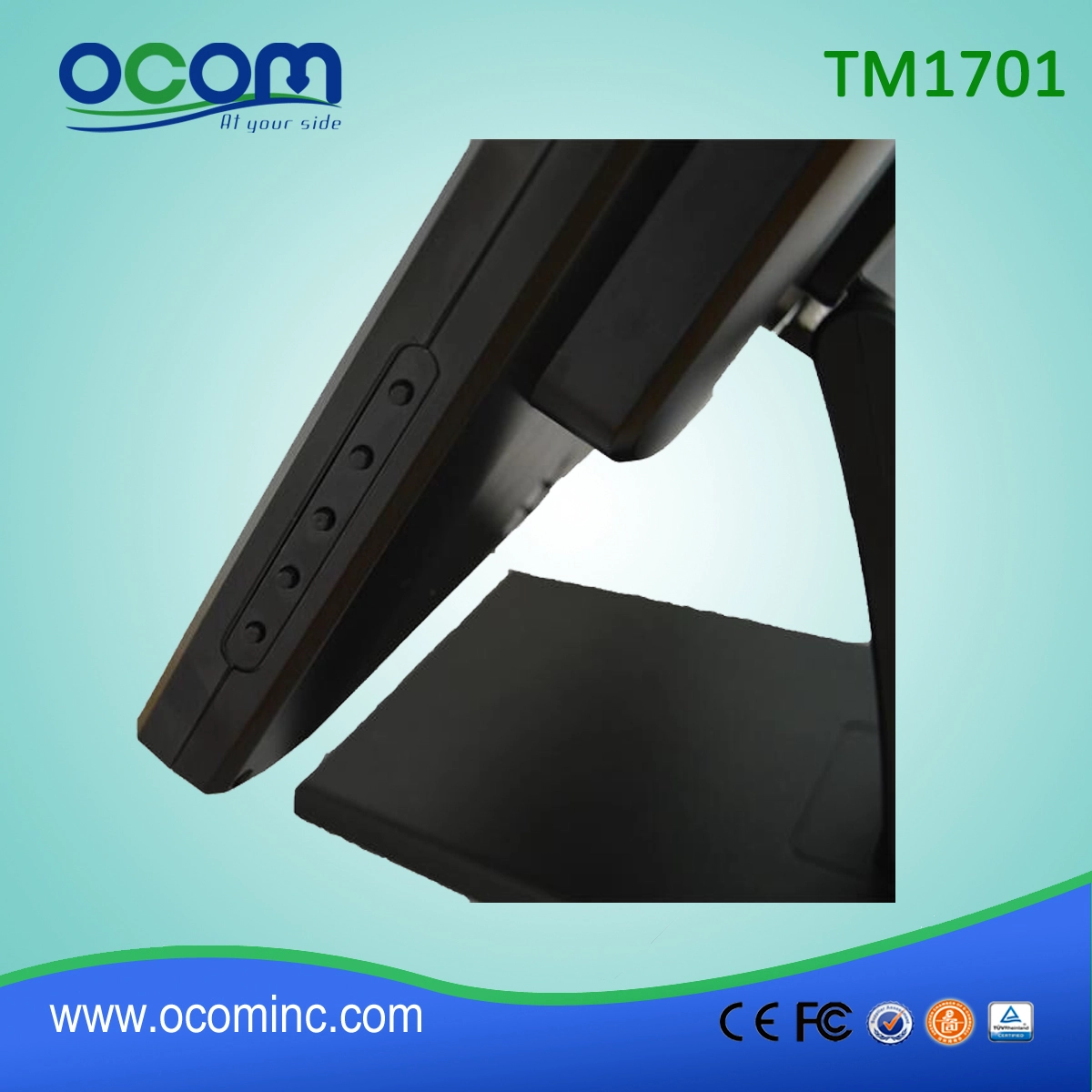

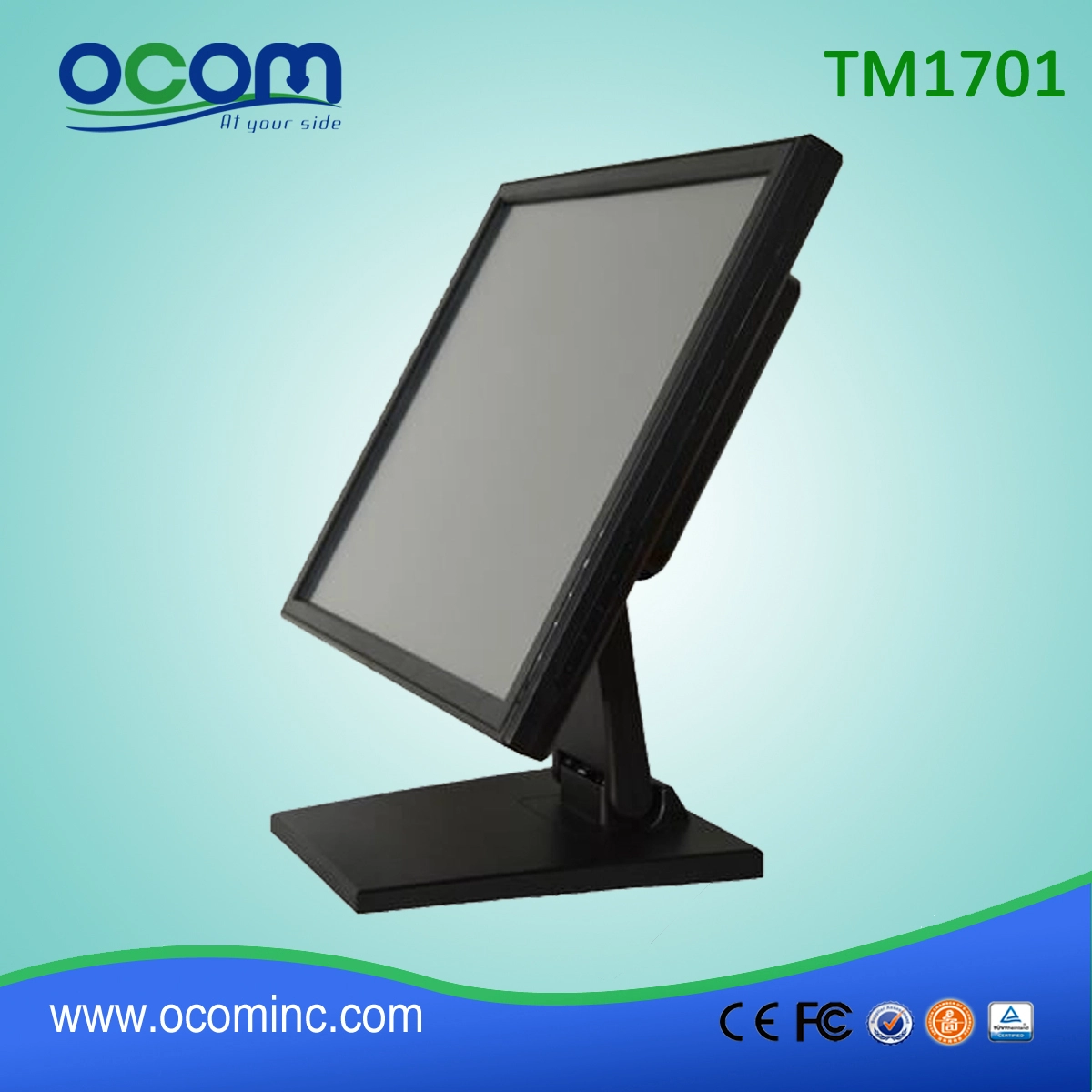

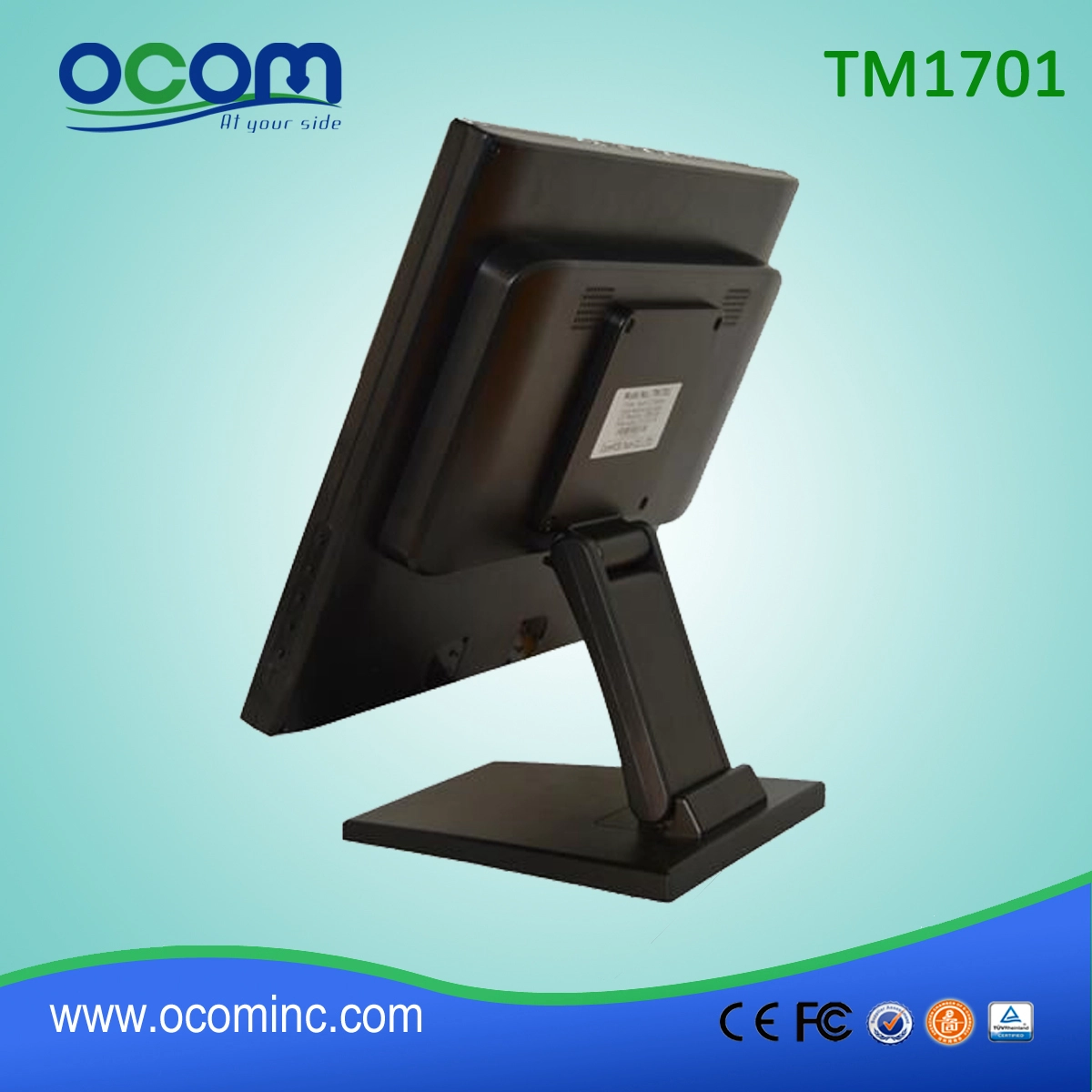

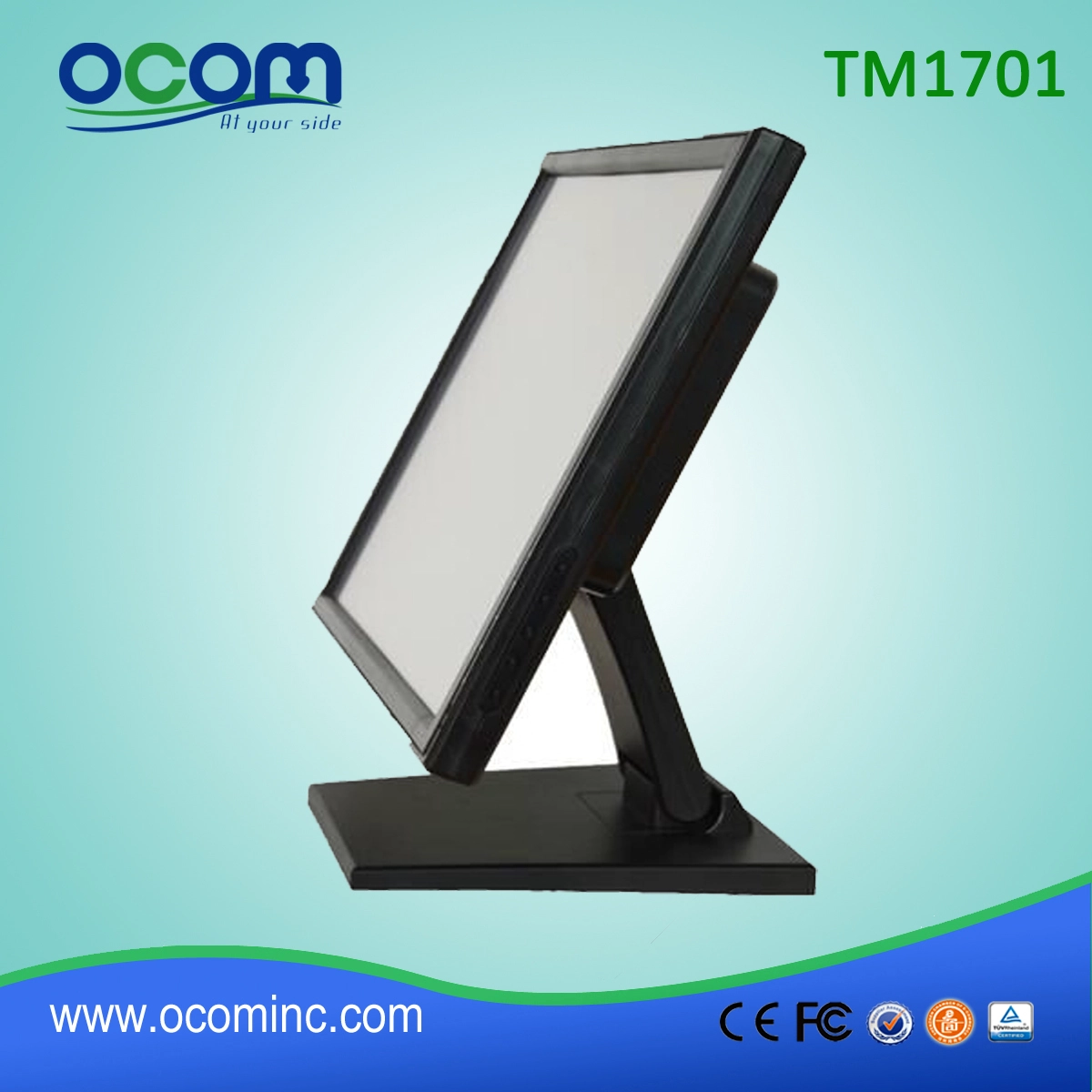

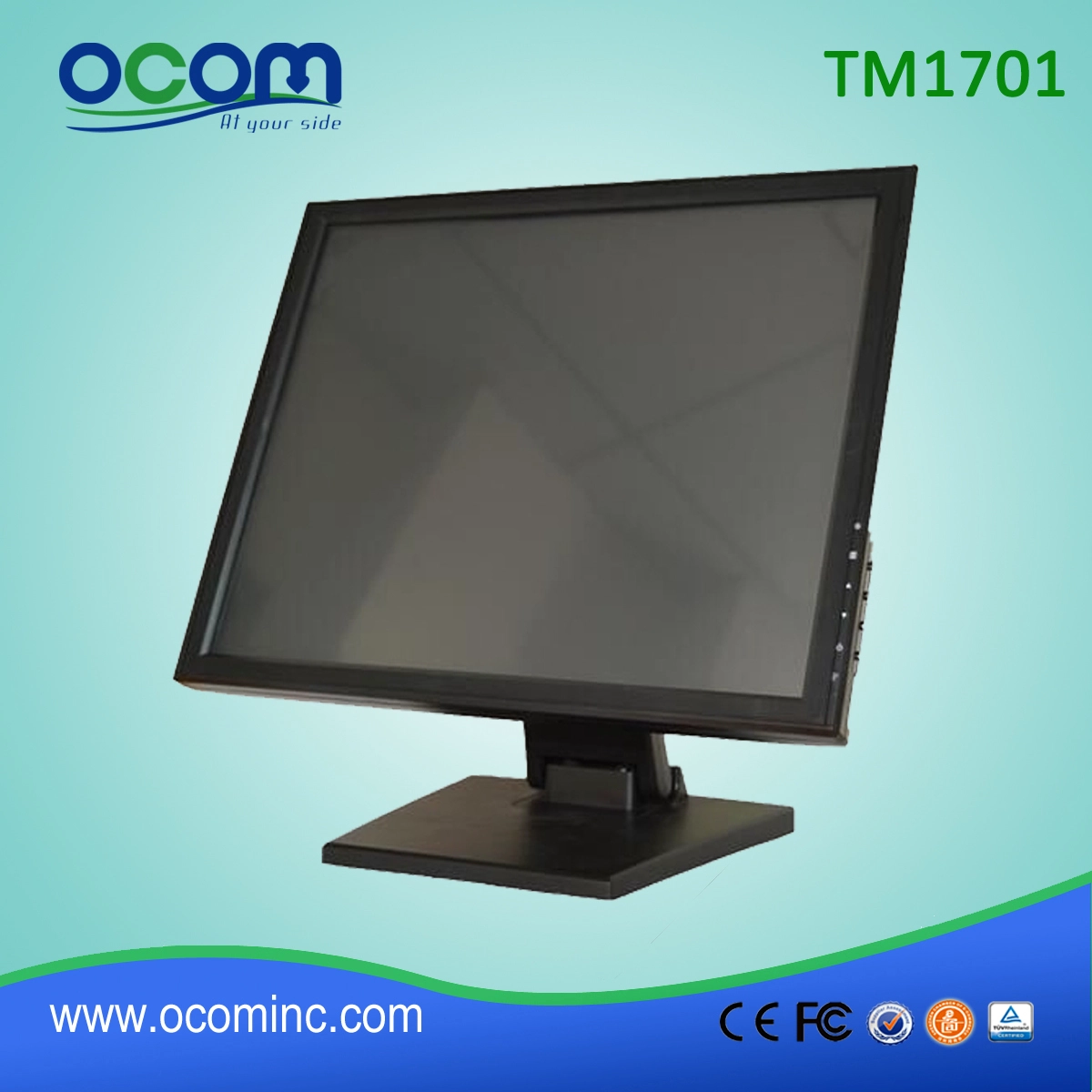

TM1701 17 Inch 5wire resistive LCD Display Monitor for POS System

  • High resolution: Support 1280*1024;
  • Grade A LCD panel;
  • Lifetime: 50 million touch
TM1701 17 Inch 5wire resistive LCD Display Monitor for POS System
(Model No: TM1701)

FEATURES:
*High resolution: Support 1280*1024;
*Grade A LCD panel;
*Lifetime: 50 million touch.

Specification:

LCD Screen Size

  17"

Aspect Ratio

  4:3

Resolution

  1280*1024

Pixel Pitch(mm)

   0.264

Active Area(mm)

  337.9*270.3

Number of  colors

  16.2M

Contrast Ratio

  700/1

Brightness

  300cd/m²

Viewing Angle

  150/135

Response Time

  8ms

Touch Panel

  17", 5-wire

Outside Dimension

  294.5mm*366mm

viewing area

  240mm*324mm

Active area

  240mm*324mm

Surface Hardness

  3H

Optical  Clarity

  80+%

Operating Temperature

  -10C ~60C

Endurance Test  strikes

  Over 10 millions

Operating Voltage

  DC5V

Resistance

  200Ω~900Ω

Linearity

  1.50%

Faceplate Surface

  Anti-glare coating, glare coating

Film Thickness

  0.175mm, 0.188mm

Glass Thickness

  0.7mm, 1.1mm,1.8mm

Operation Pressure

  20~150g

Storage Temperature

  -30~80 deg C

Message Noise

  5m sec ~ 15m sec

Operating Current

  5mA~25mA

Humidity

  <95%

Isolation Resistance

  20+MΩ@ DC25V

Sealable against

  dust ,water, oil , static
