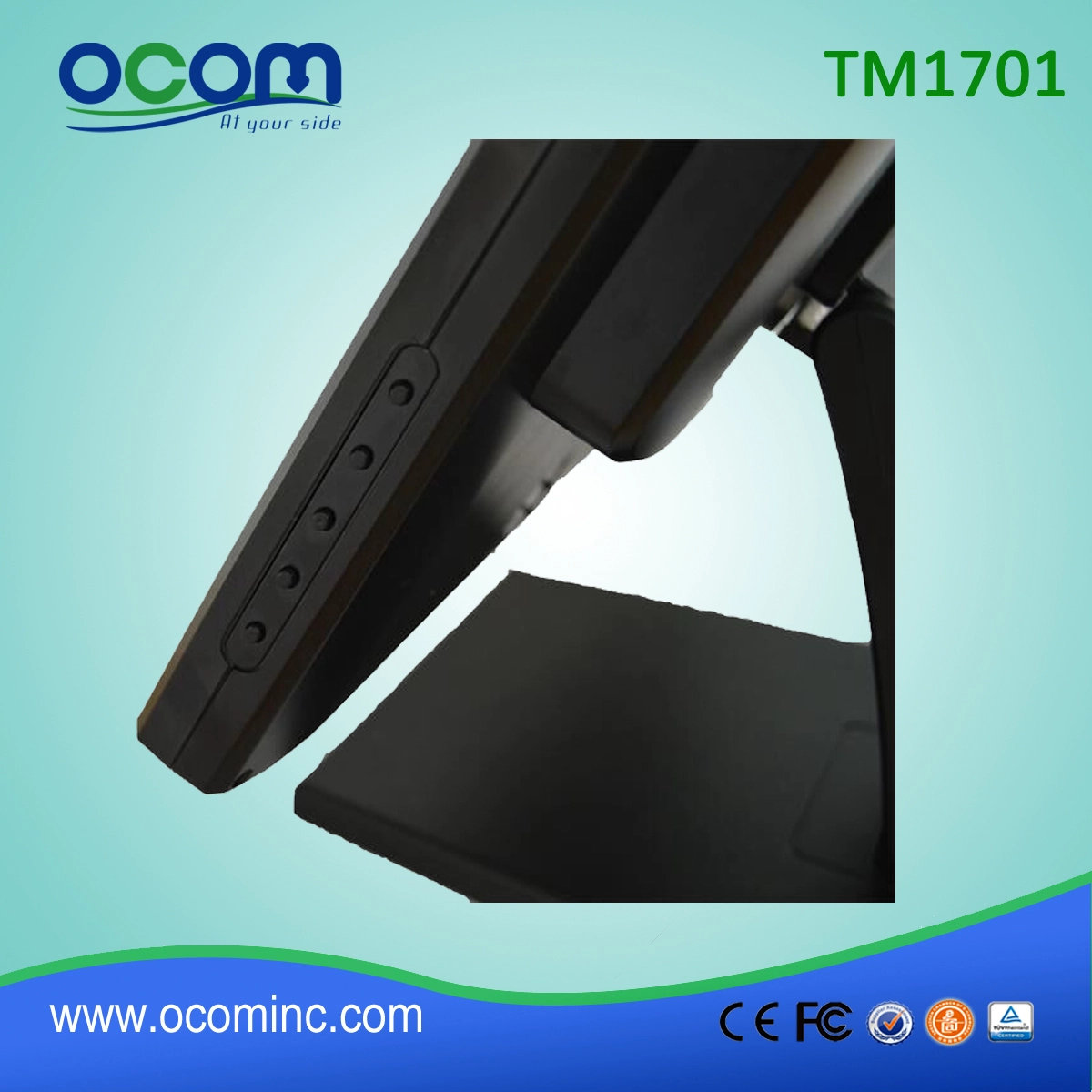

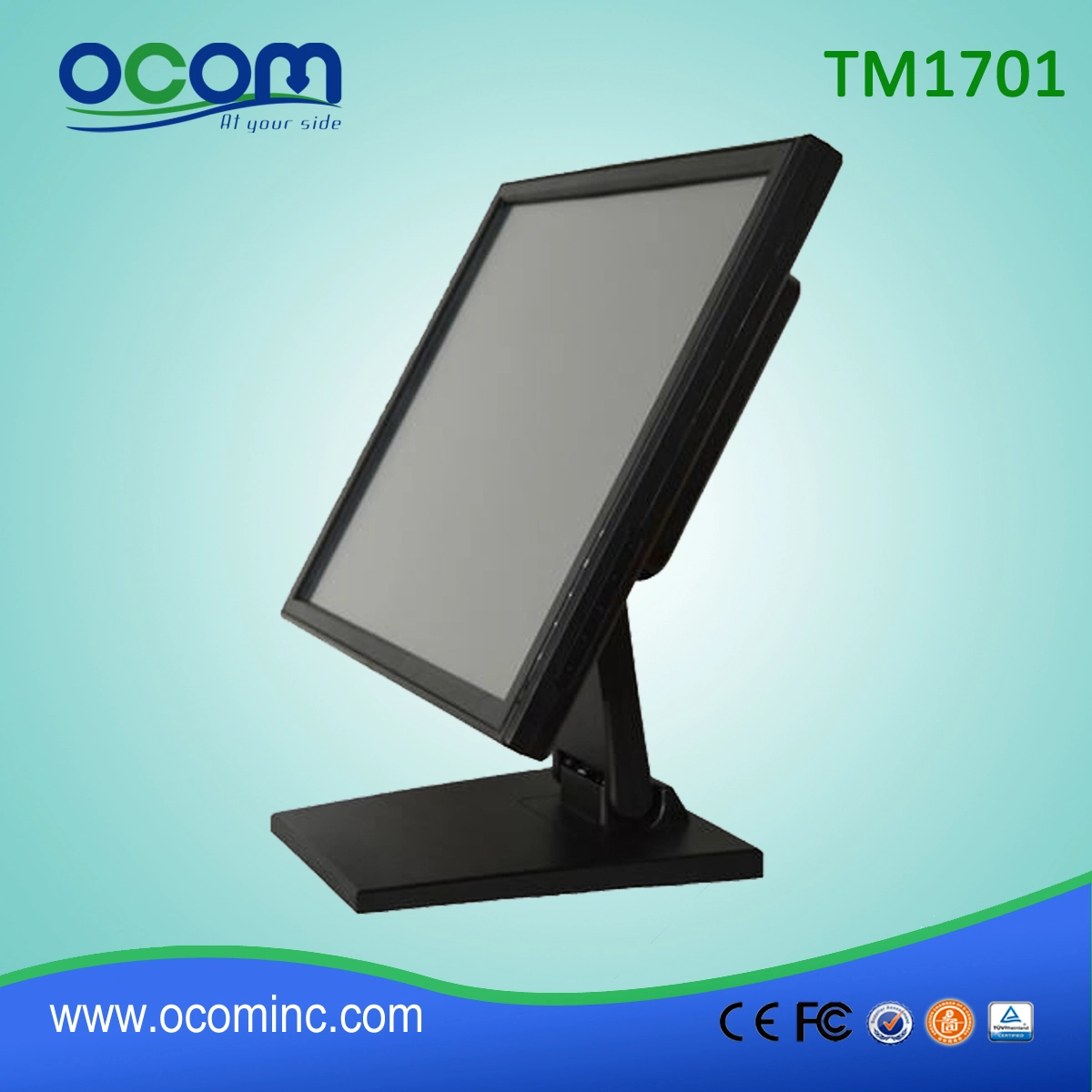

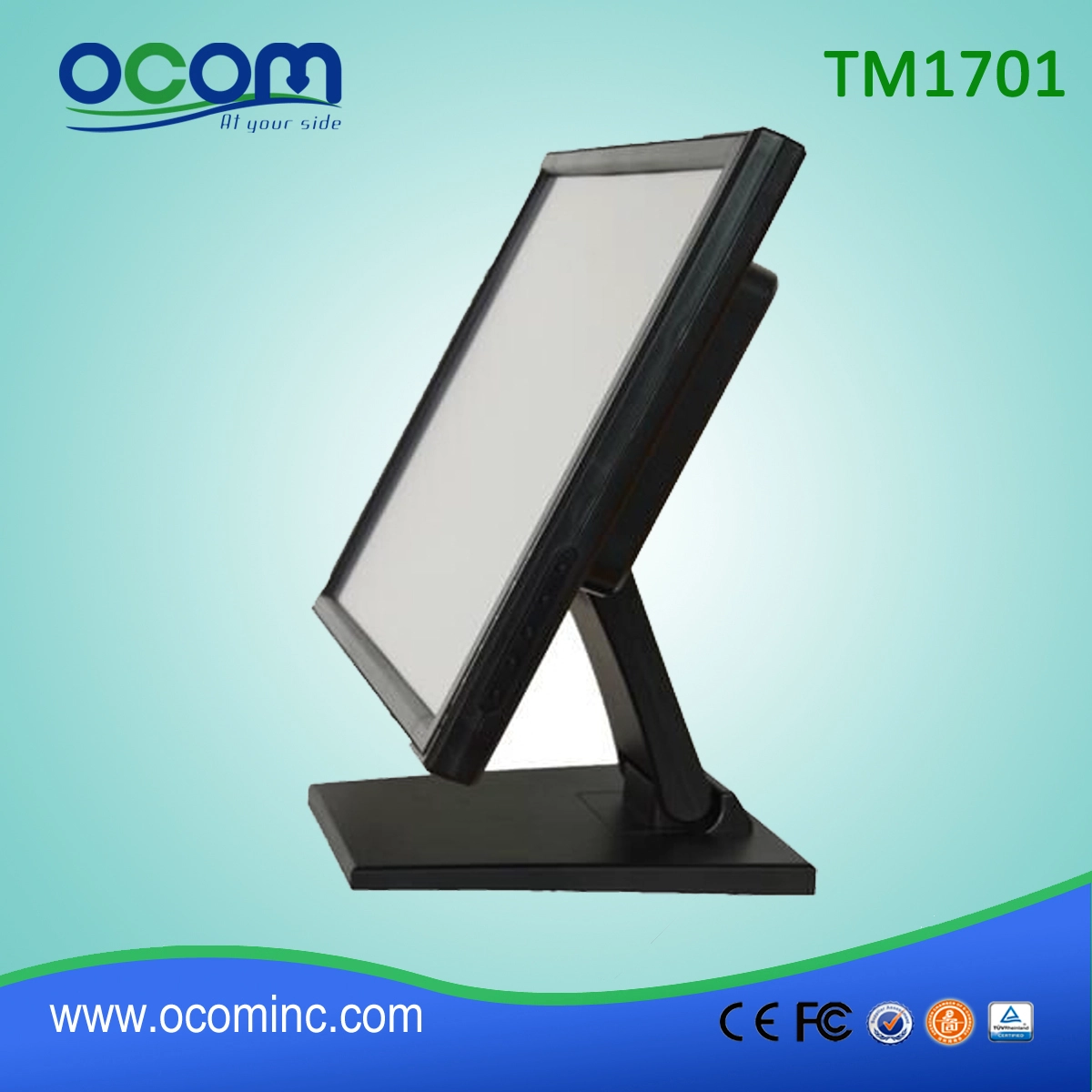

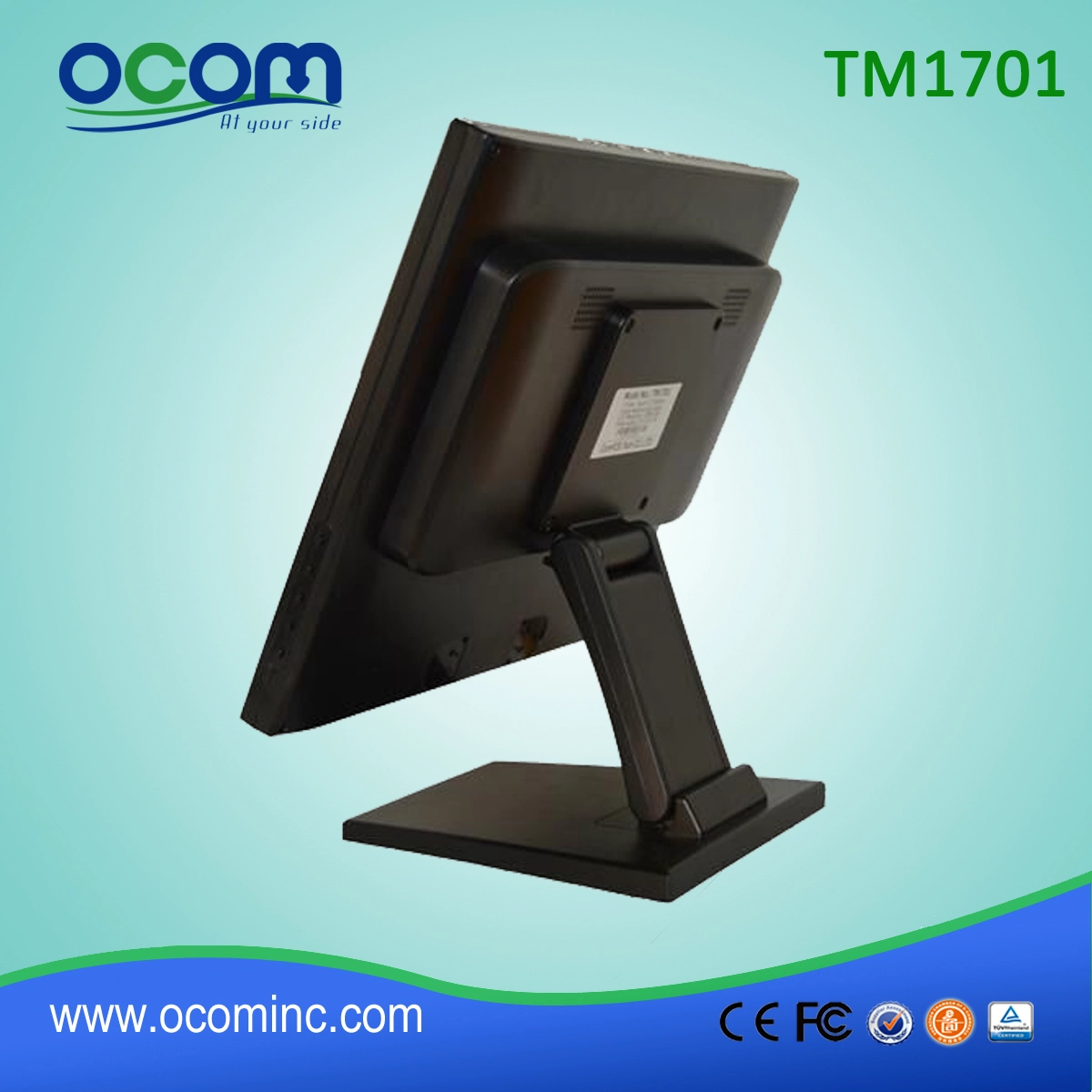

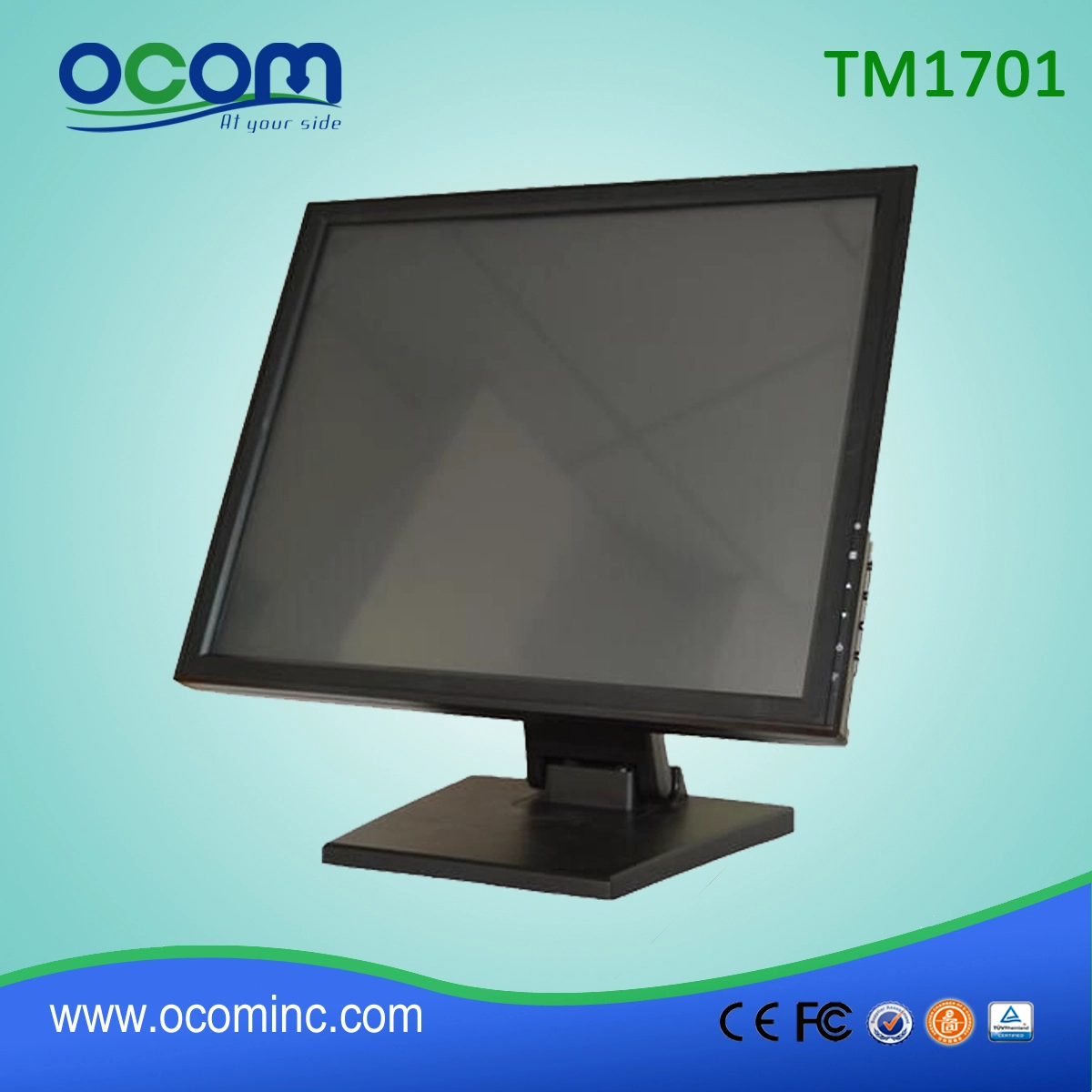

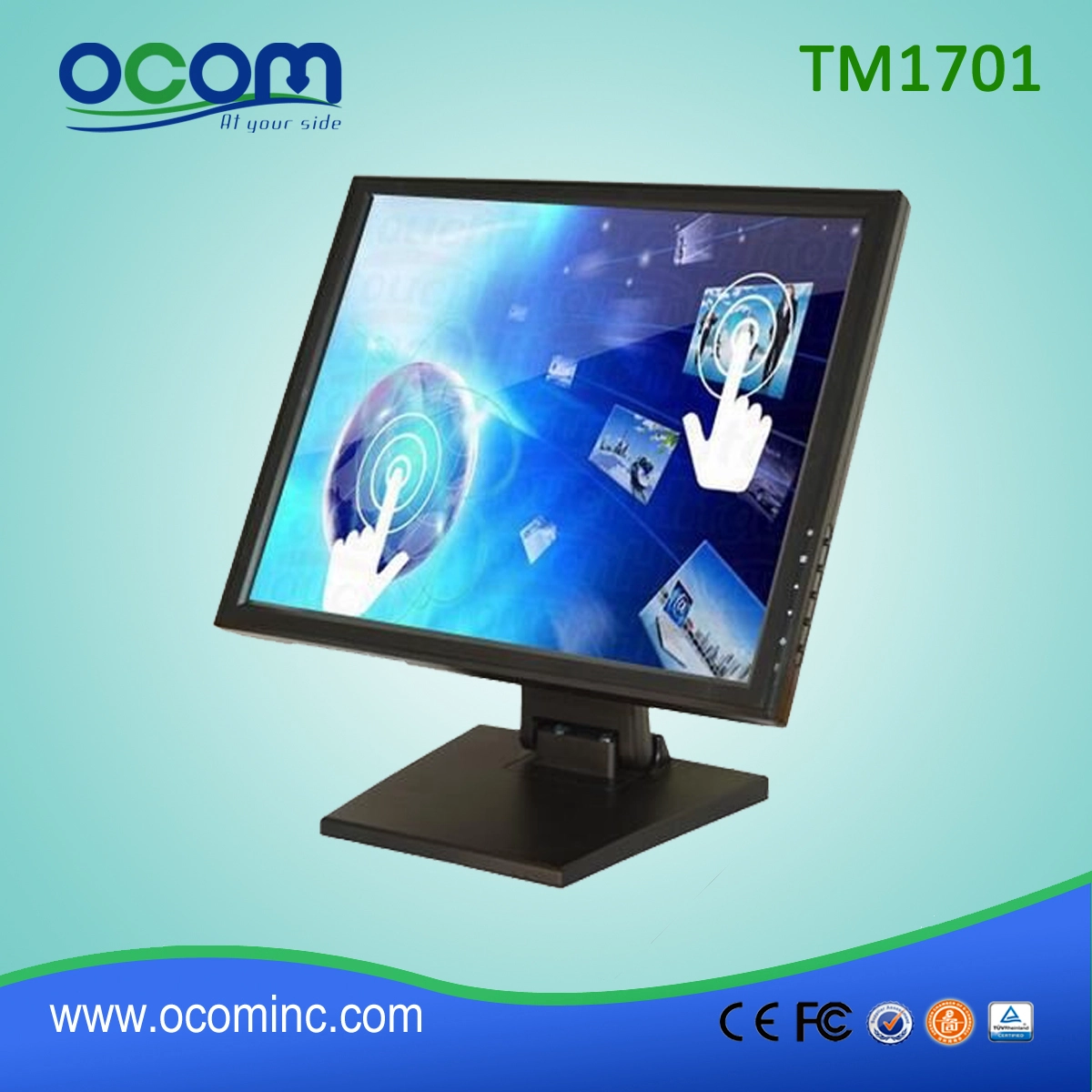

TM1701 China Touch Screen Vending Machine Desktop Monitor
- High resolution: Support 1280*1024;
- Grade A LCD panel;
- Lifetime: 50 million touch
(Model No: TM1701)
FEATURES:
*High resolution: Support 1280*1024;*Grade A LCD panel;*Lifetime: 50 million touch.
LCD Screen Size
17"
Aspect Ratio
4:3
Resolution
1280*1024
Pixel Pitch(mm)
0.264
Active Area(mm)
337.9*270.3
Number of colors
16.2M
Contrast Ratio
700/1
Brightness
300cd/m²
Viewing Angle
150/135
Response Time
8ms
Touch Panel
17", 5-wire
Outside Dimension
294.5mm*366mm
viewing area
240mm*324mm
Active area
240mm*324mm
Surface Hardness
3H
Optical Clarity
80+%
Operating Temperature
-10C ~60C
Endurance Test strikes
Over 10 millions
Operating Voltage
DC5V
Resistance
200Ω~900Ω
Linearity
1.50%
Faceplate Surface
Anti-glare coating, glare coating
Film Thickness
0.175mm, 0.188mm
Glass Thickness
0.7mm, 1.1mm,1.8mm
Operation Pressure
20~150g
Storage Temperature
-30~80 deg C
Message Noise
5m sec ~ 15m sec
Operating Current
5mA~25mA
Humidity
<95%
Isolation Resistance
20+MΩ@ DC25V
Sealable against
dust ,water, oil , static
