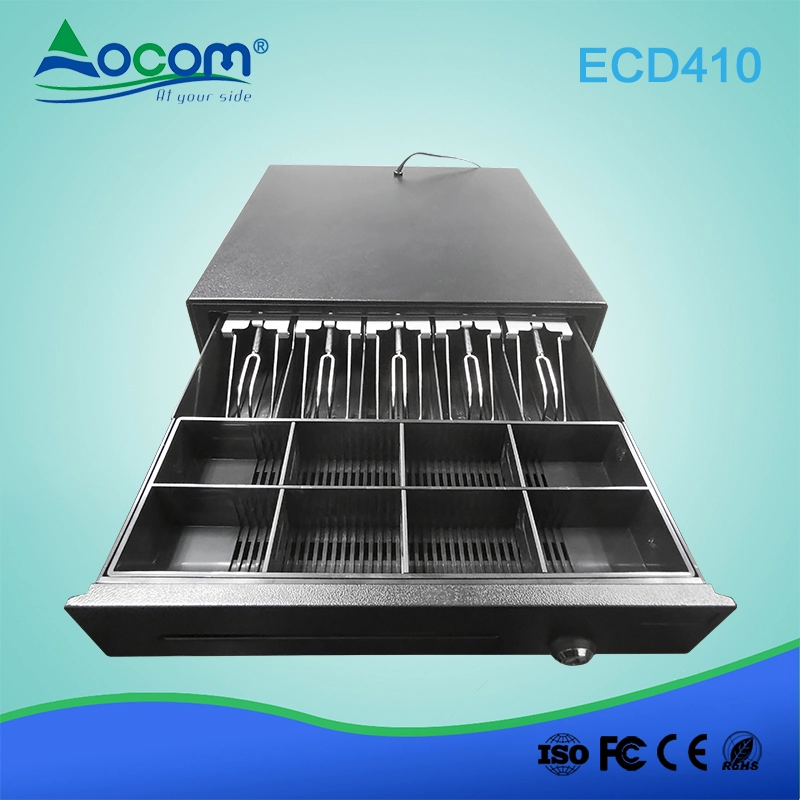

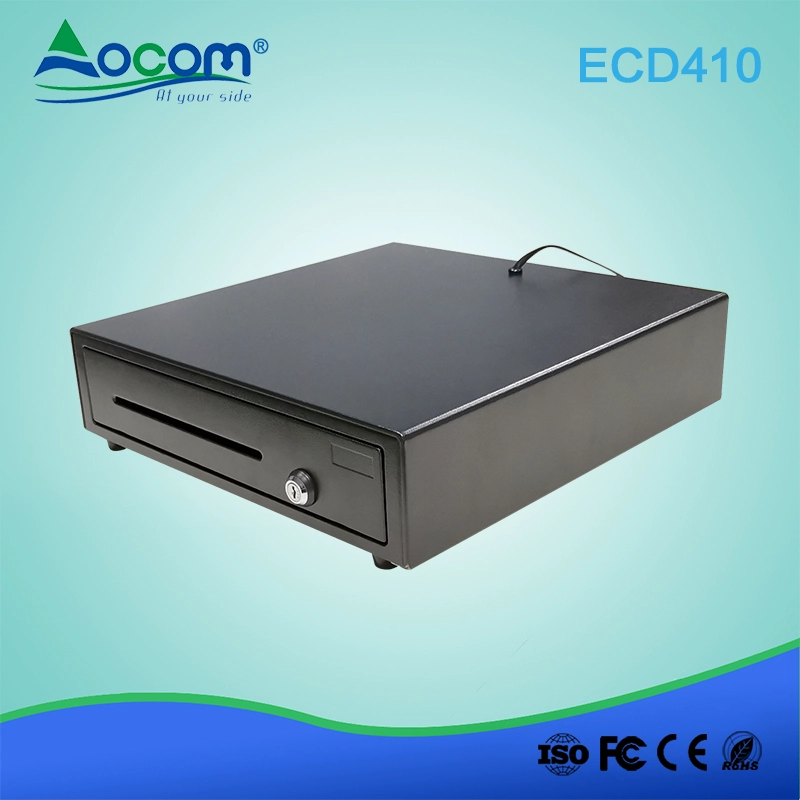

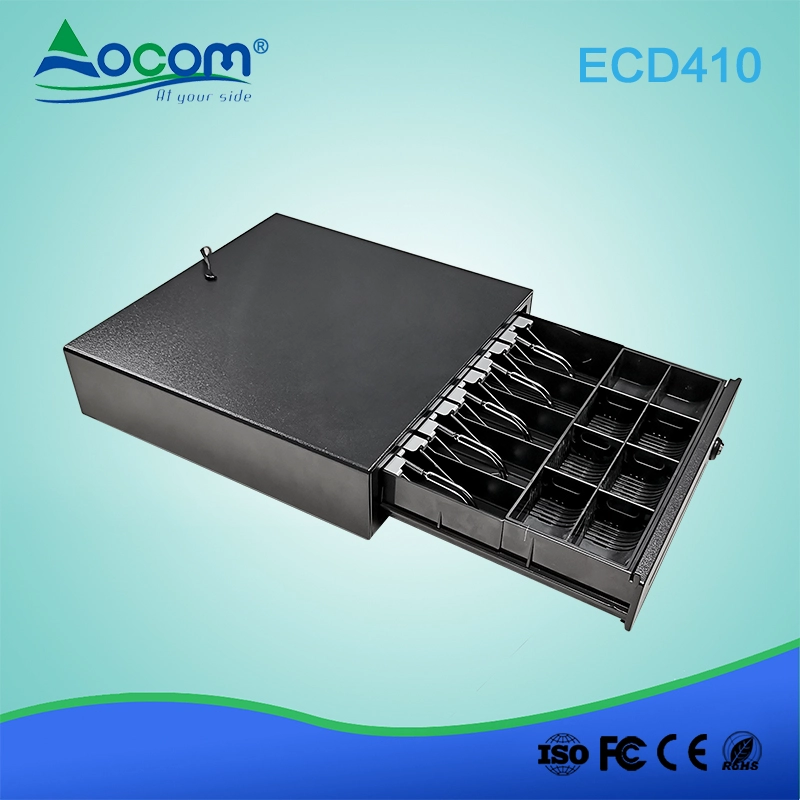

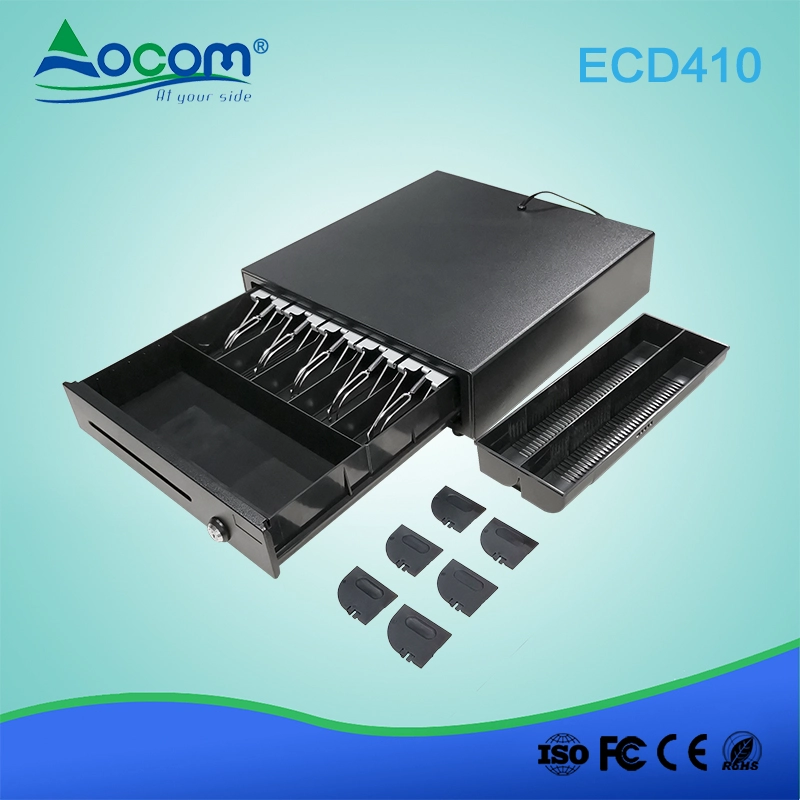

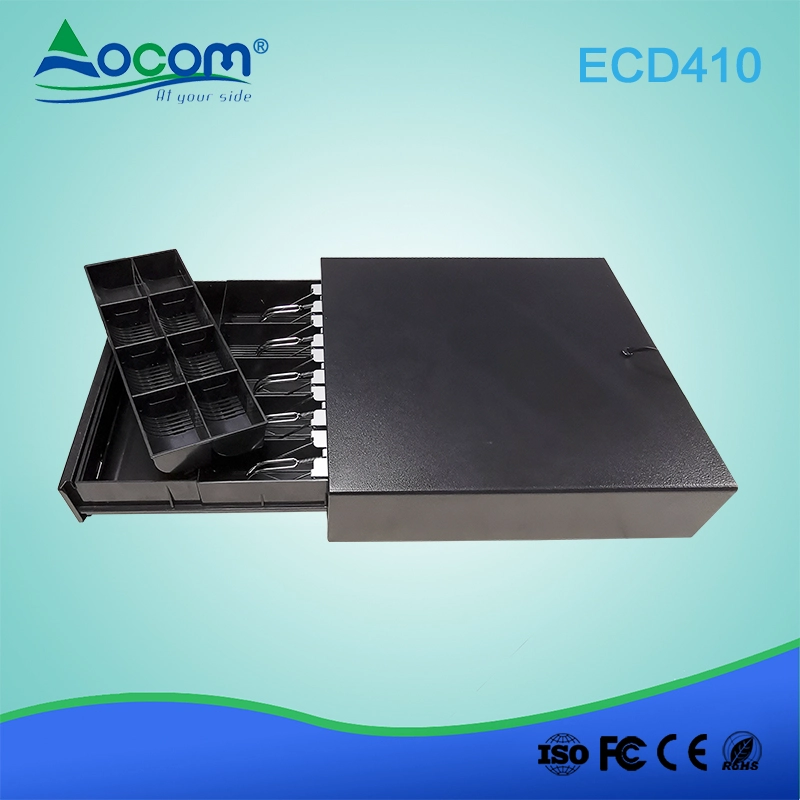

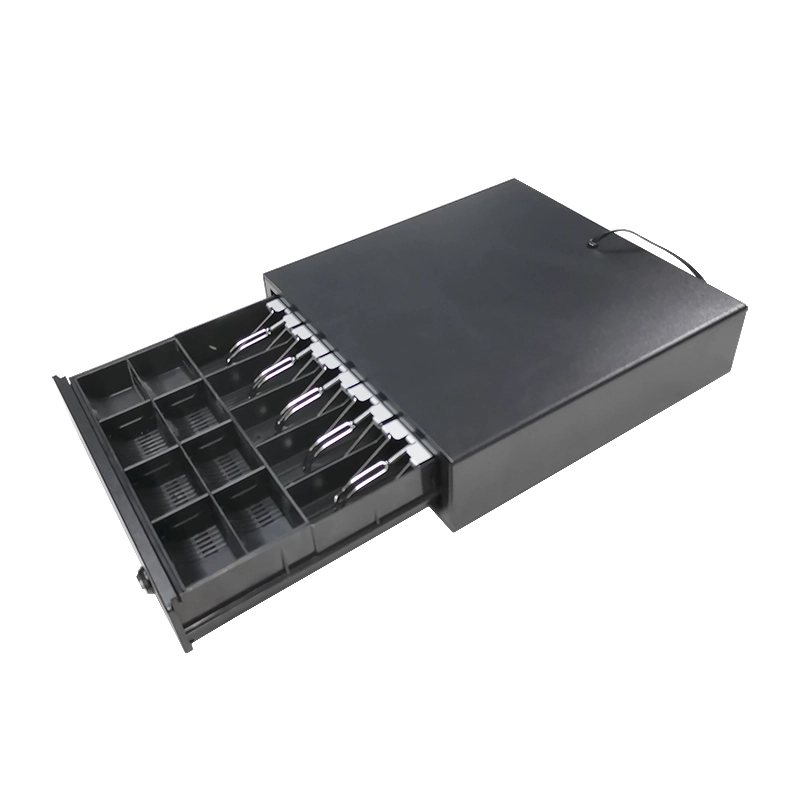

    (ECD410) 410mm width Electrical Metal Cash Drawer

    • 4 or 5 adjustable Bill holders and 8 removable Coins holders
    • All Steel Construction and Textured hybrid powder coat
    • 12V or 24V for option
    • Optional Micro-switch Sensor
    • 3-position locks
    • Manual open available



    Three Position Manual Metal Cash Drawer

     (Model No.: ECD 410)


    Features:

    4 or 5 adjustable Bill holders and 8 removable Coins holders;

    All Steel Construction and Textured hybrid powder coat;

    12V or 24V for option;

    Optional Micro-switch Sensor;

    3-position locks;

    Manual open available;



    Specifications:

    Material

    Flip top: 0.8mm SPCC powder spray the surface of cold rolled plate

    Bottom: 1.0mm SECC fingerprint-resistant plate

    Bill tray

    Four position width: 85/84/84/85mm

    Five position width:68/67/67/67/68mm

    Length:193mm; Depth: 59mm

    Coin tray

    8 removable position  width: 82;    Length: 57;  Depth: 46

    lock

    3 locks

    Power

    12V / 24V for option

    Lifetime

    Tested to minimum one million cycles

    Interface

    RJ11, RS232 (Optional)

    Color

    Black or White

    weight

    6.1 kg (net), 6.8 kg (gross)

    Dimensions

    410(W) x 415(L) x 100mm(H) (with feet of 10mm)
