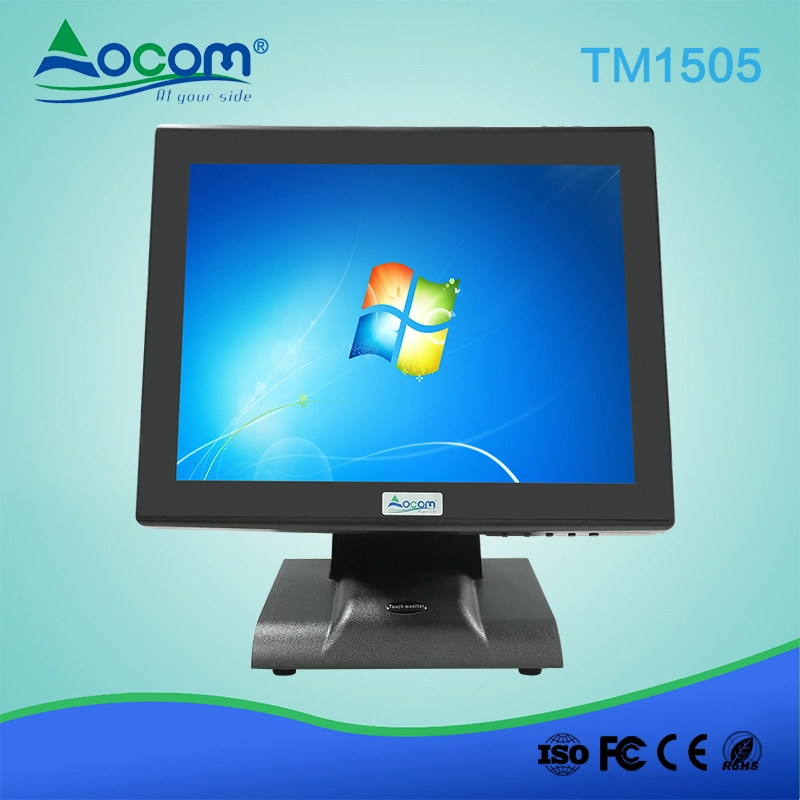

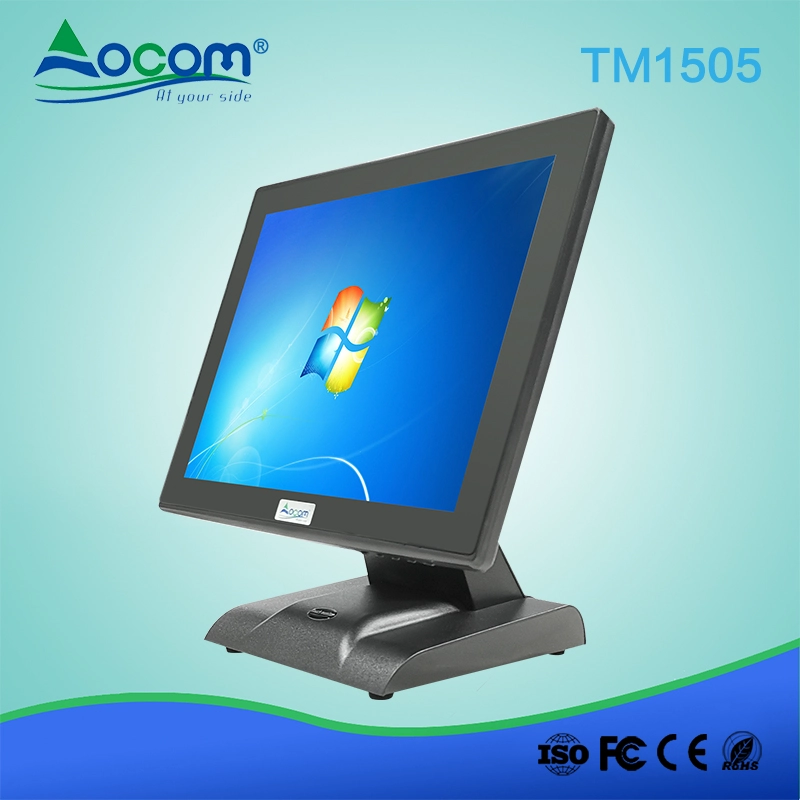

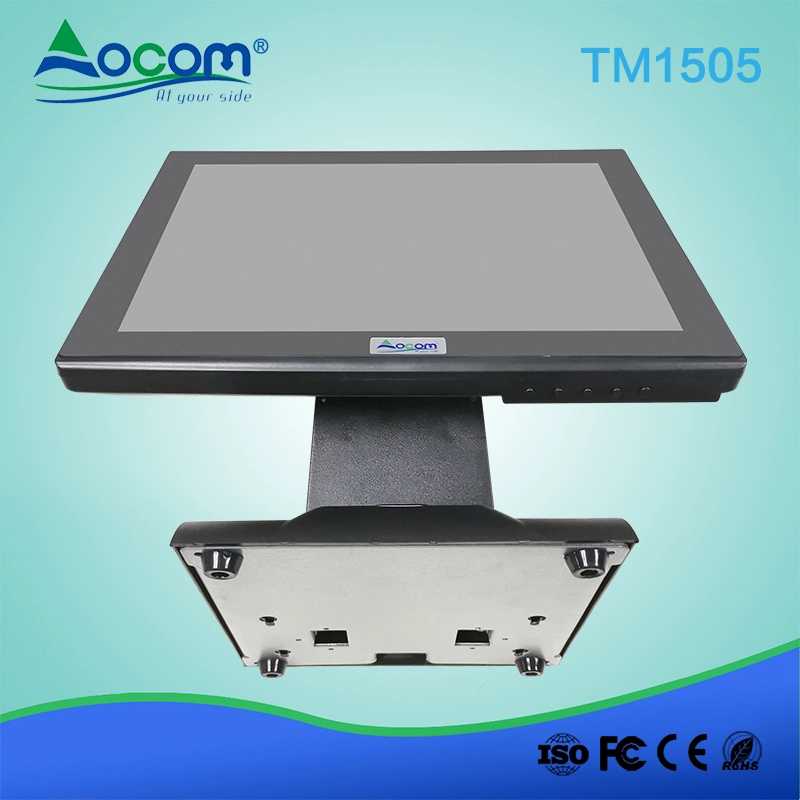

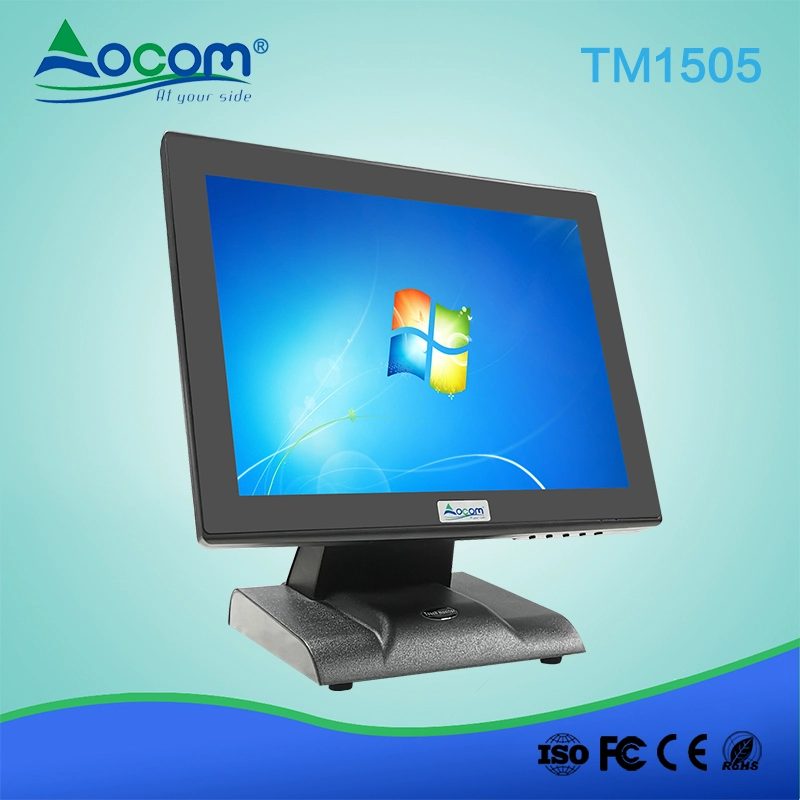

USB 15 Inch POS Capacitive Touch Screen Monitor

  • High resolution: Support 1024*768;
  • Grade A LCD panel;
  • Capacitive or resistive screen for optional;
  • Lifetime: 50 million touch;
  • Sturdy base for adjusting the screen elevation angle.

USB 15 Inch POS Capacitive Touch Screen Monitor

Model No: TM1505

FEATURES:

l High resolution: Support 1024*768;

l Grade A LCD panel;

l Capacitive or resistive screen for optional;

l Lifetime: 50 million touch;

l Sturdy base for adjusting the screen elevation angle.

SPECIFICATION:

LCD Screen Size

15"

Aspect Ratio

4:3

Resolution

1024×768

Pixel Pitch(mm)

0.297

Number of colors

16.2M

Contrast Ratio

700/1

Brightness

400cd/m²

Response Time

8ms

Touch Panel

15" capacitive or resistive screen for optional

Interface

VGA for monitor,USB for touch screen

Power

12V DC 3A

Operating Temperature

-10C ~60C

Endurance Test strikes

Over 10millions

Linearity

1.50%

Film Thickness

0.175mm, 0.188mm

Glass Thickness

0.7mm, 1.1mm,1.8mm

Humidity

<95%
