USB Barcode Label Printer--OCBP-005USB Barcode Label Printer--OCBP-005USB Barcode Label Printer--OCBP-005USB Barcode Label Printer--OCBP-005USB Barcode Label Printer--OCBP-005

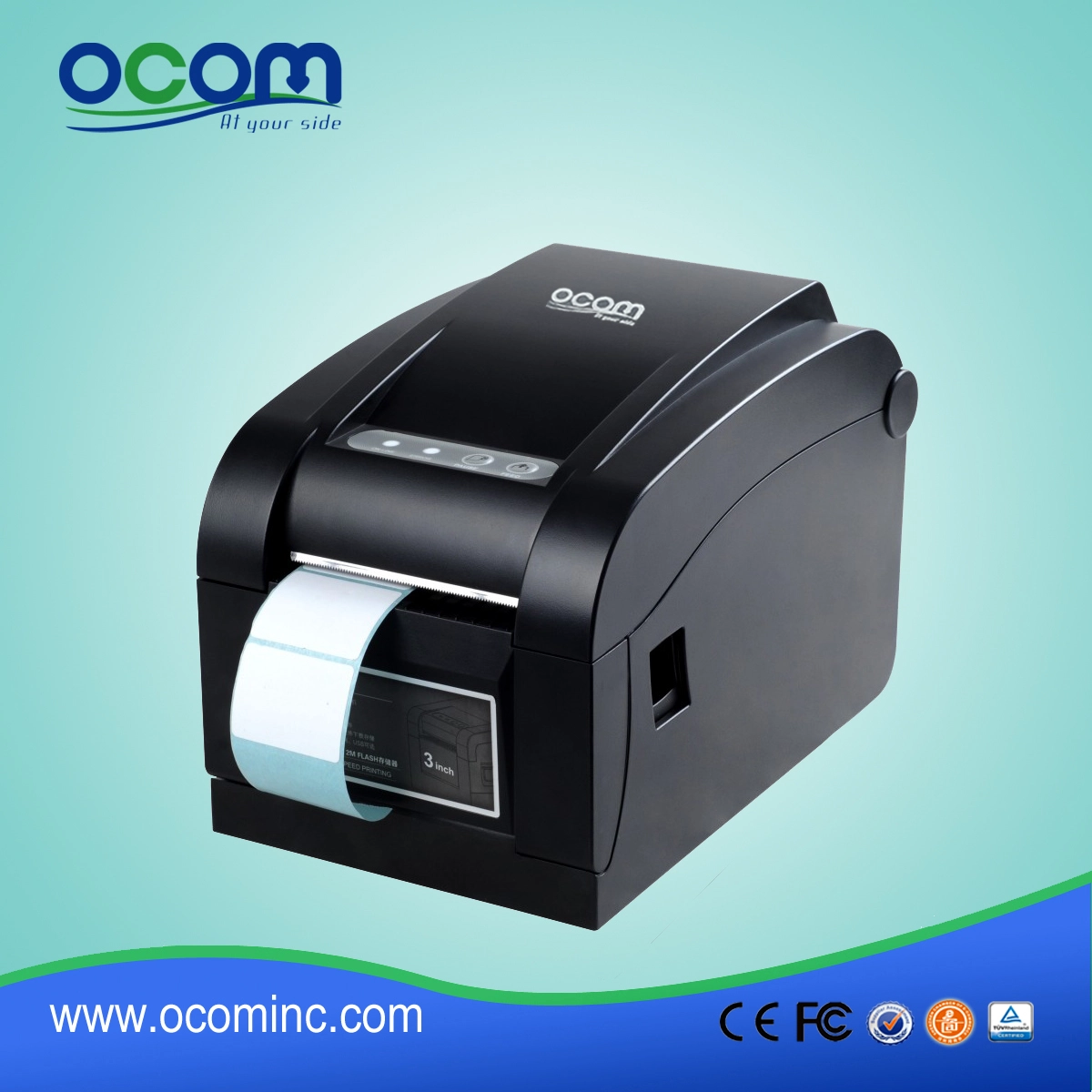

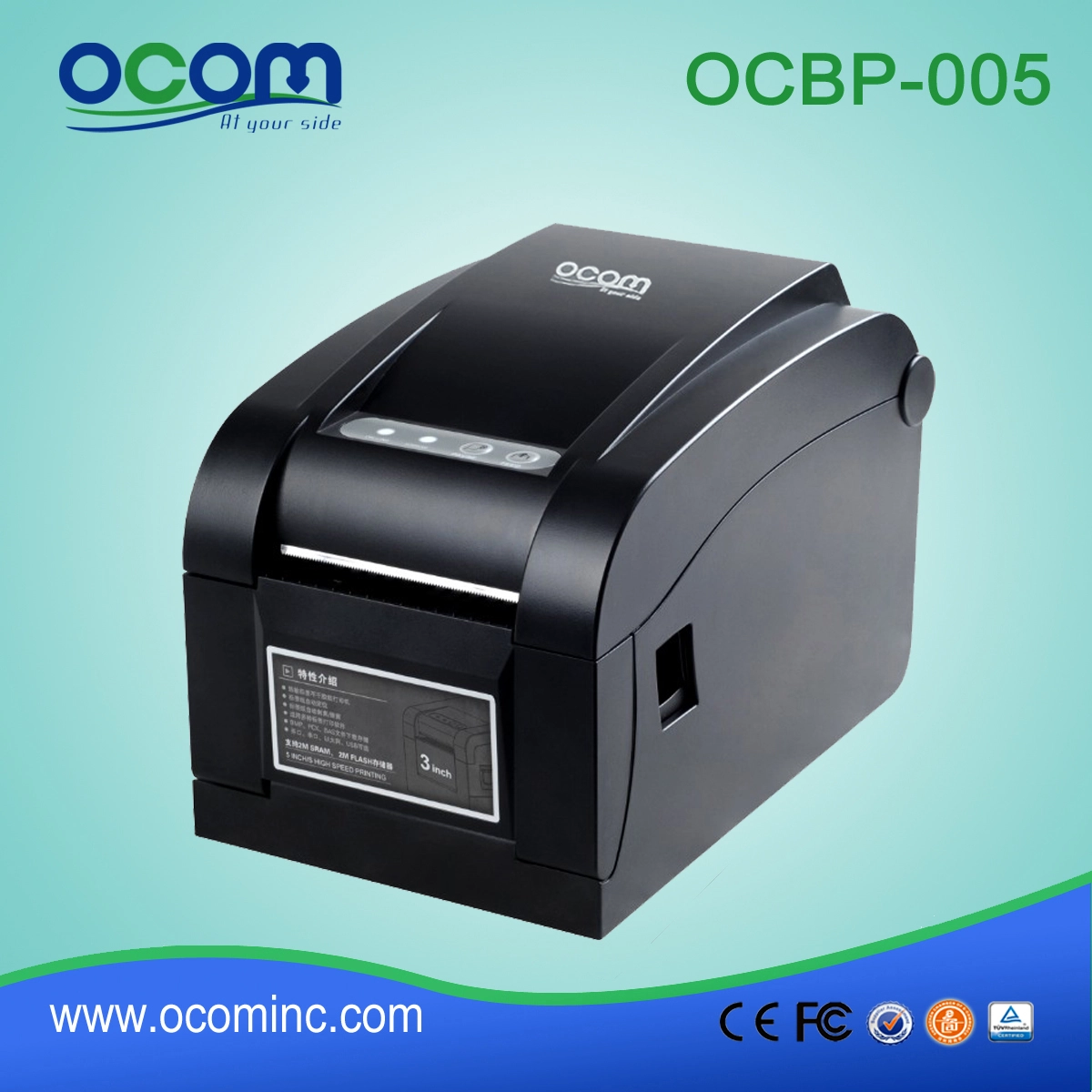

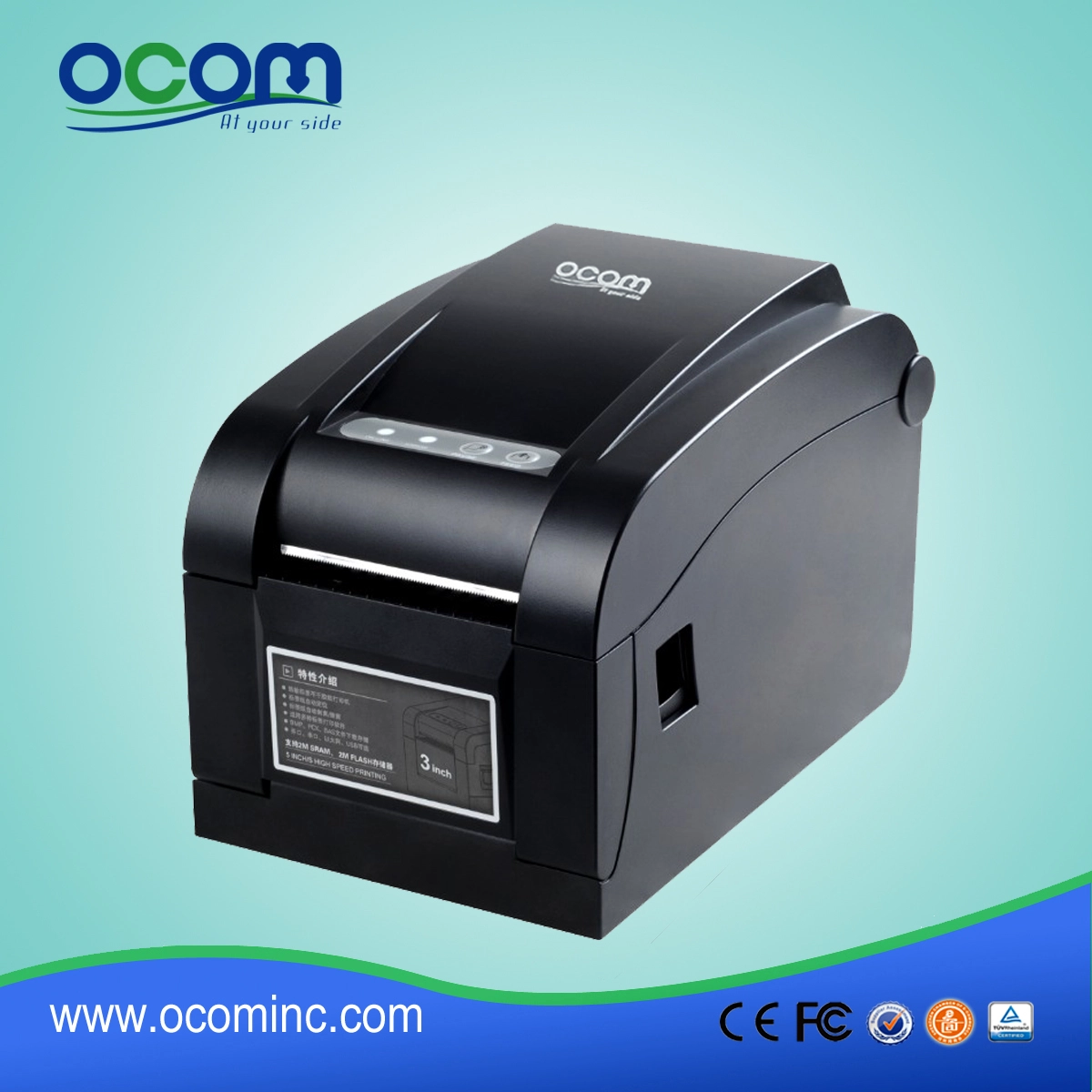

USB Barcode Label Printer--OCBP-005

  • Automatic label placement;
  • Tags fall off, tear off;
  • Adjust the print head pressure;
  • Compatible with most label software;
  • BMP, PCX, BAC picture download store;
  • Supports serial, USB, LAN;
  • Support PDF417, QR Code, DOTMATRIX;

USB Barcode Label Printer

(Model: OCBP-005)

Specifications:

Printer Model

OCBP-005

Resolution

203 DPI (8 dots / mm)

Printing Method

Direct Thermal

Head temperature sensor

Thermal varistor

Head position sensor

Micro Switch

Paper detection

Photoelectric sensors

Print speed

127 Mm / sec (max); 50.8mm/sec (minutes)

Print width

16 Mm to 82 mm

Media

Media Type: roll, stickers, labels fold, and so on.

Media Diameter: inner diameter: 25 mm; diameter: 80 mm

Internal Font

Typeface 0 FONT 8; commonly used in single-byte fonts

Enlarge & Rotary

1-10 fold amplification in multiple directions; 0 degrees, 90 degrees, 180 degrees, 270 degrees, 360 degrees rotation

Off the paper type

Tear & peeling

Memory Cards

2MB FLASH ROM, 2MB of DRAM


Monochrome PCX, BMP image files can be loaded into FLASH, DRAM

Barcode

CODE128, EAN128, ITF, Code39, Code93, EAN13, EAN13 +2, EAN13 +5, EAN8, EAN8 +2, EAN8 +5, CODABAR, POSTNET, UPC-A, UPCA +2, UPCA +5, UPC-E, UPCE +2, UPCE +5, CPOST, MSI, MSIC, PLESSEY, ITF14, EAN14, PDF417, QR CODE, DATMATRIX

Interface

USB + RS232 + LAN or USB

Power

Input: 24VDC, 2.5A

Environment

Operating temperature: 5 degrees C to 45 degrees C

Storage temperature: -40 degrees C to 55 degrees C

Operating Humidity: 20% ~ 80%, non-condensing, free air

Storage humidity: <= 93% (40 ℃), non-condensing, free air

Size

Size: D220mm * H148mm * W150mm


Product Details:


Relevant documents:

Do you want to know more information you?PleaseClick here.
