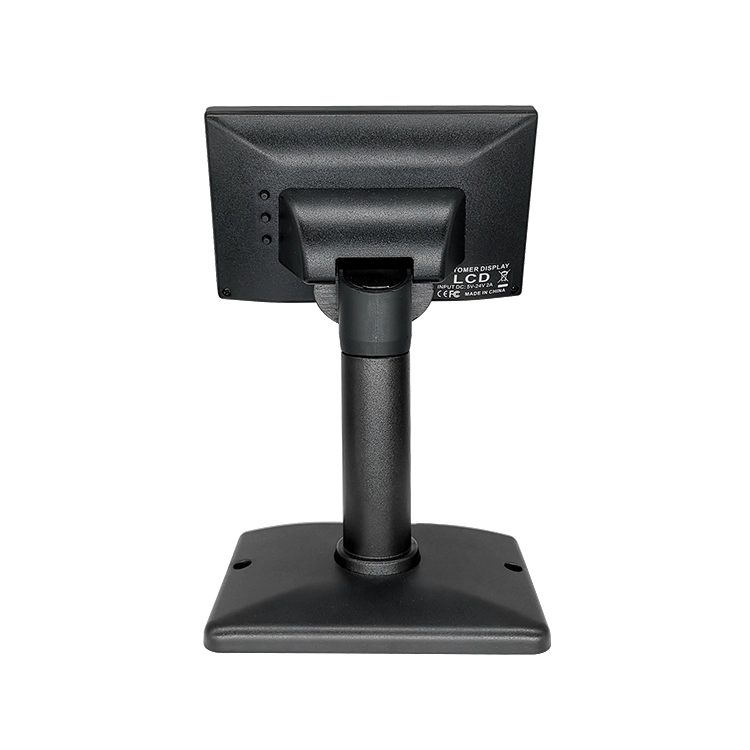

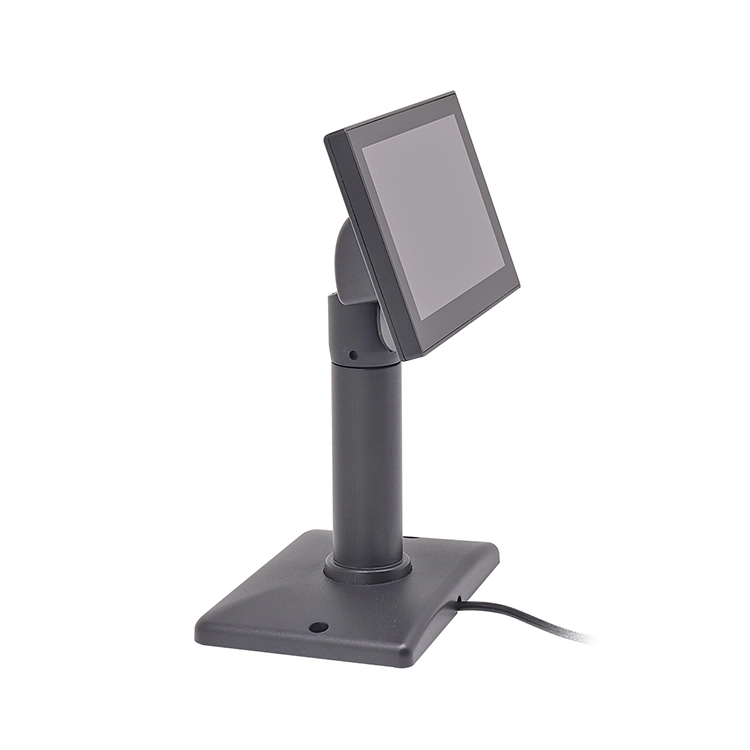

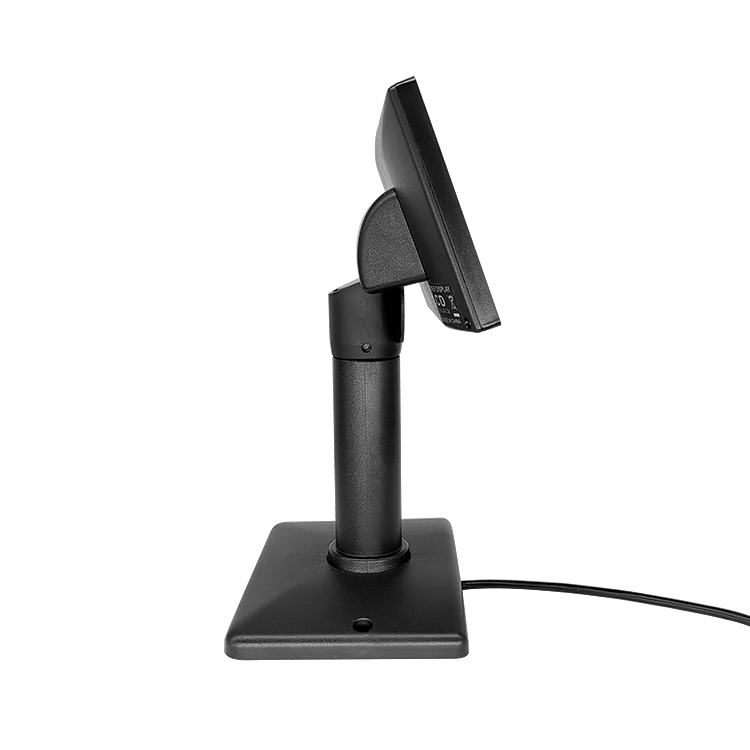

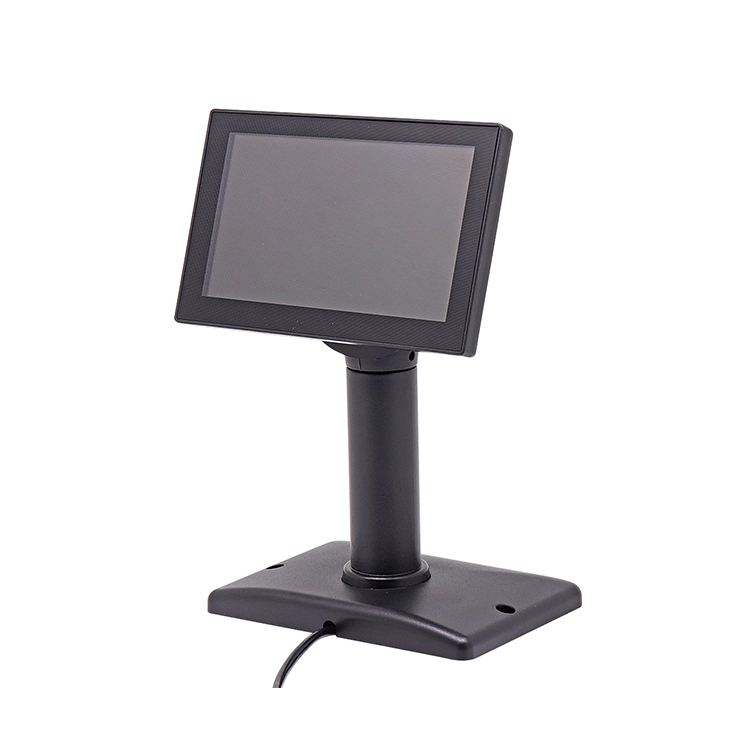

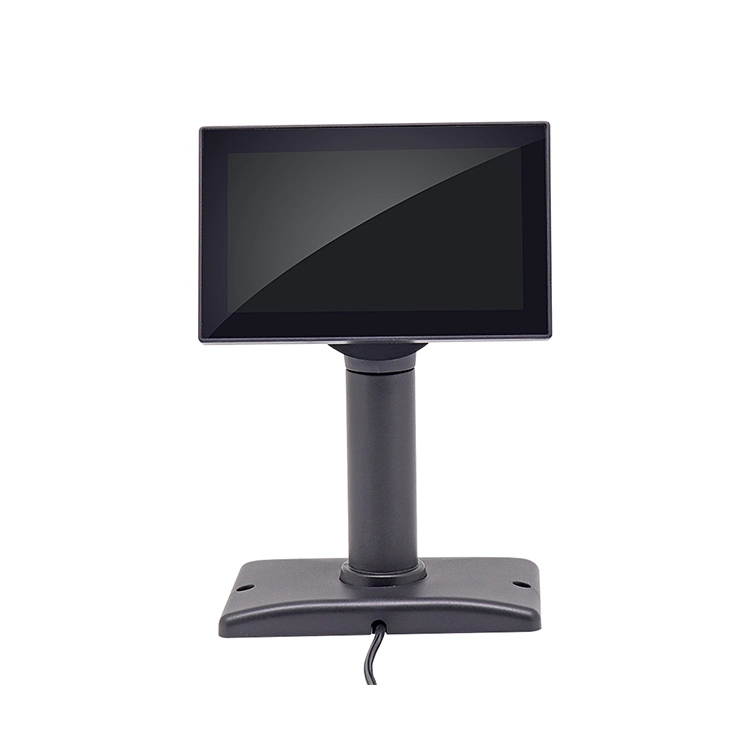

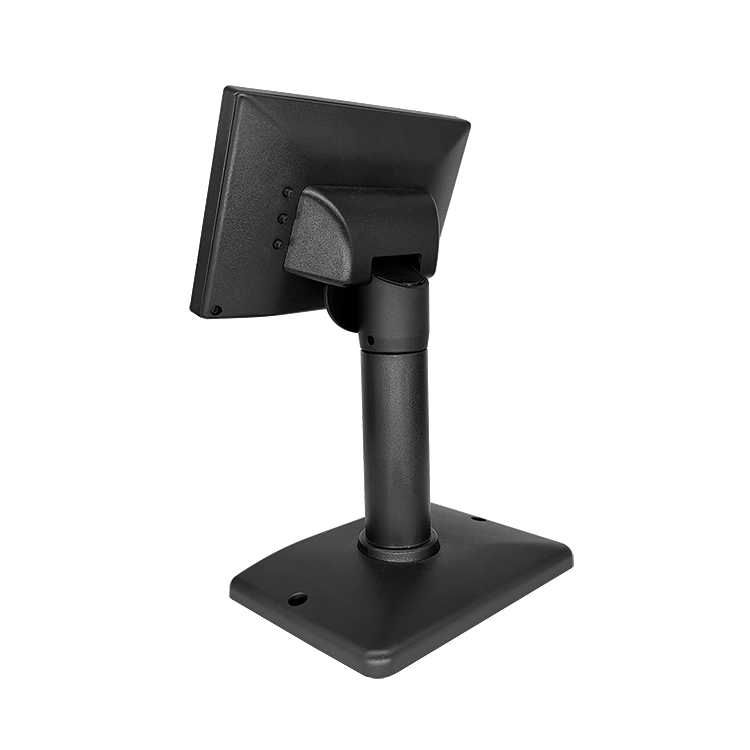

USB Power 5 Inch 4 lines LCD customer display pole for supermarket

  • Support OPOS driver;
  • Compatible with 15 kinds command,like ESC/POS,CD5220 and so on;
  • Compatible with 20 countries Languages,other languages can be customized;
  • Provide custom setup software all customizations can be done by the end user;
  • Support setting booting image;
  • Three display areas can setting background color and character color;
  • Top display area can setting logo and fixed characters;
  • The middle display area can be switched to 2*20 characters or 4*20 characters display;
  • The bottom display area supports custom scrolling play characters.

5 Inch LCD POSCustomer Display

(M/N:OCPD-LCD500)

Features:

 Support OPOS driver;

 Compatible with 15 kinds command,like ESC/POS,CD5220 and so on;

 Compatible with 20 countries Languages,other languages can be customized;

 Provide custom setup software all customizations can be done by the end user;

 Support setting booting image;

 Three display areas can setting background color and character color;

 Top display area can setting logo and fixed characters;

 The middle display area can be switched to 2*20 characters or 4*20 characters display;

 The bottom display area supports custom scrolling play characters.


Data sheet:

General

Display Method

TFT - LCD Display(5 inch COLOR PANEL)

Number of characters

40 character(20columns×2line )/

80 character(20colums×4 line)

Brightness

>350cd/m2

Resolution

480*272 or 800*480

Character font

24*48/40*80 dot matrix

Character type

95 Alphanumeric,32 international characters

Character size

8(H)×5.25(W)mm

Dot size(X×Y)

0.23×0.23mm

Panel Dimension

113.5(L)mm×65.5(W)×40(H)

Pole Dimension

Per support length:163(L)×27.65(DIA)mm/

80(L)×27.65(DIA)mm

Base Dimension

126(L)×89(W)×13.5(H)mm

Viewing Angle

Max.135°

Horizontal Rotation

Max.355°

Weight

490 grams/506grams

Commands Mode

15 kinds, E.g LD220, ESC/POS, AEDEX, UTC/S, UTC/P, ADM788, DSP800, CD5220, EMAX, LOGIC CONTROL etc

Language Support

CP437, Katakana, CP850, CP860, CP863,CP865, WCP1252, CP857, WCP1250, WCP1253,WCP1255, WCP1251, CP866, CP852, CP737, CP858, CP864,WCP1257, WCP1258,Tai(CP874)

Interface

RS-232(serial)/USB

Connection

Baud

Direct connection 9600/19200/38400/57600/115200 bps

Reliability

MTBF

30000 hours

Power

Consumption

5-24 VDC

Safety

EMC standards

Safety standards

FCC,CE,ROHS
