USB interface support 2D handheld barcode scannerUSB interface support 2D handheld barcode scannerUSB interface support 2D handheld barcode scannerUSB interface support 2D handheld barcode scannerUSB interface support 2D handheld barcode scanner

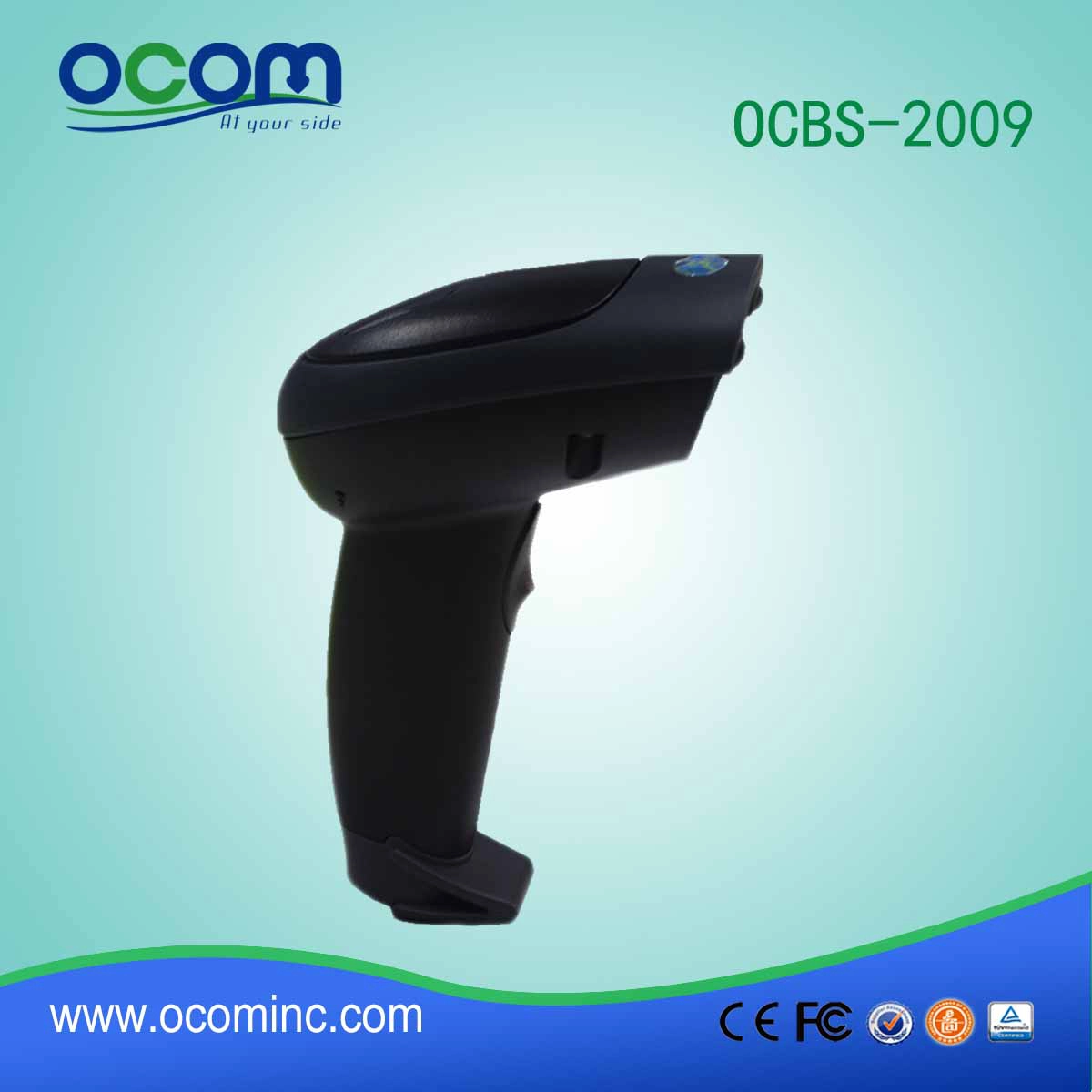

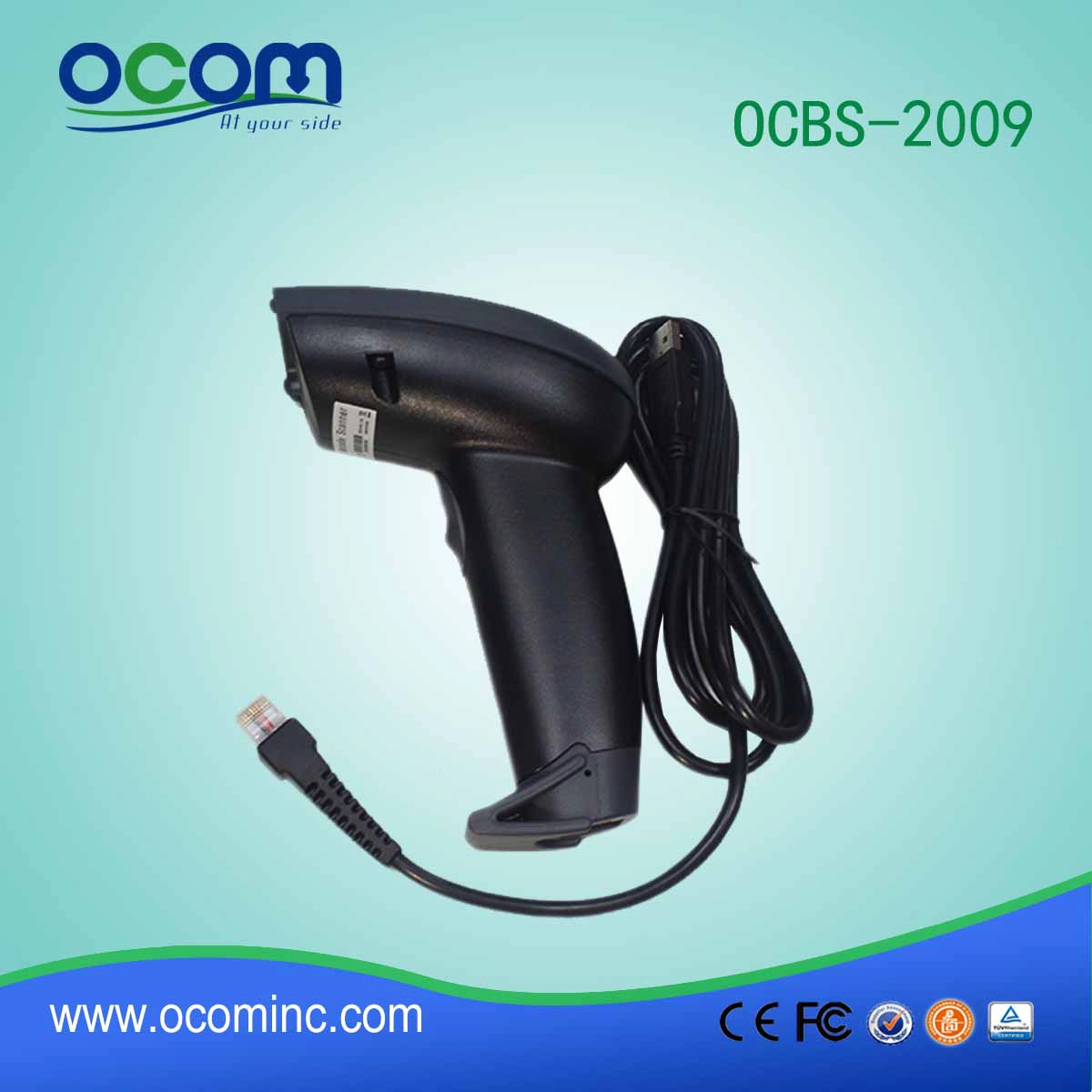

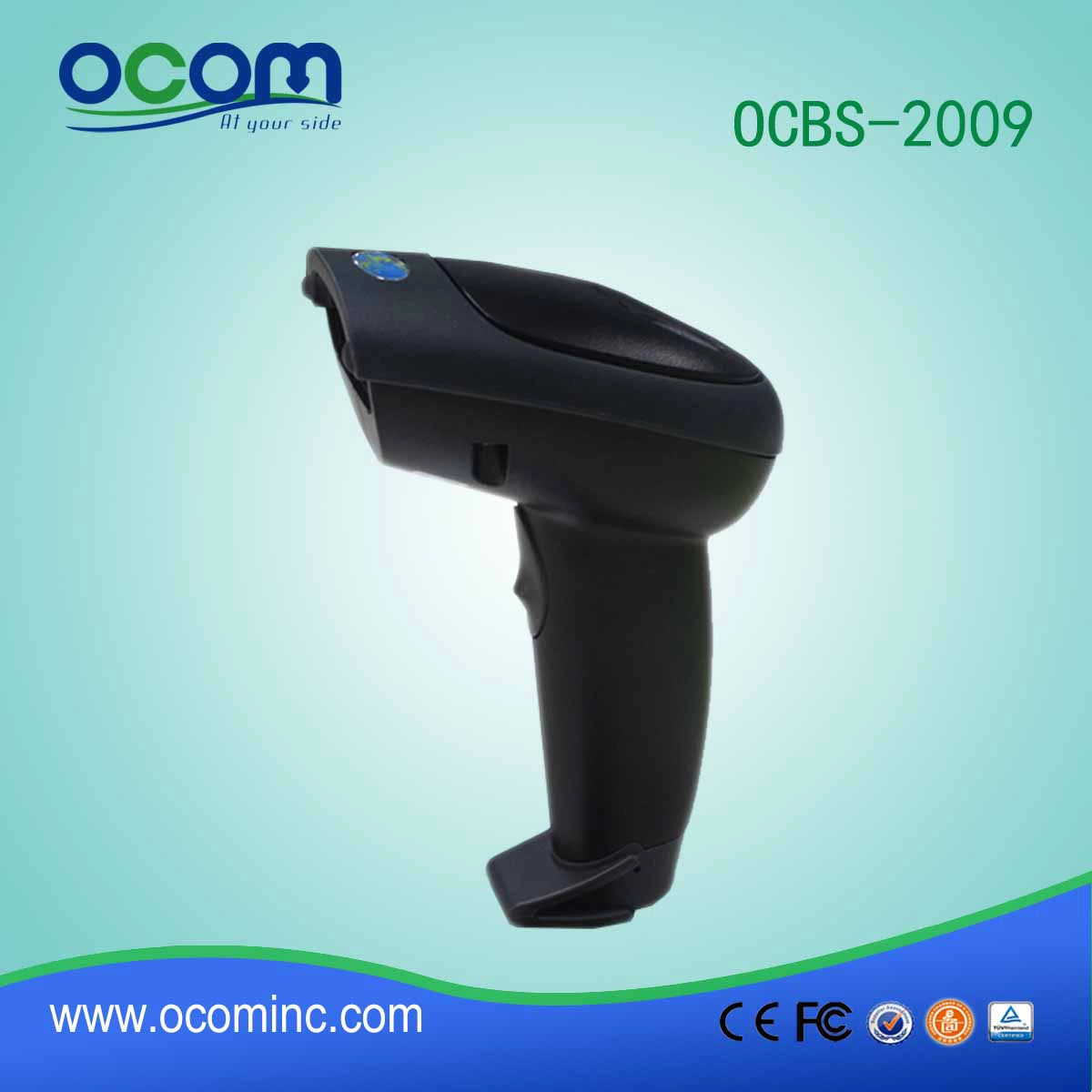

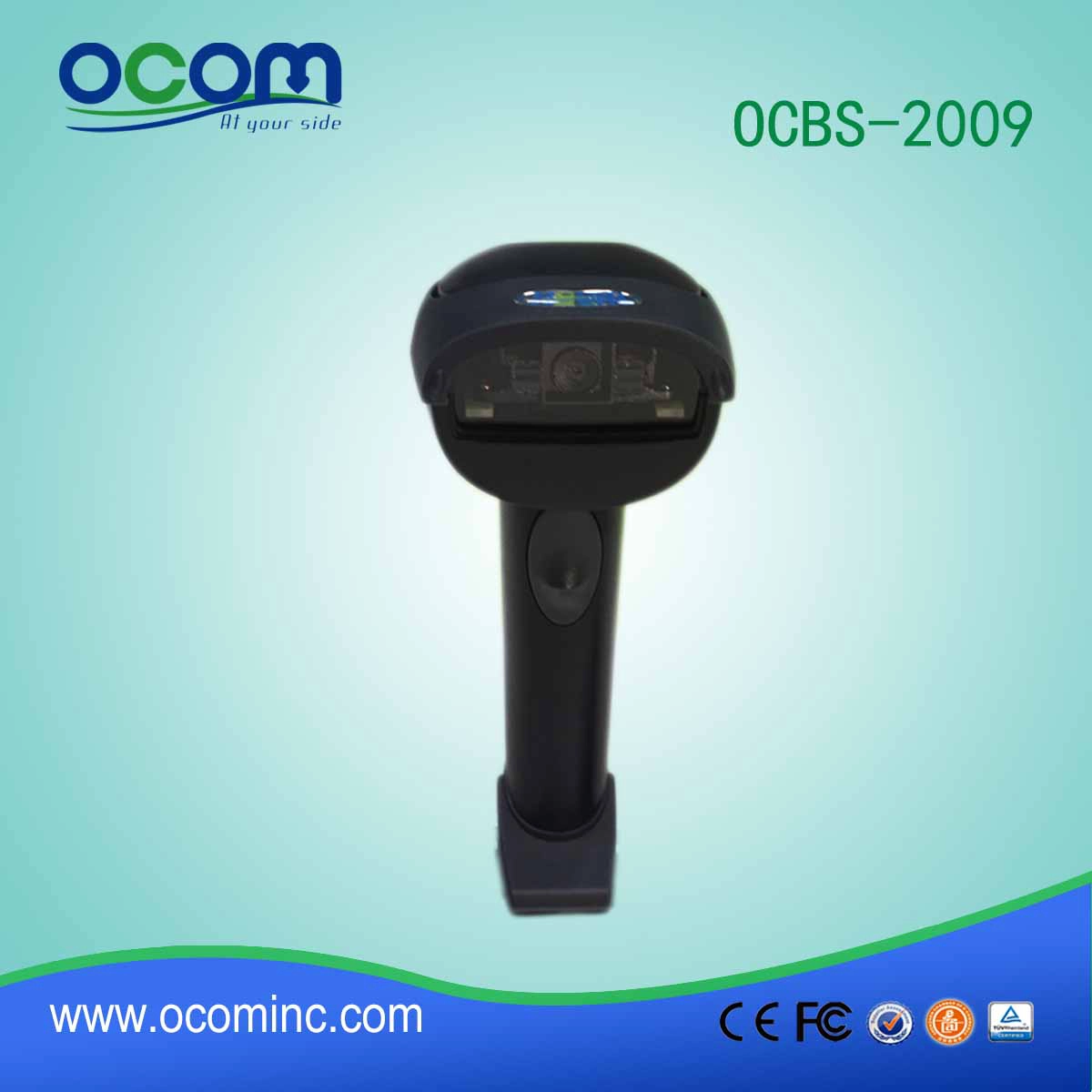

USB interface support 2D handheld barcode scanner

  • Handheld Barcode Scanner for 1D/2D barcode
  • API Available
  • Many special function setting supported
  • Multi interfaces optional
  • High compatibility for different barcode format
  • 4mil scanning accuracy
  • Stand for option

USB interface support 2D handheld barcode scanner

 (M/N:OCBS-2009)



Product Description


FEATURE:



High performance imaging technology;

Omni-directional scanning, easy to scan;

High compatibility for all major 1D and 2D symbols;

Can read the barcode on the screen and color barcode;

4mil excellent scanning accuracy ;

Multi special function setting supported;

Multi interfaces optional;

Stand for option.



SPECIFICATION:







Parameters

Resolution

640*480 256gray levels

Work mode

manual single scan, continuous scanning

Standard

2m cable line

Light source

visible red light 630nm + 10nm

Data interface

USB, USB COM (virtual serial port)

Symbologies: 1D

Korea Post, China Post, TRIOPTIC,MSI/Plessey,

UPC-A, UPC-E, EAN-8, EAN-13, ISBN, ISSN, ISBT, TELEPEN,UCC/EAN-128,

Code 128, Code 11, Matrix 2 of 5, Interleaved 2 of 5,Industrical 2 of 5, Standard

 2of 5, NEC 2 of 5, Code 39, Code 39 Full ASCII,Code 93,Codabar/NW7,UK/Plessey,TLC39, GS1 Databar (RSS)

2D

PDF417, Micro PDF417, QR Code, Maxicode, Aztec, Code,Data Martix Code,

HanXin Code, Codeblock F, Codeblock A

Reading depth

 Code 39 (5MIL):50mm~120mm

UPC/EAN (13mil):20mm~320mm

Data Matrix (7.5mil):63mm~150mm

PDF417 (6.6mil):62mm~145mm

Scan angle

45 degrees (level), 30 degrees (vertical)

Alarm mode

buzzer voice prompts, LED lights

Physical parameters

Specification

182*65*109mm (L*W*H)

Weight

195g (without bracket)

Cable line standard

more than 2m

Appearance material:

ABS+PC flame retardant materials

DC power supply voltage

+5V + 5%

Standby current

40mA

Environmental parameters

Working temperature

-20 C ~ 60 C

Storage temperature

-30 C ~ 70 C

Relative humidity

0% ~ 95% (no condensation)

Ambient illumination

normal indoor and outdoor direct sunlight

Package level

IP54 sealing air dust particles resist invasion

Certification

by CE, FCC and ROHS certification





OCBS-2009 China new product infrared 1d/2d barcode reader scanner

china barcode scanner, infrared barcode scanner, 1d /2d barcode reader
