Wifi+1D barcode scanner Handheld PDA with Win CE Operating SystemWifi+1D barcode scanner Handheld PDA with Win CE Operating SystemWifi+1D barcode scanner Handheld PDA with Win CE Operating SystemWifi+1D barcode scanner Handheld PDA with Win CE Operating System

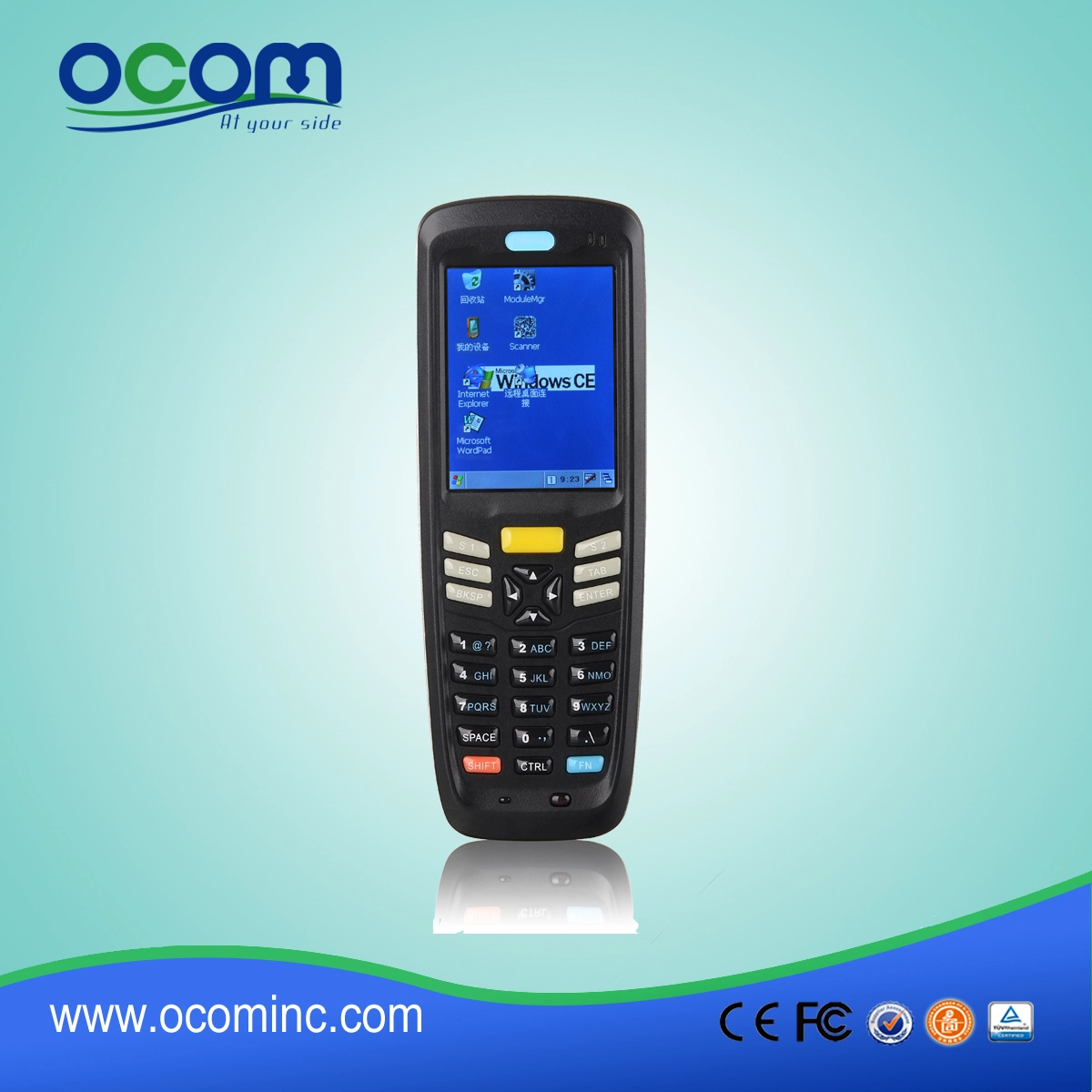

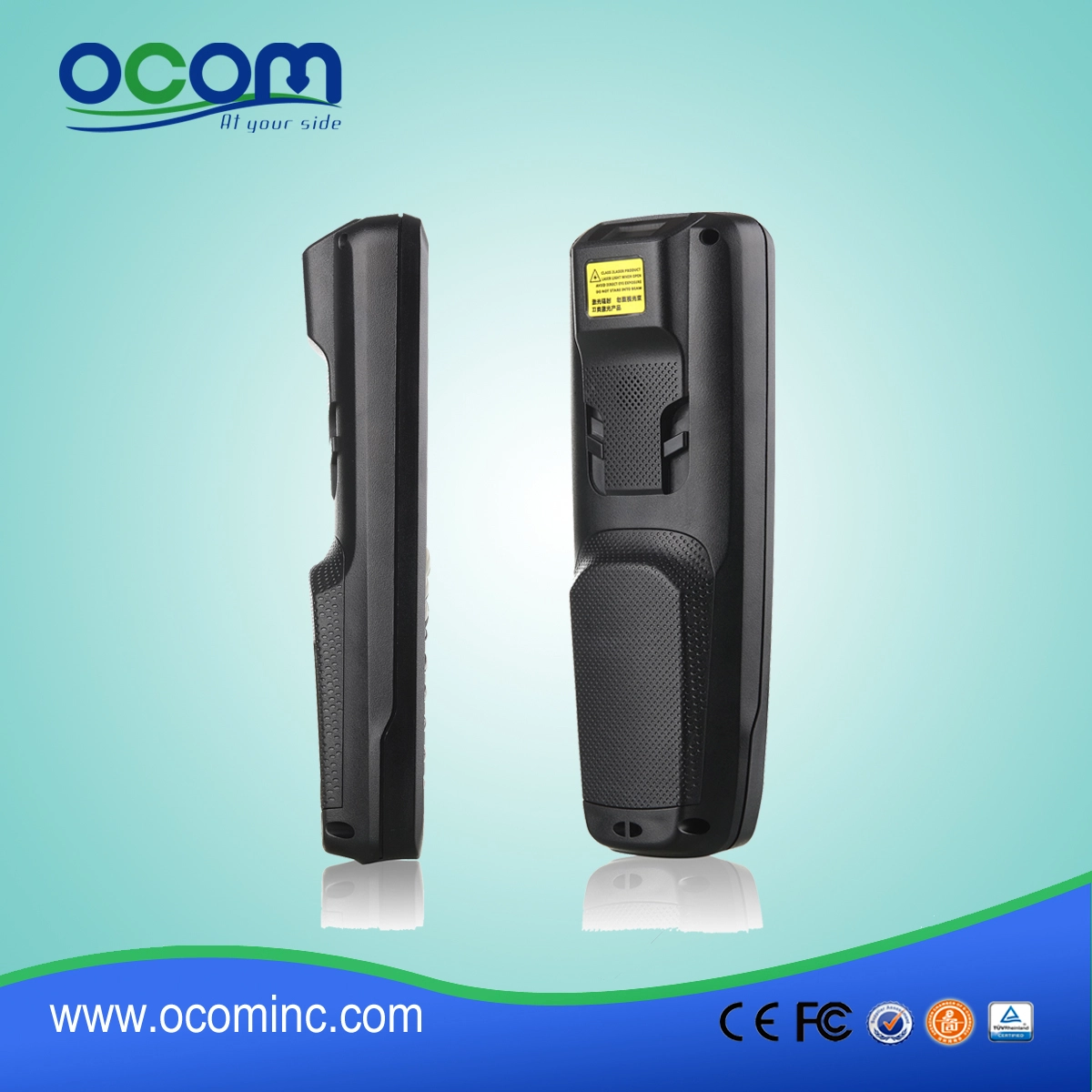

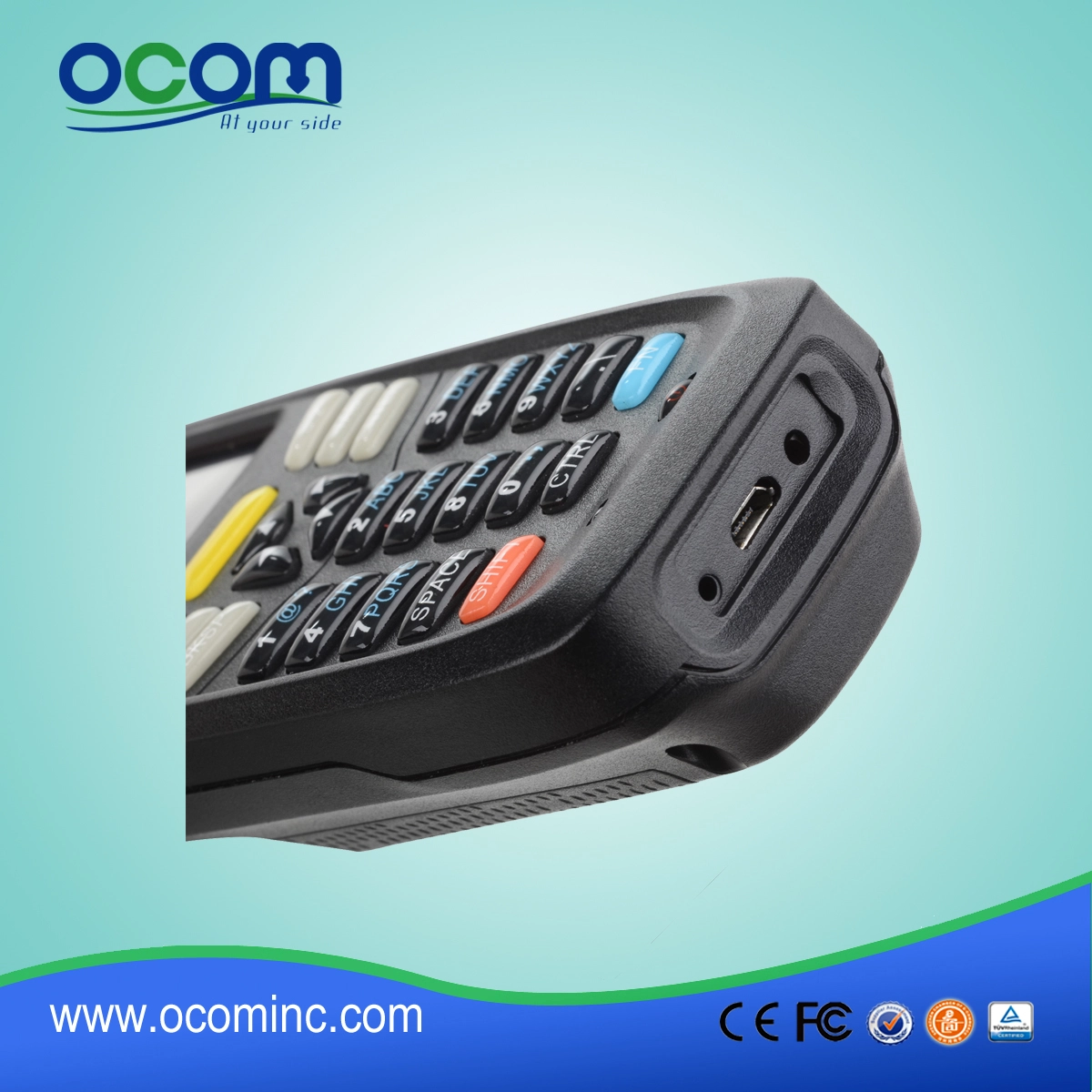

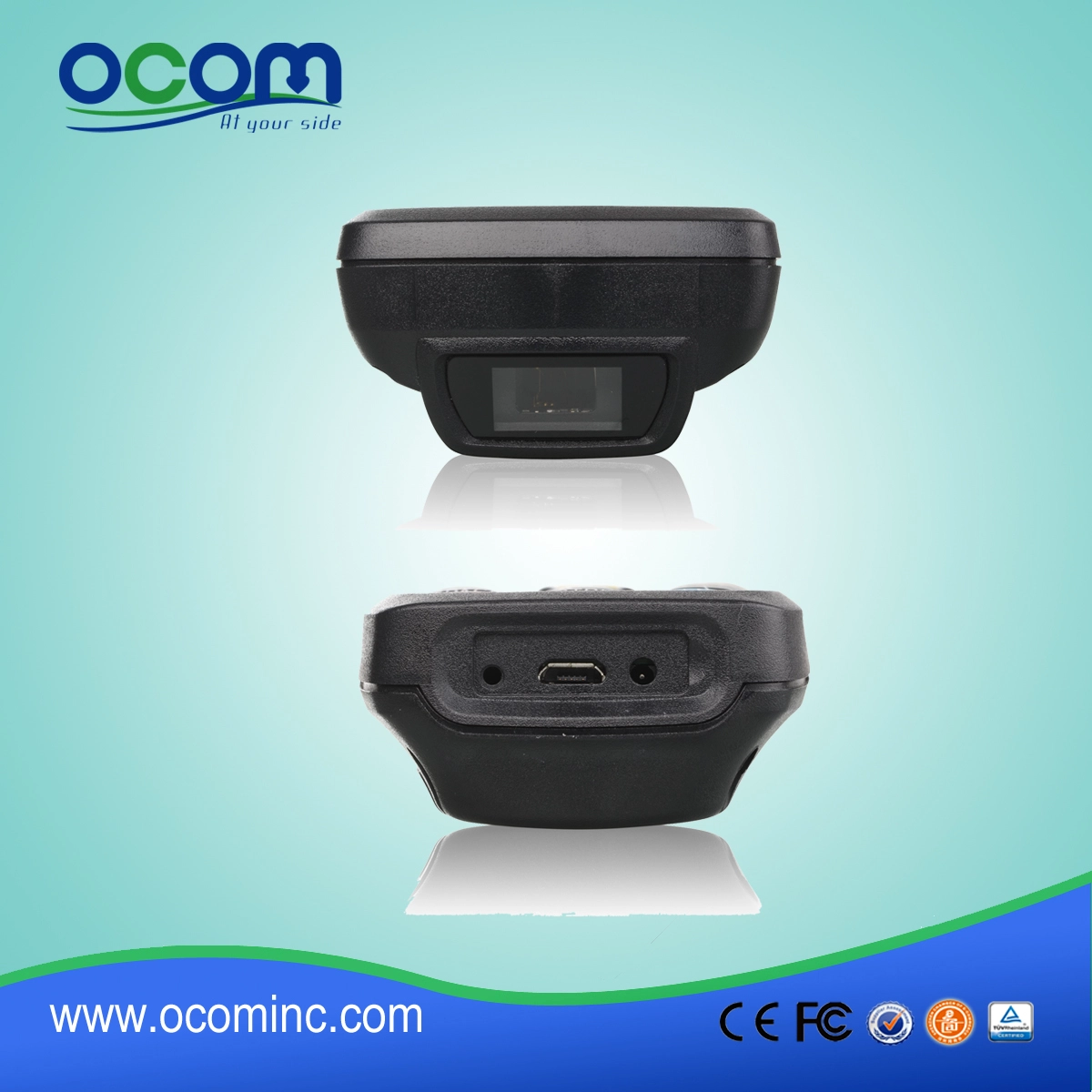

Wifi+1D barcode scanner Handheld PDA with Win CE Operating System

  • Default configuration :Wifi+1D barcode scanner;
  • Bluetooth, GPRS communication for option;
  • 2D scanner, 125K/134.2K/13.56M Hz RFID reader for options;
  • Win. CE 5.0 multi-language operation system;
  • Easy secondary development, compatible with different software;
  • RAM DDR2 128MB, F-ROM 256MB;
  • High capacity 2800mA battery and low consumption;
  • Industrial rugged design, water-proof and protection grade(IP54) ;

Wifi+1D barcode scanner Handheld PDA with Win CE Operating System

(Model: OCBS-D6000)

Specification:

Operation system

Windows CE 5.0,SDK for multiple programming languages including C#, VB.net, VC++ to assist system developer

CPU

SAMSUNG S3C2451 533MHZ

Memory

RAM DDR2 128MB, F-ROM 256MB

Display

TFT-LED QVGA 2.8 inch LCD color touch screen, resolution 240*320

Keyboard

27 keys

Communication

Wi-Fi (default)

Built in 802 11b/g wireless communication function, rate: 54MB/Sec, can meet CISCO CCX2,3 security standard

GPRS(Optional)

Support GSM/GPRS 10,GSM27,10

Data collection

(3 options)

1D barcode scanner

Laser Barcode scanner, Scan Rate: 100 scan/sec

Code: UPC-A; UPC-E; UPC-E1; EAN-8; EAN-13; Book land EAN; Code 128; UCC/EAN-128; Code 39; Trioptic Code 39; Code 39 Full ASCII; Code 93; Code 11; Interleaved 2 of 5; Discrete 2 of 5; Coda bar; MSI; GS1 Data Bar 14; GS1 Data Bar Limited; GS1 Data Bar Expanded;

2D Barcode Scanner

1D barcode: UPC-A; UPC-E; UPC-E1; EAN-8; EAN-13; Book land EAN; Code 128; UCC/EAN-128; Code 39; Trioptic Code 39; Code 39 Full ASCII; Code 93; Code 11; Interleaved 2 of 5; Discrete 2 of 5; Coda bar; MSI; GS1 Data Bar 14; GS1 Data Bar Limited; GS1 Data Bar Expanded;

2D barcode: PDF417、microPDF417 ,Maxi Code, Maxi Code, Data Matrix, Composite Codes & QR Code,

RFID

13.56MHZ, support ISO15693, ISO14443A/B agreement

Power

Battery

3.7V 2600MAH

Standby time

120 hours

Working time

8 hours

Expand port

Support Micro SD/TF card up to 16GB

Industrial grade

IP65

Dimensions

169(l)×60(W)×31(H) mm

Weight

320g (include battery)

Working environment

Operate temperature

-15~+50 Degree C

Store temperature

-20~+60 Degree C

Operate humidity

5-95%

Store humidity

5-95%

Height of Anti-seismic

1.2m cement floor
