Windows or Android System 13.3/15.1/15.6 inches all in one touch screen POS Machine with Printer
- Features:
- Intel Celeron series and intel core I3 I5 processor for option
- Rockchip high speed RK3288 processor for option
- EMMC 8GB/16GB/32GB for option
- Hard Driver Msata SSD 64GB ,SSD 128GB and 256 GB for option
- 58mm and 80mm high speed thermal printer built in for option
- Multi-point projected capacitive touch panel
- Optional side MSR and VFD220 customer display mounted to back cover
- Ture flat and water-proof scratch-resistant surface display
15.6 Inch All In One Touch POS Terminal
(M/N:POS-G156W/A)
OCOM G series pos integrated high speed thermal printer inside,R&D team take time study and research to choose each materials carefully to ensure the machine work more stablely and reliably,rich IO interface make a lot of connectivities available,fashionable appearance and easily maintain and flexibly be upgraded by customers.it is the best choice for many application sites such as retaurants, coffee shops,retail stores etc...
Features:
- Intel Celeron series and intel core I3 I5 processor for option
- Rockchip high speed RK3288 processor for option
- EMMC 8GB/16GB/32GB for option
- Hard Driver Msata SSD 64GB ,SSD 128GB and 256 GB for option
- 58mm and 80mm high speed thermal printer built in for option
- Multi-point projected capacitive touch panel
- Optional side MSR and VFD220 customer display mounted to back cover
- Ture flat and water-proof scratch-resistant surface display
Specification
|
Model |
POS-G156W/A |
|
|
Name |
15.6 inch all in one touch screen pos terminal |
|
|
Housing |
plastic with metal combined |
|
|
Color |
whole pearl white machine body or pearl white match gray machine body |
|
|
Display |
|
|
|
Main screen |
15.6 inch touch screen monitor |
|
|
Resolution |
1366*768 |
|
|
Brightness |
250cd/m2 |
|
|
View angle |
Horizon: 160; Vertical :150 |
|
|
Touch screen |
Multi-point projected G+G capacitive touch |
|
|
Sub-display |
15.6inch display and 13.3 inch display W/ or W/o touch function, resolution 1366*768 for option |
|
|
Customer display |
2*20 VFD mounted to back cover for option |
|
|
Performance |
|
|
|
Windows |
Motherboard |
Intel Celeron Bay Trail J1900 2.0GHz or intel core I3 / I5 4th generation CPU for option
|
|
System Memory |
1*SO-DIMM DDRIII slot, support1333*/1600 4GB (default) 2GB/8GB for option |
|
|
Storage device |
Msata SSD 64GB or higer, up to 256GB |
|
|
Audio |
On board Real Tek ALC662 audio chip |
|
|
LAN |
10/100Mbs,Realtek RTL8111F Lan chip built in Mini PCI-E slot,support embedded WIFI module |
|
|
Operating System |
Windows7/8/10, Embedded,WEPOS,Linux |
|
|
Android |
Motherboard |
Rockchip series quad core RK3568 default , RK3288,RK3399 for option |
|
System Memory |
On board DDRIV 2GB,4GB for option |
|
|
Storage device |
on board16GB EMMC,32GB for option |
|
|
LAN |
RJ45 port support 10/100Mbs internet |
|
|
WIFI&BT module |
Support Wi-Fi 802.11b/g/n,BT3.0/BT4.0 support |
|
|
Operating System |
Android 7.1,up to Android 8.1 Android 11 |
|
|

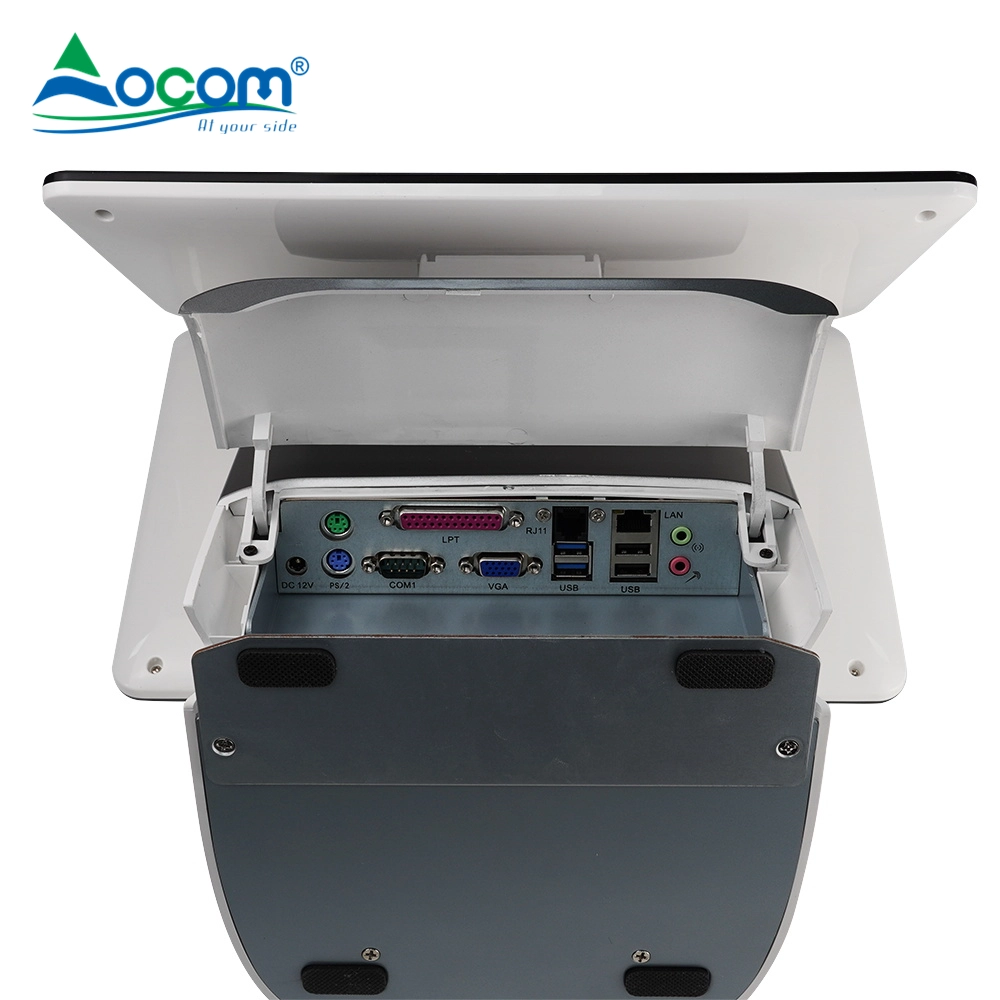

Connectivity |
|
|
|
Windows and Android(J1900&RK3568) |
power button*1 |
|
|
12V DC in jack*1 |
||
|
COM(RS232) * 1 |
||
|
LAN:RJ-45*1 |
||
|
USB *5 |
||
|
MIC in*1 , Audio out*1 |
||
|
Windows ( J1900) |
LPT *1 |
|
|
VGA(15Pin D-sub)*1 |
||
|
RJ11 for Cash drawer *1 （optional) |
||
|
PS/2 *1 for mouse and keyboard |
||
|
Android (RK3568) |
on board RJ11 for Cash drawer *1 ,RJ11 from printer port for cash drawer*1(optional) |
|
|
TFcard slot*1,SIM slot*1 |
||
|
Options |
|
|
|

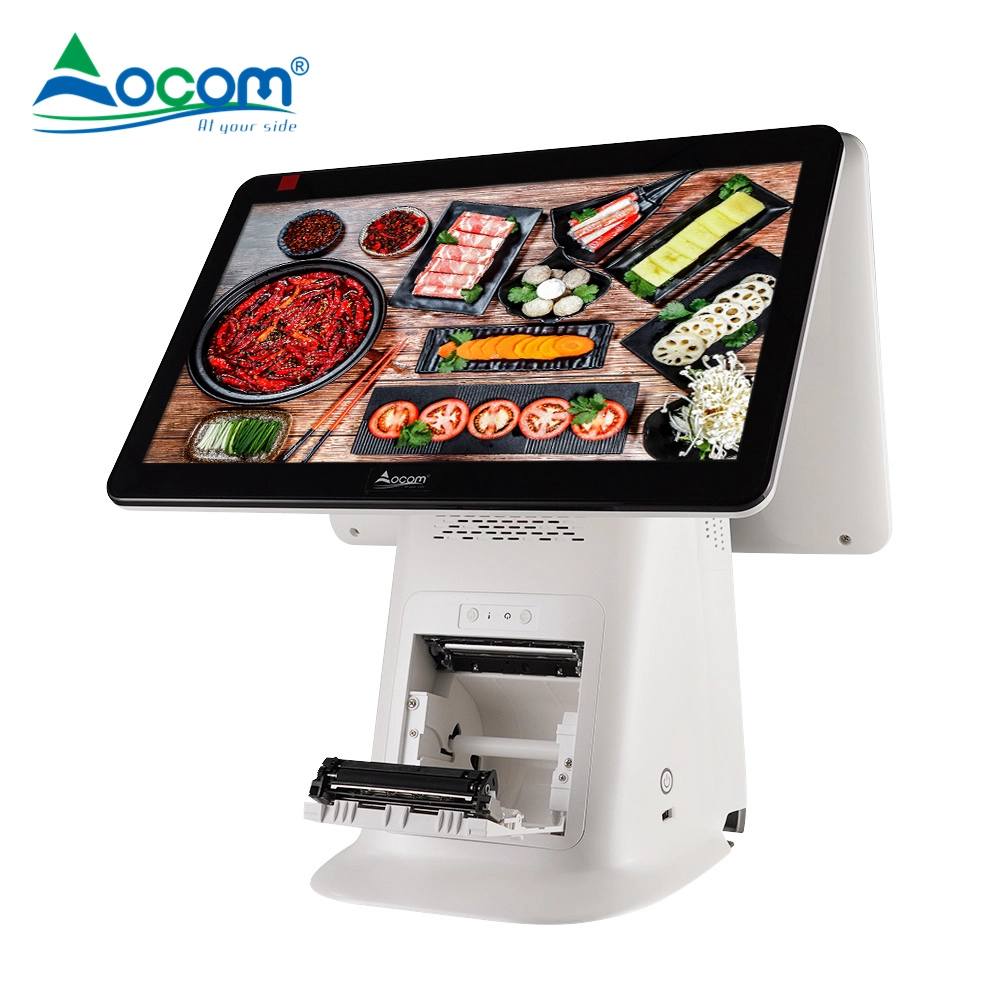

80mm thermal printer |
direct thermal printing |
|
|
150mm/s pringting speed |
||
|
79.5-/+ 0.5mm paper width and printable width 72mm |
||
|
with atuo cutter function and thermal head life 100km |
||
|
USB communication |
||
|
58mm thermal printer |
direct thermal printing |
|
|
80mm/s pringting speed |
||
|
57.5-/+ 0.5mm paper width and printable width 48mm |
||
|
thermal head life 50km |
||
|
LPT communication |
||
|
MSR |
optional side MSR just for 15.6inch |
|
|
Web camera |
web camera mounted on top of the display for option |
|
|
Speaker |
8Ohm/5W speaker inside for option |
|
|
Package |
package |
|
|
Weight |
Net 6.5Kg, Gross 8.5Kg for 15.6 dual screen |
|
|
Package with foam inside |
300*465*500mm |
|
|
|
||
|
Operating temperature |
0 to 40 degrees centigrade |
|
|
Storage temperature |
-10 to 60 degrees centigrade |
|
|
Working humidity |
10%~80% |
|
|
Storage humidity |
10%~90% |
|
|
Accessories |
|
|
|
Power adapter |
110-240V/50-60HZ AC power input ,DC12/5A output adaptor for W/o printer and W/ 58mm printer machine DC12V/7A output adaptor only for W/80mm printer machine |
|
|
Power cable |
Power cable plug compatible with USA /EU / UK etc and customized available |
|
|
CD driver |
Motherboard driver and touch driver inside for option |
|
|
Other |
|
|
|
Compliance |
FCC Class A/CE Mark/LVD/CCC |
|
