Wireless Android Handheld Barcode Scanner OCBS-W700Wireless Android Handheld Barcode Scanner OCBS-W700Wireless Android Handheld Barcode Scanner OCBS-W700Wireless Android Handheld Barcode Scanner OCBS-W700Wireless Android Handheld Barcode Scanner OCBS-W700

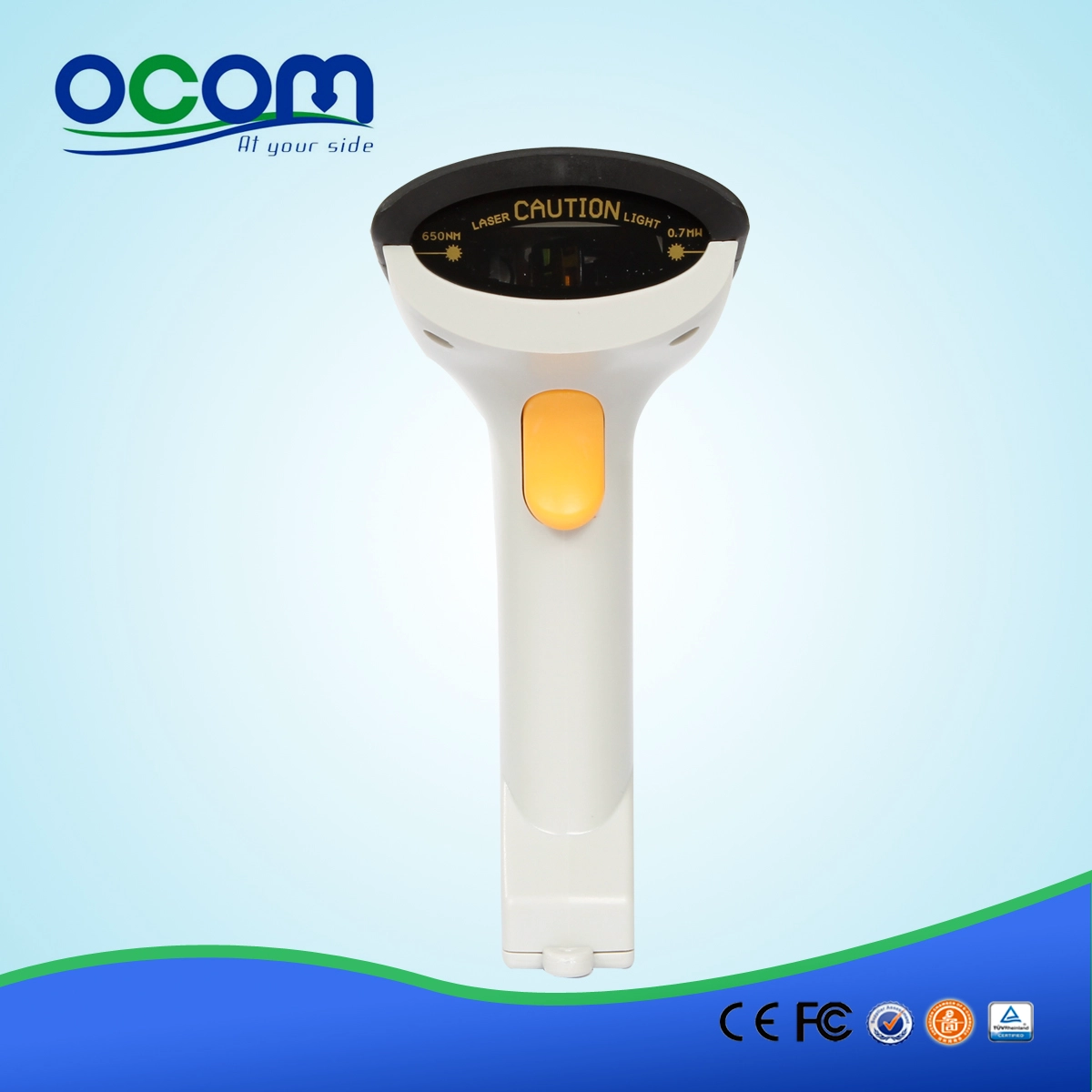

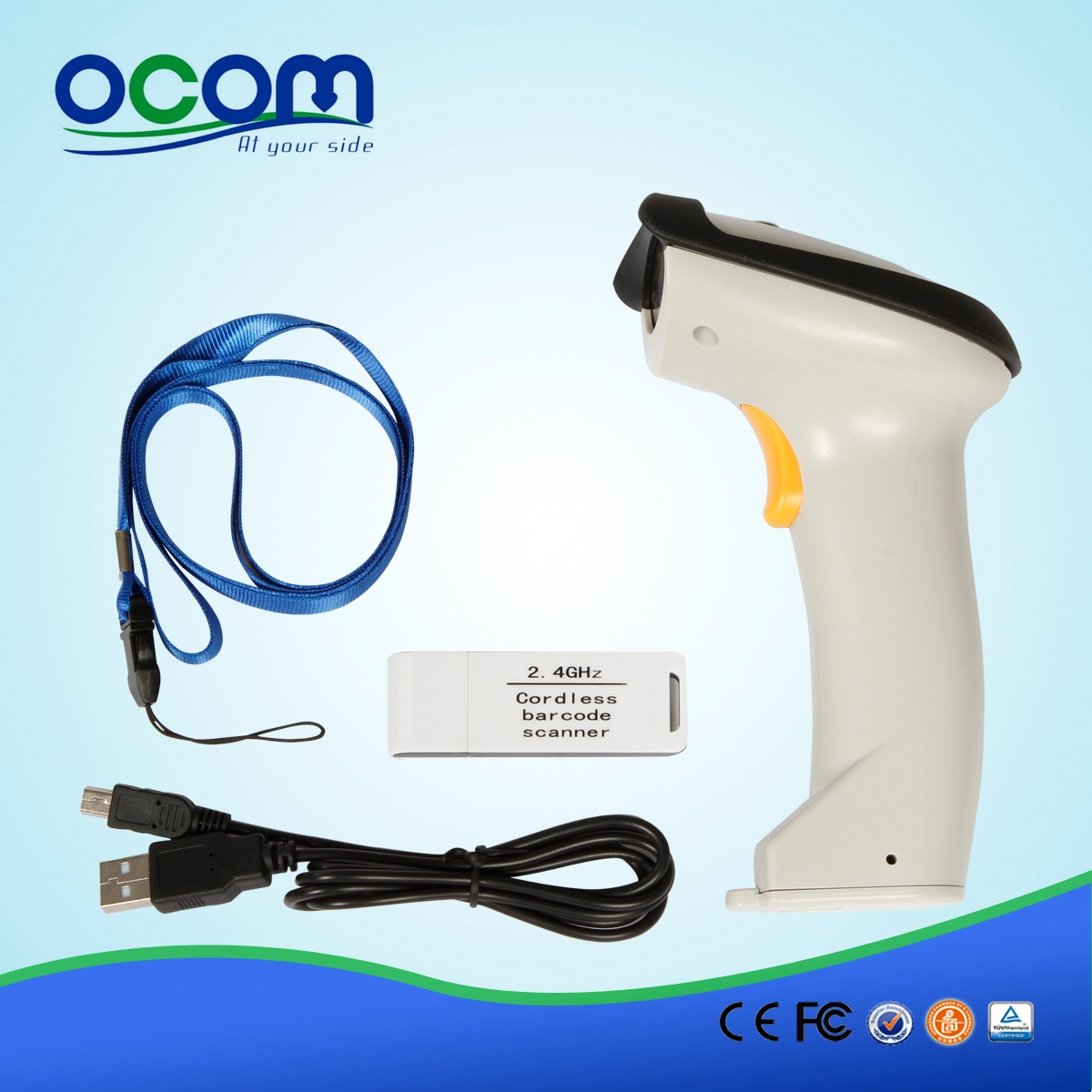

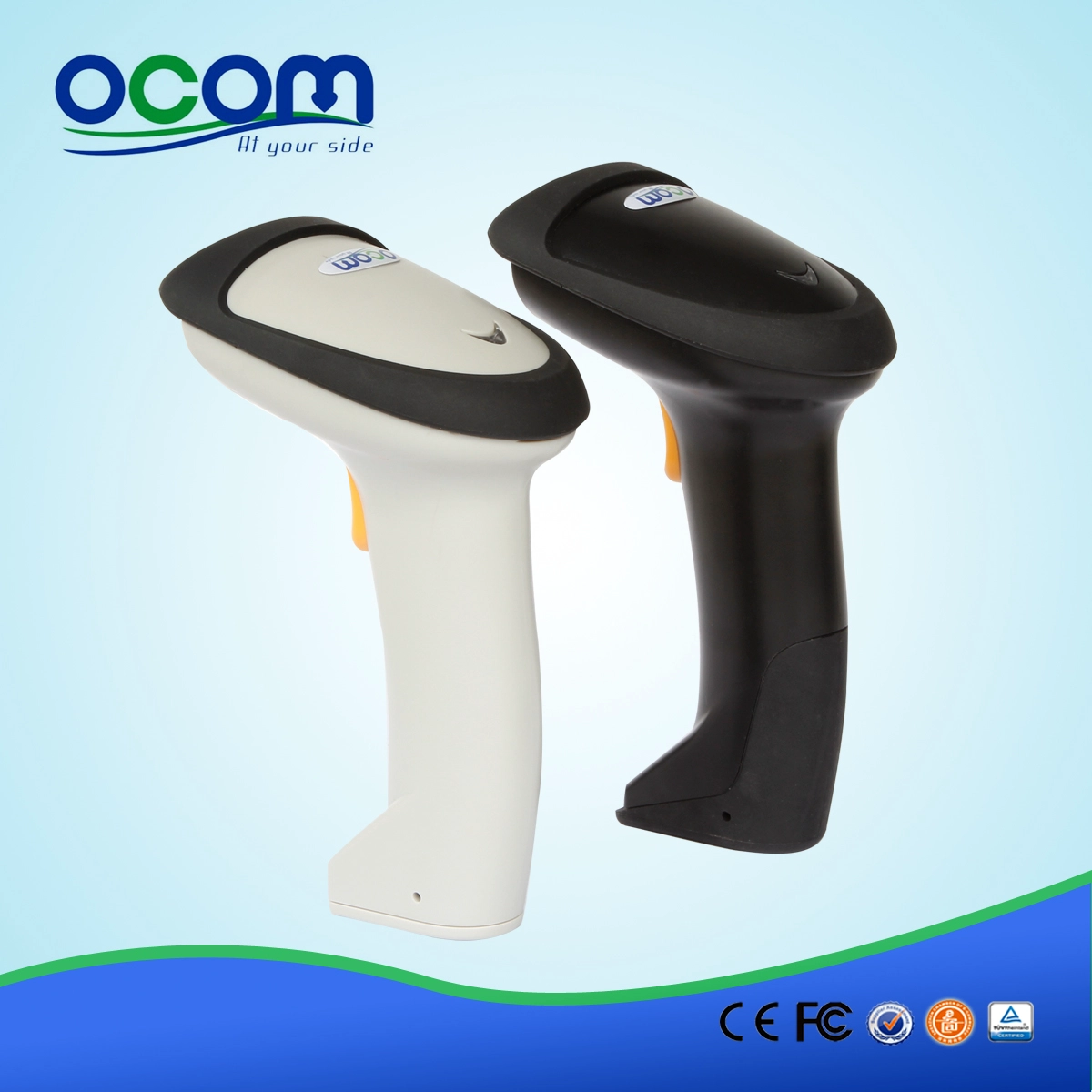

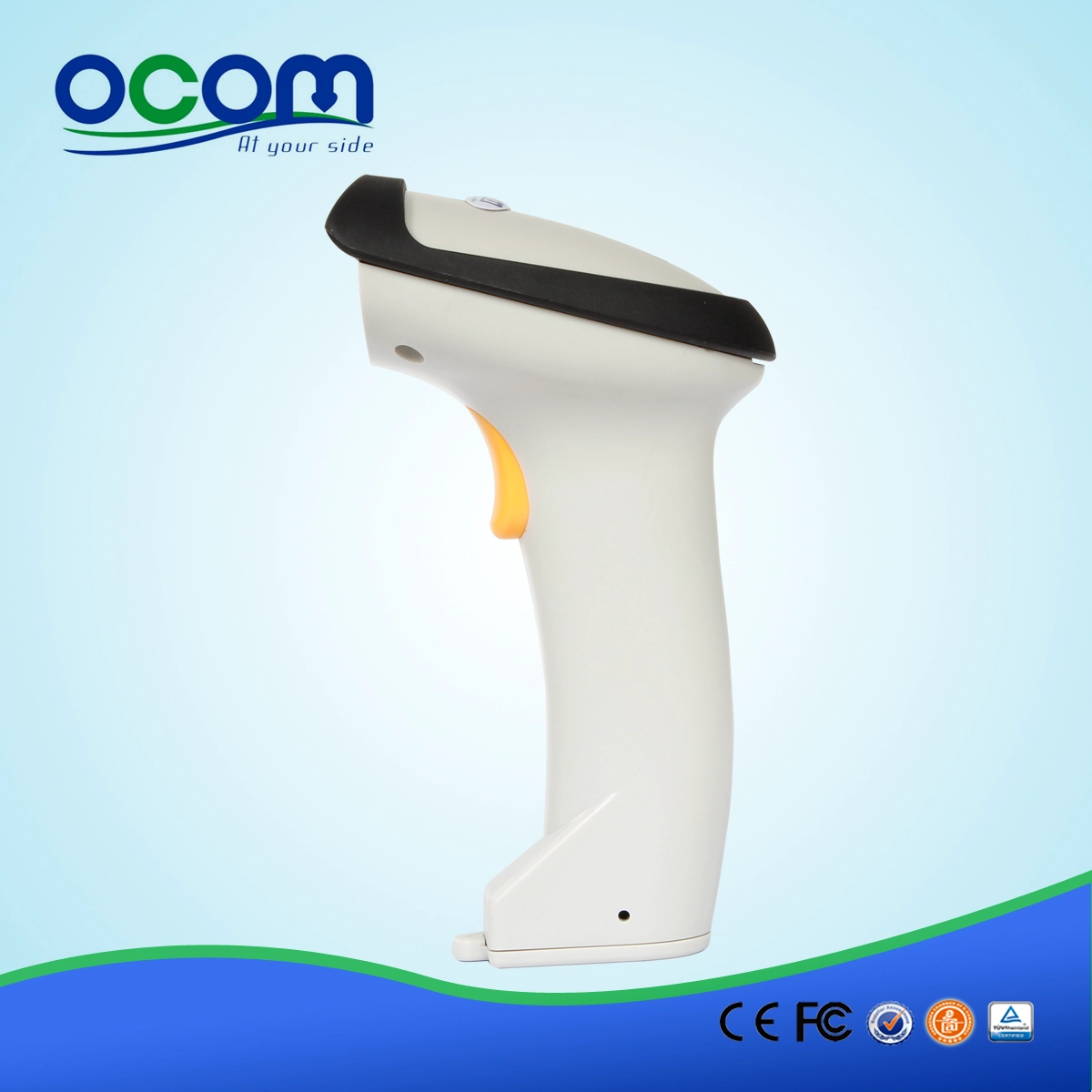

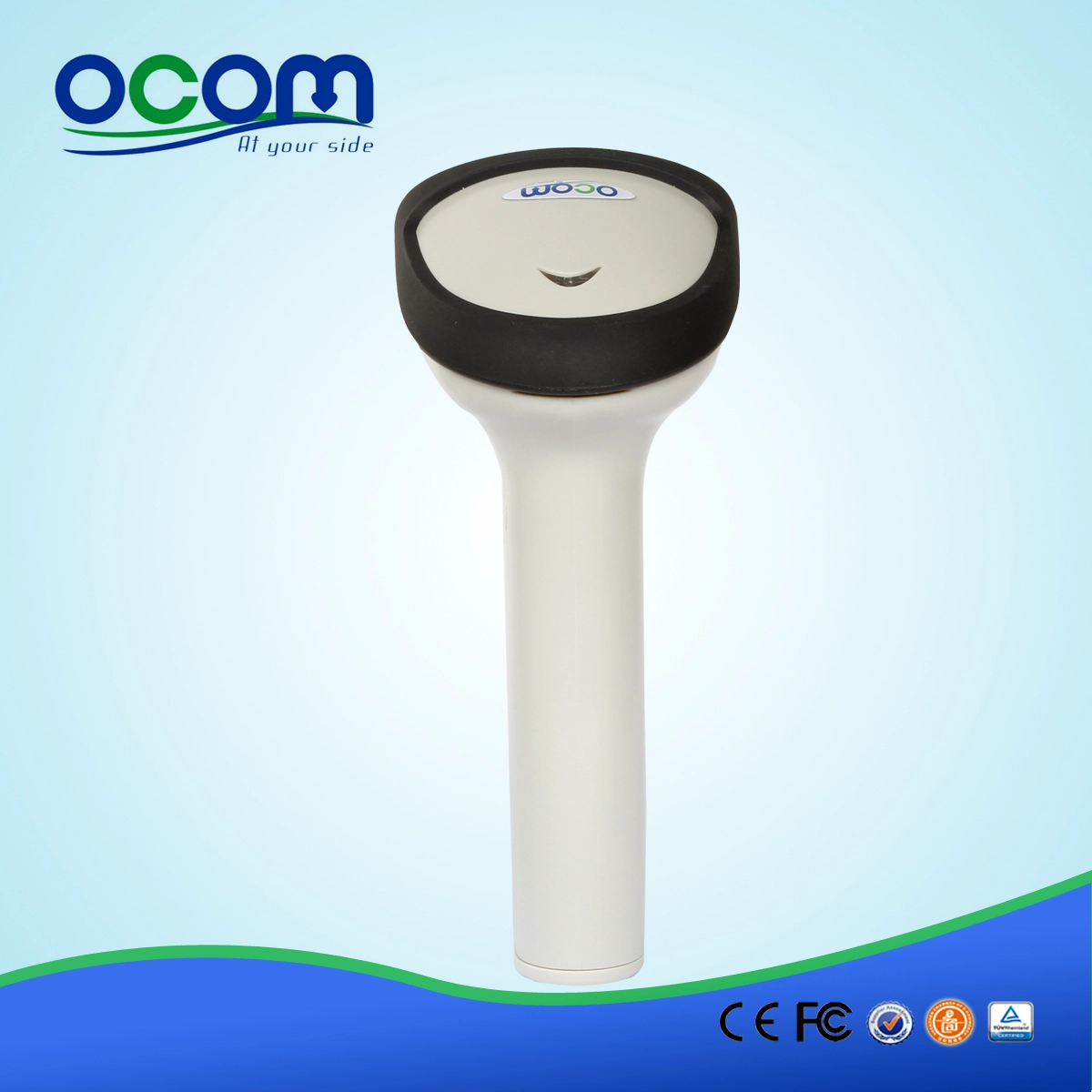

Wireless Android Handheld Barcode Scanner OCBS-W700

  • Integrated non-volatile memory (can store about 500 barcodes);
  • Outside communication distance can reach 100m, inside is 20m;
  • 20 scanners can work in the same field without interfering each other;
  • Plug and play;
  • 800mA big capacity Li-battery.

Wireless Android Handheld Barcode Scanner

(Model: OCBS- W700 )

Specifications:

PHYSICAL CHARACTERSTICS
Light Source:
Visible Red Laser 650 nm
Scanner Dimensions:
160mm * 70mm * 40mm(W * H * D)
Weight :
300G
Material:
ABS + PC
Scanning Mode:
One line scanning; Manual / Automatic
Indicator Way:
Buzzer and Indicator Light
PERFORMANCE CHARACTERSTICS
Width of Scan Field:
20mm@scanner window
260mm@260mm
Depth of Scan Field:
4mil (0.1mm)/5-60mm
5mil (0.12mm)/10-100mm
10mil (0.25mm)/15-250mm
35mil (0.89mm)/140-600mm
43mil (1.1mm)/150-800mm
Scan Speed:
120 scans/sec
Scan Precision:
0.10mm (pcs0.9)
Printing Contrast:
Minimum 30% reflection difference
Error Rate:
1/(6million)
Decode Capability:
International general 1D barcodes
Current:
60mA (working); 5uA(standby)
Scanning Corner:
32°
Scanning Elevation:
68°
Scanning Angle of Avertence:
52°
Working Frequency:
2.4GHz
Communication Distance:
100m (Open Places)
20m (Indoor)
Communication Interface:
USB
USER ENVIRONMENT CHARACTERSTICS
Drop Specification:
2m free fall
Laser Level:
Level-1 laser safety standard
Charge Power:
DC5V

Product Details:
