barcode scanner billing machine
- barcode scanner billing machine
- Handheld barcode scanner for 1D/2D barcode;
- CMOS image technology base;
- RS232, USB interfaces supported;
- FCC Part15 Class B, CE EMC Class B passed;
barcode scanner billing machine
(Model: OCBS-2004 )
Specifications:
Performance Characteristics |
||
Image Sensor:
|
CMOS
|
|
Resolution:
|
752 * 480
|
|
Light Source:
|
LED(622 nm - 628 nm) |
|
Light Intensity:
|
330 LUX (130 mm )
|
|
Illumination:
|
0 ~ 100,000 LUX
|
|
Symbology:
|
2D
|
PDF417, QR Code(Model 1/2), Data Matrix(ECC200, ECC000, 050, 080,100,140), Aztec, Maxicode, etc. |
1D
|
Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar,etc. |
|
Precision:
|
≥ 5mil
|
|
Depth of Scan Field:
|
35 mm ~ 210 mm
|
|
Print Contrast Signal: |
≥ 30%
|
|
Roll/ Pitch/ Skew:
|
360°/±60°/±60°
|
|
Physical Characteristics
|
||
Interface:
|
RS232 / USB
|
|
Power Consumption:
|
2 W
|
|
Voltage:
|
DC 5 V (4.5-5.5V)
|
|
Current:
|
Idle
|
78 mA (idle) 400 mA(working) 18 mA (standby)
|
Weight:
|
235 g
|
|
Dimensions:
|
156 * 68 * 83 mm
|
|
User Environment |
||
Operate Temperature:
|
-5degree C~+45degree C
|
|
Storage Temperature:
|
-40degree C~+60degree C
|
|
Humidity:
|
5% - 95%(non-condensing) |
|
Safe
|
||
Certificates:
|
FCC Part15 Class B, CE EMC Class B |

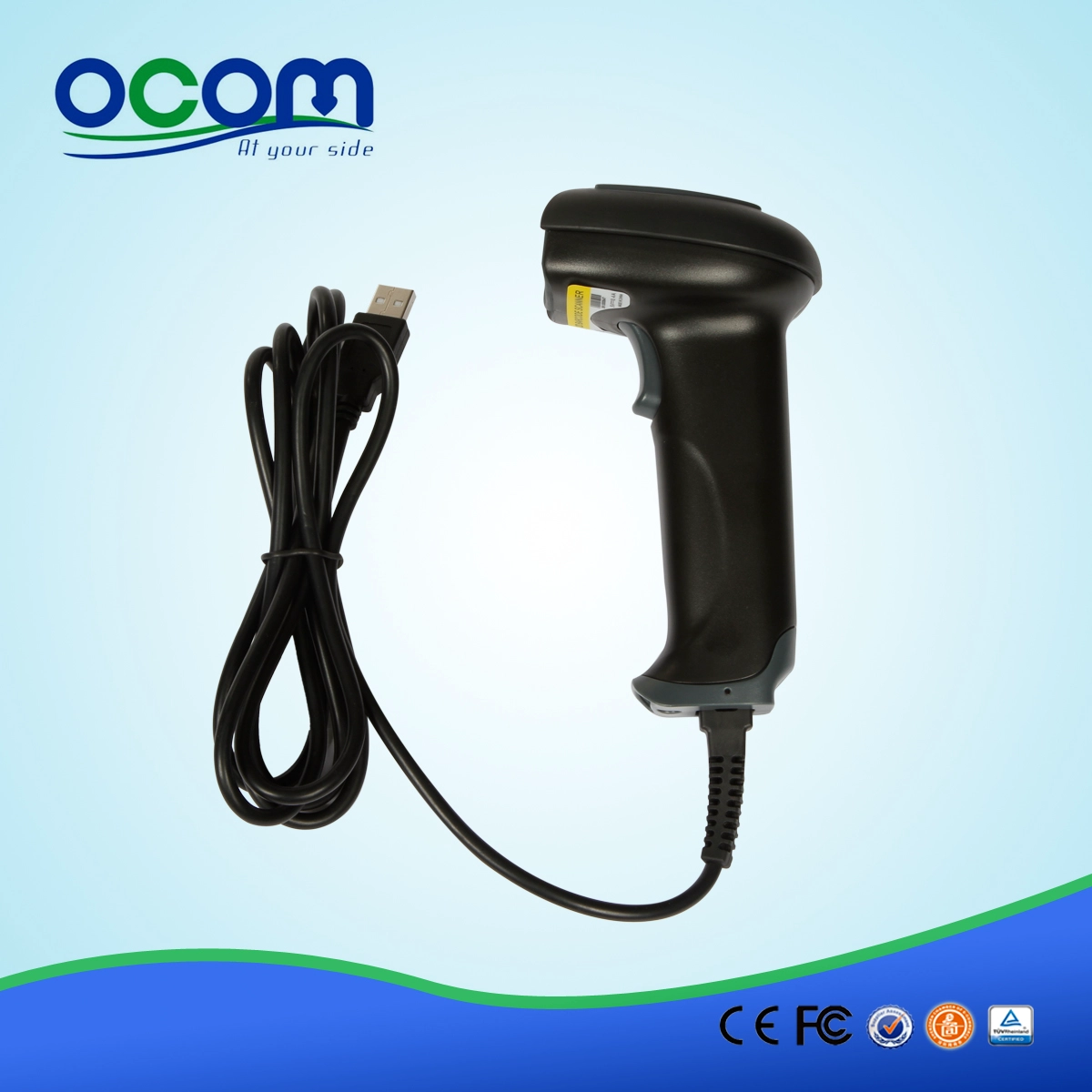

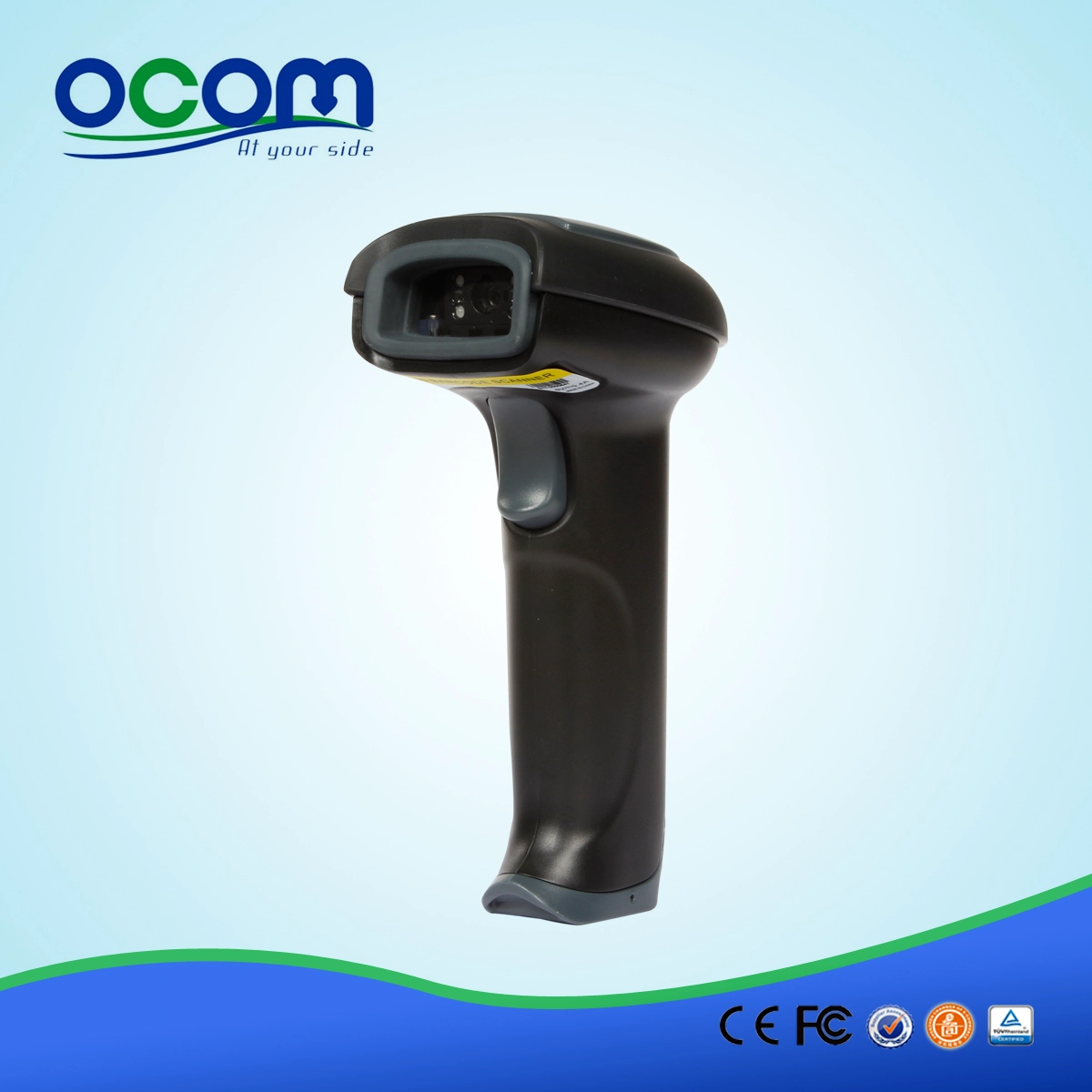

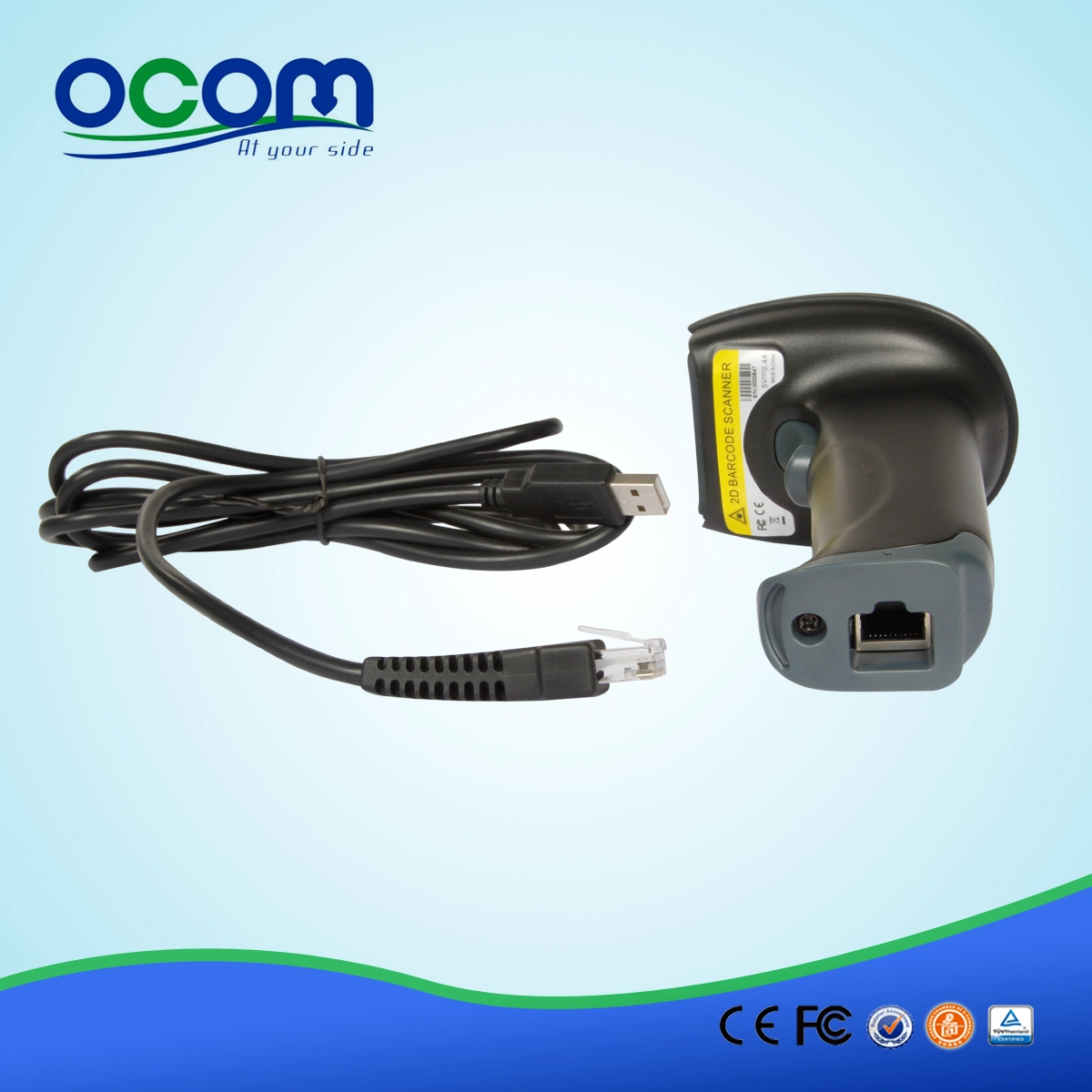

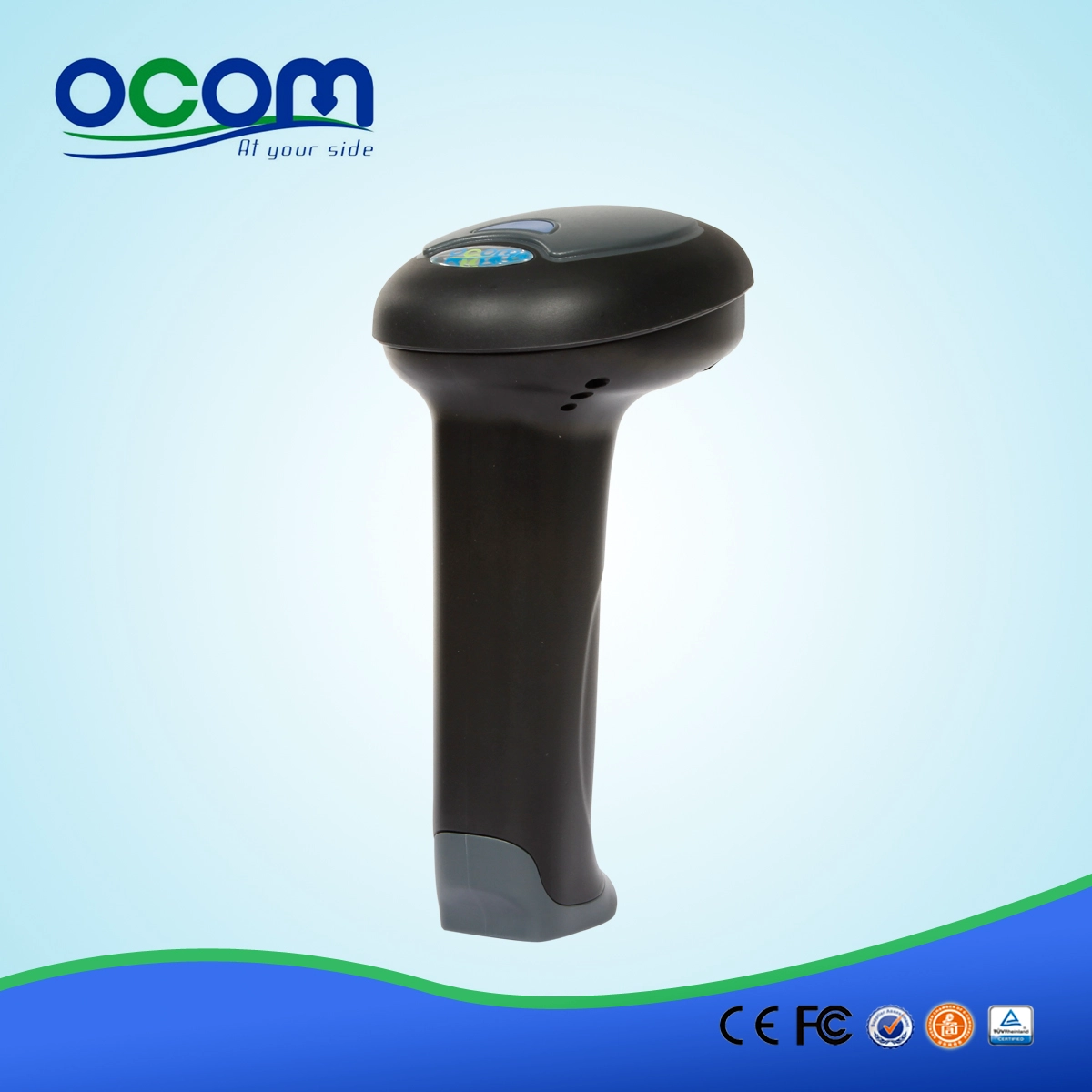

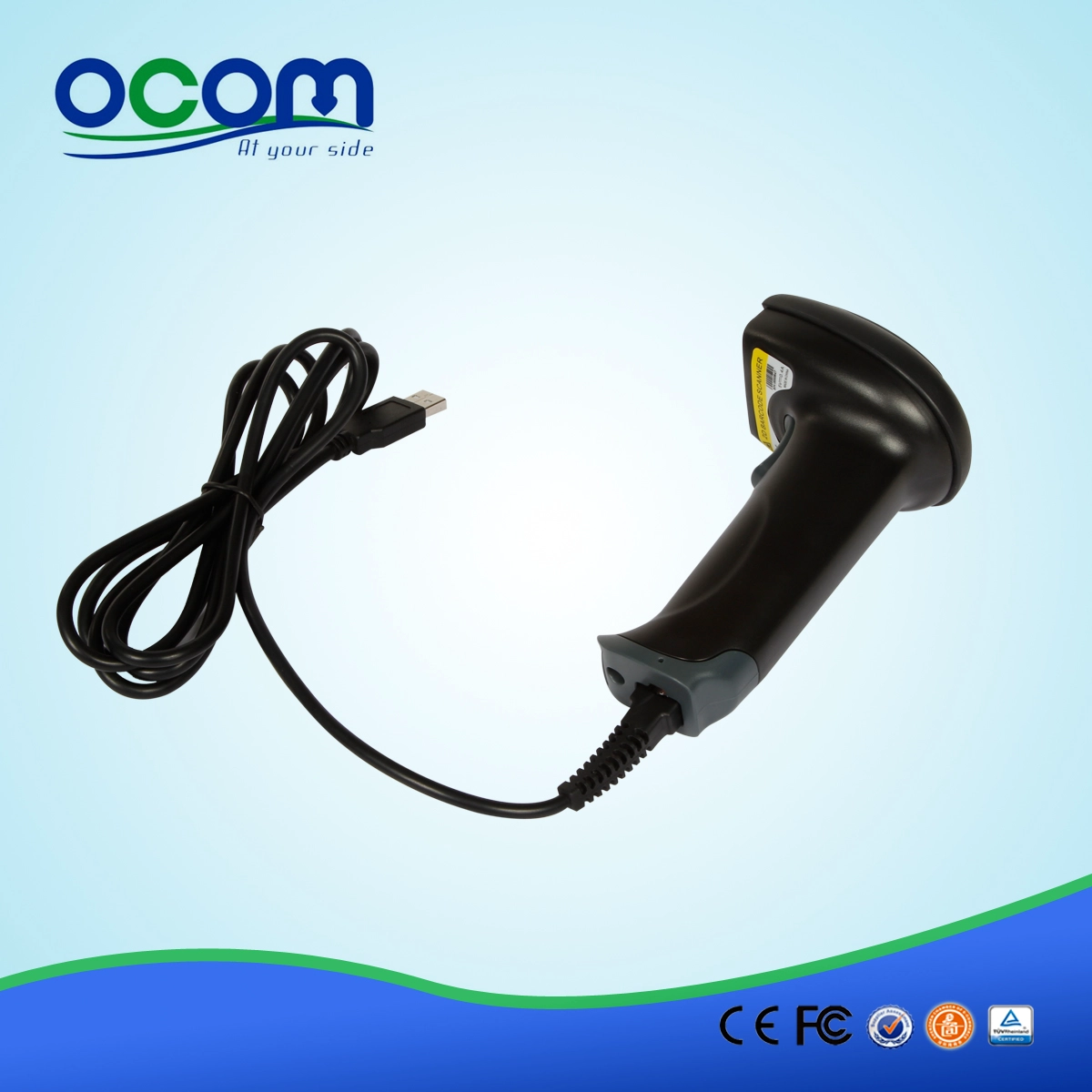

Product Details:
