cheap cost Auto sense handheld laser barcode scanner with standcheap cost Auto sense handheld laser barcode scanner with standcheap cost Auto sense handheld laser barcode scanner with standcheap cost Auto sense handheld laser barcode scanner with stand

cheap cost Auto sense handheld laser barcode scanner with stand

  • 1Handheld laser barcode scanner with auto sense function;
  • • Flexible operation with 360 degree rotation metal stand;
  • • High scan rate (200 scans/sec) and long reading distance;
  • • Excellent decode capability;
  • • KBW, RS232 and USB supported;
  • • Grey and Black Color available

cheap cost Auto sense handheld laser barcode scanner with stand

Model: OCBS-LA11

Product Description

Feature:

•1Handheld laser barcode scanner with auto sense function;
 Flexible operation with 360 degree rotation metal stand;
 High scan rate (200 scans/sec) and long reading distance;
 Excellent decode capability;
 KBW, RS232 and USB supported;
 Grey and Black Color available

Specification:

Performance Characteristics

Light Source:

Visible laser (650-670nm)

Scan Rate:

200 scans per second

Reading Distance

2.5 ~600mm (100% UPC/EAN)

Scanner Type:

Bi-directional

Resolution:

0.10mm (4mil) at PCS 0.9

Print Contrast Minimum:

30%, minimum reflective difference (@650nm)

Error Rate:

1/3000000

Decode Capability:

UPC/EAN, UPC/EAN with supplementals, UCC/EAN128, code 39, code 39 full ASCII, code 39 trioptic, code 128, code 128 full ASCII, codabar, interleaved 2 of 5,discrete 2 of 5, code 93, MSI, code 11, ATA, RSS variants, Chinese 2 of 5…

Physical Characteristics

Interfaces Supported:

PS2, RS232, USB

Voltage:

DC+5V+/-5%

Current:

100 mA

Idle Current:

<40 mA

Power Source:

Host power or external (RS232) power supply

Scanning Angle

Inclination 45° Elevation 60°

Dimensions:

L165mm X W63mm X H87mm

Weight:

129g (without stand)

Stand

Optional

Color:

Grey and black

User Environment

Operating Temperature:

0℃~40℃

Storage Temperature:

-40℃~ 60℃

Humidity:

5~95% relative humidity, non-condensing

Electrostatic Discharge:

Confirm to +/-15KV air discharge and +/-8KV of contact discharge

Drop Specifications:

Withstands multiple 1.5m drops to concrete

Safe:



EMI/RFI:

FCC Class A and CE

Laser Safety:

CDRH class 2 laser product


Detailed Images

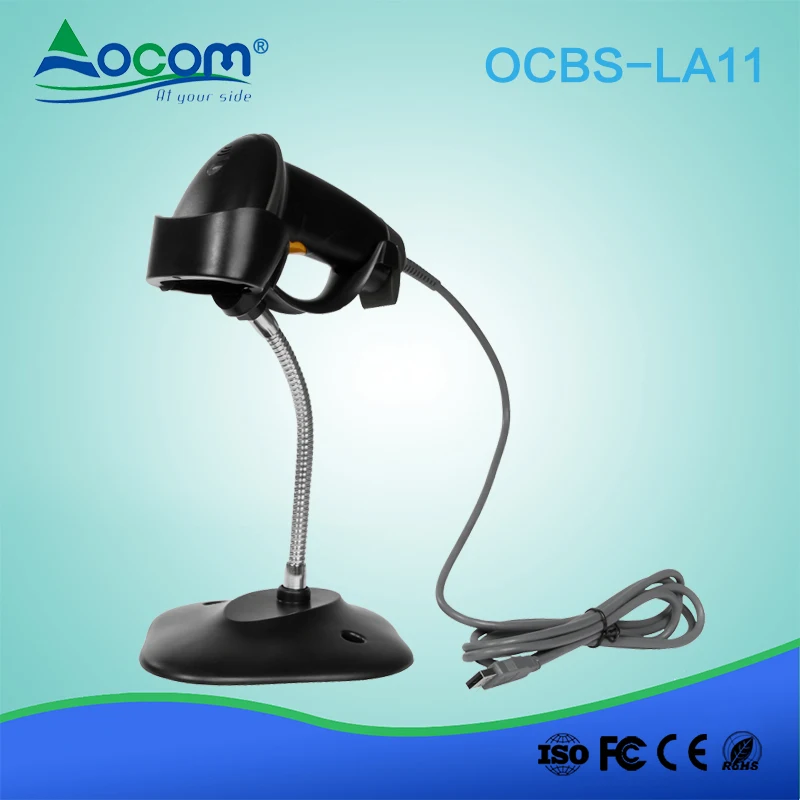

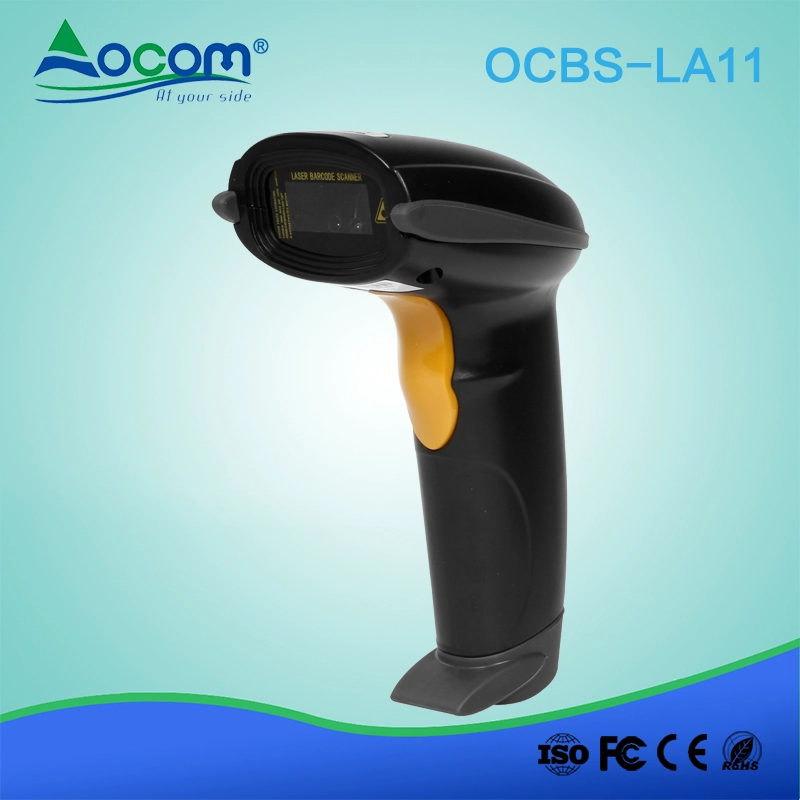

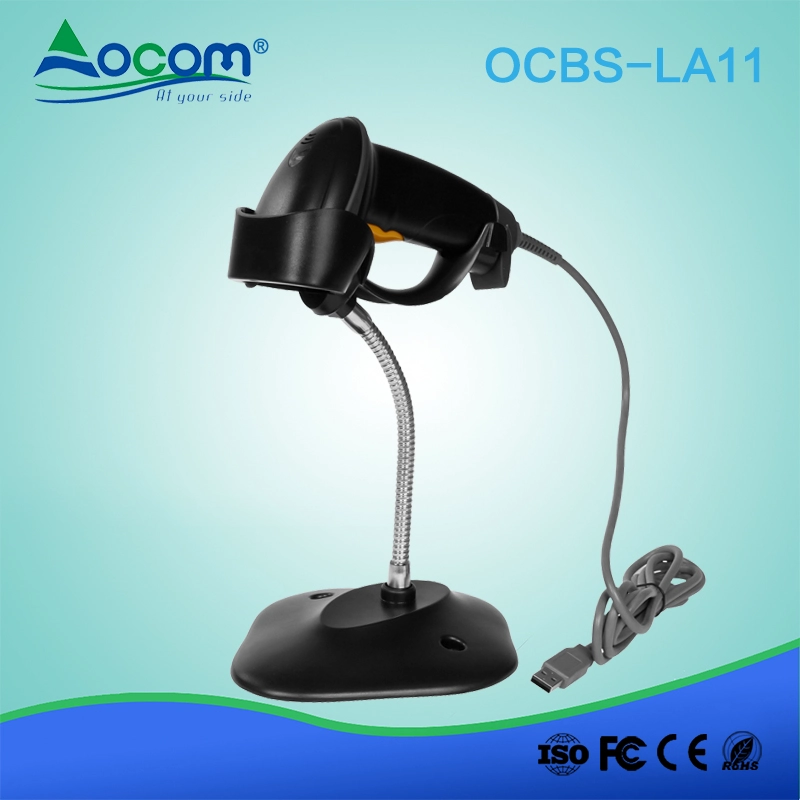

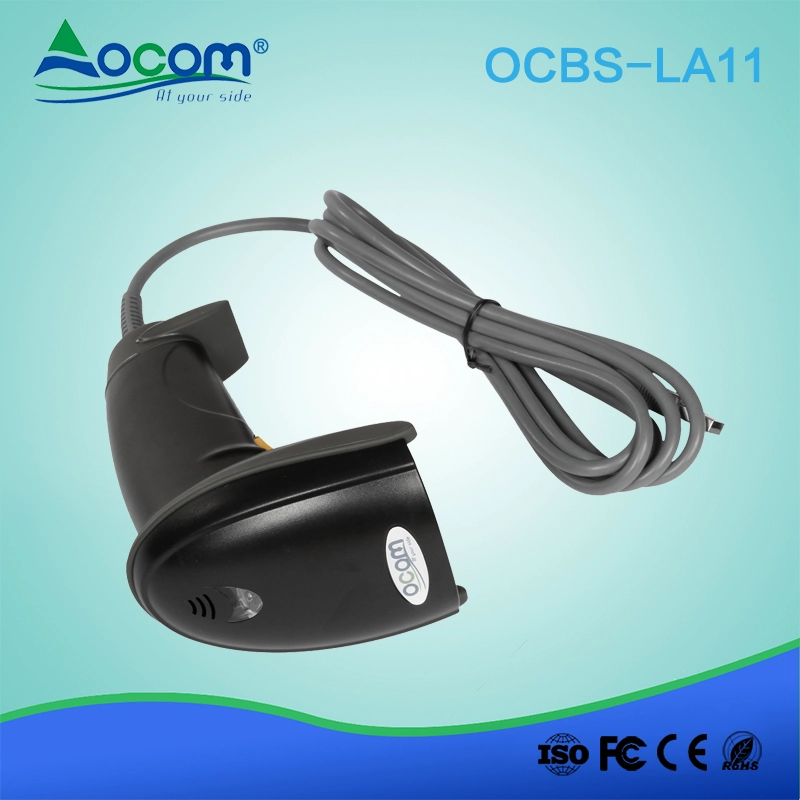

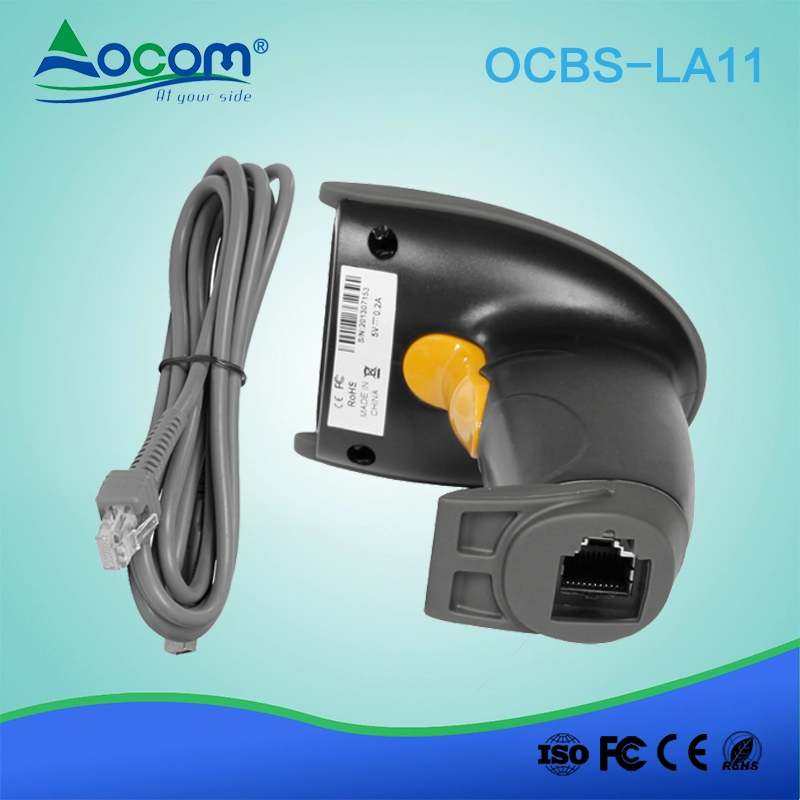

OCBS-LA11 (3).jpgOCBS-LA11 (11).jpgOCBS-LA11 (13).jpgOCBS-LA11 (15).jpgOCBS-LA11 (21).jpg
