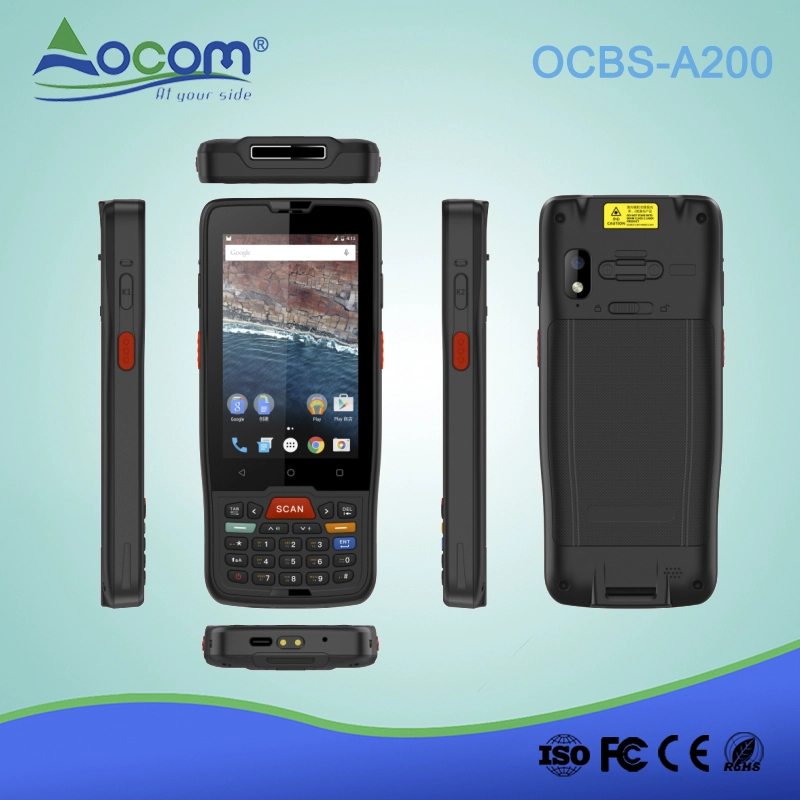

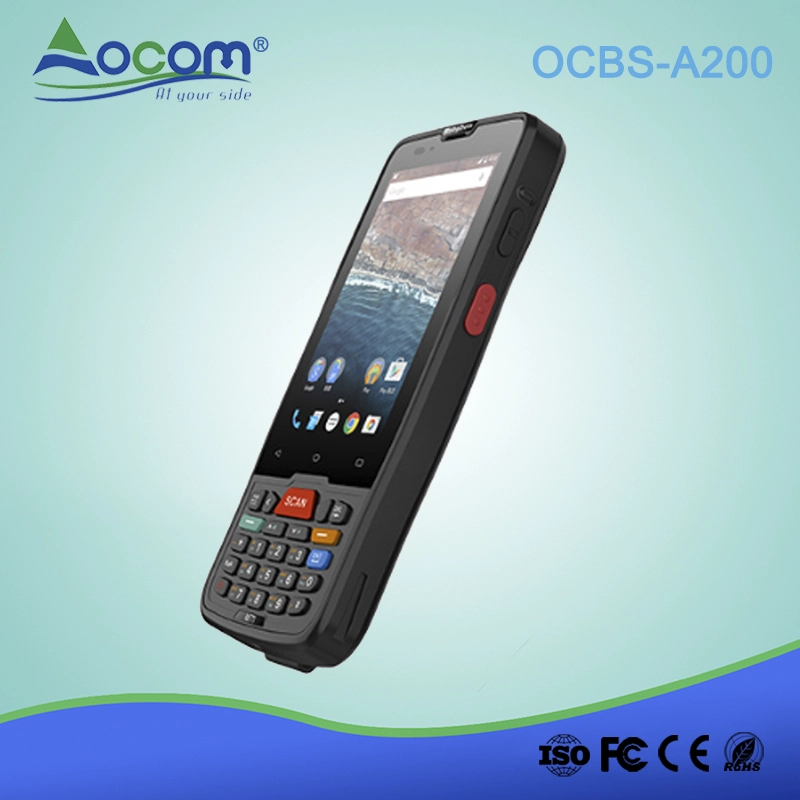

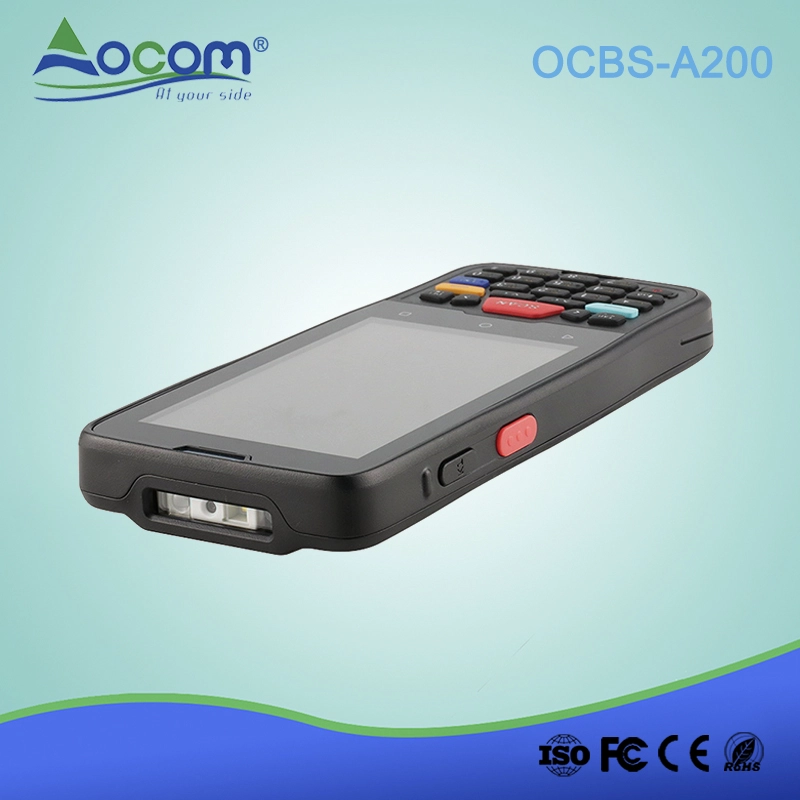

(OCBS-A200) handheld 2d barcode scanner mobile android 9.0 pda for stock control
- Features:
- MTK8768B 2GHz, QuadCore, 12nm
- 2G RAM+16G ROM
- Numeric&Functional Keypads
- Support 2/3/4G Communication
- Rechargeable li-ion polymer, 3.7V, 4000Ah Battery
- Rugged IP65 /1.5 m Drop Tolerance
- 8 megapixel camera auto-focus with LED flash of optional
- Standard high-performance 2D scanner Engine
- POGO PIN charging port support optional cradle
- Compatible with 4 kinds of global positioning systems
(OCBS-A200) handheld 2d barcode scanner mobile android 9.0 pda for stock control
(M/N:OCBS-A200)
Features:
MTK8768B 2GHz, QuadCore, 12nm
2G RAM+16G ROM
Numeric&Functional Keypads
Support 2/3/4G Communication
Rechargeable li-ion polymer, 3.7V, 4000Ah Battery
Rugged IP65 /1.5 m Drop Tolerance
8 megapixel camera auto-focus with LED flash of optional
Standard high-performance 2D scanner Engine
POGO PIN charging port support optional cradle
Compatible with 4 kinds of global positioning systems
|
Specifications |
|
|
OS |
Android 9 |
|
CPU |
MTK8768B 2GHz, QuadCore, 12nm |
|
MEMORY |
2G RAM+16G ROM |
|
Extend Slot |
MicroSD, support SDHC, up to 64GB; |
|
One micro SIM connector |
|
|
PC Communication |
USB 2.0 OTG : Type-C；Support TYPE-C Headset |
|
Sensors |
Light, Proximity, 3D G sensor, Hall |
|
LED |
Charging, Scan and System status |
|
Charging Time |
<3.5 hours(Room Temperature) |
|
<4 hours(35 ℃) |
|
|
Operation Duration |
14 hours |
|
Data Collection |
|
|
Scan Engine |
Datalogic E3200-LE |
|
2D |
Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; |
|
Micro QR Code; QR Code; EAN/JAN Composites; GS1 DataBar Composites; |
|
|
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; |
|
|
GS1 DataBar Stacked Omnidirectional; MacroPDF; |
|
|
MicroPDF417; PDF417; UPC A/E Composites |
|
|
1D |
Auto discriminates all standard 1D codes including GS1 |
|
DataBar™ linear codes. |
|
|
Post |
Australian Post; British Post; China Post; IMB; Japanese |
|
Post; KIX Post; Korea Post; Planet Code; Postnet; Royal |
|
|
Mail Code (RM4SCC) |
|
|
NFC(Optional) |
13.56MHz NFC |
|
Wireless Connectivity |
|
|
WLAN |
802.11 ac/a/b/g/n |
|
WWAN |
TDD-LTE (B38/B39/B40/B41) |
|
FDD-LTE (B1/B3/B7) |
|
|
UMTS/HSDPA/HSPA/HSPA+ (900/2100 MHz) |
|
|
GSM/EDGE/GPRS (900/1800MHz) |
|
|
VoLTE |
LTE CAT6 |
|
CA |
Downlink 300Mbps, B1/B3/B7/B40/B41 |
|
WPAN |
BT 4.2/BLE |
|
GPS |
GPS/A-GPS, GLONASS, Beidou ,Galileo |
|
Physical Specifications |
|
|
LCD |
4 inch, 800*480, visible under sunshine |
|
Touch |
GFF Captive Touch, Dragontrail Glass |
|
Camera |
Auto focus 8Mega, with flash LED |
|
Keypad |
24 Numeric Keypad |
|
Left/Right Scan Key, Left/Right K1,K2 user-defined Key |
|
|
Back, HOME, Switch |
|
|
Receiver |
Support |
|
Speaker |
Min 90db at 10cm-1KHz Voice |
|
Mic |
Noise Reduction Mic |
|
Charging IO |
USB type-C, |
|
Charging cradle |
|
|
Battery |
Removable 3800mAh-4000mAh |
|
Dimension |
160×71×17mm |
|
Weight |
269g |
|
Environmental Specifications |
|
|
Operation Temperature |
-20°C ~ +50°C |
|
Storage Temperature |
-30°C ~ +70°C |
|
Humidity |
10% ~ 90% |
|
Drop |
1.5m, concrete, 12 drops |
|
Tumble |
600hits, 0.5m, Steel |
|
IP |
IP65 |
|
ESD |
±8kV Contact, ±15kV Air |
|
Keypad life cycle |
300K |
|

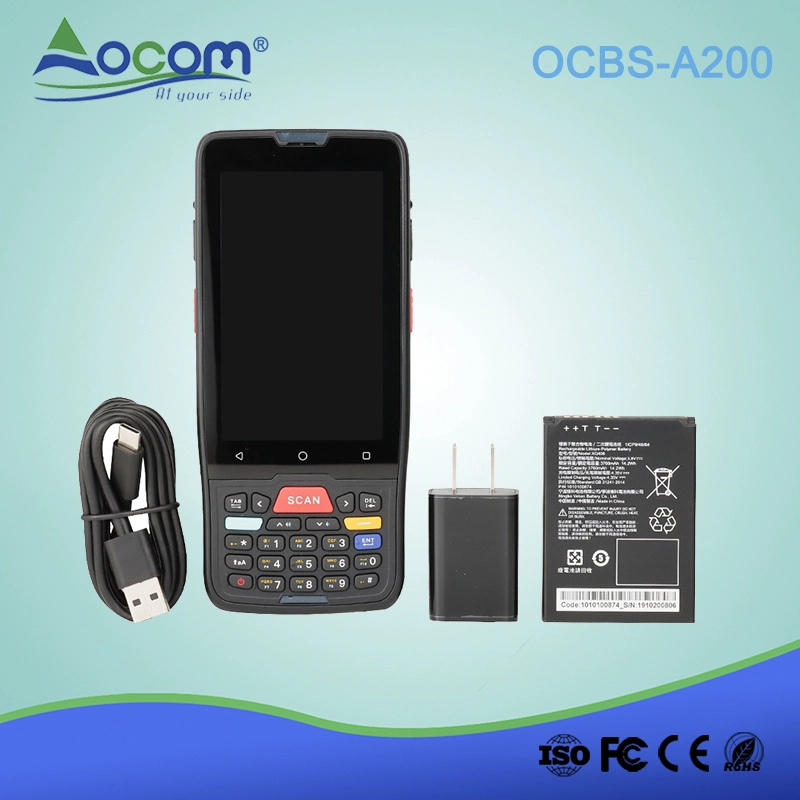

Accessories |
|
|

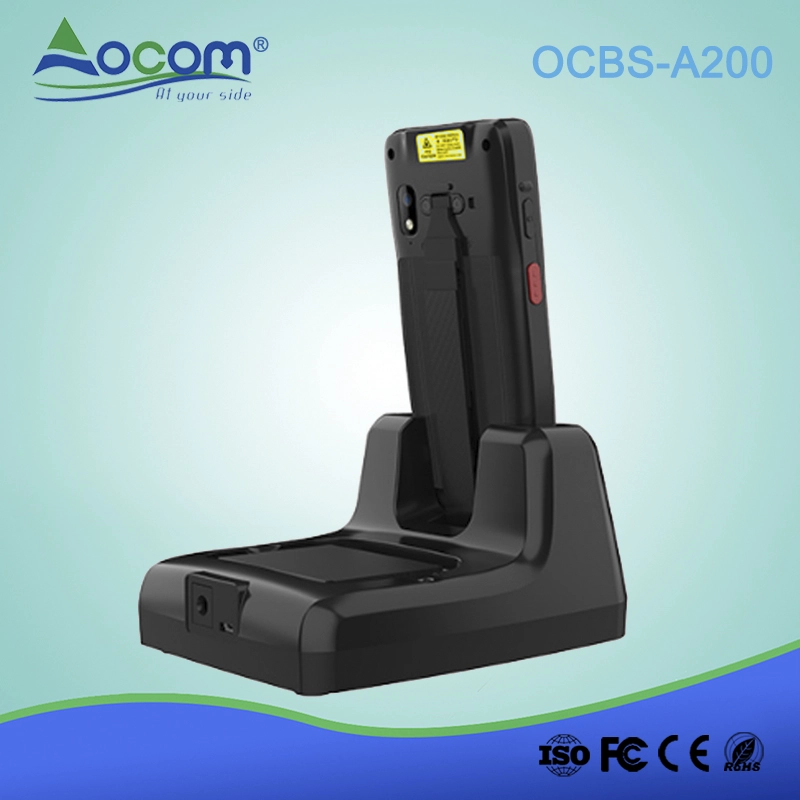

Charging Cradle |
Support 1 device and 1 battery |
|

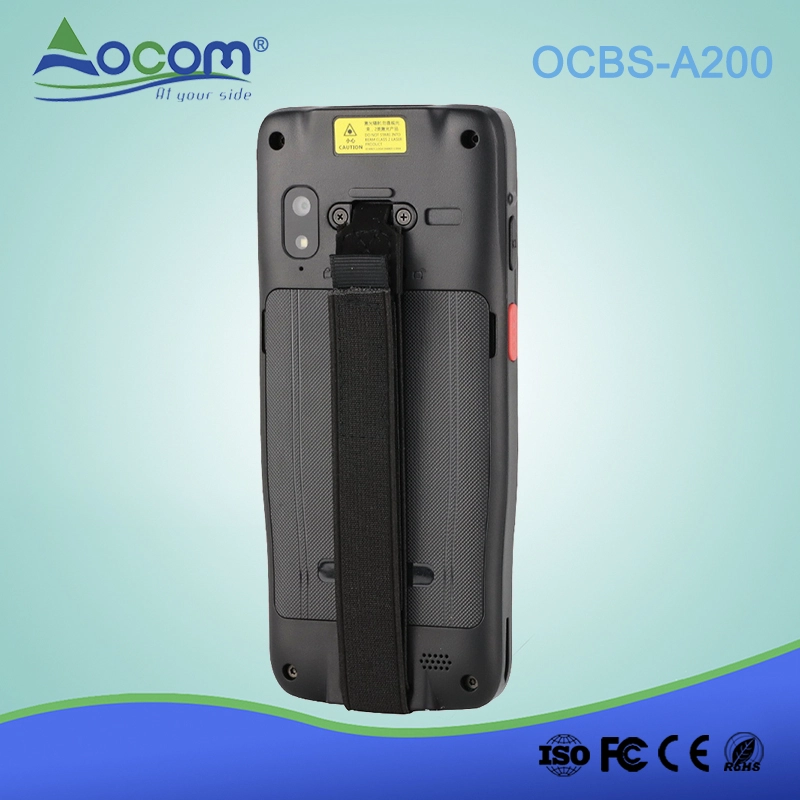

Hand strap |
Black, Nylon |
|
Battery |
Removable 3800mAh-4000mAh |
