low cost handheld 2D QR barcode scanner USB OCBS-2010low cost handheld 2D QR barcode scanner USB OCBS-2010low cost handheld 2D QR barcode scanner USB OCBS-2010low cost handheld 2D QR barcode scanner USB OCBS-2010

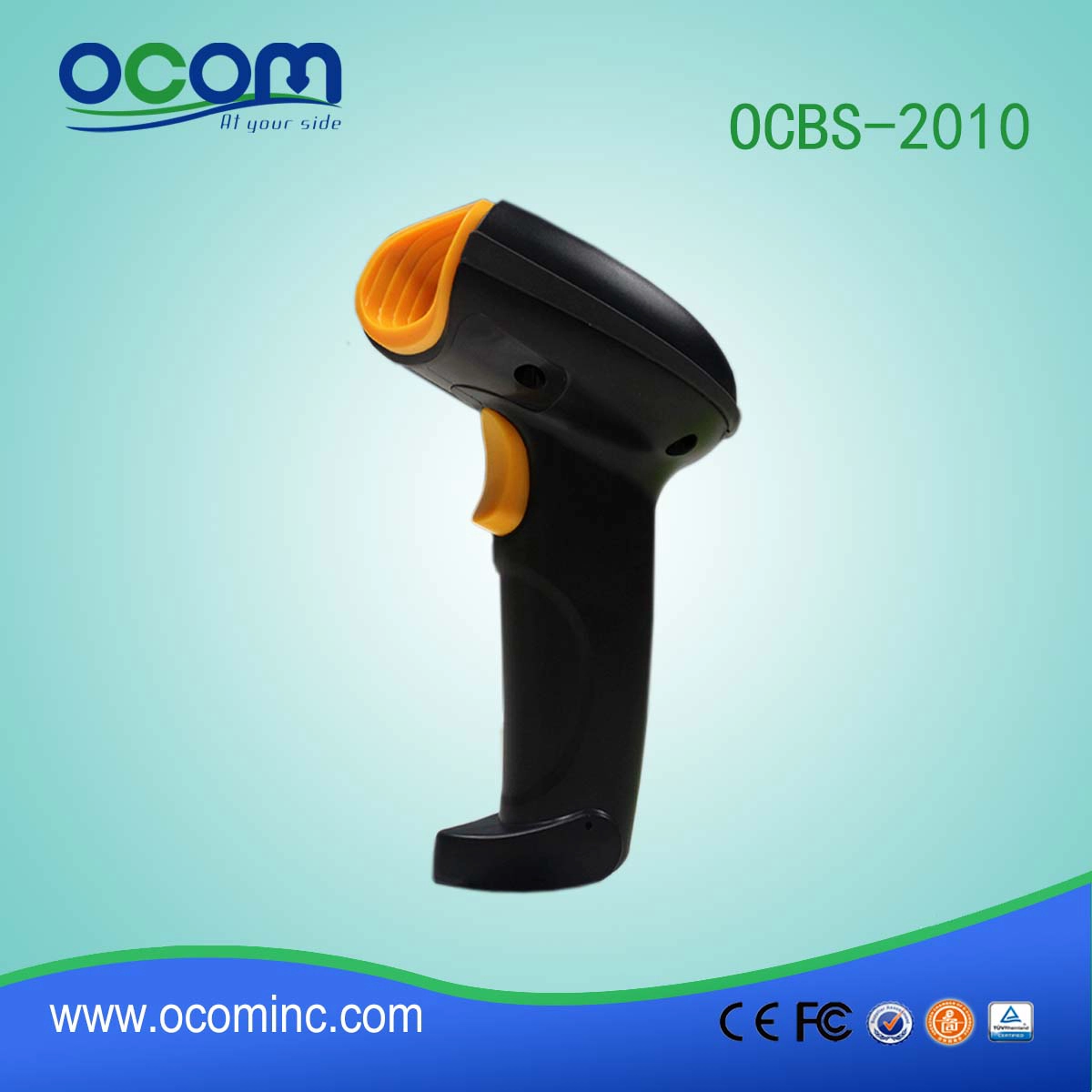

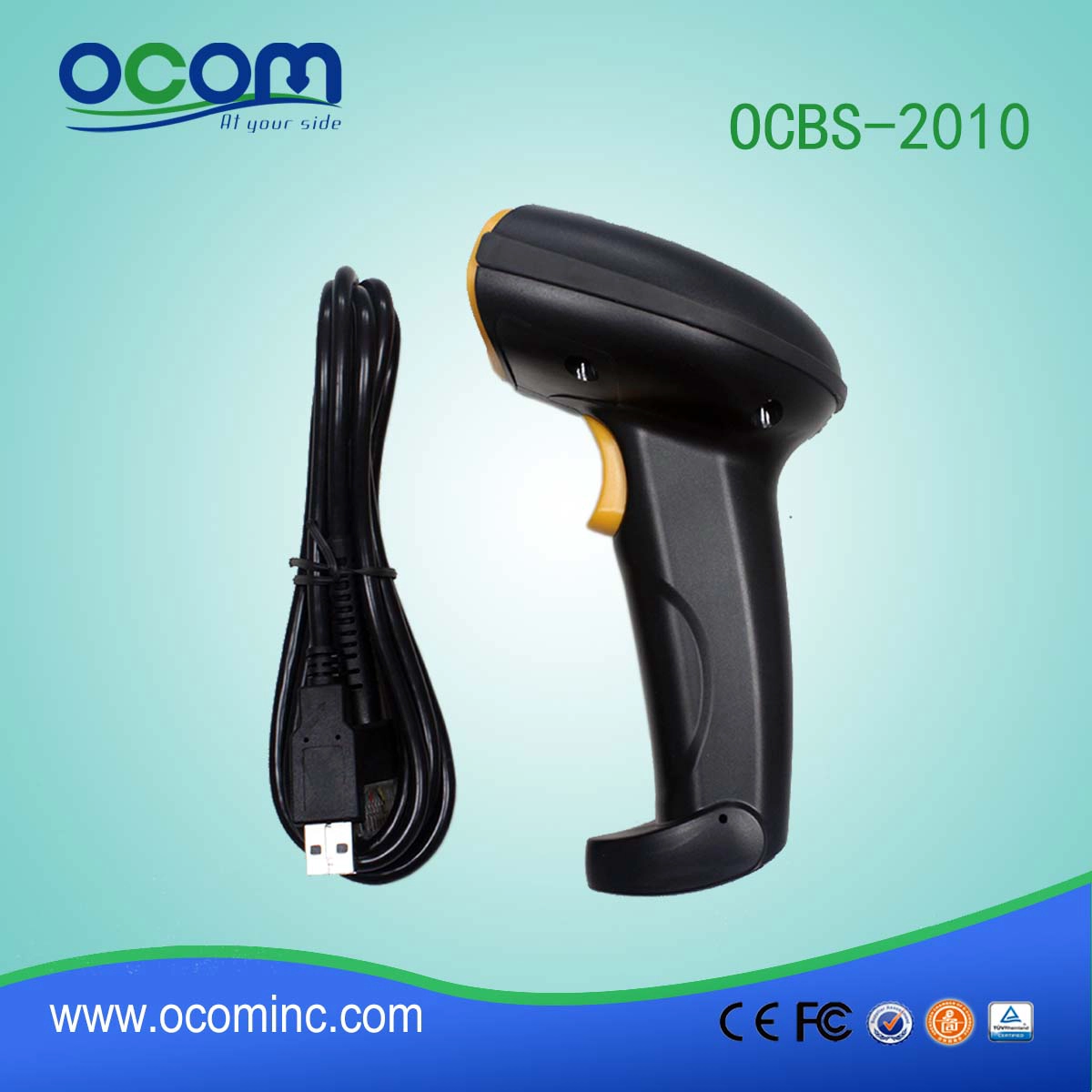

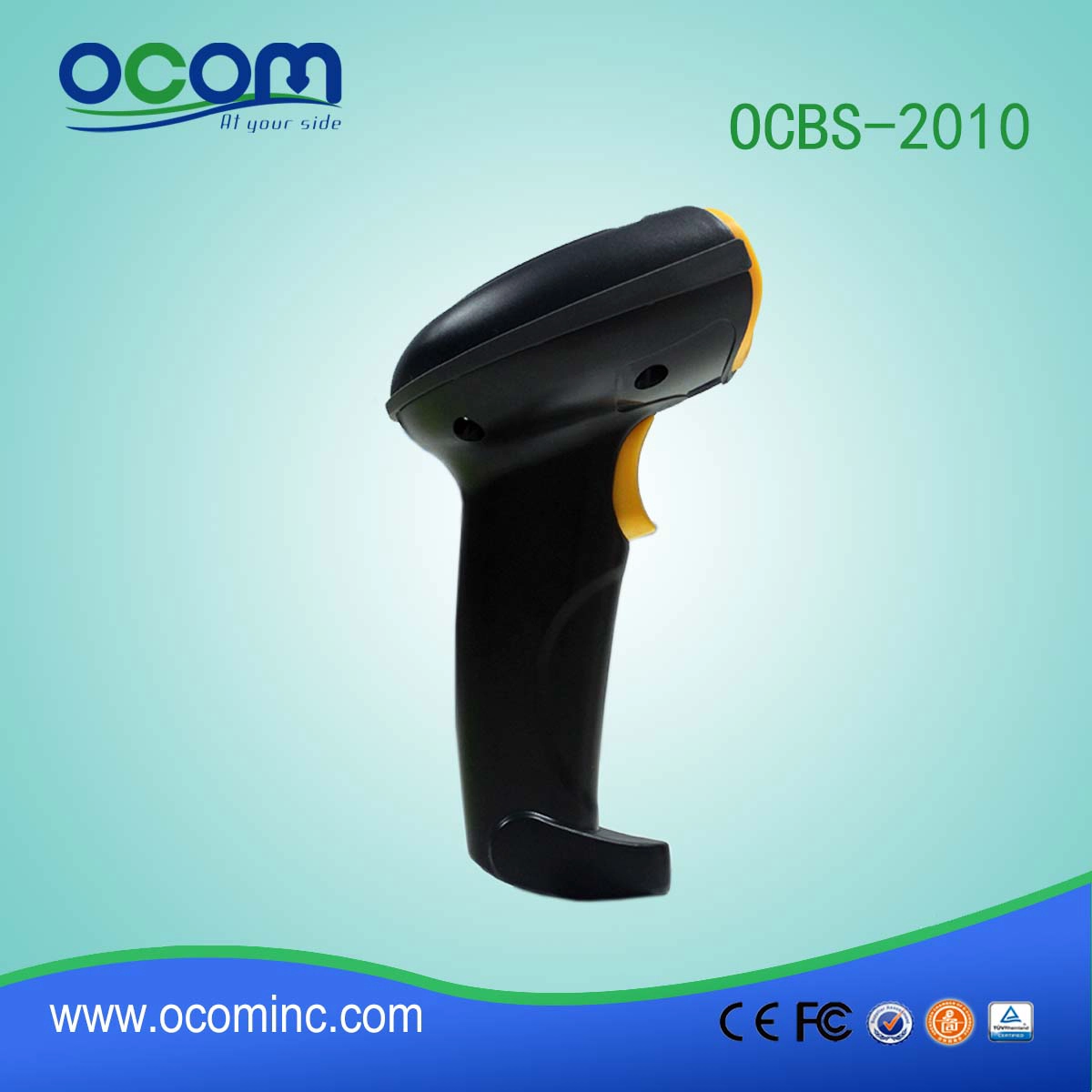

low cost handheld 2D QR barcode scanner USB OCBS-2010

  • High performance imaging technology;
  • Omni-directional scanning, easy to scan;
  • High compatibility for all major 1D and 2D symbols;
  • Can read the barcode on the screen and color barcode;
  • 5mil excellent scanning accuracy(Can be customized as required) ;
  • Multi special function setting supported;
  • Multi interfaces optional;
low cost handheld 2D QR barcode scanner USB OCBS-2010

Feature:
High performance imaging technology;
Omni-directional scanning, easy to scan;
High compatibility for all major 1D and 2D symbols;
Can read the barcode on the screen and color barcode;
5mil excellent scanning accuracy(Can be customized as required) ;
Multi special function setting supported;
Multi interfaces optional;


Specification:

Performance Characteristics

Resolution

640 * 480, 256 gray levels

Light Source

LED(630 nm ± 10 nm)

Illumination

0 ~ 100,000 LUX

Scan angle

Standard distance SR: horizontal: 45 °; Vertical: 30 °

Scanning Speed

25 cm/sec

Symbology

2D

DataMatrix, Matrix 2 of 5, MaxiCode, MicroPDF417, MSI Code, PDF417, QR code, Standard 2 of 5, Telepen, TLC 39, etc.

1D

Australian Post, Aztec, BPO, Canada Post, Codabar, Codablock, Code 11, Code 39, Code 93, Code 128/EAN128, Dutch Post, EAN.UCC Composite, Interleaved 2 of 5, Japan Post, Planet, Plessey Code, Postnet, RSS, UPC/EAN,etc.

Precision

≥ 5mil Can be customized as required

Roll

360°

Pitch

6

Skew

7

Physical Characteristics

Interface

RS232 / USB (Virtual port, only support MS and Mac operating systems)

Voltage

DC 5 V ± 5%

Current

300 mA (working) 40mA (idle)

Cable

1.5m

Weight

150 g

Dimensions

170 mm x 100 mm x 75 mm

User Environment

Operate Temperature

-20°C to 60°C (-4°F to 144°F)

Storage Temperature

-30°C to 70°C (-22°F to 158°F)

Humidity

5% - 95%(non-condensing)

Shock

Drop from 120 cm to concrete floor
