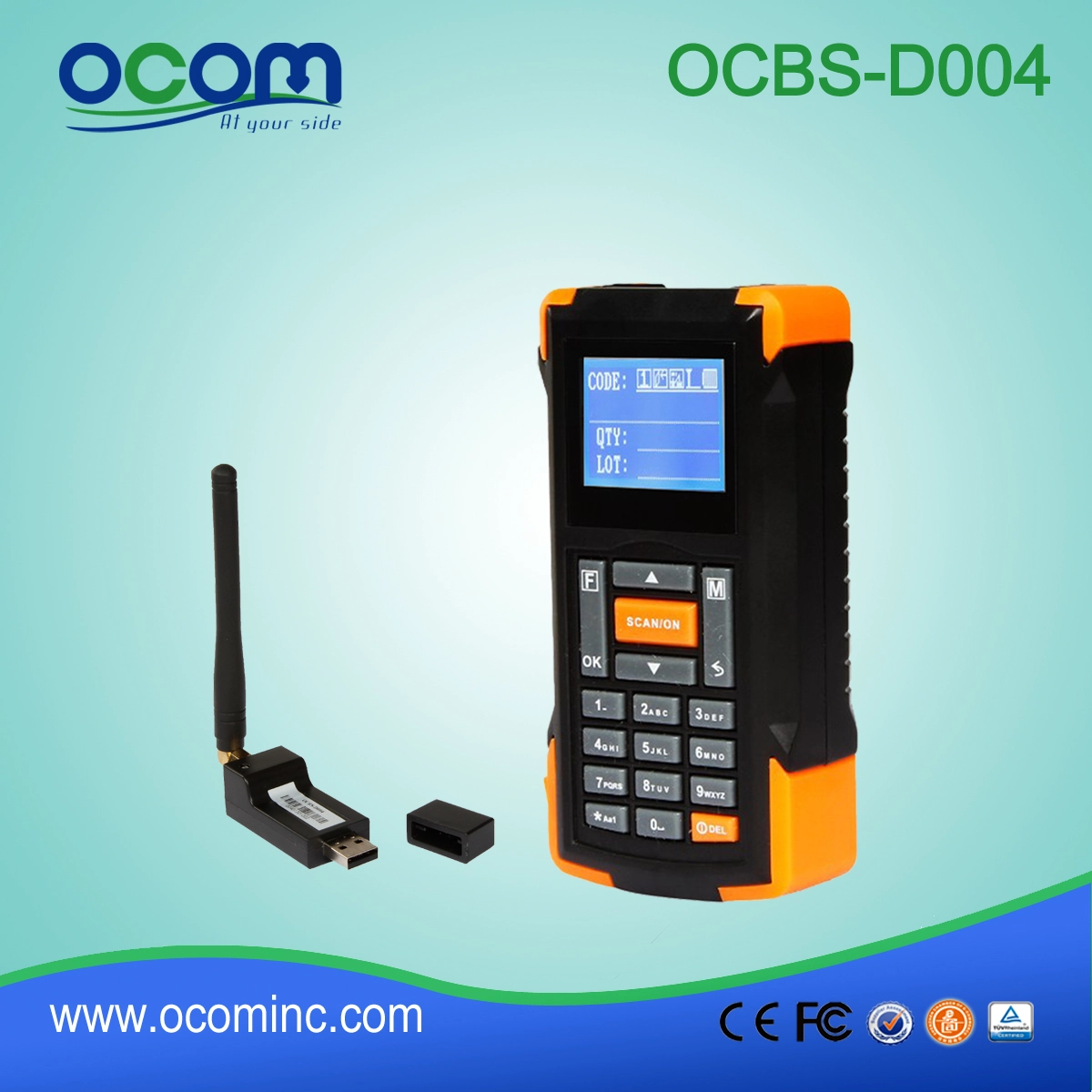

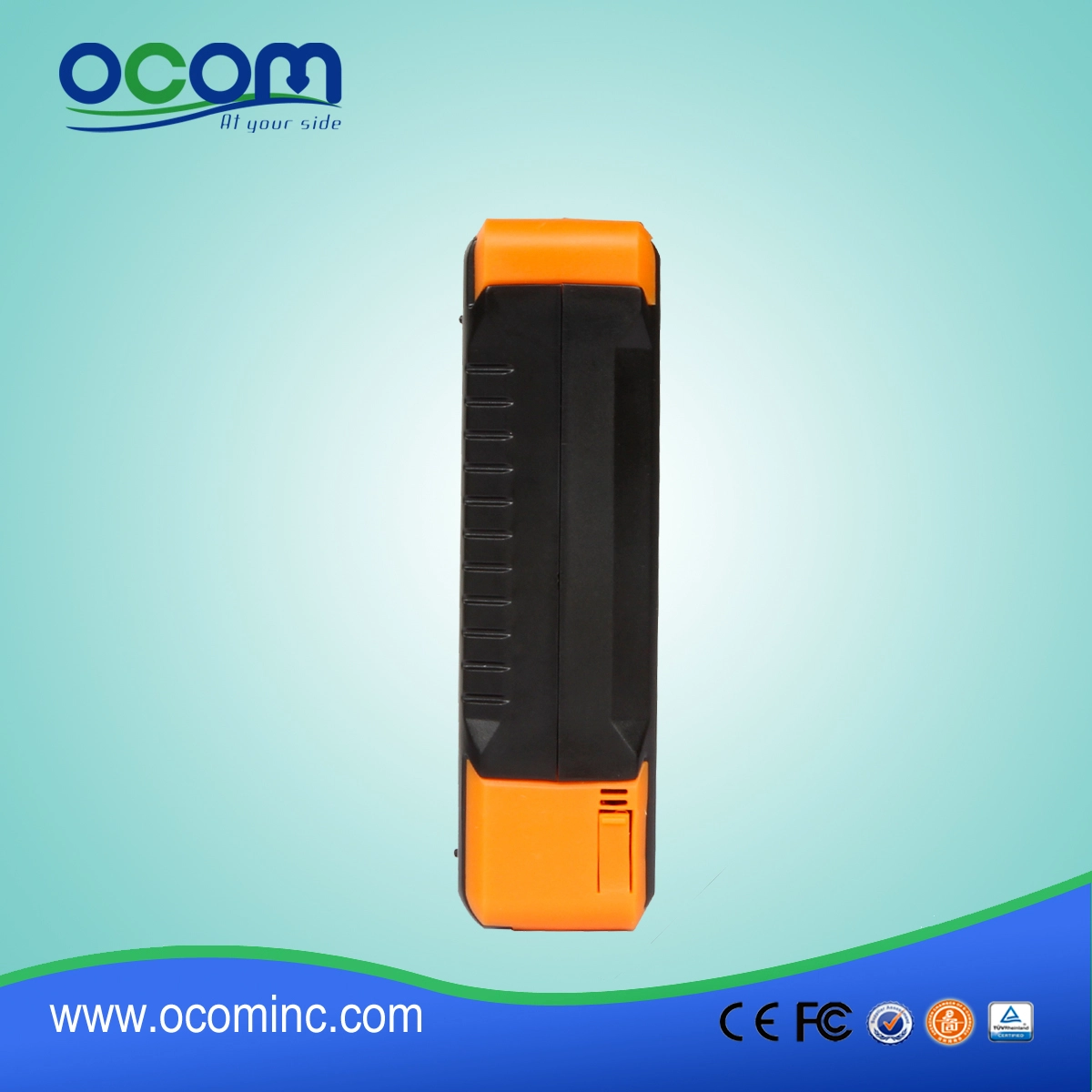

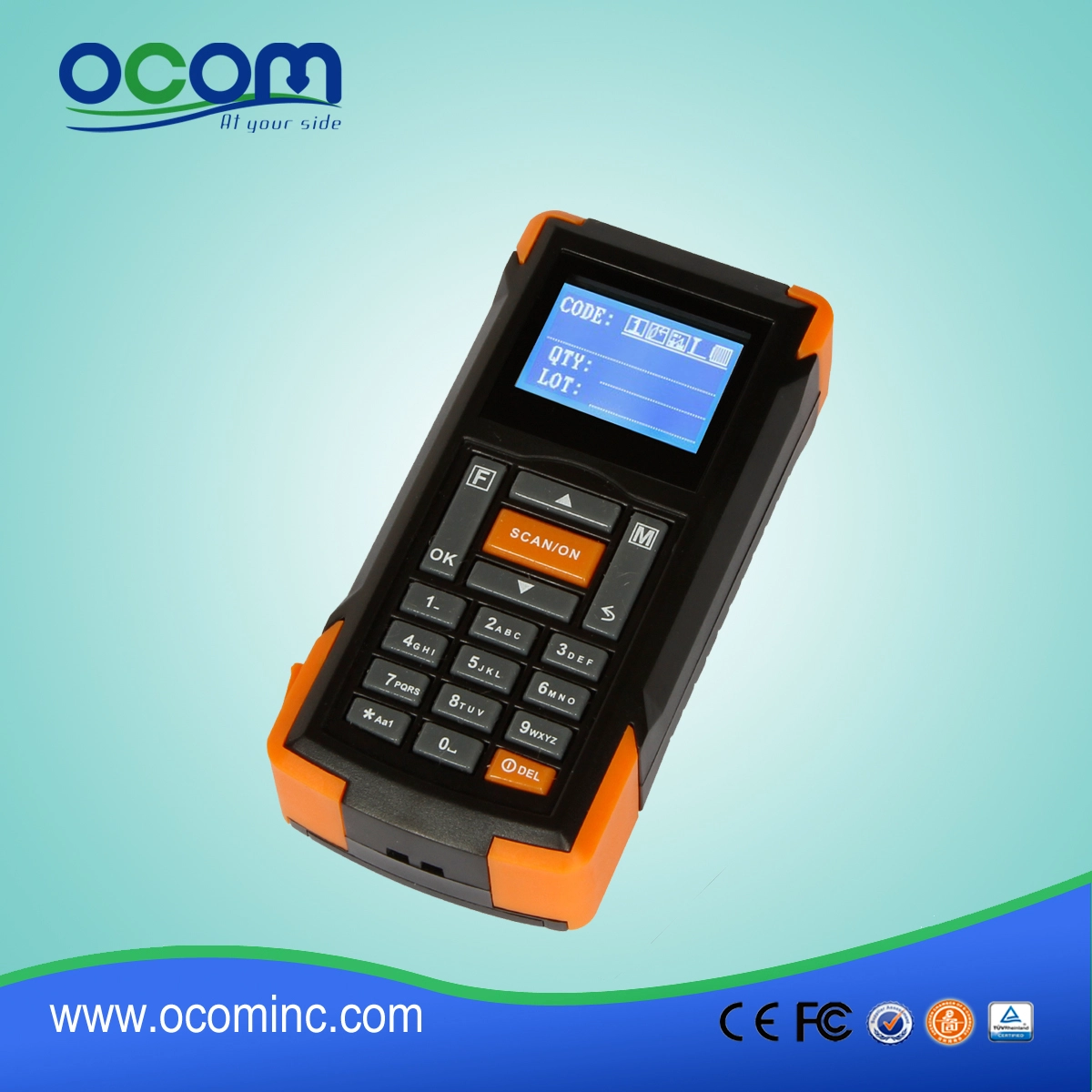

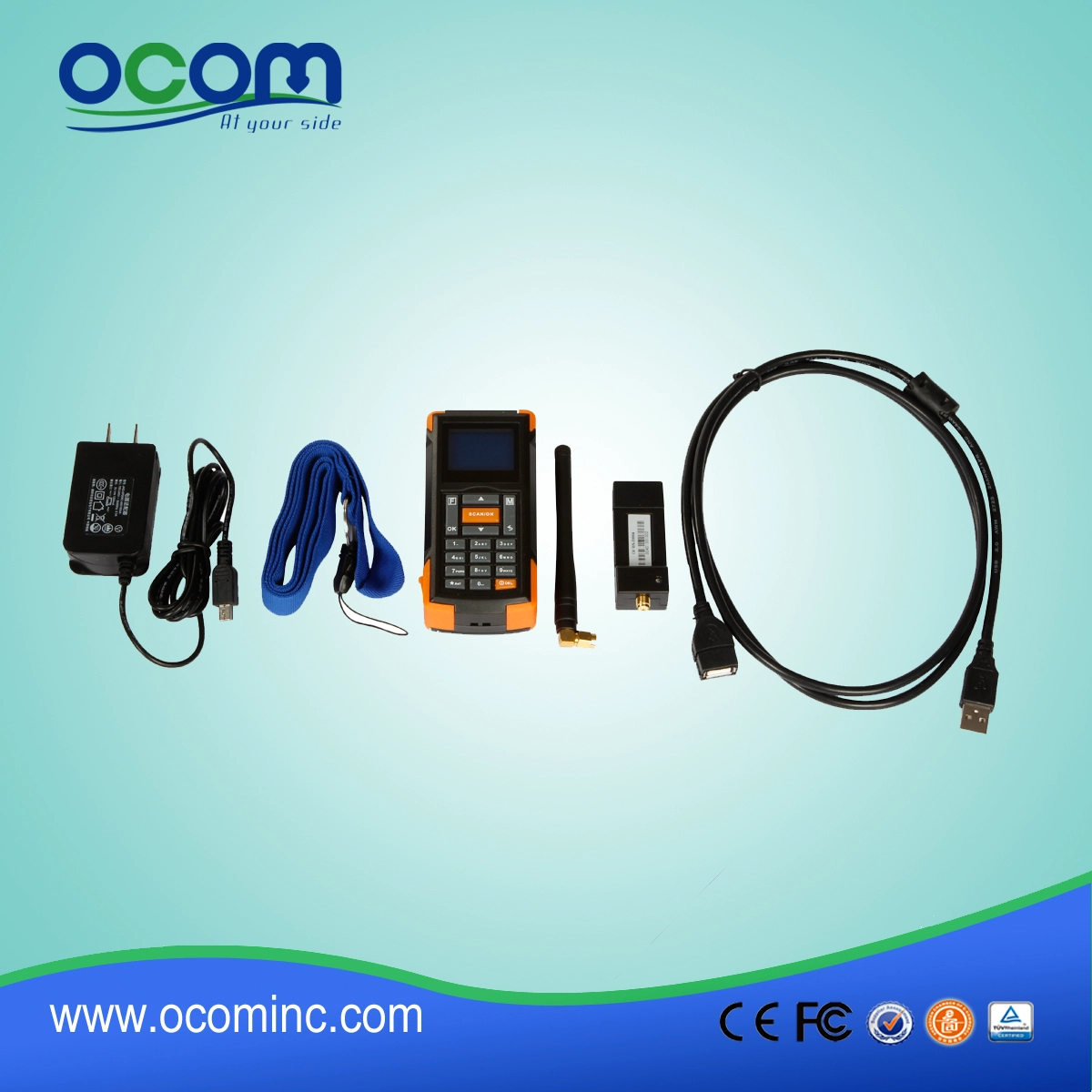

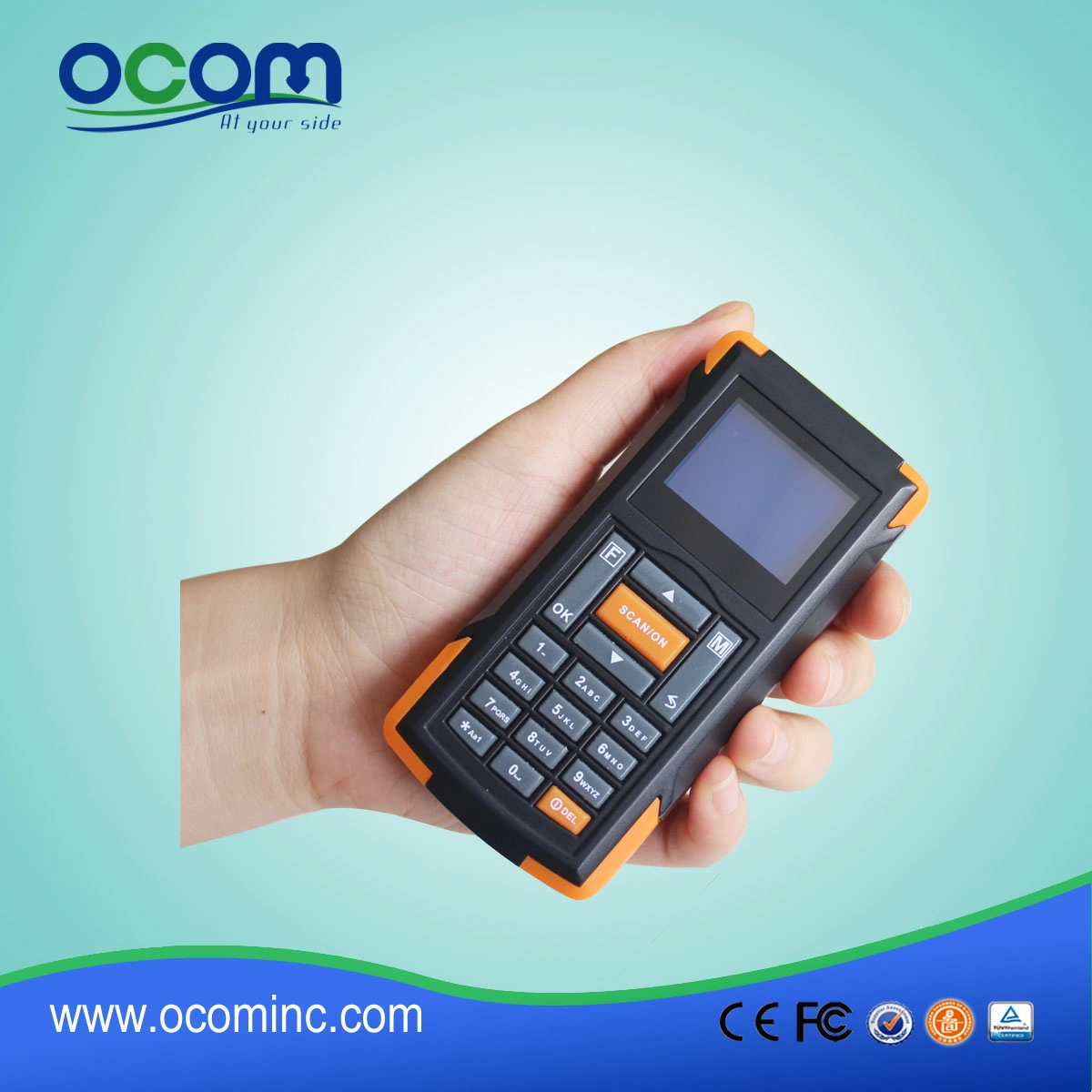

mini wireless data terminal PDA portable (OCBS-D004)mini wireless data terminal PDA portable (OCBS-D004)mini wireless data terminal PDA portable (OCBS-D004)mini wireless data terminal PDA portable (OCBS-D004)mini wireless data terminal PDA portable (OCBS-D004)

mini wireless data terminal PDA portable (OCBS-D004)

  • Features:
  • Mini data collector, convenient and portable;
  • Wireless working distance can meet general request, 30 to 300m in open area;
  • Can store 30,000 bar codes;
  • Instantly store and bulk transfer mode, secure to keep the data;
  • Auto-turn-off at low voltage. Settable standby time, high efficiency and energy saving;
  • Easy and comfortable operation;
mini wireless data terminal PDA portable
(OCBS-D004)

Keywords:
data terminal,
wireless data terminal,
PDA portable

features:
  • Mini data collector, convenient and portable;
  • Wireless working distance can meet general request, 30 to 300m in open area;
  • Can store 30,000 bar codes;
  • Instantly store and bulk transfer mode, secure to keep the data;
  • Auto-turn-off at low voltage. Settable standby time, high efficiency and energy saving;
  • Easy and comfortable operation;

Specification:



Wireless Communications:

Modulation

GFSK

Transmission rate

200Kbps

Power

10dBm

Transmission Distance

Visual straight line distance 300 meters

Antenna

Built-in spring antenna

Performance Characteristics

Light Source

650nm laser

Supported barcodes

EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI etc

Scanner Type:

Bi-directional

Scan rate

48±2 scan/second

Scan distance

10-520mm

Scan width

20mm@window,220mm@200mm

Resolution

0.10mm(pcs0.9)

Depth of Field

0~250mm(0.33mm,PCS 90%)

Working Way

Triggered or automatic (continuous mode) scanning

Physical Characteristics

Memory:

1M (Can store 30,000 barcodes)

Interfaces:

Standard configuration mini USB receiver; RS232 and PS2 optional

Current:

96mA (working) 46mA(standby)

Battery:

Built-in rechargeable lithium ion battery (3.7V, 1900mAh)

Material

ABS+PC

Dimension:

102mmX46mmX28mm (Data Collector) 52mmX20mmX10mm (Receiver)

Weight:

130g (with battery)

User Environment

Operation Temperature

-20 Degree C~45 Degree C

Storage Temperature

-20 Degree C~60 Degree C

Humidity:

5~95% relative humidity, non-condensing

Safe

EMI/RFI:

CE & FCC DOC compliance

Safety Standard

The second national laser safety standards

Ordering Information

OCBS-D004

433MHZ Wireless Mini Portable Stocktaking Terminal

OCBS-D104

USB Cable Mini Portable Stocktaking Terminal
