supermarket mini usb 2d laser barcode scanner
- High performance imaging technology;
- Omni-directional scanning, easy to scan;
- Can read the barcode on the screen and color barcode;
- 4mil excellent scanning accuracy ;
- Multi special function setting supported;
- Multi interfaces optional;
- Stand for option.

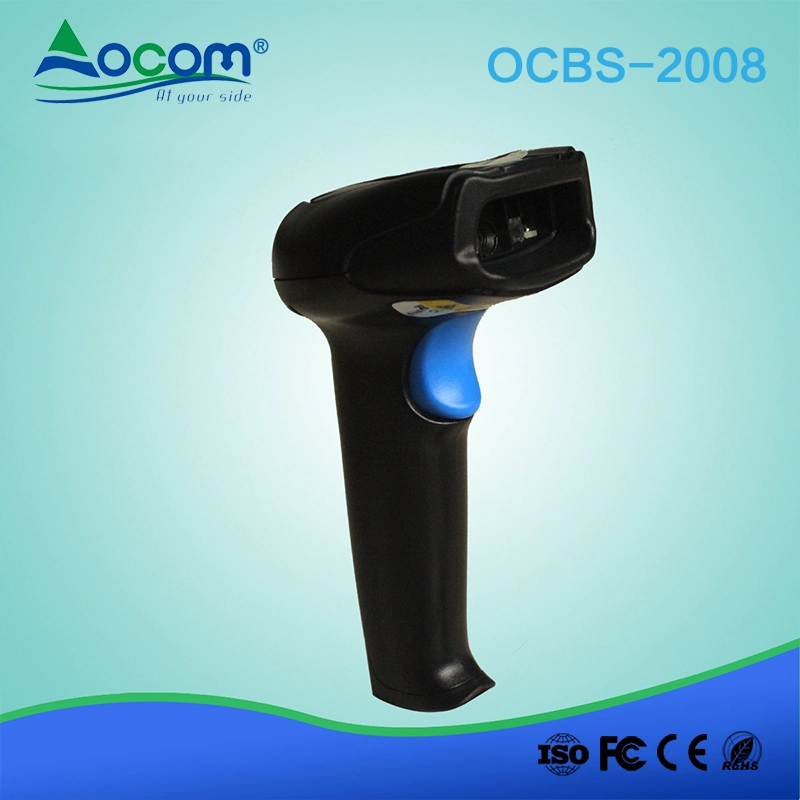

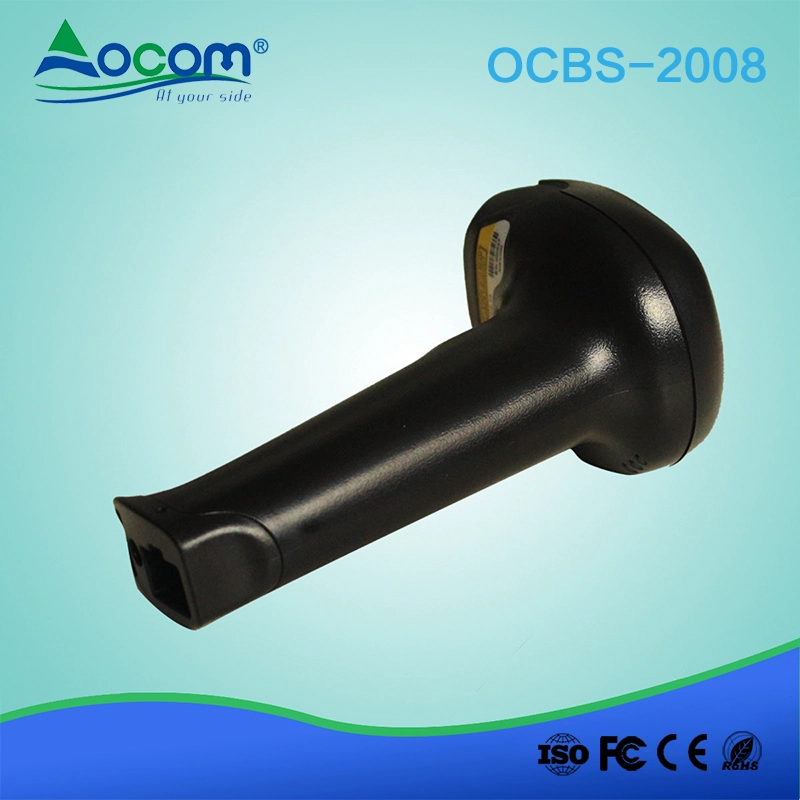

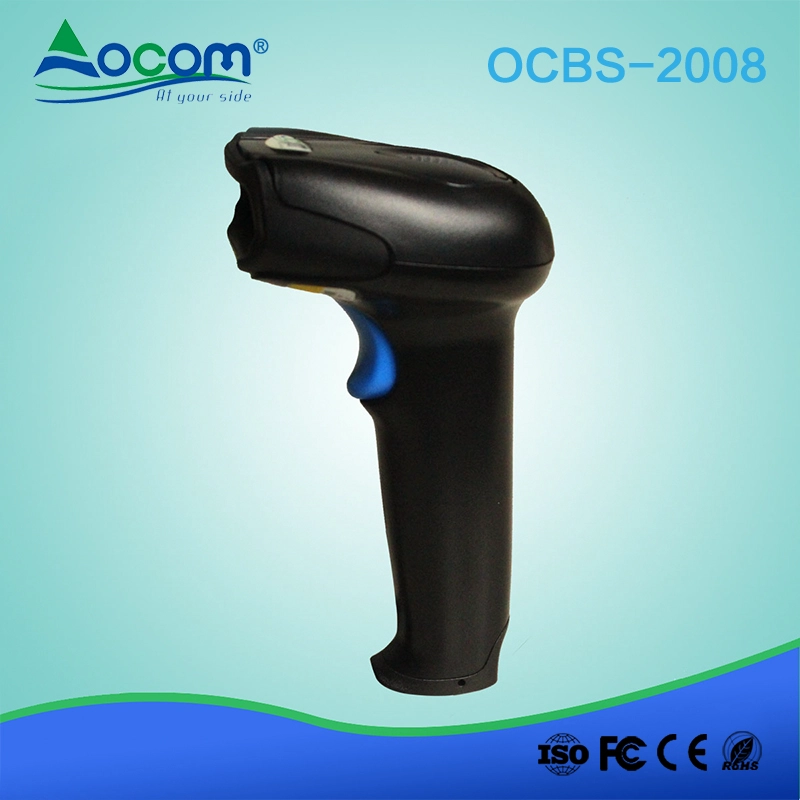

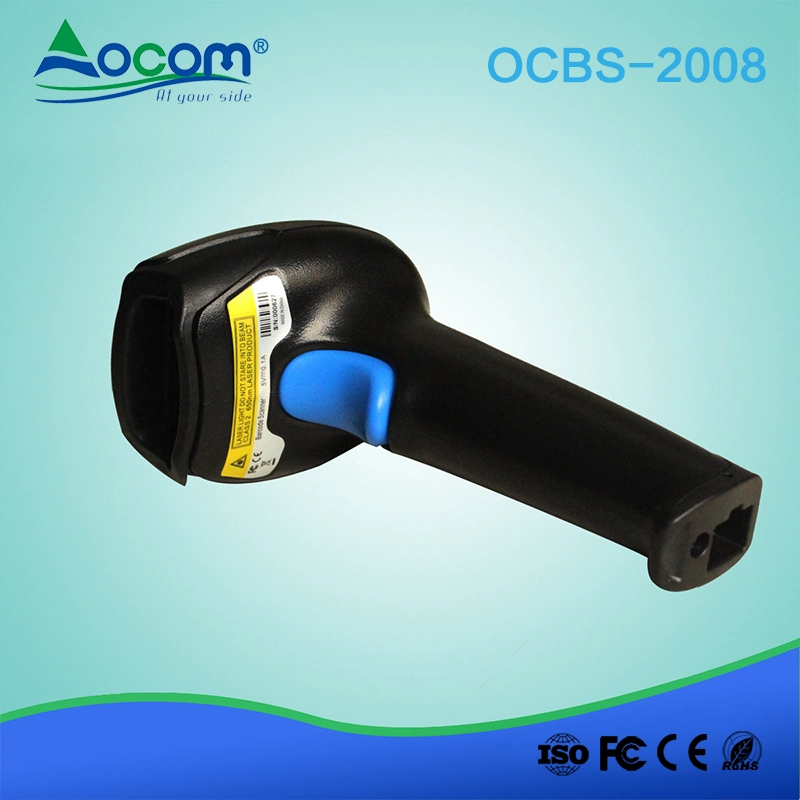

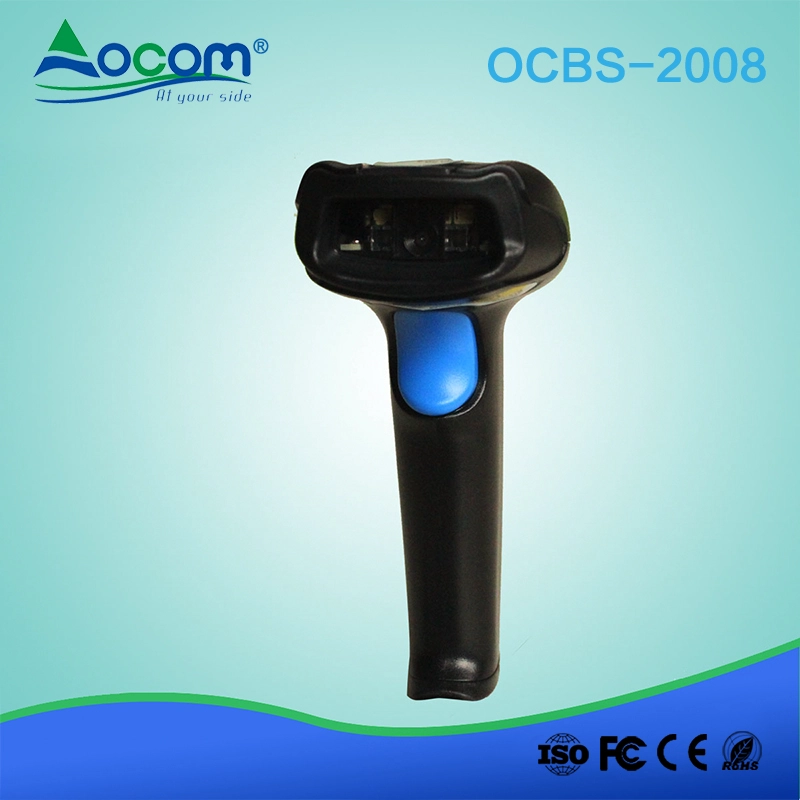

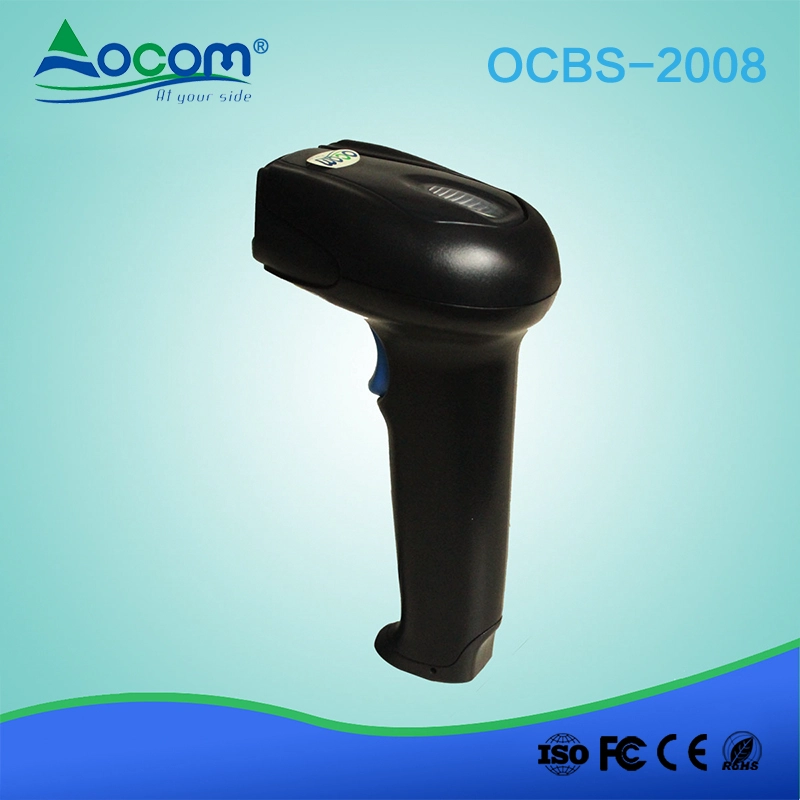

supermarket mini usb 2d laser barcode scanner
（Model: OCBS-2008）
High performance imaging technology;
Omni-directional scanning, easy to scan;
Can read the barcode on the screen and color barcode;
4mil excellent scanning accuracy ;
Multi special function setting supported;
Multi interfaces optional;
Stand for option.
PerformanceCharacteristics
|
Function |
||
|
Light source |
White LED |
|
|
Beep |
Supported |
|
|
Stand |
Optional |
|
|
Indicator |
Green LED, beep |
|
|
Scan performance |
||
|
Sensor |
CMOS |
|
|
Resolution |
640*480,256 gray levels |
|
|
Maximum decoding speed |
13mil UPC 40cm/s |
|
|
Reading angle |
horizontally 50 deg; vertically 20 Deg |
|
|
Precision |
≥4mil |
|
|
Decode capability
|
1D |
UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128 (GS1-128), ISBT 128, Code93, Code 11 (USD-8), MSI/Plessey |
|
2D |
PDF417, MicroPDF417, QR Code, DataMatrix, Han Xin Code, Aztec Code, GS1 Composite |
|
|
Depth of field |
Code 39(5mil)：50mm~120mm Code 39(10mil)：25mm~250mm UPC/EAN (13mil)：20mm~320mm Data Matrix(7.5mil)：63mm~150mm PDF417(6.6mil)：62mm~145mm |
|
|
Sensitivity |
Inclination ±45° @0°Roll and 0°Skew Rotation ±30° @0°Pitch and 0°Skew Deflection ±45° @0°Roll and 0°Skew |
|
|
Electrical |
||
|
Interface |
USB,USB COM(virtual serial port) |
|
|
Input Voltage |
3.3v~5v DC |
|
|
Standard Power |
2.0w (400mA) |
|
|
Max Power |
2.5w (450mA) |
|
|
DC adapter |
Max 5.5V 1A |
|
|
LED CLASS |
Class I |
|
|
EMC Test |
FCC part15,IEC60825-1,EN55022 Class B |
|
|
User Environment |
||
|
Operate Temperature |
-20 deg C ~ +60 deg C (-4 Deg F to 144 deg F) |
|
|
Storage Temperature |
-30 deg C ~ +70 Deg C (-22 Deg F to 158 deg F) |
|
|
Humidity |
5% - 95%(non- condensation) |
|
|
Drop resistance: |
1.5m (5.0ft) drops to concrete |
|
|
IP class |
IP54 |
|
|
Light intensity |
Working: sun lights, fluorescent lights |
|
|
Physical |
||
|
Dimensions |
156*68*83mm |
|
|
Weight |
195 g (without stand) |
|
|
Package dimension |
48*36*47CM (20pcs with stand 13.5KG) |
|
|
48*39*52CM (30pcs without stand 15KG) |
||
1. Warranty
OCOM is dedicated to providing most cost-effective products and services with highest quality that will meet customers'satisfication, our warranty of the products is about 12 months from the shipment normally, some designated models can have as long as 24 months warranty. For mass order, we can supply you some spare parts for local repair. And after that, you can returned failure parts for reworks.
2. Payment Terms
For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others. About samples order, T/T, Western Union, Escrow,Paypal are acceptable. Escrow Service is powered by Alipay.com. Currently,you can pay using Moneybookers, Visa, MasterCard and bank transfer. You can also pay with select debit cards including Maestro, Solo, Carte Bleue, PostePay, CartaSi, 4B and Euro6000.
3. Shipment
We accept all kinds of shipping ways including: express, air, sea, car, or pick up by customers personally.
4. Sample Availability & Policy
After customers confirmed our specification, we are very glad to provide samples for testing and qualification. All samples should be paid before shippment, and the samples price is a little higher than mass order. When the mass order placed, we can return you the samples cost, or send you more products with the shippments. You can buy the samples from us directly using t/t, western uion, or paypal. And you can also buy it on our online store at aliexpress: http://www.aliexpress.com/store/403448?tracelog=minisite_CI The sample order is needed before we release to our factorie
5. After-sales Service:
* We have the top 1% level trade assurance upto USD12000 guarranteed by alibaba, which can proect your money well to ensure the lead time and products quality. (1) All products warranty is not less than one year, some models even up to two years warranty. (2) Spare parts will be provided for mass orders for customers' local maintenance. (3) Have distributors or authorized agents in main market who can provide local repair and replacement services. (4) Professional CRM management insures fast customer's enquiries and orders tracking. (5) Sales with many years experience in foreign trade, proficient in foreign languages and strong sense of responsibility. (6) 7*24 hours online, working days respond within four hours, rest days within 12 hours.
6. Download
You can access http://www.possolution.com.cn/cn/download.html download drivers, SDK software, product specifications and user manuals.
7. Video Guide
To help customers use our products better, we have recorded and upload some video guidance, you can find them at http://www.possolution.com.cn/video.html.
8. MOQ policy
No MOQ limitation for the standard products, but the unit price is different. For customized production, you can discuss the MOQ with our sales rep.
