2015 New 3 Tracks Magnetic Stripe Card Reader2015 New 3 Tracks Magnetic Stripe Card Reader2015 New 3 Tracks Magnetic Stripe Card Reader2015 New 3 Tracks Magnetic Stripe Card Reader

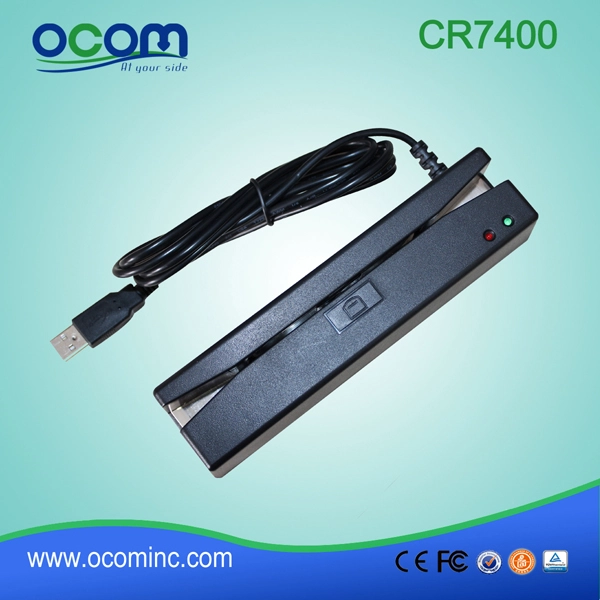

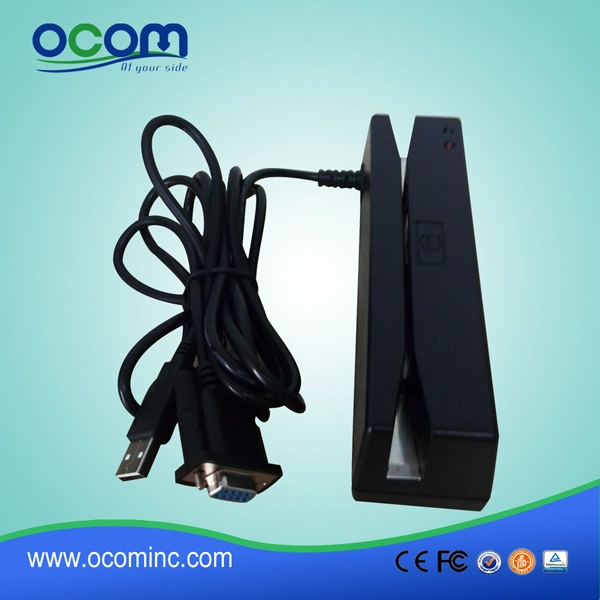

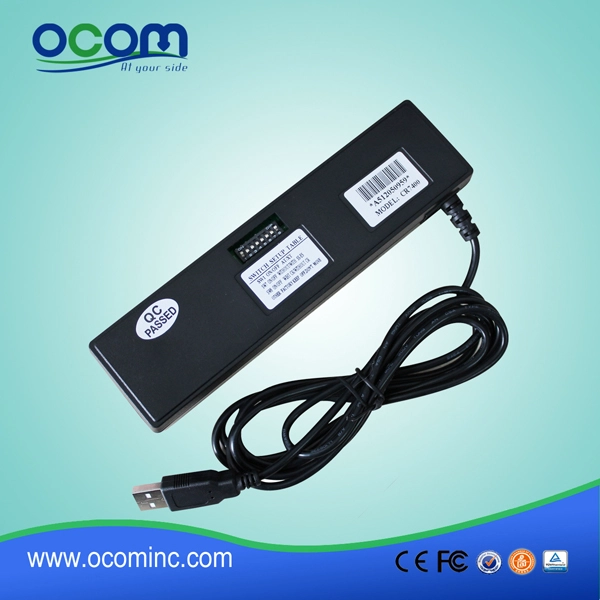

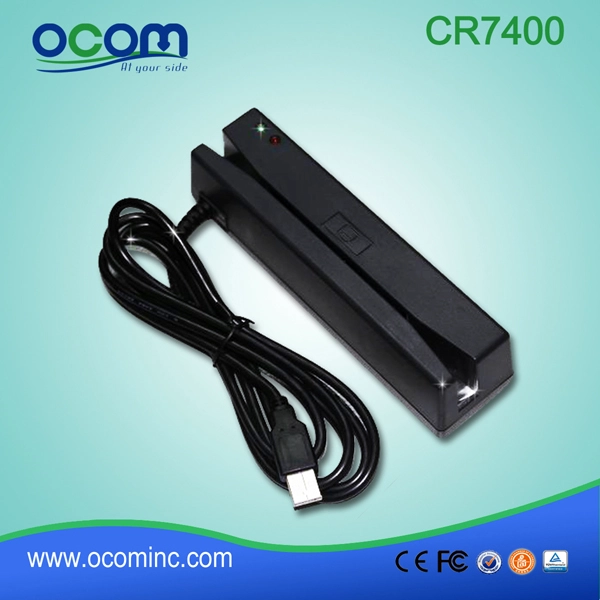

2015 New 3 Tracks Magnetic Stripe Card Reader

  • 2015 New 3 Tracks Magnetic Stripe Card Reader
  • Compliance with ISO 7811, AAMVA and CA DMV, ANSI;
  • Multiple interface for option: USB (default), PS2 (optional), RS232 (Optional);
  • Bi-directional swipe reading;
  • All 3 tracks can set to 75/210 BPI;
  • Reliable for 500,000 card swipes;

2015 New 3 Tracks Magnetic Stripe Card Reader


Features:

2015 New 3 Tracks Magnetic Stripe Card Reader
Compliance with ISO 7811, AAMVA and CA DMV, ANSI;
Multiple interface for option: USB (default), PS2 (optional), RS232 (Optional);
Bi-directional swipe reading;
All 3 tracks can set to 75/210 BPI;
Reliable for 500,000 card swipes;

Specifications:

Dimension

170mmx44mmx42mm

Weight

0.2kg

Power Supply

+5V DV ±5%

Power consumption

<10mA

Card Standard

ISO7811,AAMVA, CA DMV

Track Position

Track 1

Track 2

Track 3

Recording Density

210 BPI

75 BPI

210 BPI

Recording Capacity

76 Characters

37 Characters

107 Characters

Interface

USB (default), PS2 (optional), RS232 (Optional)

Head Function

Read only 1.5mm

Operation Speed

10 ~ 100cm/sec

Life of Head

500,000 card swipes

Error Rate

Less Than 0.5% (JSE Test card)

Temperature

Storage : -30°C to +70°C Operating : -20°C to +50°C

Humidity

Storage : 0% to 95% RH Operating : 20% to 90% RH


Product Details:

Relevant documents:

Do you want to know more product information?Please Click here.
