3 position lock safe cash drawer rj11 12V or 24V3 position lock safe cash drawer rj11 12V or 24V3 position lock safe cash drawer rj11 12V or 24V3 position lock safe cash drawer rj11 12V or 24V

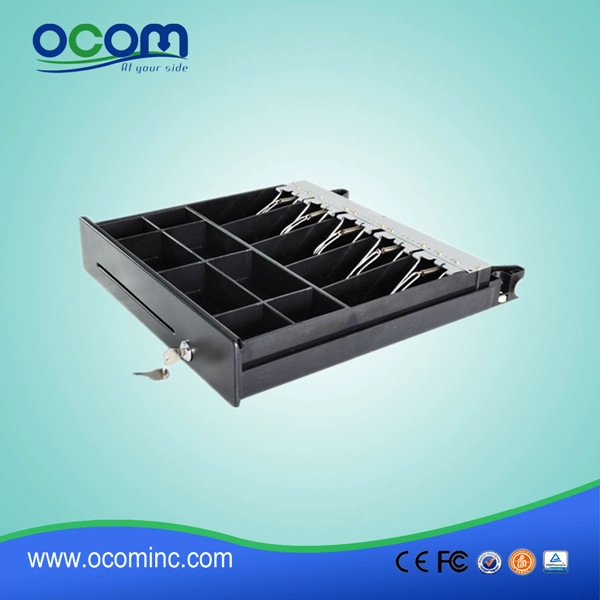

3 position lock safe cash drawer rj11 12V or 24V

  • 4 or 5 adjustable Bill holders and 8 removable Coins holders;
  • All Steel Construction and Textured hybrid powder coat;
  • 12V or 24V for option;
  • Optional Micro-switch Sensor;
  • 3-position locks;
  • Manual open available;

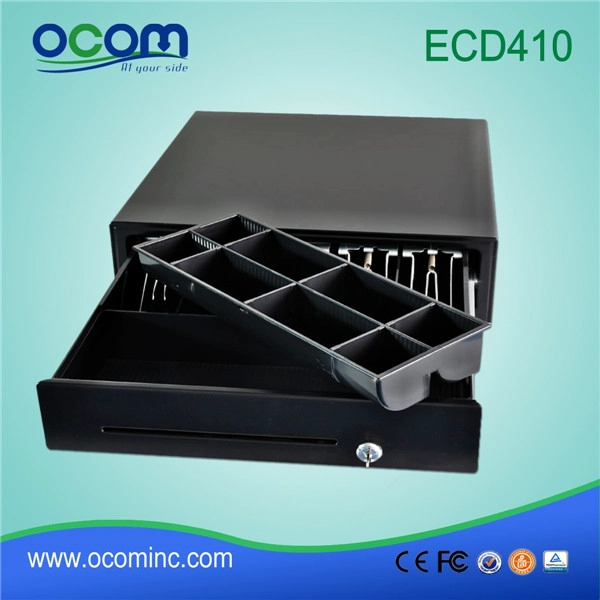

3 position lock safe cash drawer rj11 12V or 24V

 (Model No.: ECD 410)

Specifications:

Material

Flip top: 0.8mm SPCC powder spray the surface of cold rolled plate

Bottom: 1.0mm SECC fingerprint-resistant plate

Bill tray

Four position width: 85/84/84/85mm

Five position width:68/67/67/67/68mm

Length:193mm; Depth: 59mm

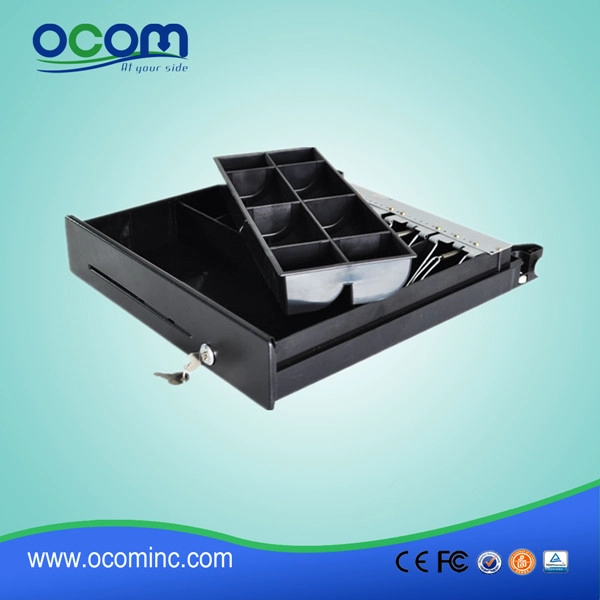

Coin tray

8 removable position  width: 82;    Length: 57;  Depth: 46

lock

3 locks

Power

12V / 24V for option

Lifetime

Tested to minimum one million cycles

Interface

RJ11, RS232 (Optional)

Color

Black or White

weight

6.5 kg (net), 7.4kg (gross)

Dimensions

410(L) x 420(W) x 100mm(H) (with feet of 9mm)


 Product Details:

Relevant documents:

Do you want to know more product information?Please Click here.
