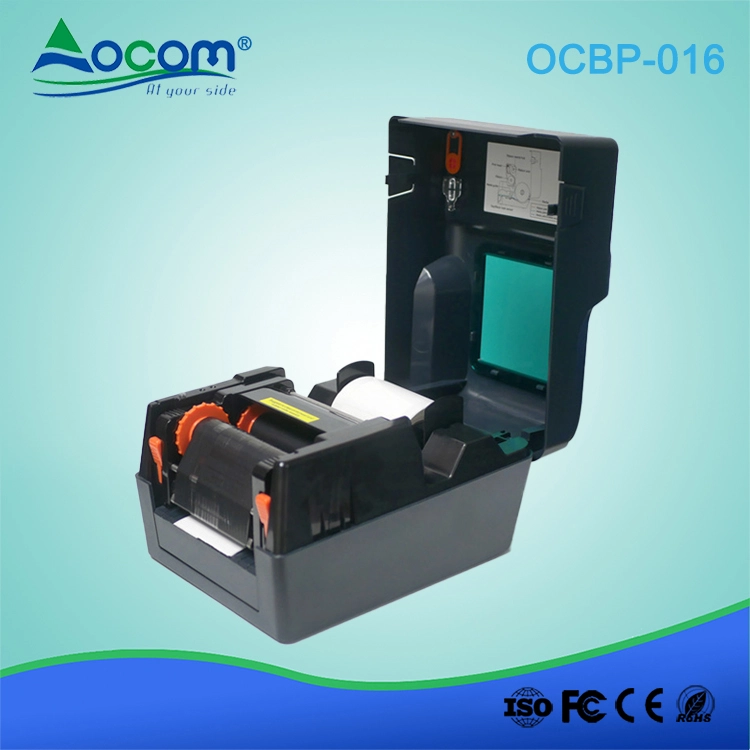

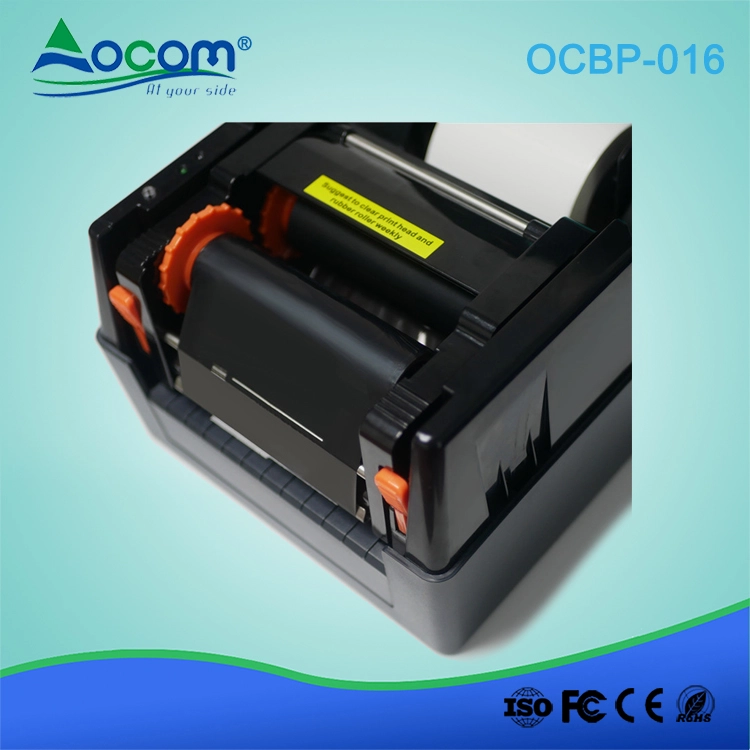

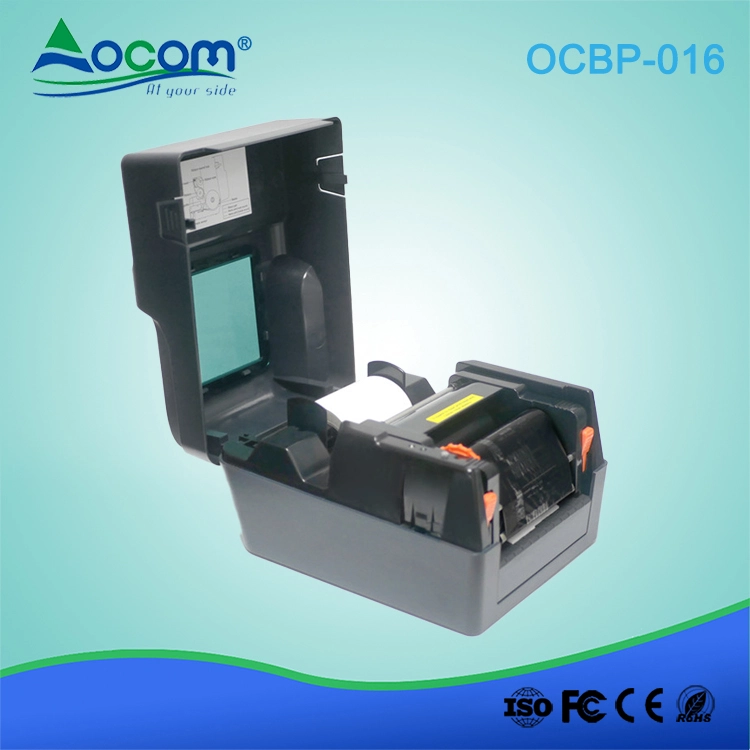

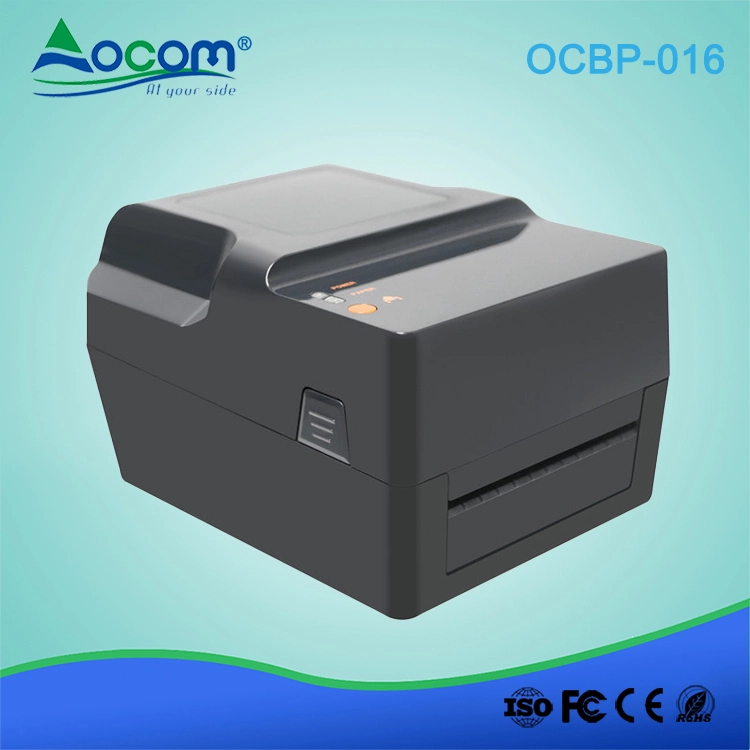

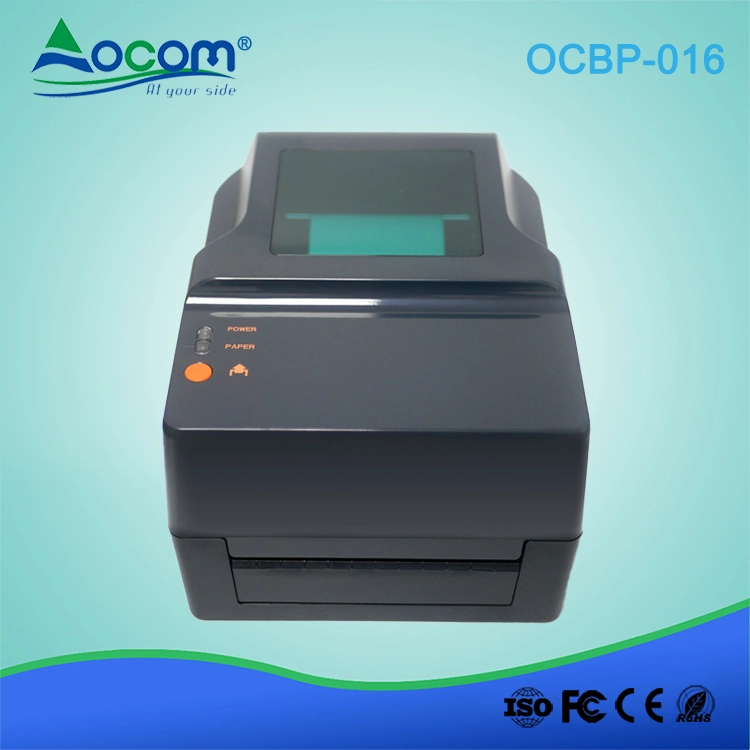

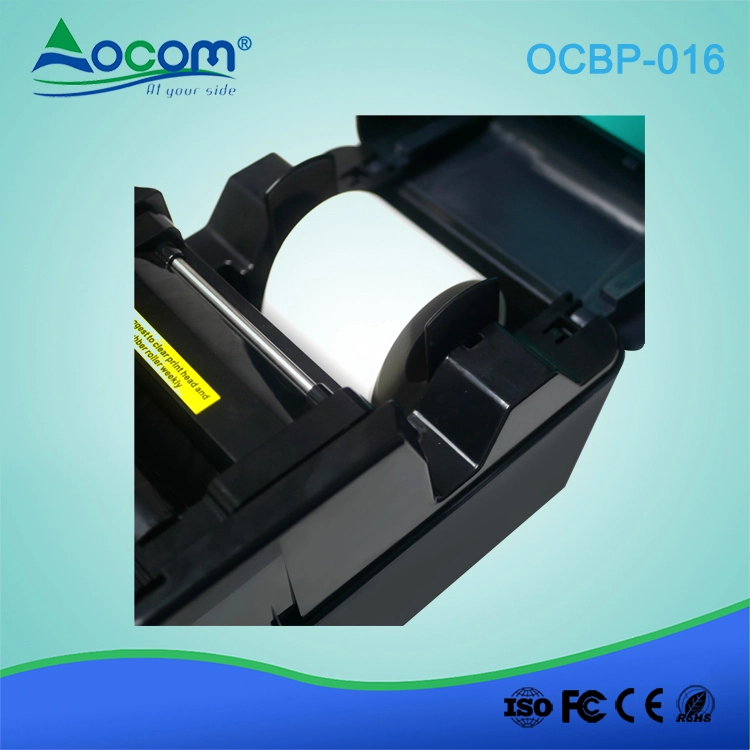

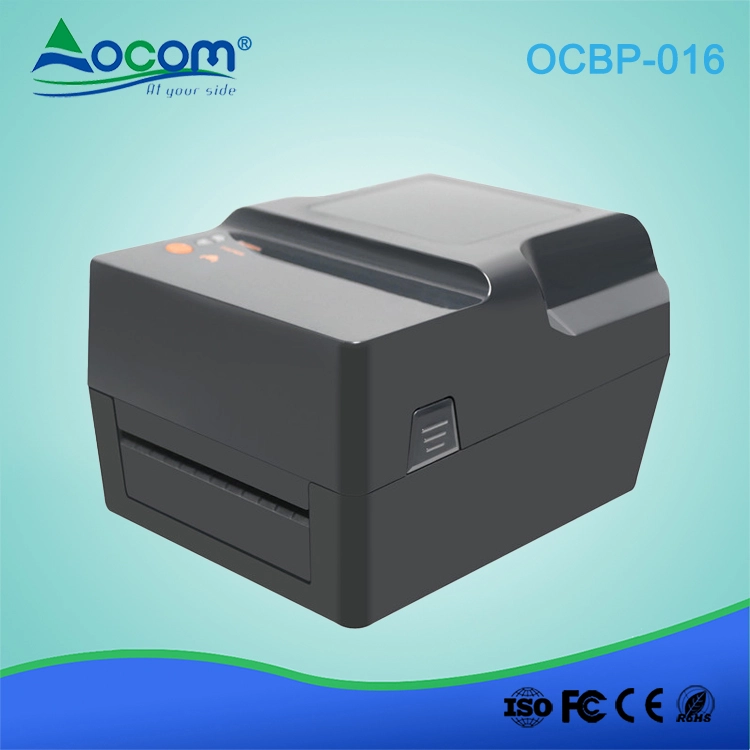

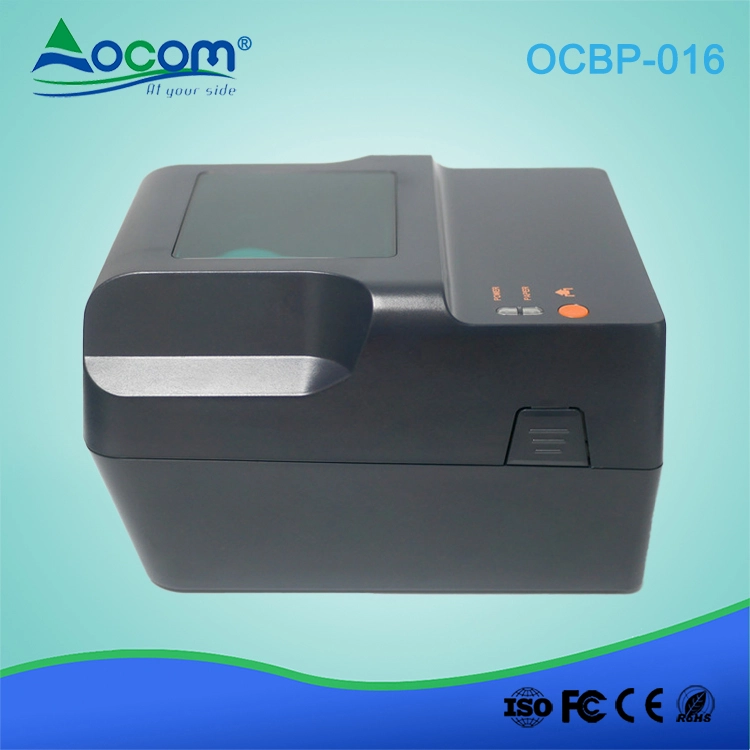

(OCBP-016) 4-inch Direct Thermal / Thermal Transfer Bar Code Label Printer(OCBP-016) 4-inch Direct Thermal / Thermal Transfer Bar Code Label Printer(OCBP-016) 4-inch Direct Thermal / Thermal Transfer Bar Code Label Printer(OCBP-016) 4-inch Direct Thermal / Thermal Transfer Bar Code Label Printer

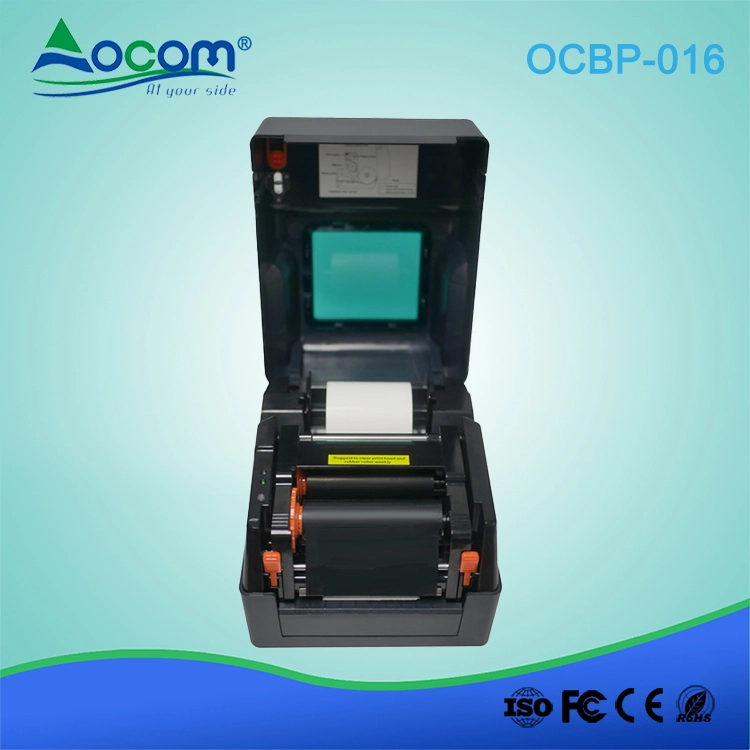

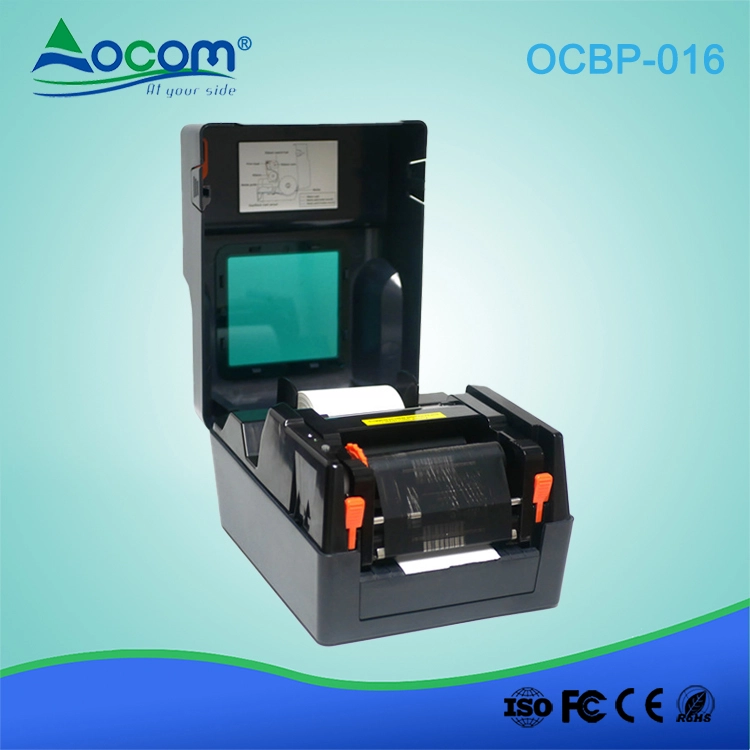

(OCBP-016) 4-inch Direct Thermal / Thermal Transfer Bar Code Label Printer

  • High printing quality;
  • Low noise;
  • Reasonable structure,simple use and maintenance;
  • High speed,stable and easy to use;
  • Easy to replace paper and ribbon;
  • Automatic correction of paper and ribbon;
  • Transmission type paper detection, accurate and rapid.



4-inch Direct Thermal / Thermal Transfer Bar Code Label Printer

(M/N:OCBP-016)


Features:

High printing quality;
Low noise;
Reasonable structure,simple use and maintenance;
High speed,stable and easy to use;
Easy to replace paper and ribbon;
Automatic correction of paper and ribbon;
Transmission type paper detection, accurate and rapid.

Specification


General



Model

OCBP-016

Color

Gray

Interface

USB/RS-232/ LAN/LPT

Operation switch,button,LED

1 power switch, 1 feed button ,2 LED

Printing command

TSPL/CPCL( customized)/ZPL(customized)

Printer Head life

50Km ( label paper),150KM(continous paper)

Storage

4MB

Power supply

InputAC 100V-240V,50-60Hz,OutputDC 24V/2.5A

Driver

Windows2000,XP,Vista,Win7,Win8,Windows10

Printing capability



Printing method

Thermal Transfer / Direct Thermal

Resoluiton

8 dots/mm(203 DPI)

Printing speed

120mm/s

Printing paper width

104 mm  Max

Printing length (label)

10mm-2268mm

Barcode and character



Barcode

1D barcode:
Code 39,39C,I25, Code 93,ITF25, EAN128,Code128,Codabar, EAN-8,EAN8+2,EAN8+5,EAN-13,EAN13+2,EAN13+5,UPC-A, UPCA+2,UPEA+5,UPC-E,
UPCE+2,UPCE+5 MSIC,ITF14,EAN14,Code11,POST

2D: QR code,PDF-417(optional)

ASCII character set

12*12 dot,1.25*3.0mm(W*H)

Class I and II Chinese

24*24 dot,3.0*3.0mm(W*H)

Extended Character table

CP437,CP850,CP860,CP863,CP865,CP866,WPC1250,WPC1251,
WPC1252,WPC1253,WPC1254

Media



Paper type

Gap paper, continuous paper,folded paper,black label paper

Paper width

Min 20mm     Max 118mm

Ribbon width

Min 30mm     Max 110mm

Ribbon outer diameter

67mm  Max

Ribbon length

300M

Paper thickness

Min 0.06mm   Max  0.254mm

Ribbon axis size

25.4mm

Paper axis size

25.4-38mm

Paper roll

127mm OD(outer diameter)

Physical



Dimension

223 mm*286 mm *169 mm

Weight

Net:2.5kg

Package box

380*290*260mm/3.8kg

4 in 1 carton

605x395x548mm/15.2kg

Environment



Working temperature& humidity

0 to 45 degrees centigrade,   20%~90%   No condensation

Storage temperature& humidity

-10 to 60 degrees centigrade ,  10%~80%  No condensation
