(OCBP-013) 3 Inch Direct Thermal Label Printer(OCBP-013) 3 Inch Direct Thermal Label Printer(OCBP-013) 3 Inch Direct Thermal Label Printer(OCBP-013) 3 Inch Direct Thermal Label Printer(OCBP-013) 3 Inch Direct Thermal Label Printer

(OCBP-013) 3 Inch Direct Thermal Label Printer

  • CPCL and TSPL programming language
  • Support ESC/POS command for receipt printing
  • 160mm/s high printing speed
  • Provide free label making software
  • Standard exterior paper holder
  • No paper warehouse design, no ribbon
  • External bracket paper holder , for printing two different types of labels
  • TPH special designed overcoat, endure large printing volume

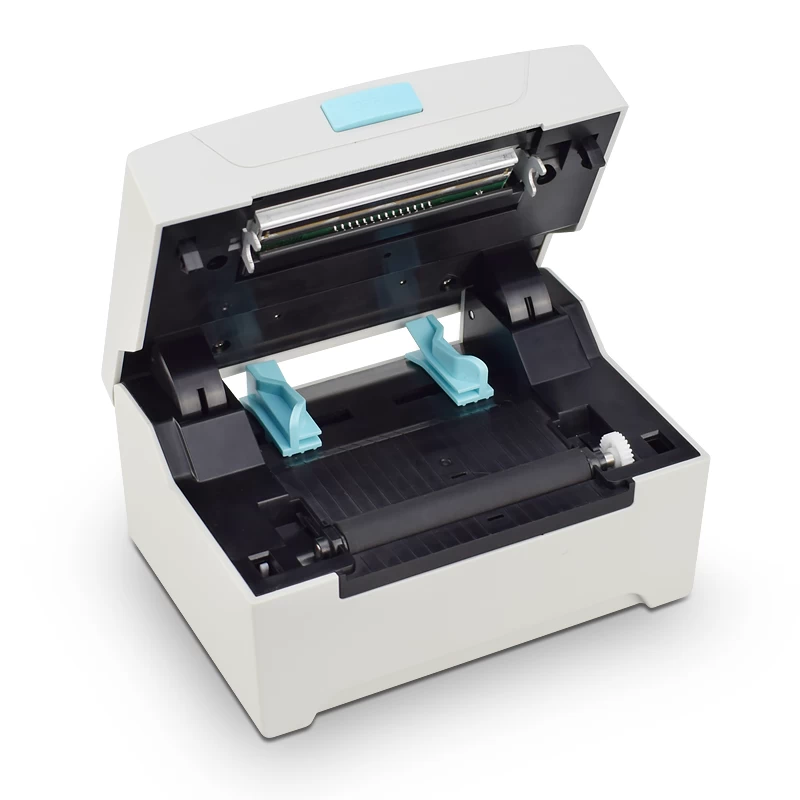

3 Inch Direct Thermal Label Printer

(Model: OCBP-013)


Features:

CPCL and TSPL programming language;
Support ESC/POS command for receipt printing;
160mm/s high printing speed;
Provide free label making software;
Standard exterior paper holder;
No paper warehouse design, no ribbon;
External bracket paper holder, for printing two different types of labels;
TPH special designed overcoat, endure large printing volume.



Specification

General



Model

OCBP-013

Color

White

Interface

USB(Standard),USB+LAN,USB+BT,USB+LAN(Optional)

Printer Head life

50Km

Power supply

Input:AC 100V-240V,50-60Hz,Output:DC 24V/2.5A

Inner code

Support 11 types font size

Auto paper cutter

No

Mechanical Noise

less than 60dB (A weighted RMS)

Compatible OS

Win9X/Win2000//Win2003/Win Vista/ Win 7/Window XP /win 8/win8.1/Win 10/IOS/Android

Safety standards

CE ,FCC,Rohs,CCC etc

Printing capability



Printing method

Direct Thermal

Resoluiton

8 dots/mm(203 DPI)

print speed

200 mm /s

Print width

80mm Max

Print parameters

Support to download the Logo trademark

Printing command

CPCL/TSPL/ESC/POS

Barcode and character



Barcode

1D barcode:

UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128

2D barcode:QR Code, PDF417

Media



Media Sensor

Dual-media sensors: transmissive and reflective

Paper type

continuous paper, label paper, folded paper, tag paper

Paper width

83±0.5mm

Media thickness

0.06 ~ 0.3mm

Physical



Dimension

160mm*110mm *93mm

Weight

Gross: 1.65kg

Environment



Working temperature& humidity

0 to 45 degrees centigrade,   10%~80%   No condensation

Storage temperature& humidity

-20 to 60 degrees centigrade ,  10%~90%  No condensation




















Relevant documents:

     Label Pritner CD
