40 characters vfd customer display support android40 characters vfd customer display support android

40 characters vfd customer display support android

  • High brightness Vacuum Fluorescent Display for excellent visibility over a wide viewing angle;
  • Available in 9mm high characters;
  • 40 characters in 20 columns by 2 lines format;
  • Thirteen sets of international characters, plus one set of user defined characters allows total flexibility in display fonts;
  • Easy programming using Escape sequence commands;
  • Emulation of Aedex, Epson and DSP800 command sets;
  • Display can swivel and tilt to a wide range of angles;
  • Adjustable display height;
  • Power may be sourced from system, with the bracket and cable kit supplied in typical configuration;
  • AC adaptors in various configurations for all AC voltages;

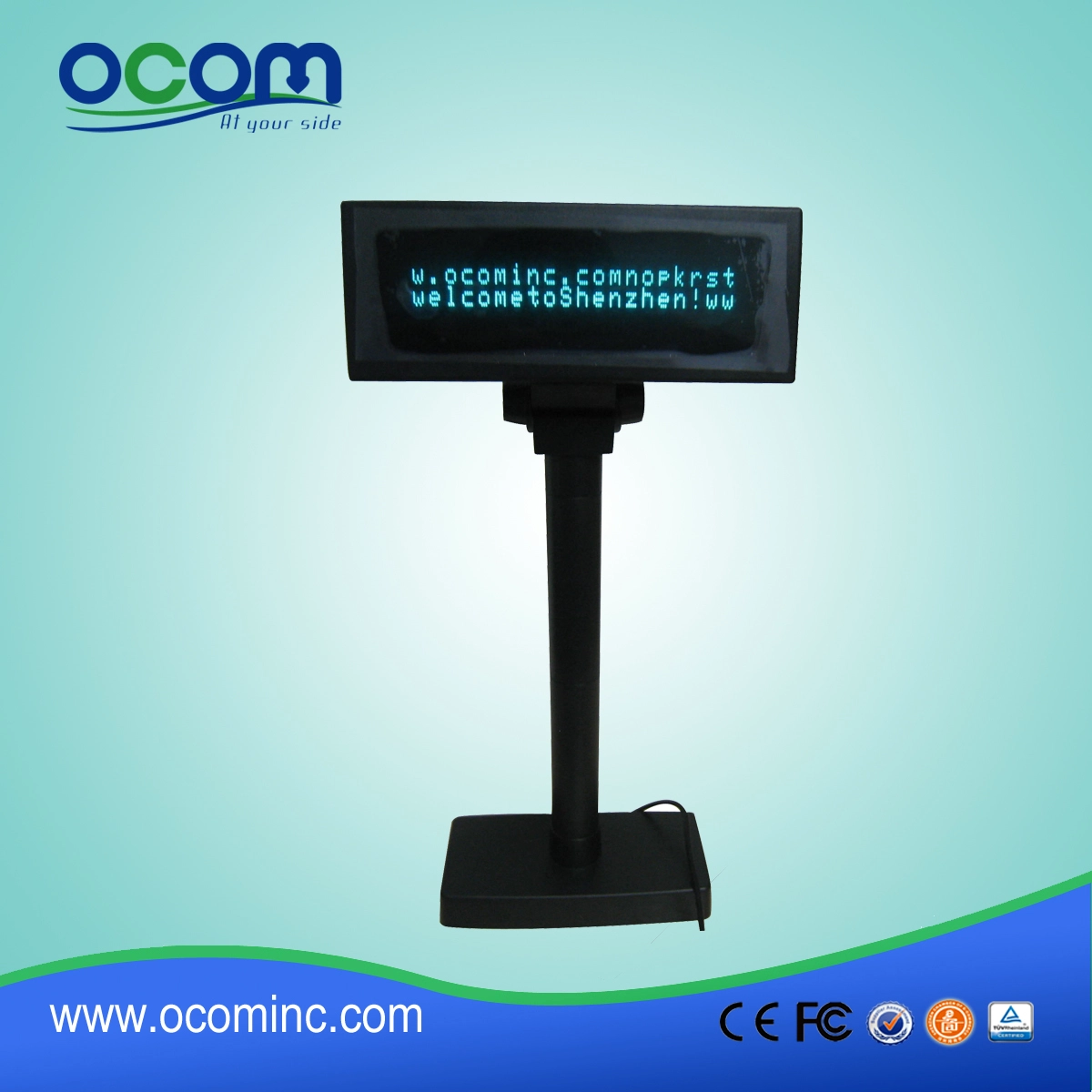

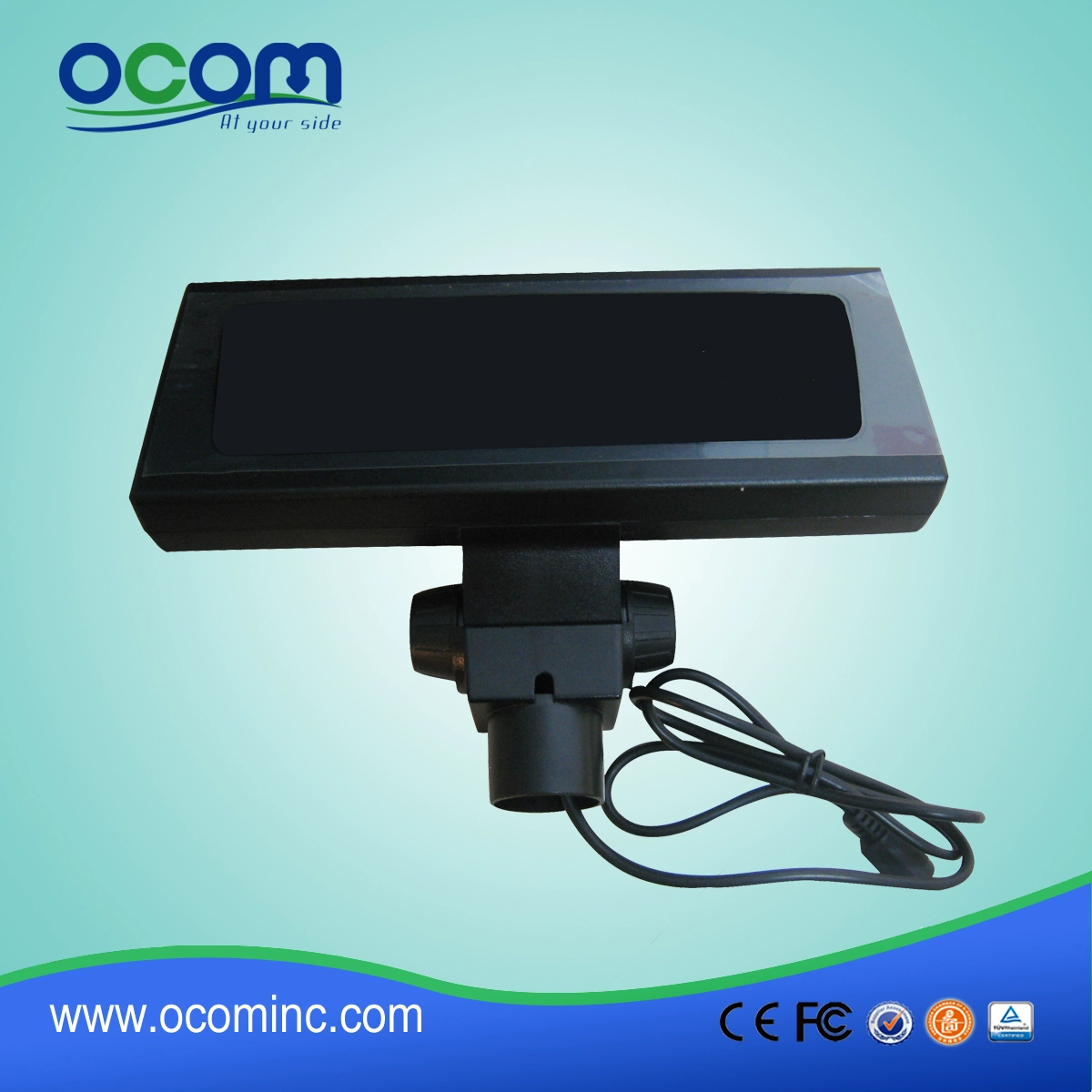

Double Line VFD POS Customer Display
(Model: VFD220A)
40 characters customer display,VFD display, android support display


Specifications:

Communication

Interface:

Serial port (RS-232)

Baud rate:

9600bps

Brightness:

2000cd

Data bit:

8bit

Stop bit:

1bit

Handshake signal:

No

Electrical:

By the power of the host computer DC12 (big 4ps interface)

Display:

VFD Bright blue-green fluorescent display

Display characters:

2 line x 20 characters / line, 40 characters, 5 x 7 Dots

Display area:

160mm(W) x 23.8mm(H)

Character size:

high 11mm x wide 7mm

MTBF:

 25,000 hours

Dimensions

Panel dimensions:

80(H) x 225(W)x37(D)  mm

Support dimensions:

Long support: 480mm  (Contain base)
Short support: 225mm  (Contain base)
Base dimensions: 185(L) x95(w) x25(H) mm

Pitching move angle:

45°, Can provide comfortable, and adjust the visual Angle

Weight:

1.2Kg  (gross)

Environment

Operating Temp:

-20~70 A18

Storage  Temp;

-40~80 A19

Operating Humidity:

10~85%

Storage  Humidity:

10~90%

Command Set

Adopting international standard general command ESC/POS, Its can used in DOS or Windows System Environment, Don't need any driver, Only according to the format serial order set to send data can show content.

 With the function of opening the cash drawer All direction adjustable.
