58mm mini portable bluetooth thermal printer, pos thermal printer58mm mini portable bluetooth thermal printer, pos thermal printer58mm mini portable bluetooth thermal printer, pos thermal printer58mm mini portable bluetooth thermal printer, pos thermal printer58mm mini portable bluetooth thermal printer, pos thermal printer

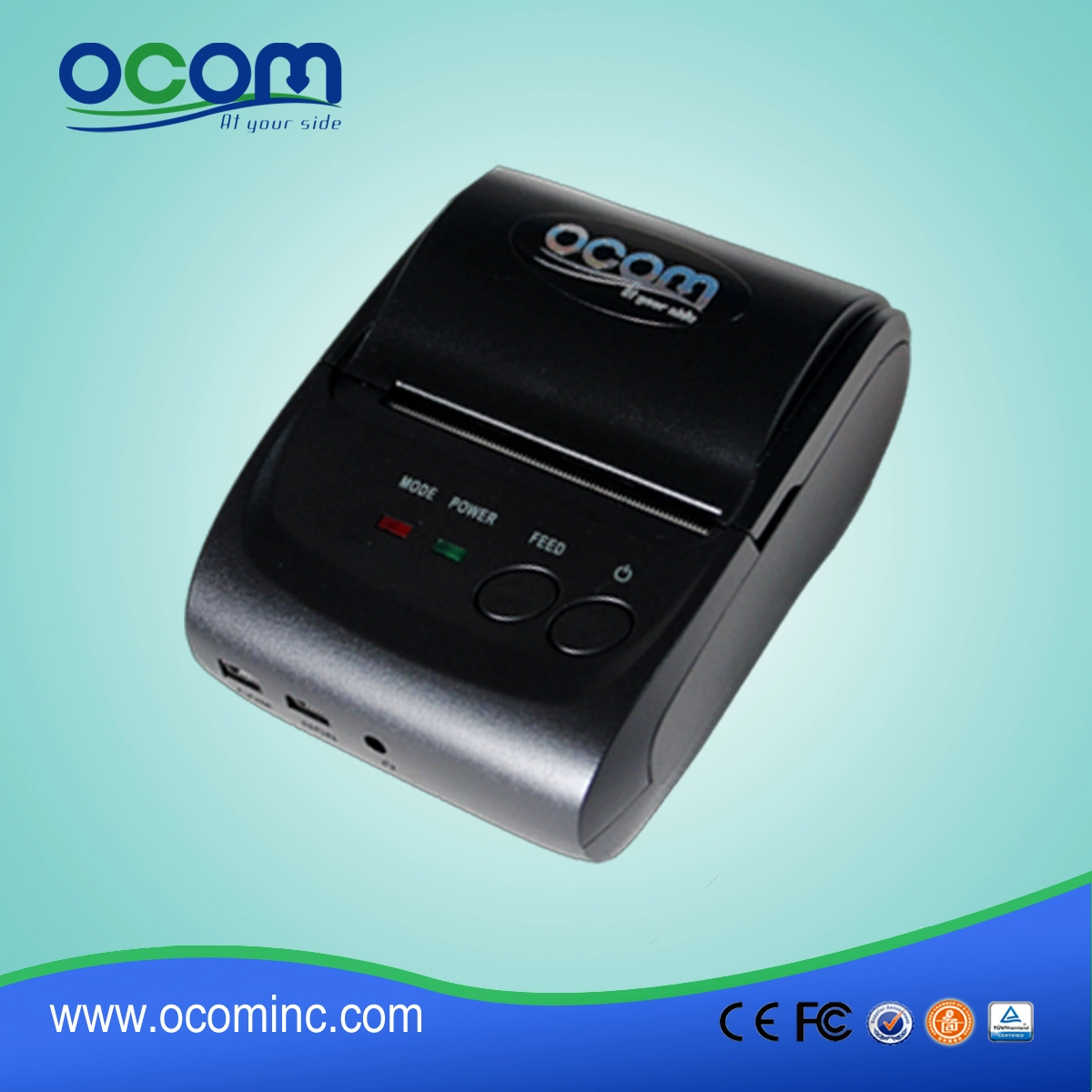

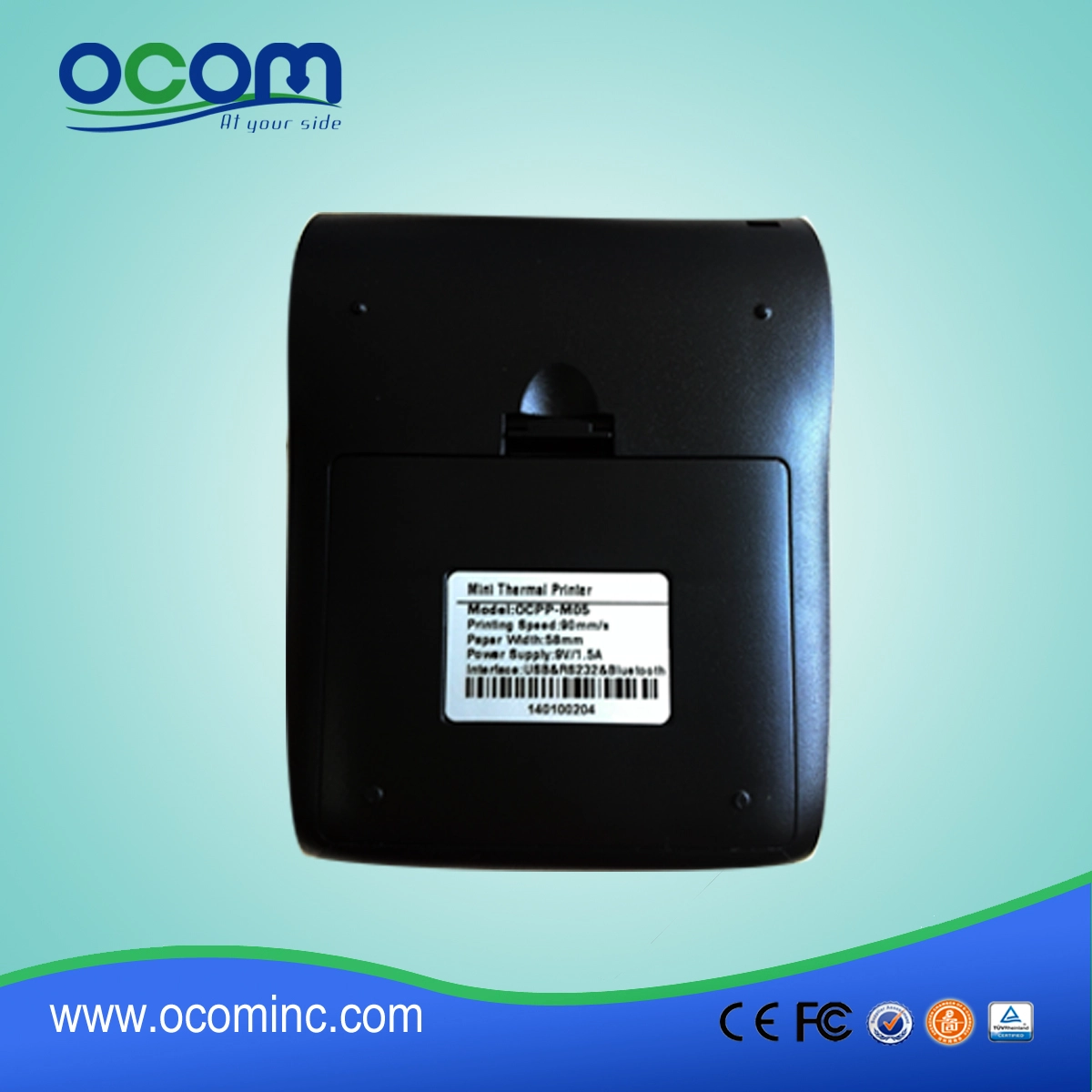

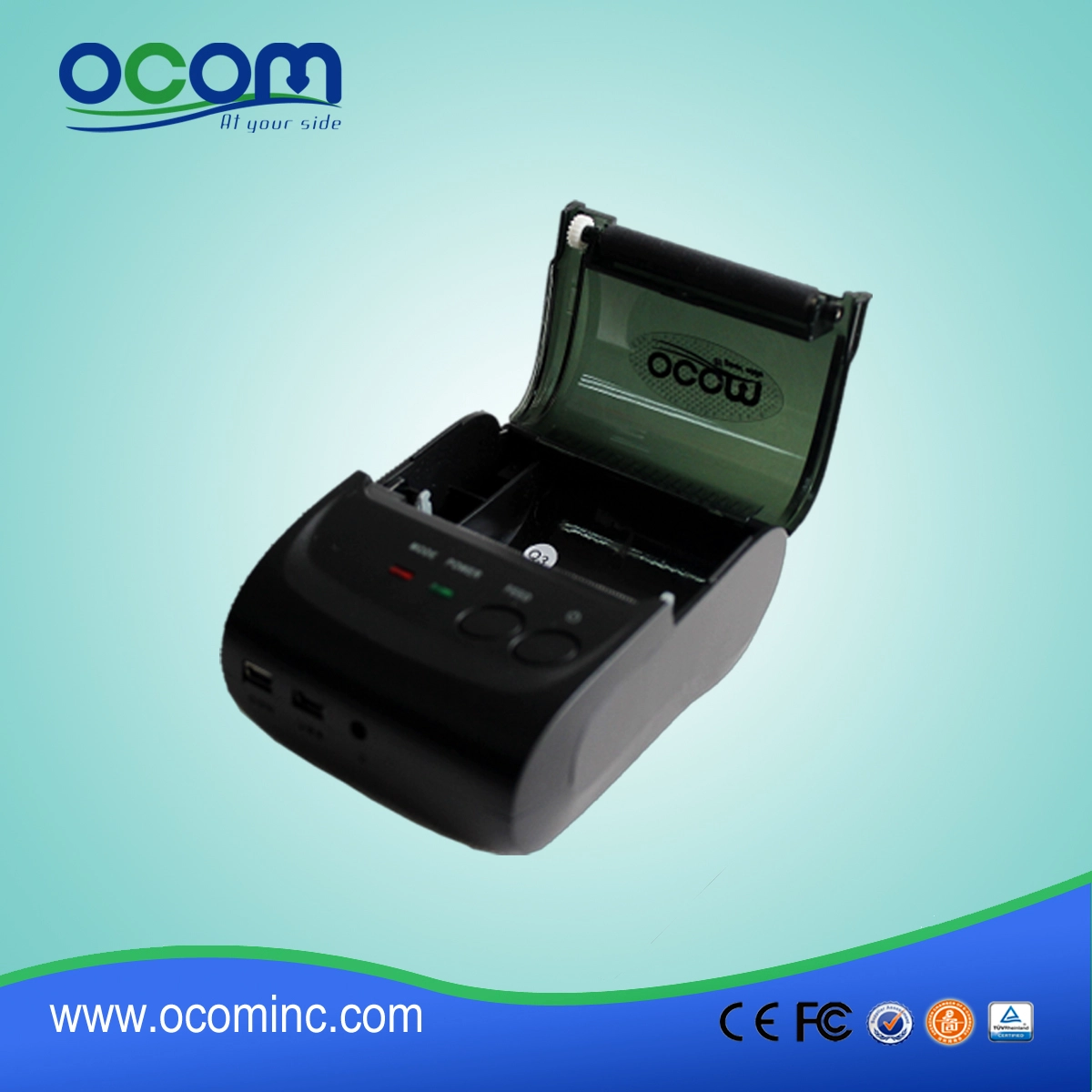

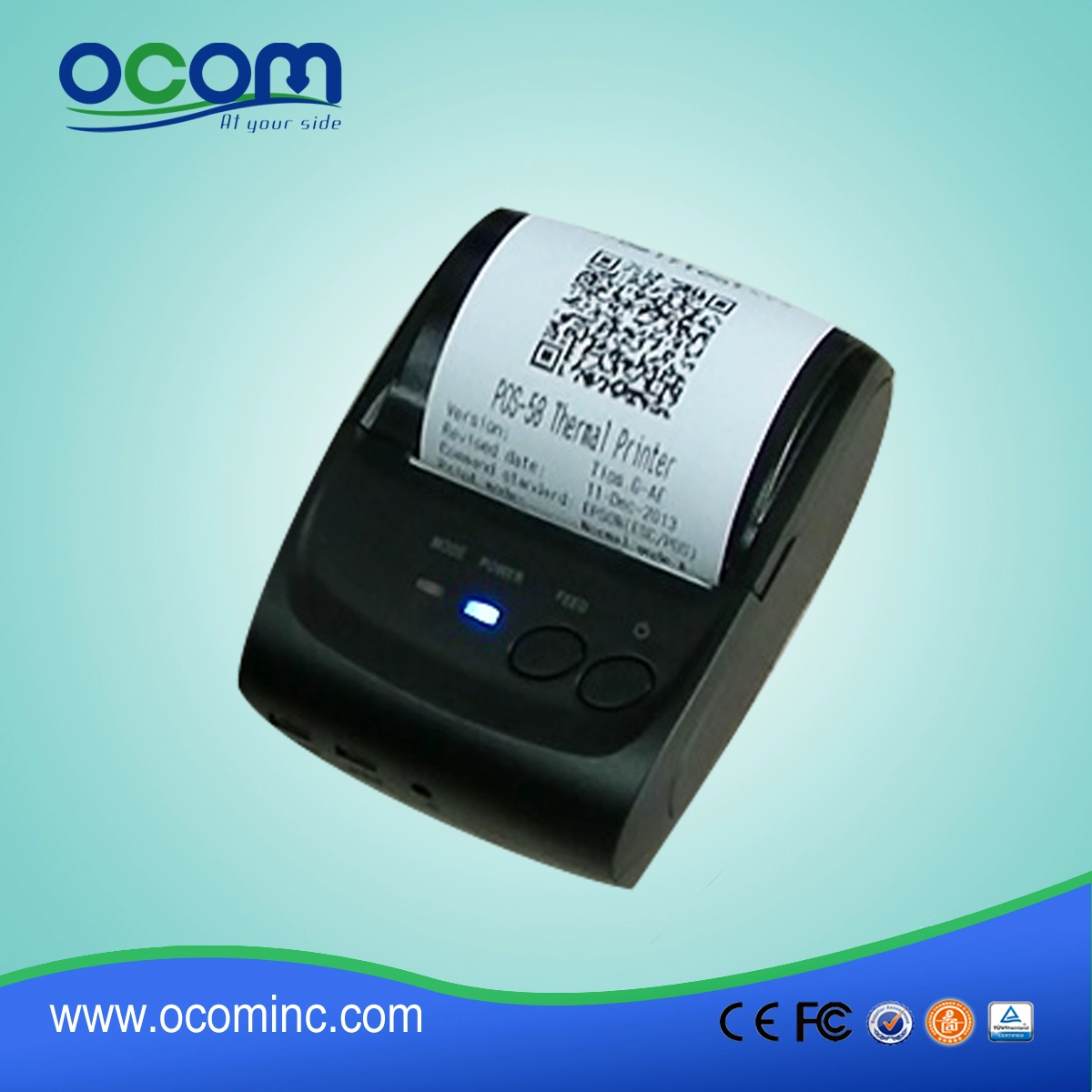

58mm mini portable bluetooth thermal printer, pos thermal printer

  • 1.Support Windows, Android, or iOS, or android+ios OS
  • 3.Bluetooth, USB and RS232 communication for option.
  • 3.Higher print speed 90mm/sec.
  • 4.100km TPH Life.
  • 5.Low power consumption and large capacity Lithium battery.

58mm mini portable bluetooth thermal printer, pos thermal printer

(Model:OCPP-M05)

Features:

1.Support Windows, Android,or iOS, or android+ios OS

2.Bluetooth, USB and RS232communication for option.

3.Higher print speed 90mm/sec.

4.100km TPH Life.

5.Low power consumptionand large capacity Lithium battery.

Specification:



Overall Dimension (W×D×H)

105×75×45mm

Weight

134g

Color

Black

Effective print width

48mm

Print method

Thermal line printing

Print commands

ESC/POS compatible command set

Print speed

Up to 90mm/sec

Resolution

8 dots/mm(203dpi)

Print font

12x24/ 24x24

Column capacity

32 columns/ 16columns

Character size

1.5 x 3.0 mm(W x H)/ 3.0x3.0mm(WxH)

Paper dimensions

58.0±0.1mm x diameter 40.0mm

Paper thickness

0.06 to 0.08mm

Character set

Alphanumeric/ Chinese Kanji

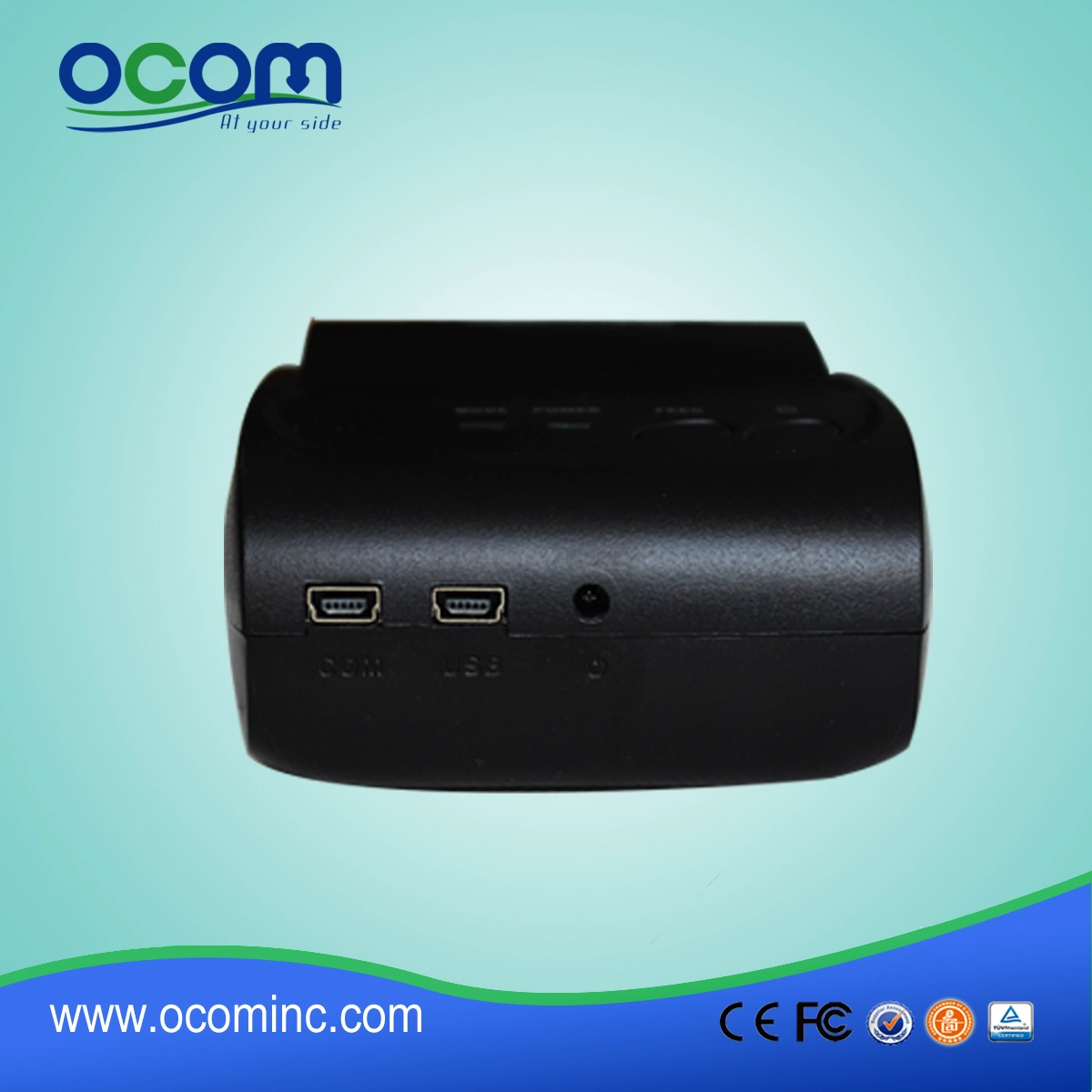

Interface

USB, RS-232,Bluetooth (optional)

Flash

256KB

Power Adapter

9V DC/2A

Battery Power

7.4V DC/ 1500mA; battery can stay by for 4-5 days, when it is full power, it can print 120-150m paper

Other features

Paper detection, power detection, Manual shut down

Working conditions

Temperature:-10℃~50℃,Humidity:10%~90%

Storage conditions

Temperature:-20℃~70℃,Humidity:5%~95%

Device name

Can be customized, letter and digital for option, at max 30 ASCII characters.

Password

Enter default pairing code “1234”, it can be customized. At max 6 digitals.

Power plug dimension

3.5*1.1mm
