Adjustable USB POS Pole LCD Customer DisplayAdjustable USB POS Pole LCD Customer DisplayAdjustable USB POS Pole LCD Customer Display

Adjustable USB POS Pole LCD Customer Display

  • 20X2 Characters Double Line LCD Customer Display
  • Pole height is adjustable;
  • Support multiple national languages;
  • Interface: USB or USB+RS232 port;
  • 9mm(H) x 7mm(W) characters;
  • Easy programming using Escape sequence commands;
  • Baud rate: 9600/19200/115200bps is adjustable;
  • Display: LCD white characters display;
  • Display area: 190mm(L) x 60mm(W);
  • Command: ECS/POS and CD5220;
  • Panel dimensions: 224*86mm;
  • Weight: 1.2Kg (gross).

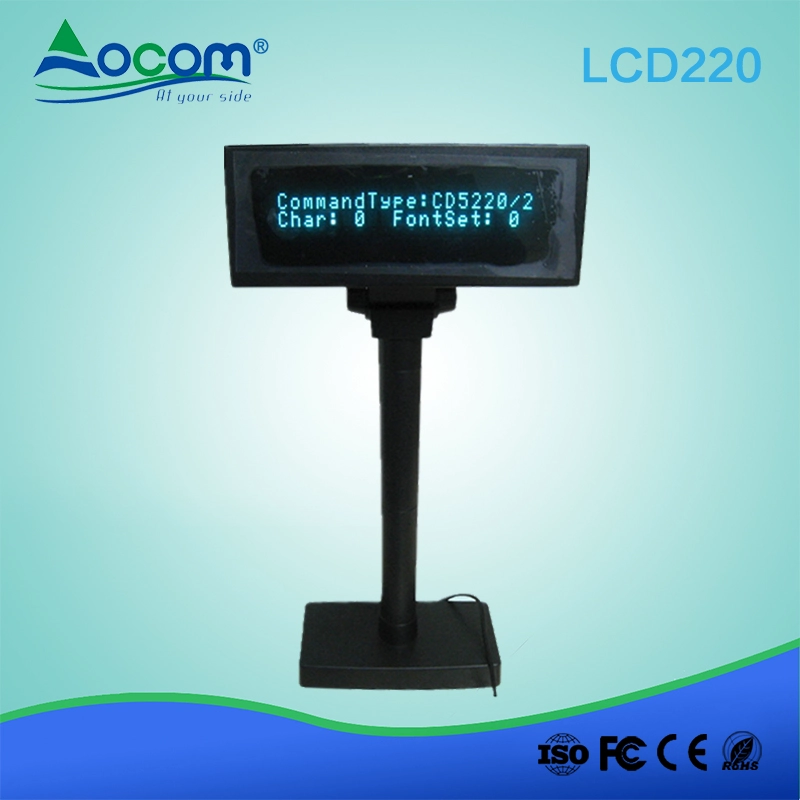

 Adjustable USB POS Pole LCD Customer Display

(Model No.: LCD220)


Features:

  •  20 characters per line LCD display
  •  Pole height is adjustable
  •  Support multiple national languages



Specifications:

Communication

Interface:

USB or RS232 port

Baud rate:

9600bps

Brightness:

2000cd

Data bit:

8bit

Stop bit:

1bit

Handshake signal:

No

Electrical:

By the power of the host computer USB 5V

Display:

LCD white characters display

Display characters:

2 lines x 20 characters / line

Display area:

190mm(L) x 60mm(W)

MTBF:

 25,000 hours

Command

 ECS/POS and CD5220

Languages

All languages based on the Latin alphabet

Dimensions

Panel dimensions:

224*86 mm

Support dimensions:

Long support: 460mm  (Contain base)
Short support: 224mm  (Contain base)

Pitching move angle:

15-120°, Can provide comfortable, and adjust the visual Angle

Weight:

1.2Kg  (gross)

Environment

Operating Temp:

-40~50 A18

Storage  Temp;

-60~80 A19

Operating Humidity:

30~85%

Storage  Humidity:

30~90%

Command Set

Adopting international standard general command ESC/POS, Its can used in DOS or Windows System Environment

 With the function of opening the cash drawer All direction adjustable.
