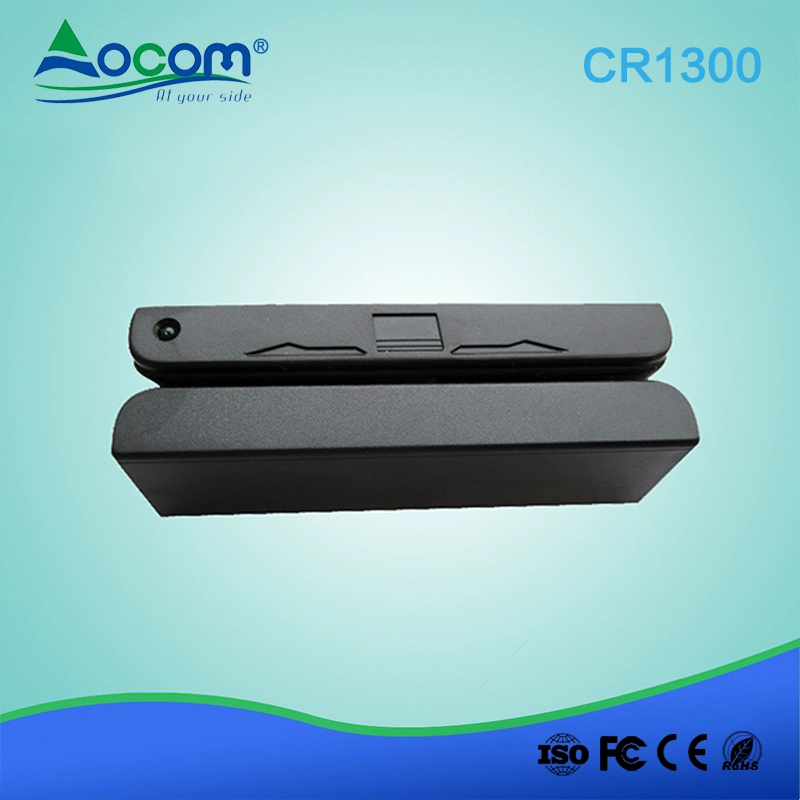

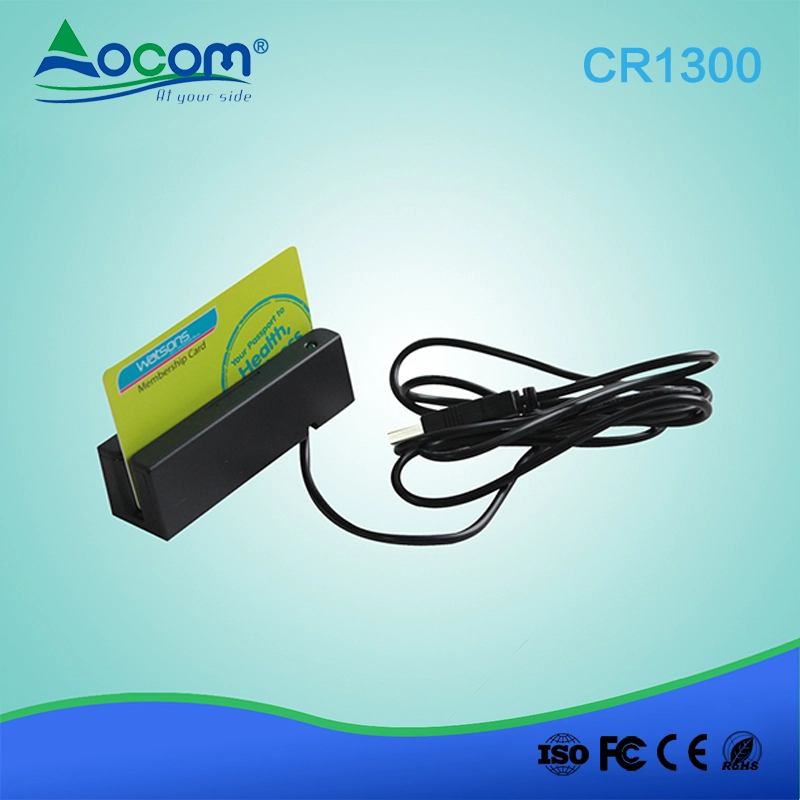

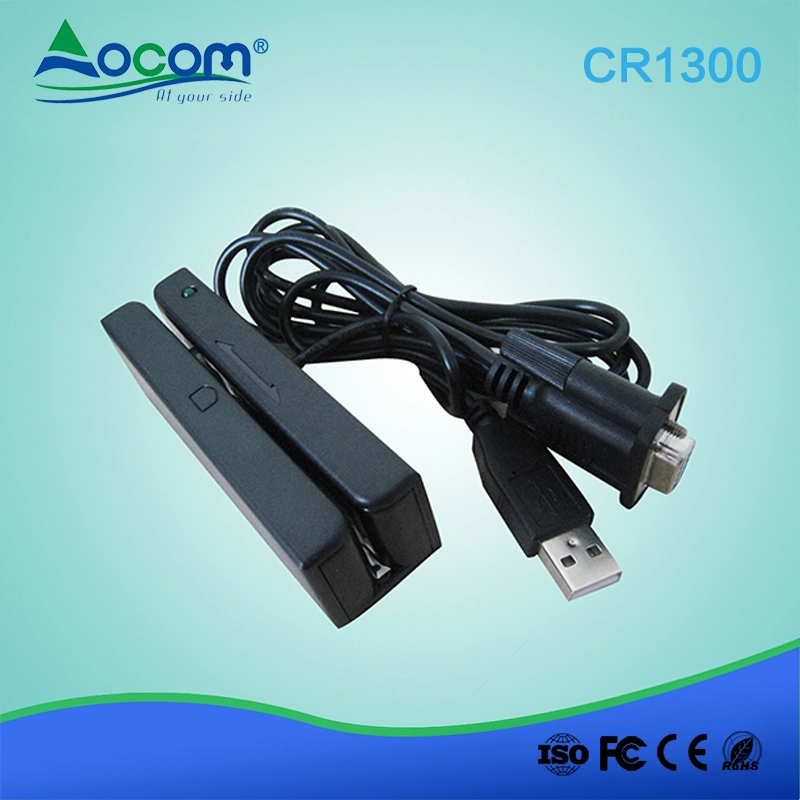

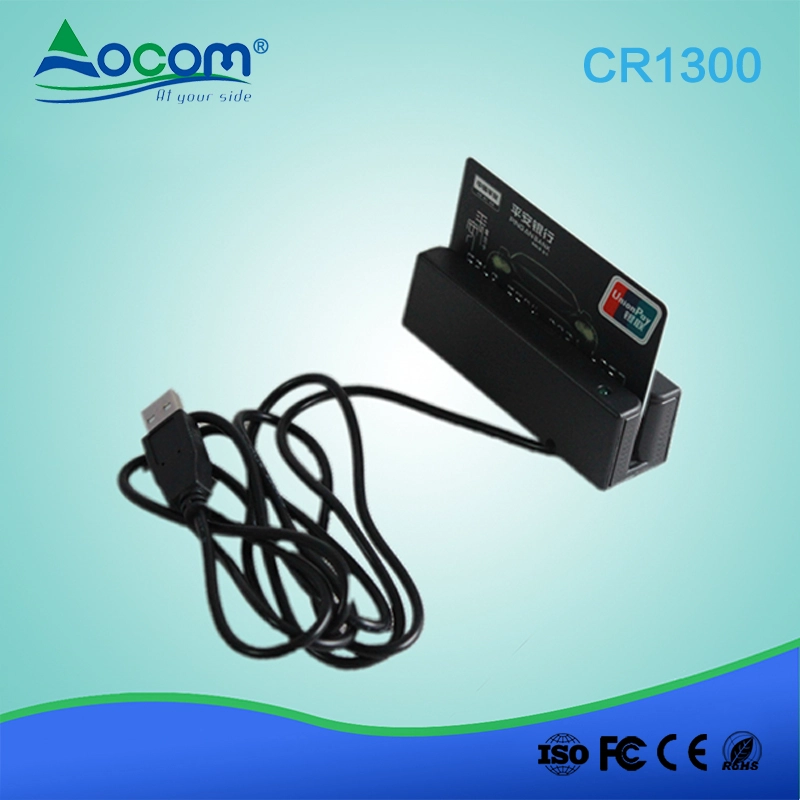

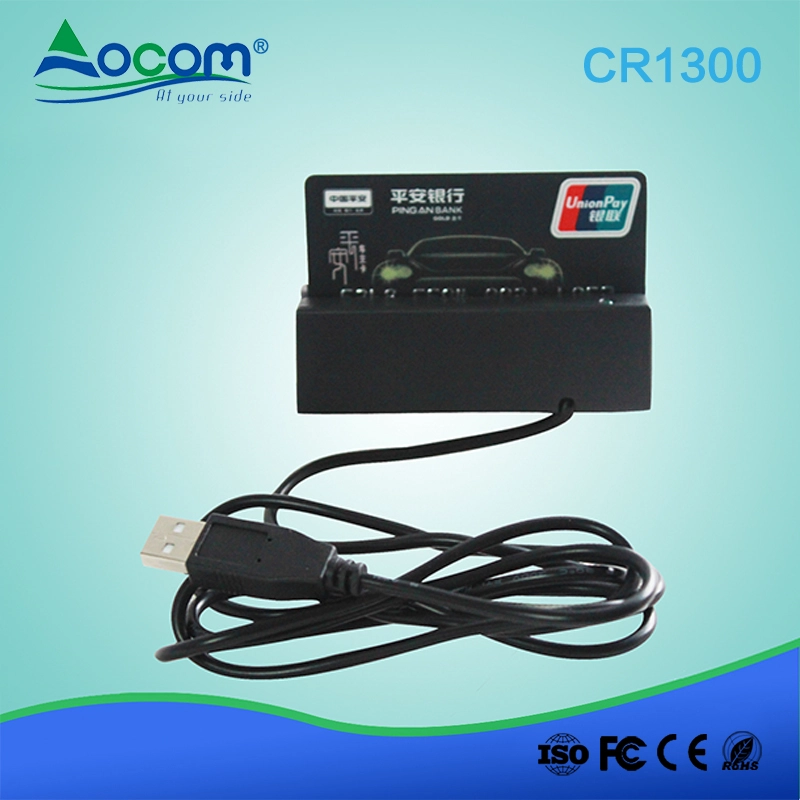

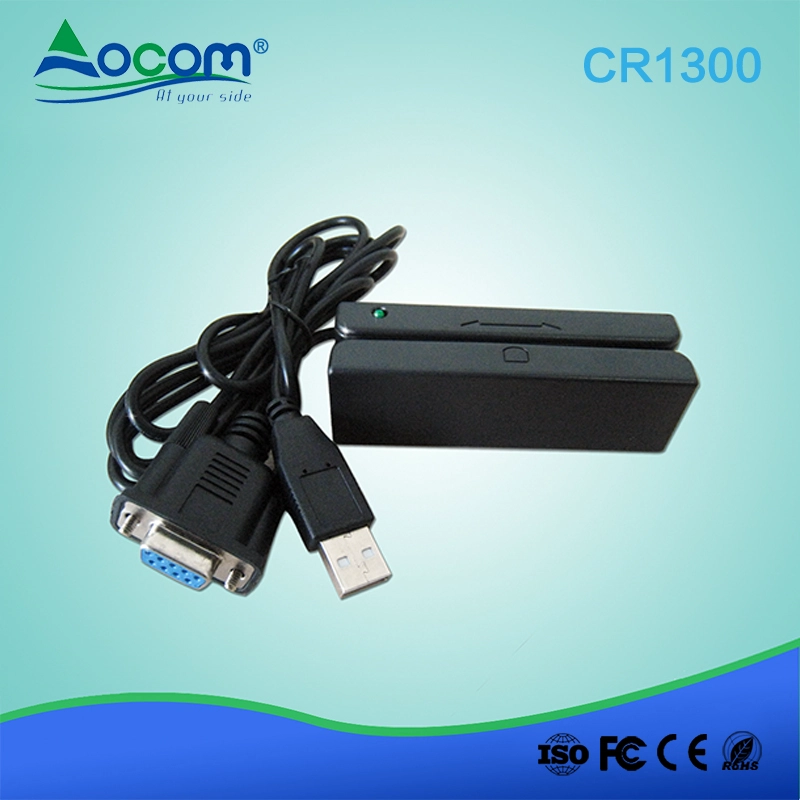

(CR1300)Mini Magnetic Stripe Credit Card Reader with Android System
- Compatible with Android System.
- All 3 tracks can set to 75/210 BPI;
- USB or Serial interface.
- Long service life (500,000 card passes).
- Suitable for all ISO7811/7812, ANSI, AAMVA and CA DMV magnetic cards.
Mini Magnetic Stripe Card Reader
(Model No.: CR1300)
Features:
- Compatible with Android System.
- All 3 tracks can set to 75/210 BPI;
- USB or Serial interface.
- Long service life (500,000 card passes).
- Suitable for all ISO7811/7812, ANSI, AAMVA and CA DMV magnetic cards.
Specifications:
| Dimension | 90mm(L) x 26mm(W) x 28mm(H) | ||
| Weight | 85g(approx.) | ||
| Power Supply | +5V DV ±5% | ||
| Power consumption | 40mA (max.) | ||
| Operation Locus | Indoor use | ||
| Card Standard | ISO7811/7812 | ||
| Track Position | ISO 1 (IATA) | ISO 2 (ABA) | ISO 3 (MINTS) |
| Recording Density | 210 BPI | 75 BPI | 210 BPI |
| Recording Capacity | 79 Characters (7bits) | 40 Characters (5bits) | 107 Characters (5bits) |
| Interface | USB / Serial | ||
| Card Thickness | Plastic 0.76 ± 0.08mm | ||
| Head Function | Read only 1.5mm | ||
| Operation Speed | 10 ~ 150cm/sec | ||
| Life of Head | 500,000 card passes (1 pass : one swipe) | ||
| Error Rate | Less than 0.5% (JSE Test card) | ||
| Temperature | Storage : -30°C to +70°C Operating : -20°C to +70°C | ||
| Humidity
|
Storage : 0% to 95% RH Operating : 20% to 90% RH
|
||
