CR1300 USB serial port magnetic card readerCR1300 USB serial port magnetic card readerCR1300 USB serial port magnetic card readerCR1300 USB serial port magnetic card readerCR1300 USB serial port magnetic card reader

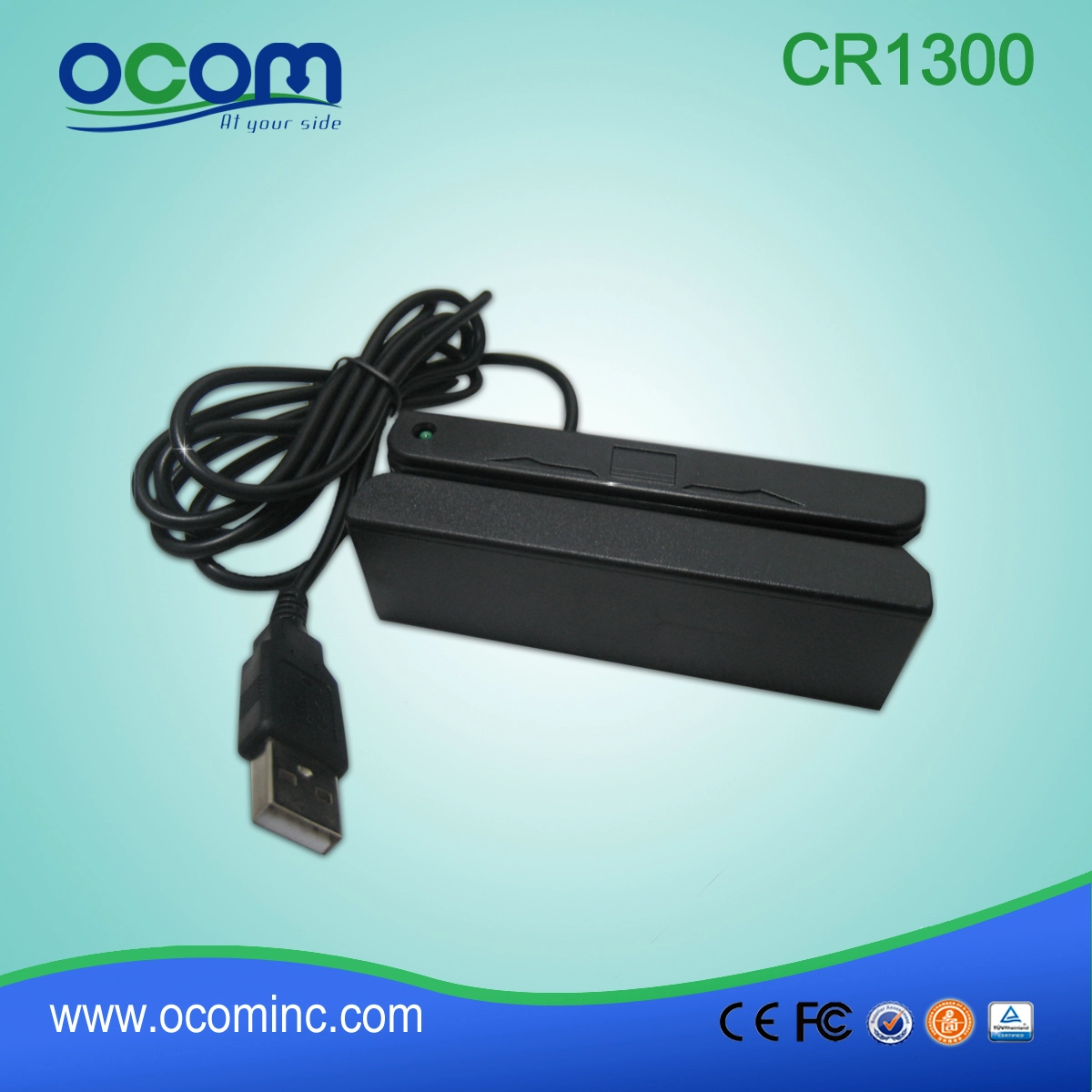

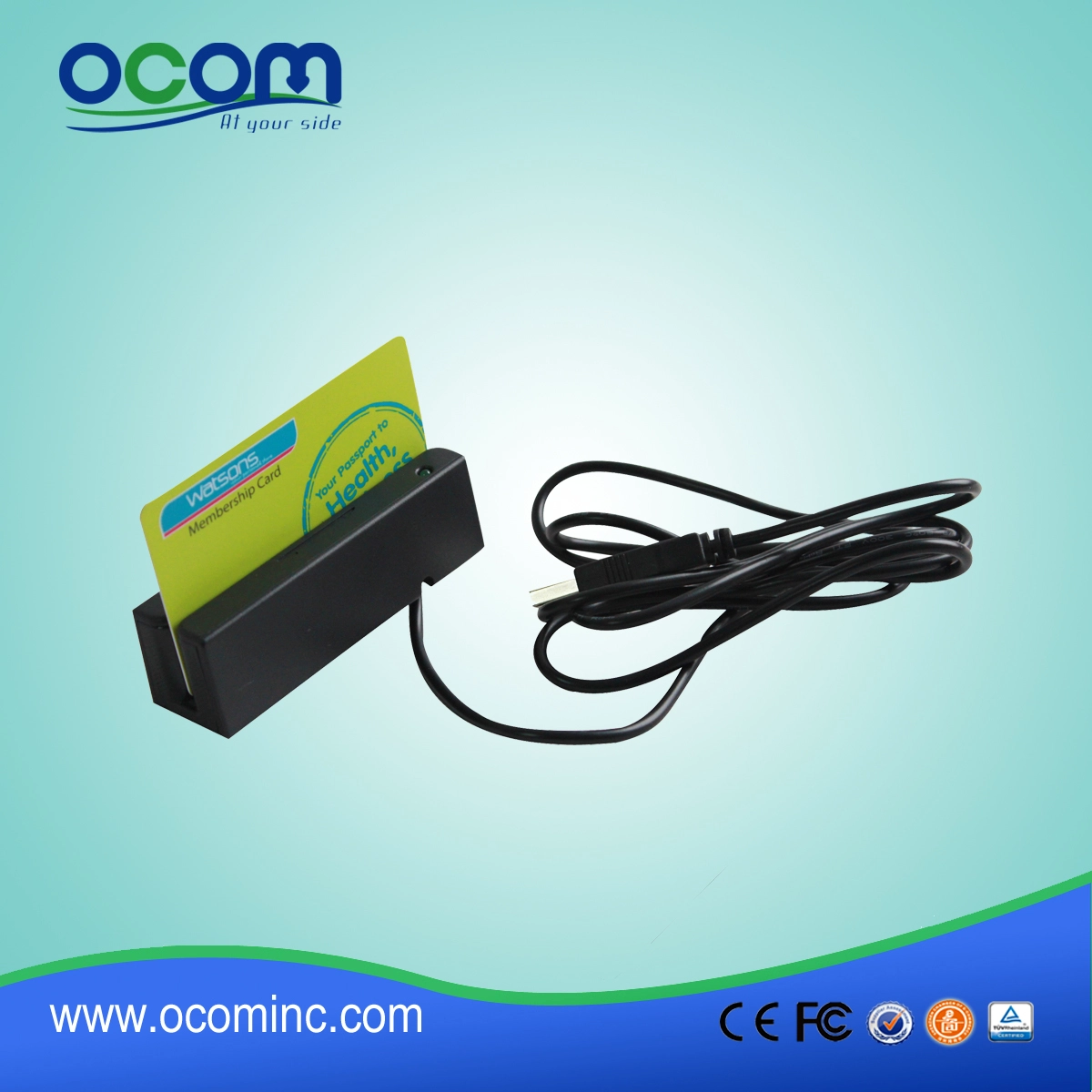

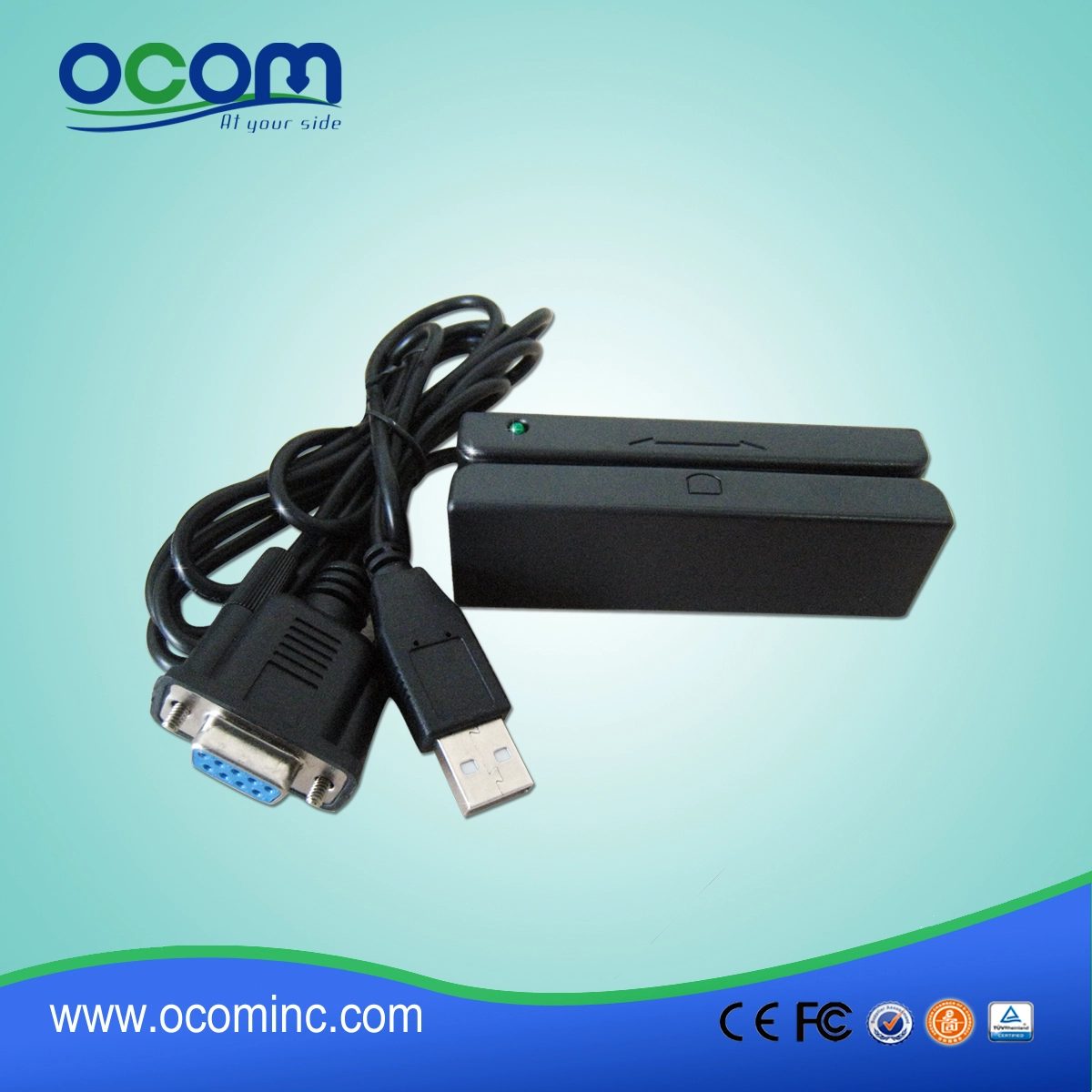

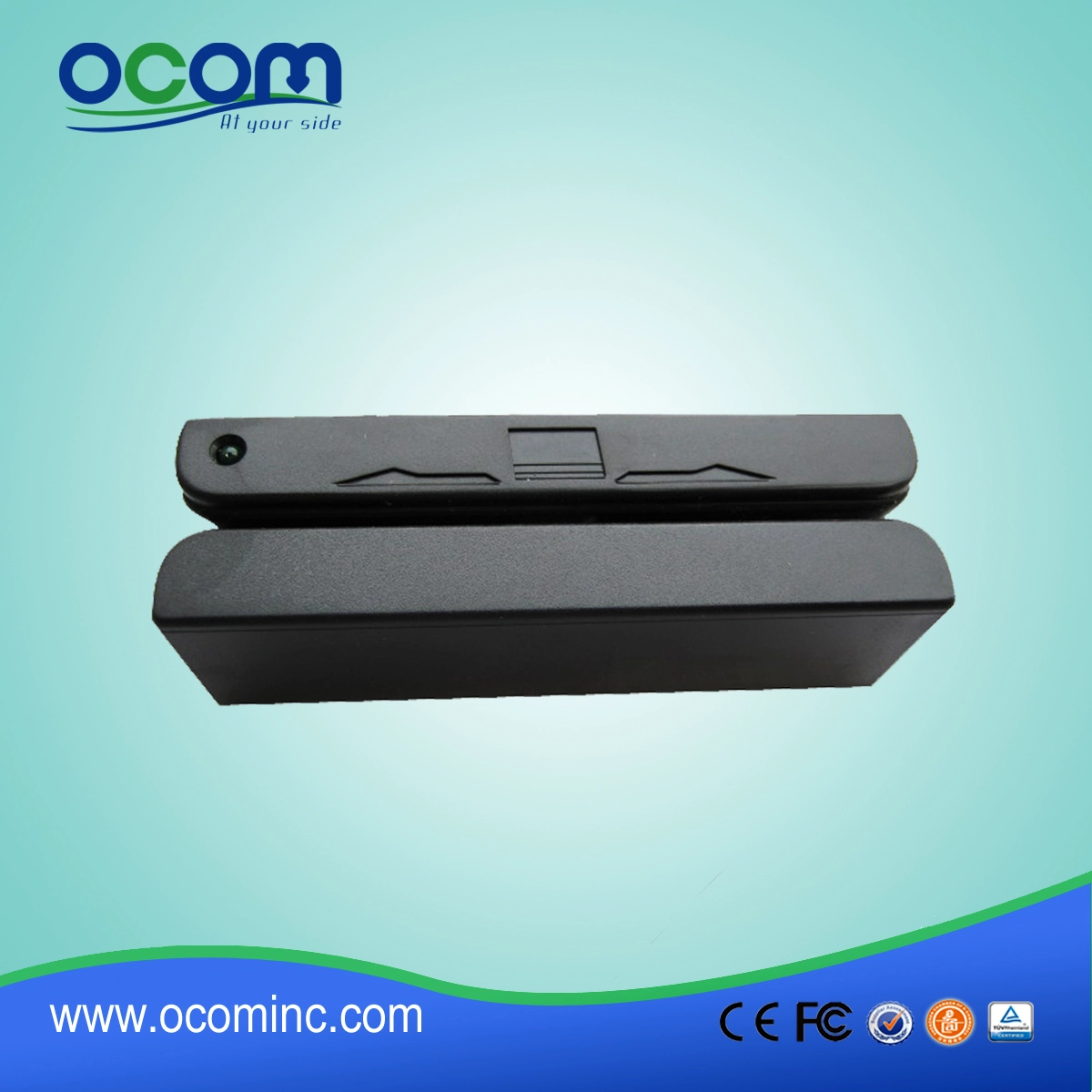

CR1300 USB serial port magnetic card reader

  • Compatible with Android System;
  • All 3 tracks can set to 75/210 BPI;
  • USB, Serial or customized interface;
  • Long service life (500,000 card passes);
  • Suitable for all ISO7811/7812, ANSI, AAMVA and CA DMV magnetic cards;

CR1300 USB serial port magnetic card reader

(Model No.: CR1300)

Features:

1. Compatible with Android System.

2. All 3 tracks can set to 75/210 BPI;

3. USB or Serial interface.

4. Long service life (500,000 card passes).

5. Suitable for all ISO7811/7812, ANSI, AAMVA and CA DMV magnetic cards.



Specifications:

Dimension

90mm(L) x 26mm(W) x 28mm(H)

Weight

85g(approx.)

Power Supply

+5V DV ±5%

Power consumption

40mA (max.)

Operation Locus

Indoor use

Card Standard

ISO7811/7812

Track Position

ISO 1 (IATA)

ISO 2 (ABA)

ISO 3 (MINTS)

Recording Density

210 BPI

75 BPI

210 BPI

Recording Capacity

79 Characters (7bits)

40 Characters (5bits)

107 Characters (5bits)

Interface

USB / Serial

Card Thickness

Plastic 0.76 ± 0.08mm

Head Function

Read only 1.5mm

Operation Speed

10 ~ 150cm/sec

Life of Head

500,000 card passes (1 pass : one swipe)

Error Rate

Less than 0.5%  (JSE Test card)

Temperature

Storage : -30°C to +70°C Operating : -20°C to +70°C

Humidity

Storage : 0% to 95% RH Operating : 20% to 90% RH
