ECD-410G China rj11 12v 24v 410mm Safe metal cash drawerECD-410G China rj11 12v 24v 410mm Safe metal cash drawerECD-410G China rj11 12v 24v 410mm Safe metal cash drawerECD-410G China rj11 12v 24v 410mm Safe metal cash drawerECD-410G China rj11 12v 24v 410mm Safe metal cash drawer

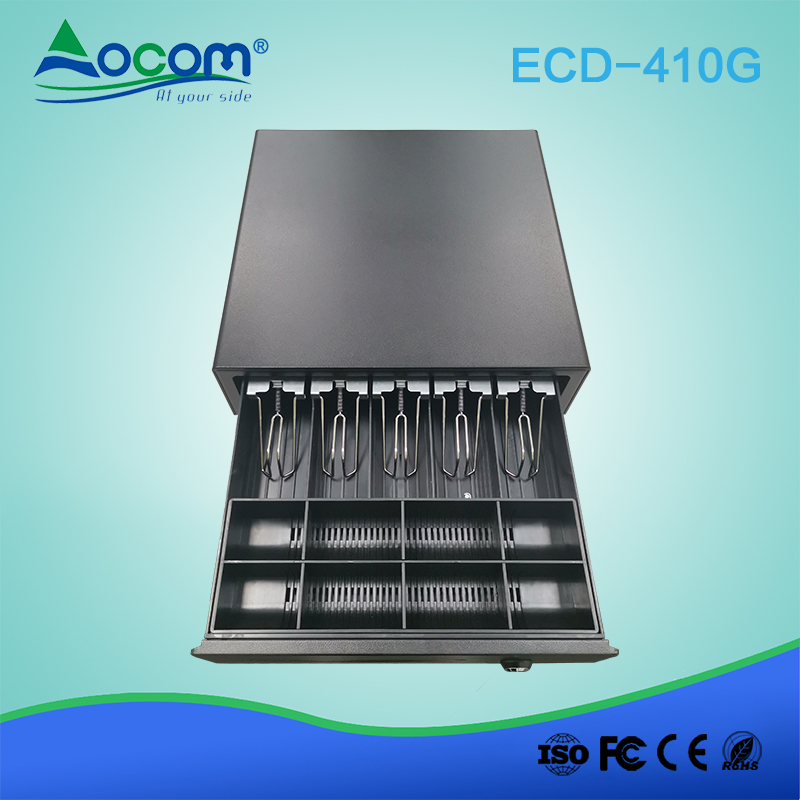

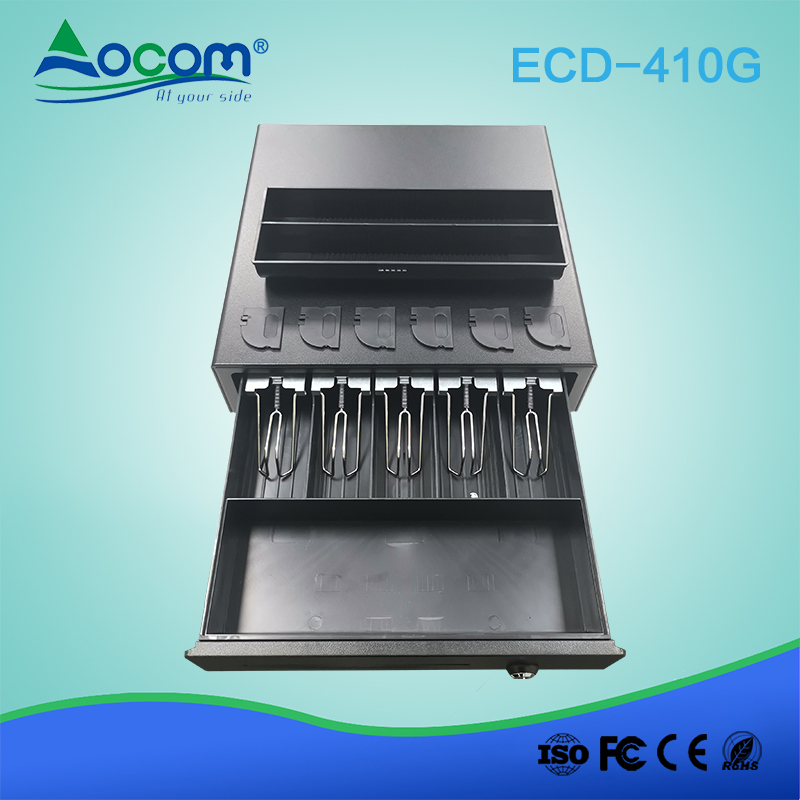

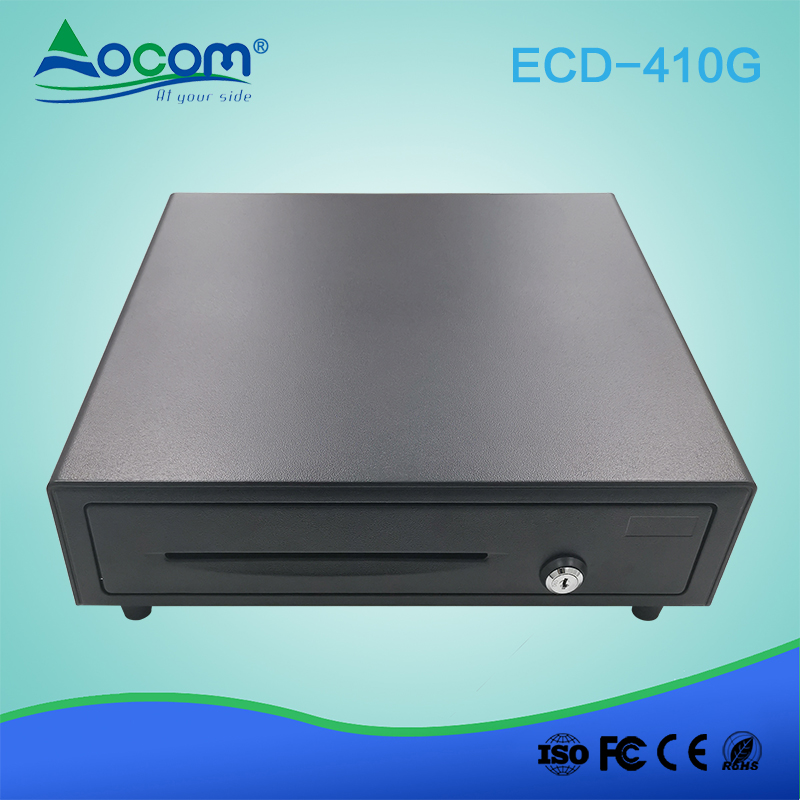

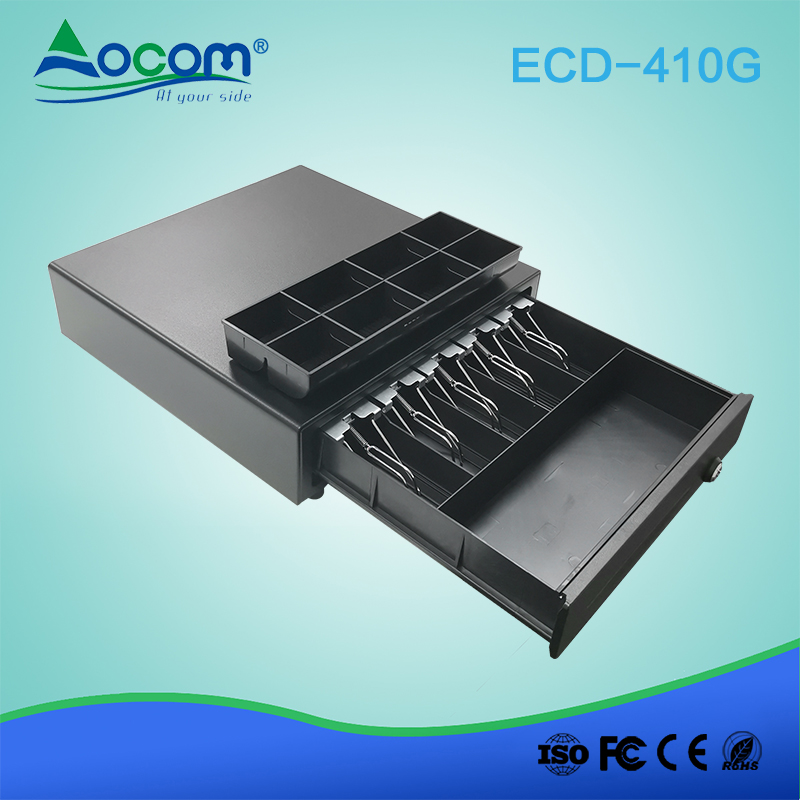

ECD-410G China rj11 12v 24v 410mm Safe metal cash drawer

  • 4 or 5 adjustable Bill holders;
  • 8 removable Coins holders;
  • Scratch resistant texture powder coat;
  • High impact ABS plastic;
  • 12V or 24V for options;
  • 3-position locks;
  • Tested to last beyond 1.5 million operations.

China rj11 12v 24v 410mm Safe metal cash drawer

(Model No.: ECD-410G)

Features:

4 or 5 adjustable Bill holders

8 removable Coins holders

Scratch resistant texture powder coat

High impact ABS plastic

12V or 24V for options

3-position locks

Tested to last beyond 1.5 million operations



Specifications:

Material

Flip top: 0.8mm SPCC powder spray the surface of cold rolled plate

Bottom: 1.0mm SECC

Bill tray

Four position width: 85/84/84/85mm

Five position width:72/63/63/65/70mm

Length:186mm; Depth: 55mm

Coin tray

8 removable position  width: 82;    Length: 57;  Depth: 46

lock

3 locks

Power

12V / 24V for option

Lifetime

Tested to minimum 1.5 million cycles

Interface

RJ11

Color

Black or White

weight

5.65 kg (net), 6kg (gross)

Dimensions

410(W) x 415(L) x 100mm(H) (with feet of 10mm)
