(VFD220A) 20X2 Characters Double Line VFD Customer Display with 11mm height characters(VFD220A) 20X2 Characters Double Line VFD Customer Display with 11mm height characters(VFD220A) 20X2 Characters Double Line VFD Customer Display with 11mm height characters(VFD220A) 20X2 Characters Double Line VFD Customer Display with 11mm height characters(VFD220A) 20X2 Characters Double Line VFD Customer Display with 11mm height characters

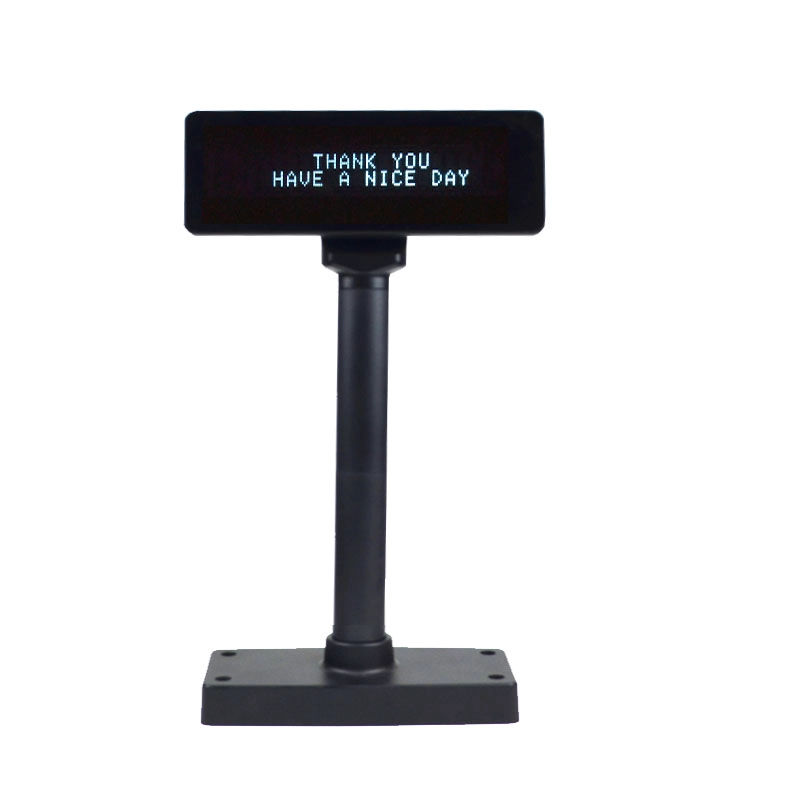

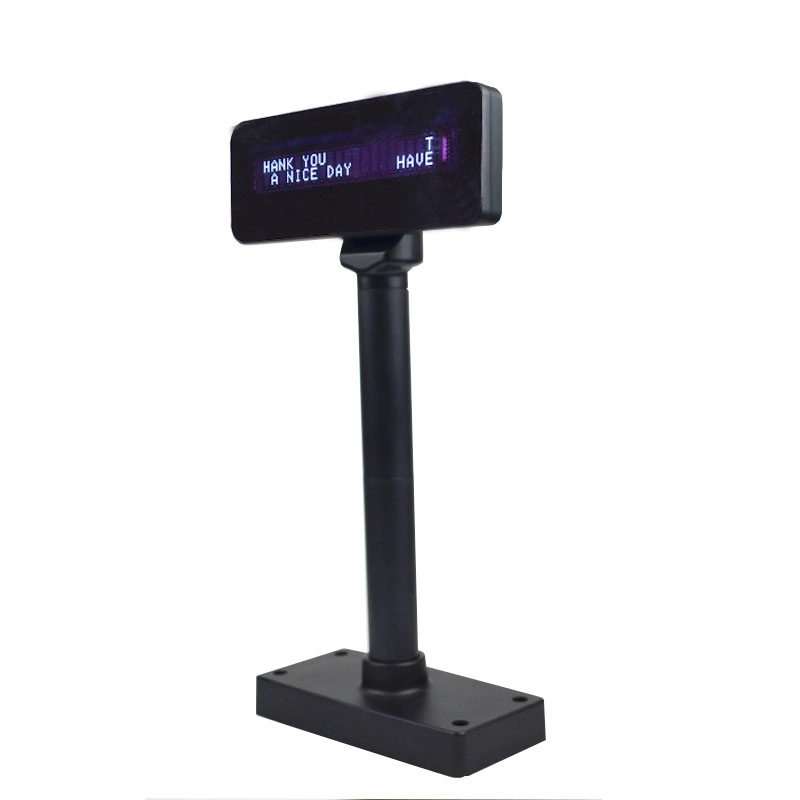

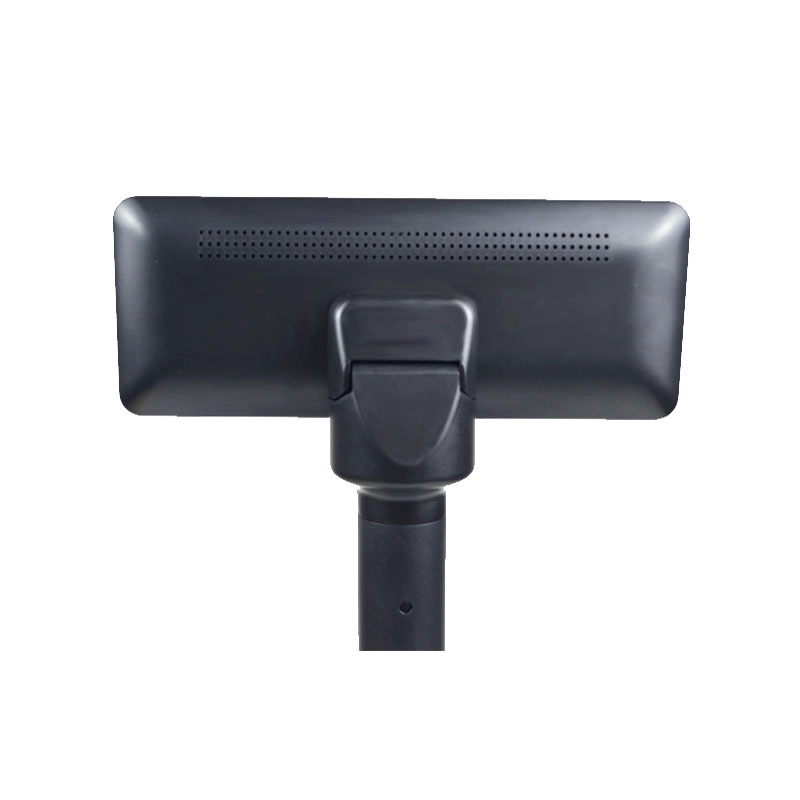

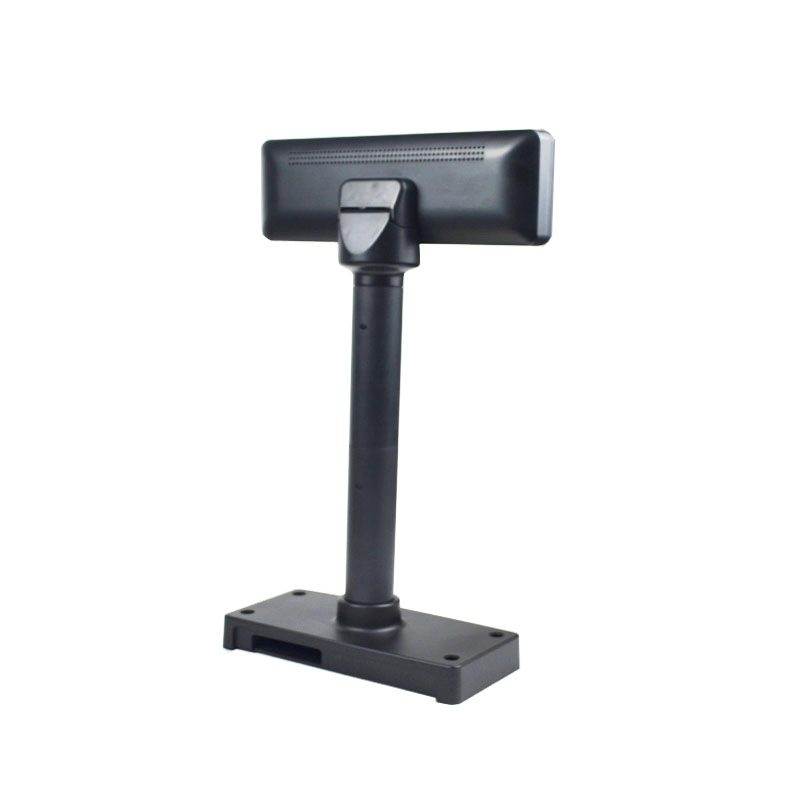

(VFD220A) 20X2 Characters Double Line VFD Customer Display with 11mm height characters

  • High brightness vacuum fluorescent display for excellent visibility
  • Adequately sized characters for easy viewing (9.0mm x 5.25mm)
  • 40 characters in 20 columns by 2 lines format
  • Supports a wide variety of languages with code pages
  • RS232 interface or USB interface for data communication
  • Power can be sourced from USB port (DC5V), no need external adapter
  • Easy installation and programming.
  • Power on time: 30000 hours.
  • Command set: ESC/POS and CD5220
  • Case color: black/white
Double Line VFD POS Customer Display
(Model: VFD220A)


Features:



High brightness vacuum fluorescent display for excellent visibility;

Adequately sized characters for easy viewing (9.0mm x 5.25mm);

40 characters in 20 columns by 2 lines format;

Supports a wide variety of languages with code pages;

RS232 interface or USB interface for data communication;

Power can be sourced from USB port (DC5V), no need external adapter;

Easy installation and programming;

Power on time: 30000 hours;

Command set: ESC/POS and CD5220;

Case color: black/white.




Specifications:



Communication

Interface:

Serial port (RS-232, powered by USB), USB(Virtual COM)

Baud rate:

9600bps

Brightness:

700cd

Data bit:

8bit

Stop bit:

1bit

Handshake signal:

No

Display:

VFD Bright blue-green fluorescent display

Display characters:

2 line x 20 characters / line, 40 characters, 5 x 7 Dots

Character size:

high 9.03mm x wide 5.25mm

MTBF:

30,000 hours

Dimensions

Panel dimensions:

82(H) x 208(W)x30(D)  mm

Support dimensions:

Long support: 410mm
Short support: 170mm
Base dimensions: 220(L) x107(w) x25(H) mm

Pitching move angle:

45°, Can provide comfortable, and adjust the visual Angle

Weight:

0.9Kg  (gross)

Environment

Operating Temp:

-20~70 A18

Storage  Temp;

-40~80 A19

Operating Humidity:

10~85%

Storage  Humidity:

10~90%

Command Set

Adopting international standard general command ESC/POS, Its can used in DOS or Windows System Environment, Don't need any driver, Only according to the format serial order set to send data can show content.

 With the function of opening the cash drawer All direction adjustable.









Relevant documents:

                  Driver
