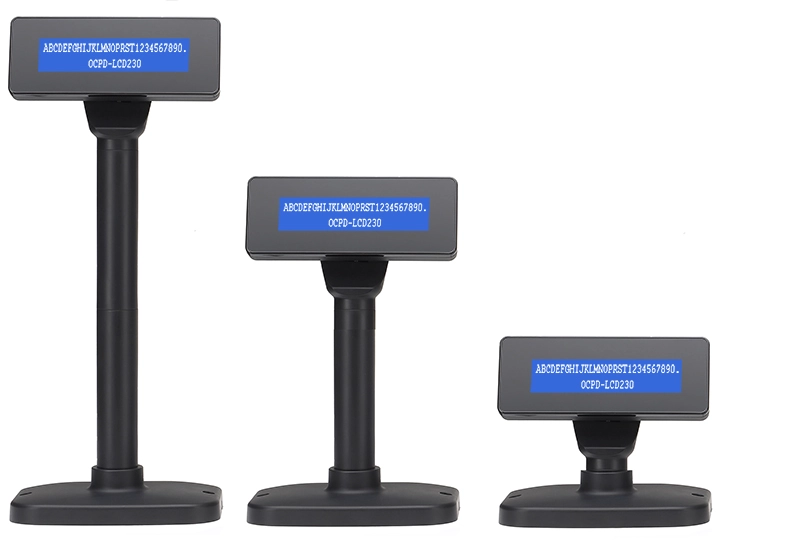

(LCD230C) 30x2 Characters Double Line LCD Customer Display

(LCD230C) 30x2 Characters Double Line LCD Customer Display

  • Supports 11 command modes included EPSON etc.
  • Compatible with 95 national languages;
  • Power supply from 5V to 24V to prevent any mindless use of improper power input;
  • Can show 2 lines * 30 columns or 2 lines * 15 Chinese;
  • OPOS/JPOS driver is standard.

30x2 Characters Double Line LCD Customer Display

(ModelNo.:OCPD-LCD230C-C1)


Features:

Supports 11 command modes included EPSON etc.

Compatible with 95 national languages;

Power supply from 5V to 24V to prevent any mindless use of improper power input;

Can show 2 lines * 30 columns or 2 lines * 15 Chinese;

OPOS/JPOS driver is standard.


Data sheet:

General

Display method

TN-LCD negative display  (White on the Blue background)

characters

30 columns*2 lines or 20 Chinese*2 lines

brightness

1200cd/m2

Character  font

16*16 dot matrix

Character type

95 Alphanumeric,32 international characters

Character Size

9.92(H)×4.75(W)mm (Chinese: 9.92*9.5mm)

Dot size(X×Y)

0.426(H) x 0.6(V)mm

Window size

142.7(H) x 19.82(V)mm

PCB Size

160(L)×36.6(W)×10.1(H)mm

Weight

Approx.65.5 grams

Commands Mode

LD220,EPSON POS D101,AEDEX,UTC/S,UTC/P,

ADM788,DSP800,CD5220,EMAX,LOGIC CONTROL

Language Support

FRANCE、GERMANY、U.K、DENMARKI、SWENEN、ITALY、SPAIN、JAPAN、NORWAY、DENMARKII、SLAVONIC、RUSSIA、Portuguese、Canadian French、Nordic、Turkish、Greek West European Latin.CP858、CP860、WCP1252、CP857(TURKISH)、Polish、WPC1250、WPC1253(GREEK)、WPC1255(Hebrew)、WPC1251、CP866、CP852、CP737(DOS greek)、CP858、CP864(Arabic) Farsi(Iran),CP936-GBK, Chinese Traditional, Chinese Simplified

Interface

RS-232(serial)or USB Virtual COM

Connection

Baud

Direct connection 9600 or 19200 bps

Reliability

MTBF

30000 hours

Power

Consumption

5-24 VDC

Safety

EMC standards

Safety standards

FCC,CE,ROHS
