F2202 Large Window Fixed Module Barcode ReaderF2202 Large Window Fixed Module Barcode ReaderF2202 Large Window Fixed Module Barcode Reader

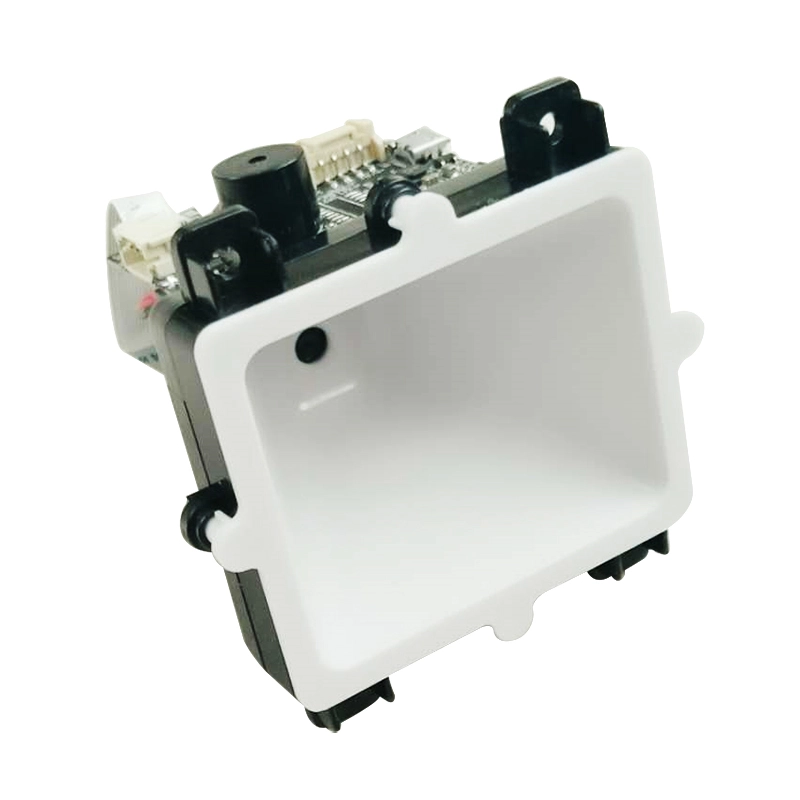

F2202 Large Window Fixed Module Barcode Reader

  • High performance imaging technology;
  • Omni-directional scanning, easy to scan;
  • High compatibility for all major 1D and 2D symbols;
  • Can read the barcode on the screen and color barcode;
  • 4mil excellent scanning accuracy ;
  • Multi interfaces optional;

Fixed 2d Scanner Module

(M/N:OCBS-F2202)





Specifications

Physical Characteristics

Sensor

 CMOS

Sensor Revolution

 642*484

Interface

 USB1.1(Standard),TTL-232(Optional), RS-232(Optional)

Reading Distance

 EAN13(0-45mm @13mil) QR Code(0-40mm @15mil)

Printing contrast

..20%

Scan Angel

 Roll 360° Pitch ±40° Skew ±30°

Symbologies  1D

 Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,Interleaved 2 of 5,

ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5

Symbologies  2D

 QR Code ,PDF417, Data Matrix

Electrical parameters

Voltage

 4.5~5.5 V  DC

Max Current

 236mA

Operating Current

 198mA

Standby Current

 60mA  10mA(sleep)

Mechanical Parameters

Dimensions

 71mm(W)×68mm(D)×49.6mm(H)

Environmental

Operating Temperature

 -20℃~50

Storage Temperature

 -30℃~70

Humidity

  5%~95%

Humidity

  5%~95%
