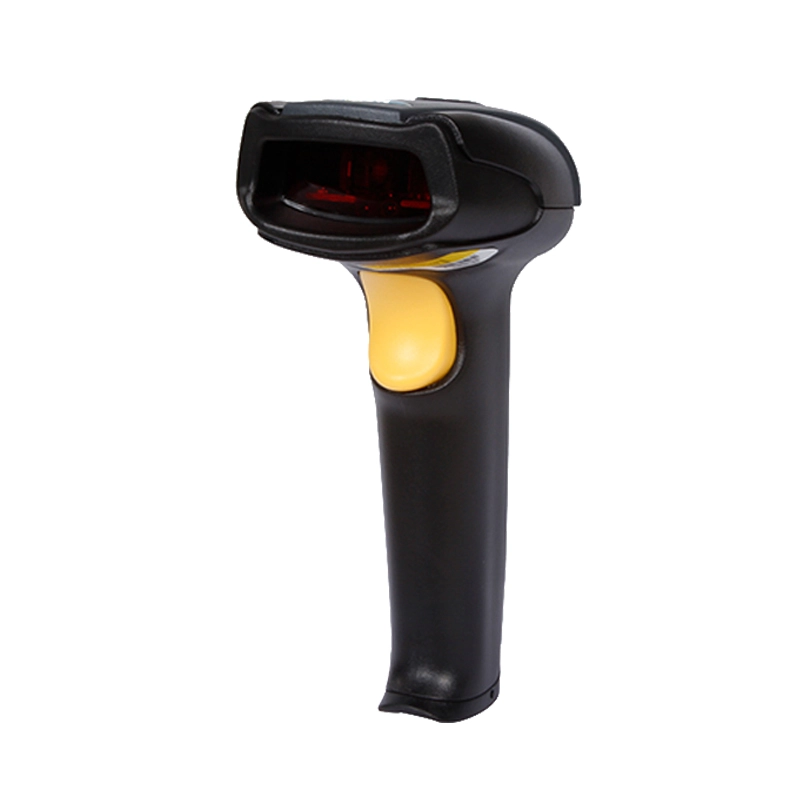

(OCBS-L009) High Scan Rate Handheld USB Laser Barcode Scanner Machine
- 200scan/sec high scan rate and long reading distance;
- Excellent decode capability;
- KBW, RS232 and USB supported;
- Durable construction combined with future-proofing;
- Grey and black color for option;
Specification:
Performance Characteristics |
|
Light Source: |
650nm visible |
Scan Rate: |
200 scans per second |
CPU |
32 bit |
Reading Distance |
2.5 ~600mm (100% UPC/EAN) |
Width of Scan |
50mm@60mm, 220mm@200mm |
Scanner Type: |
Bi-directional |
Operation mode |
triggered |
Resolution: |
3mil high resolution series / 5mil long depth field series |
Print Contrast Minimum: |
30%, minimum reflective difference |
Decode Capability: |
UPC/EAN, UPC/EAN with Supplemental, UCC/EAN 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 128, Code 128 Full ASCII, Coda bar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, RSS variants, Chinese 2 of 5,MSI/Plessey,UK/Plessey,UCC/EAN 128,Chinese code ,GS1 Data Bar(RSS)series |
Scanning Angle |
±65°(tilt); ±60°(pitch); ±42°(yaw) |
Physical Characteristics |
|
Interfaces Supported: |
PS2, RS232, USB |
Voltage: |
5V DC±5% |
Current: |
85 mA (Operating); 100 (Max) |
Indicator |
Beeper, LED |
Material |
ABS+PC |
Stand |
Optional |
Dimensions: |
156*68*83 mm (L*W*H) |
Weight: |
235g |
Color: |
Grey and black |
User Environment |
|
Operating Temperature: |
0 Degree C~45 Degree C |
Storage Temperature: |
-40 Degree C~60 Degree C |
Humidity: |
5%-90% (non-condensing) |
Electrostatic Discharge: |
Conforms to +/-15KV air discharge and +/-8KV of contact discharge |
Ambient Illumination |
0 ~ 100,000 LUX |
Drop Specifications: |
Withstands multiple 1.5m drops to concrete surface |
Laser classification |
EN60825-1,class 1 |

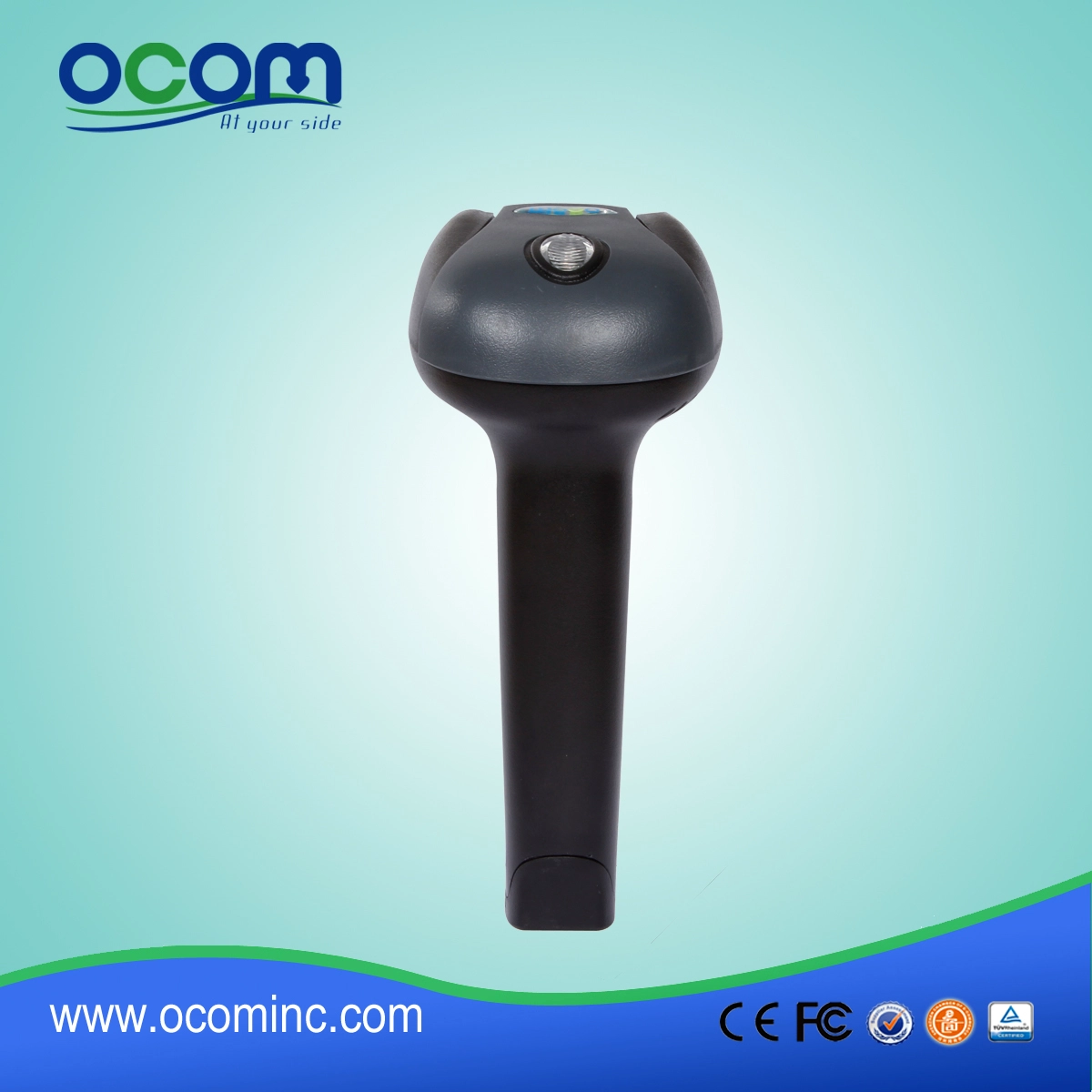

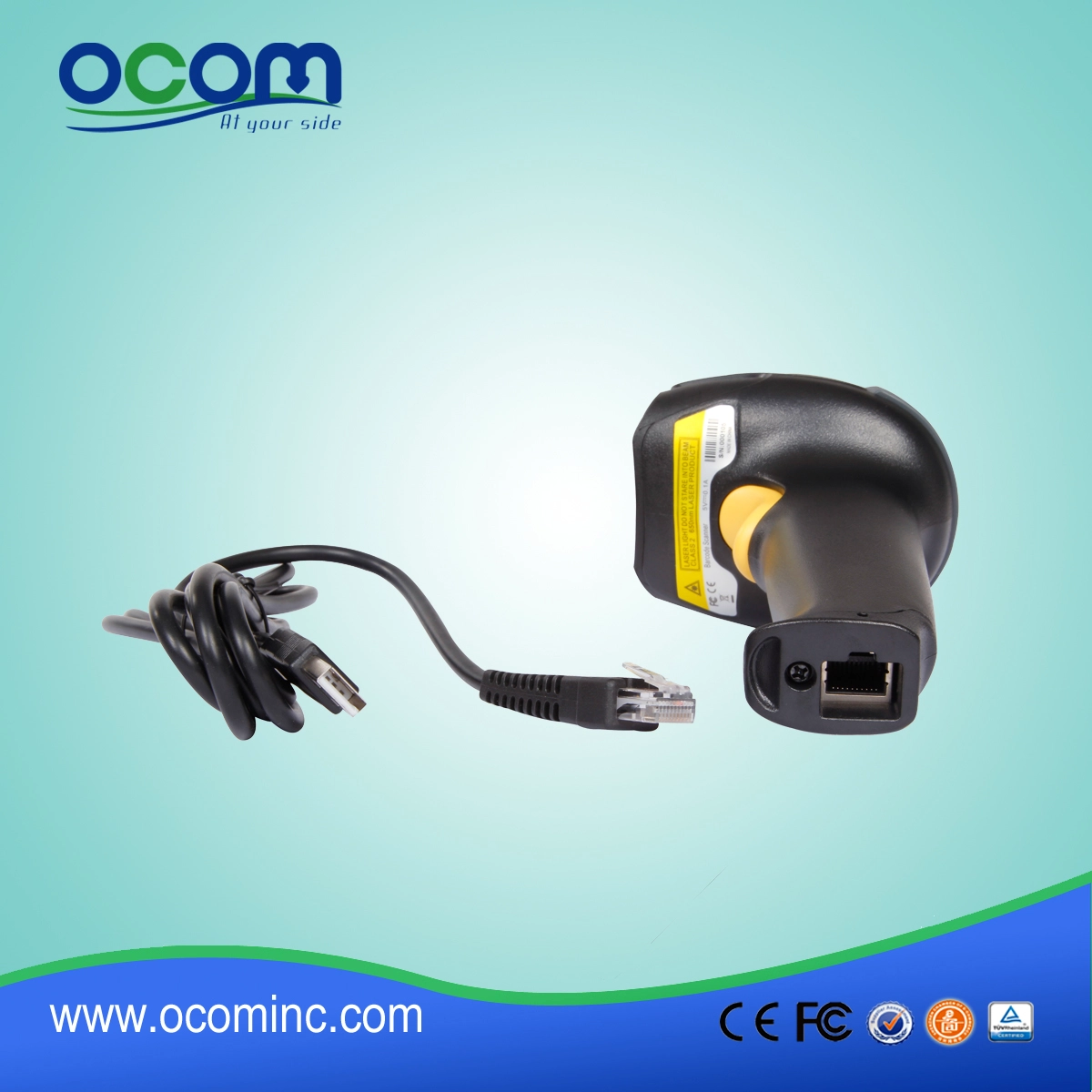

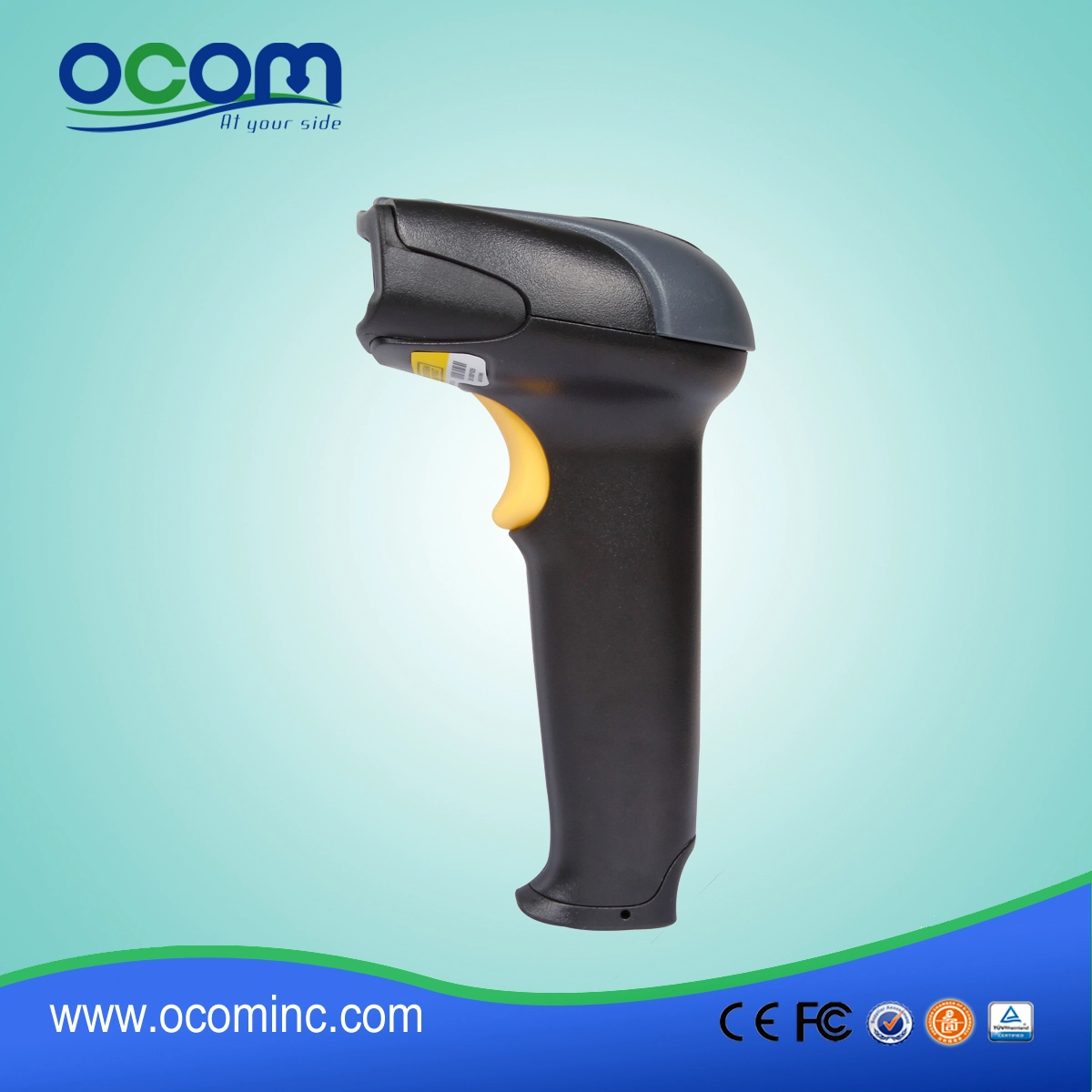

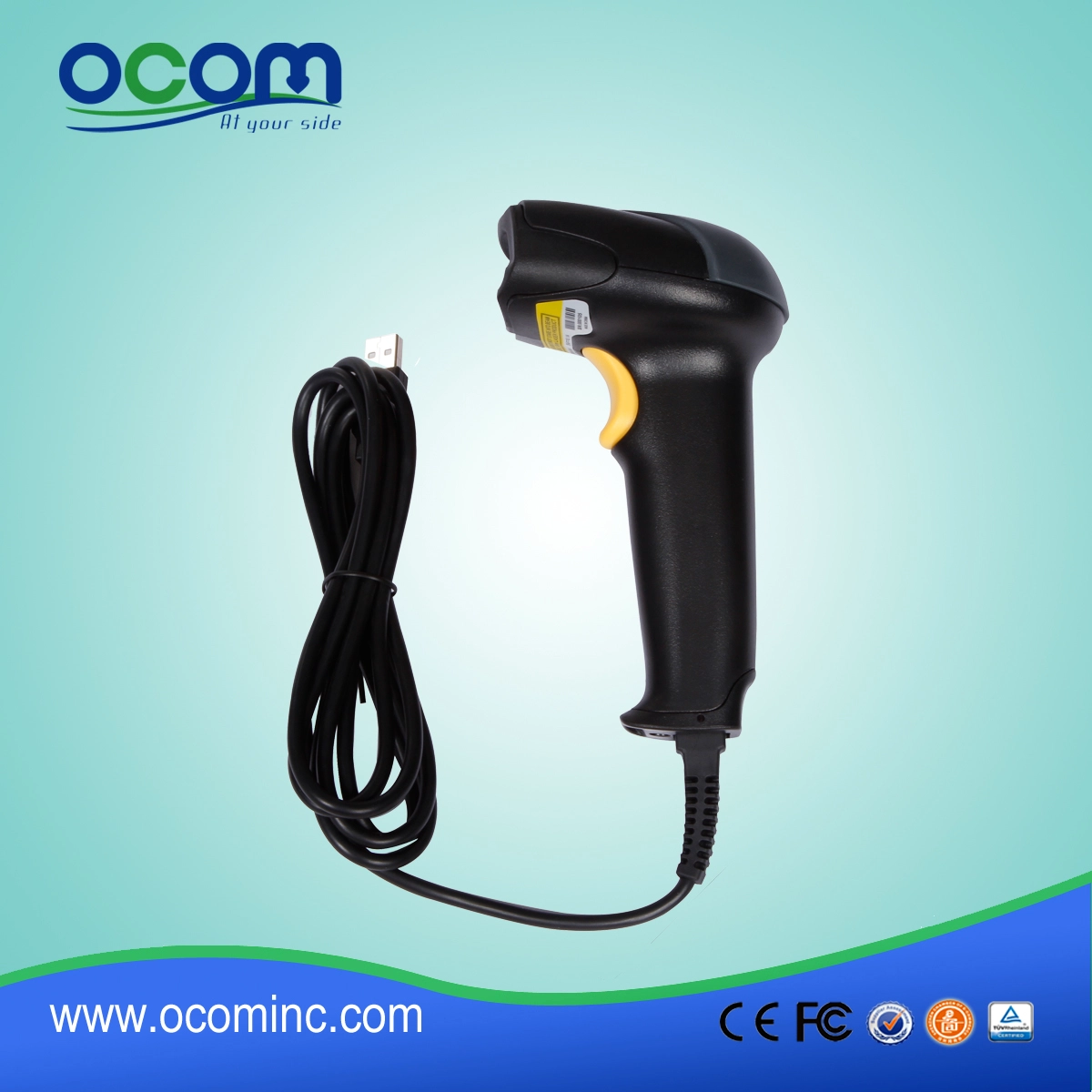

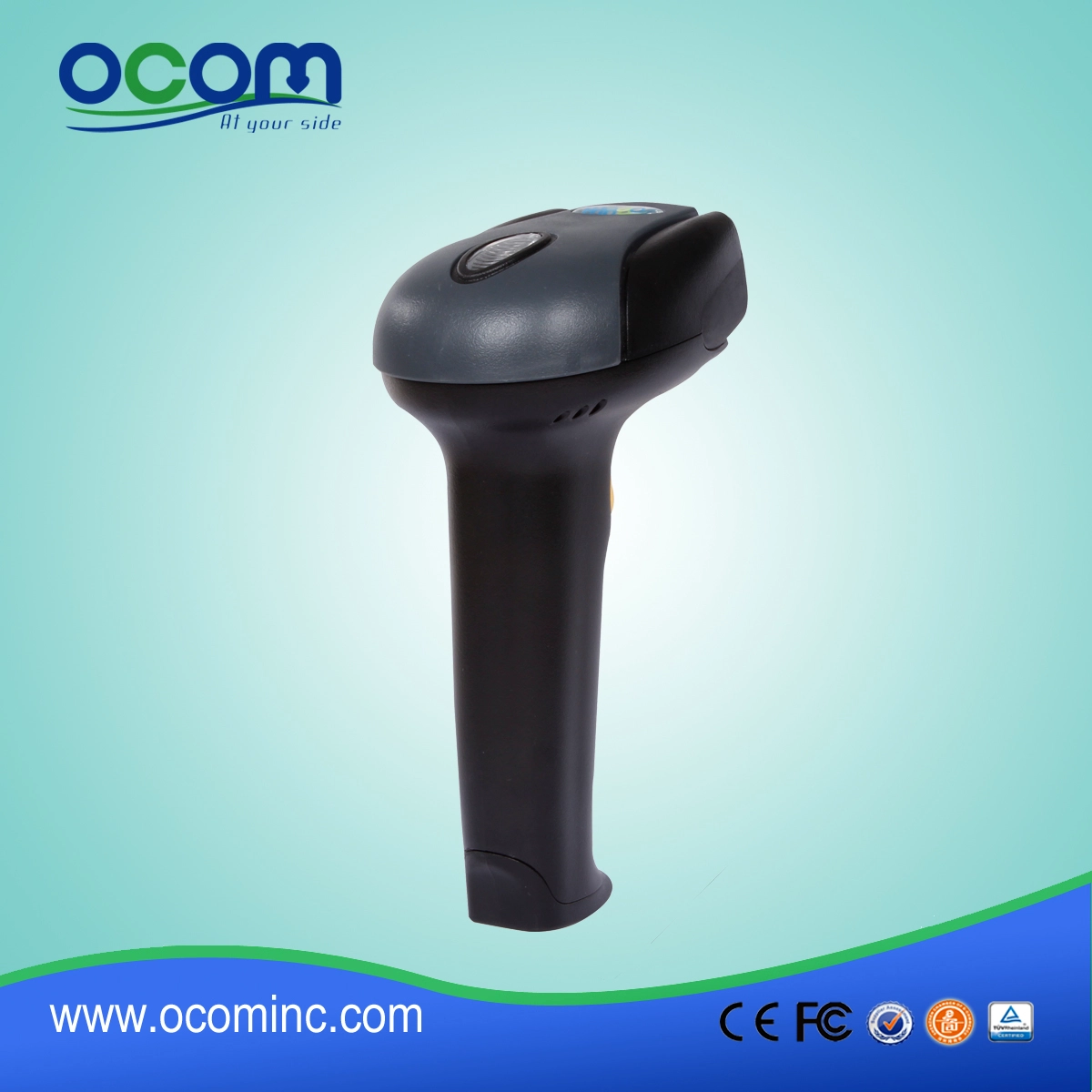

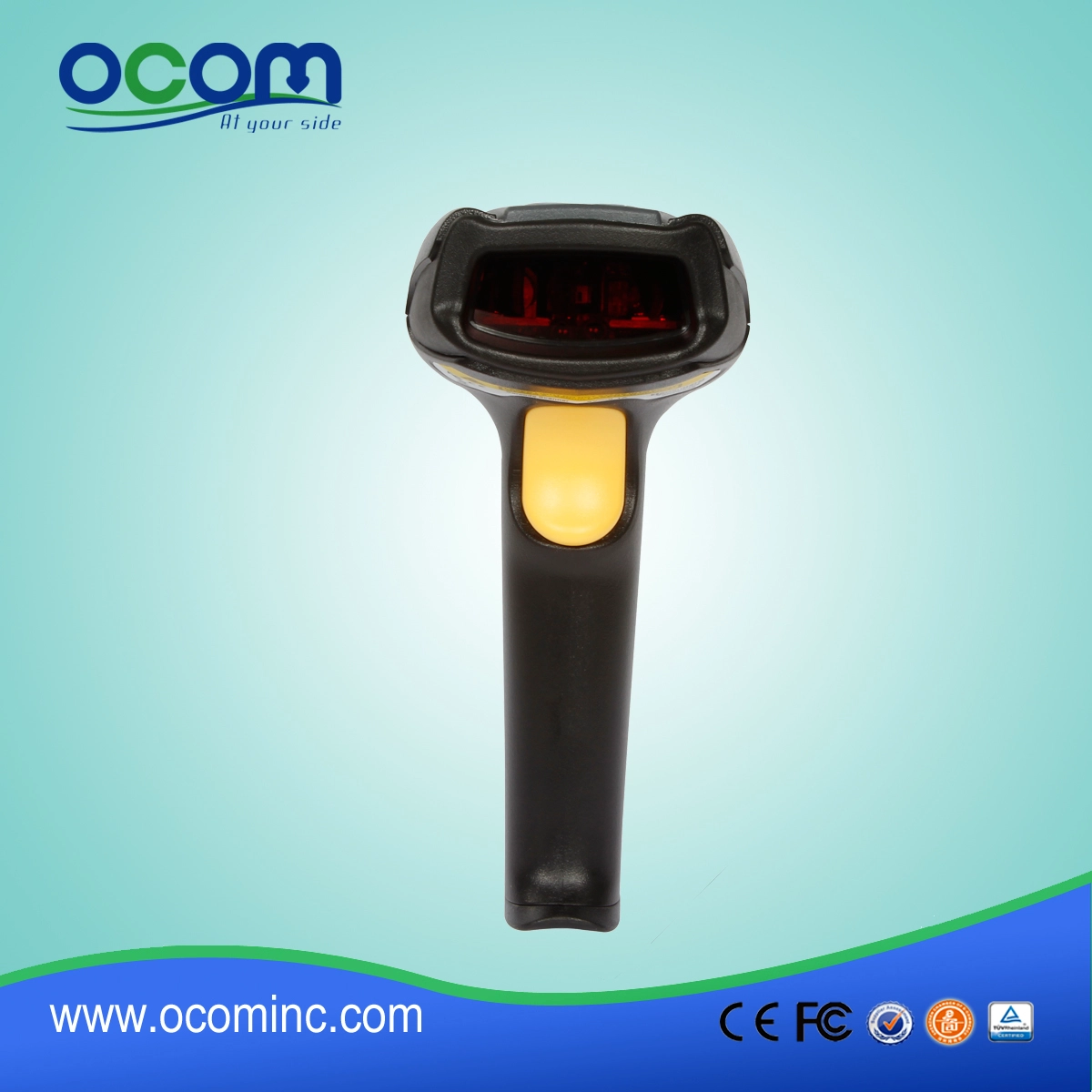

Product Details:
