    (OCBS-C380) Long Distance CCD Barcode Scanner(OCBS-C380) Long Distance CCD Barcode Scanner(OCBS-C380) Long Distance CCD Barcode Scanner(OCBS-C380) Long Distance CCD Barcode Scanner

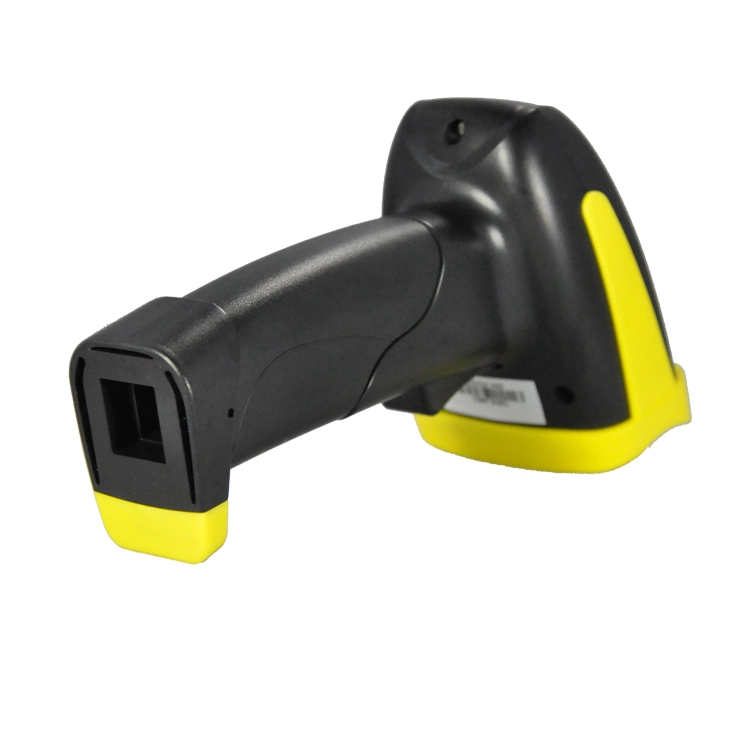

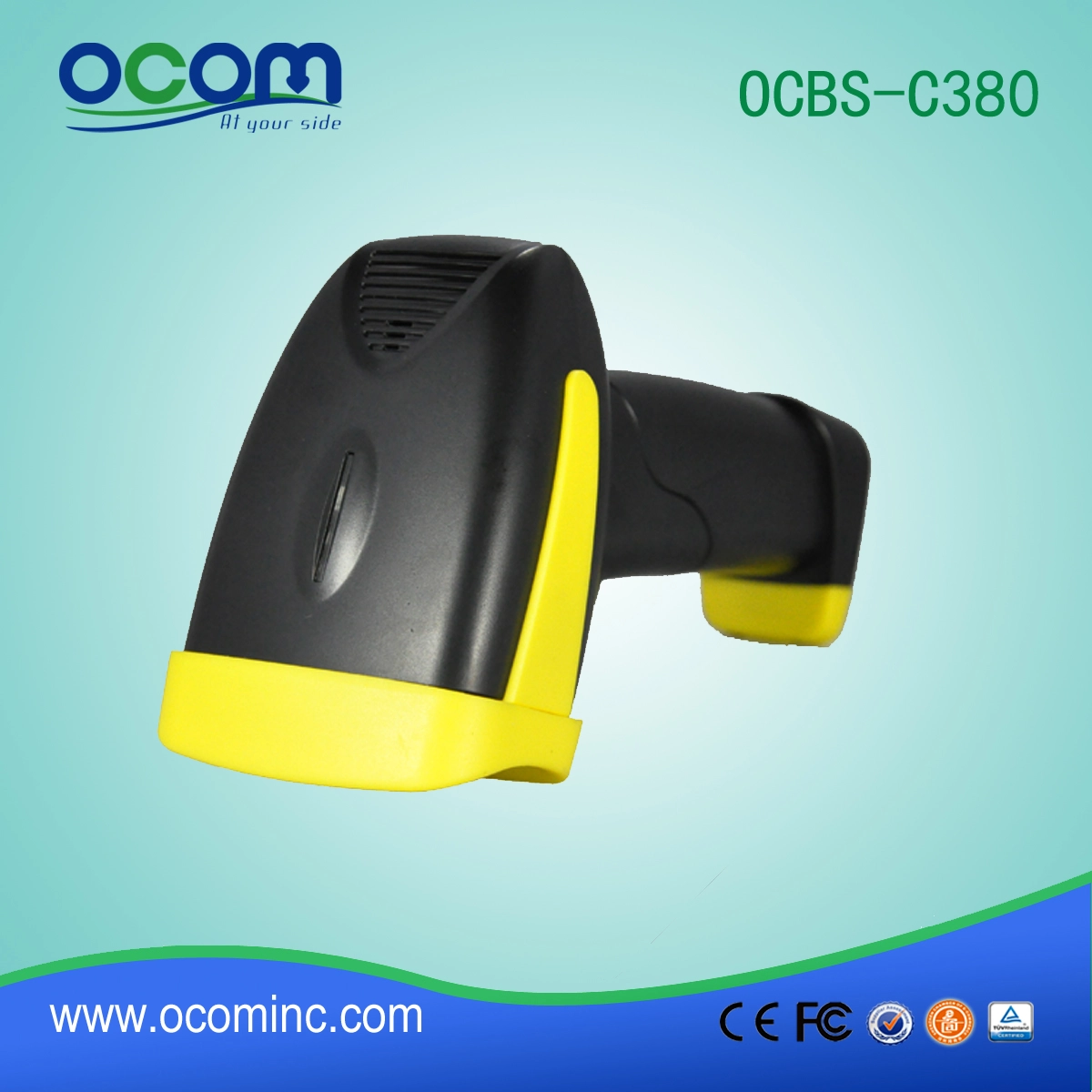

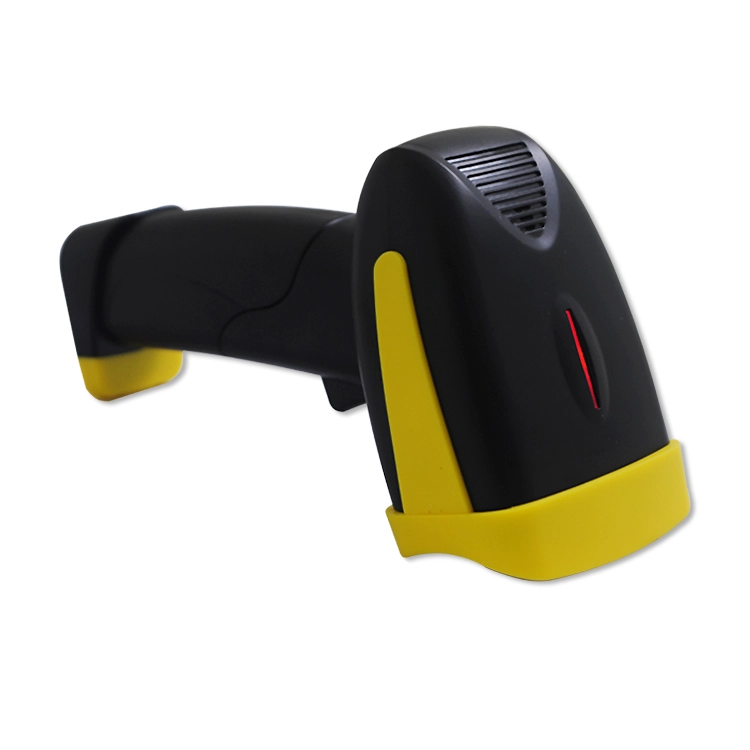

    (OCBS-C380) Long Distance CCD Barcode Scanner

    • 300scans/sec
    • Long distance CCD sensor
    • Can read Screen Barcode
    • Industrial design, Impact-proof
    • Drop resistance design

                                    Long Distance CCD Barcode Scanner

                                                                 (M/N:OCBS-C380)

    Feature:

    300scans/sec

    Long distance CCD sensor

    Can read Screen Barcode

    Industrial design, Impact-proof

    Drop resistance design

     ccd barcode scanner, ccd barcode reader,screen code reader

    Technical Parameter

    Electrical Characteristics

    Voltage requirement

    3.3V

    Current consumption

    Max:170mA

    Standby:40mA

    Optical Characteristics

    Photo sensor

    CCD linear sensor

    Light source

    622-628nm red LED

    Lumination

    265LUX(130mm)

    Scan method

    bi-directional

    Scan Rate

    300 scans/second

    Min resolution

    ≥5mil

    Tilt angle

    ±60°

    Skew angle

    ±30°

     Pitch angle

    ±65°

    Depth of Field

    40mm-430mm

    Min.PCS value

    ≥30%

    Decode

    Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar,Code 93

    Physical Characteristics

    Dimensions

    65*155*95mm

    Weight

    132g

    Material

    ABS+PC

    Interface

    USB (default), RS232(customize)

    Environmental Characteristics

    Temp

    -20°- 60°C(operation)     -40°- 85°C(storage)

    Humidity

    5 - 95% (operation)5 - 95% (storage)

    Ambient Light

    fluorescent light 4000 lx max,direct sun light 80,000 lx ma,

    white light 4000 lx max

    Shock drop test

    1.2m drop onto concrete surface

    Regulatory

    EMI/RFI

    CE EMC Class B

    Package Infomation :

    20.2*12.2*7.2cm Weight:297g(with USB cable)


    Relevant documents:

    User Manual
