Mini USB / RS232 / TTL Interface Magnetic Card ReaderMini USB / RS232 / TTL Interface Magnetic Card ReaderMini USB / RS232 / TTL Interface Magnetic Card Reader

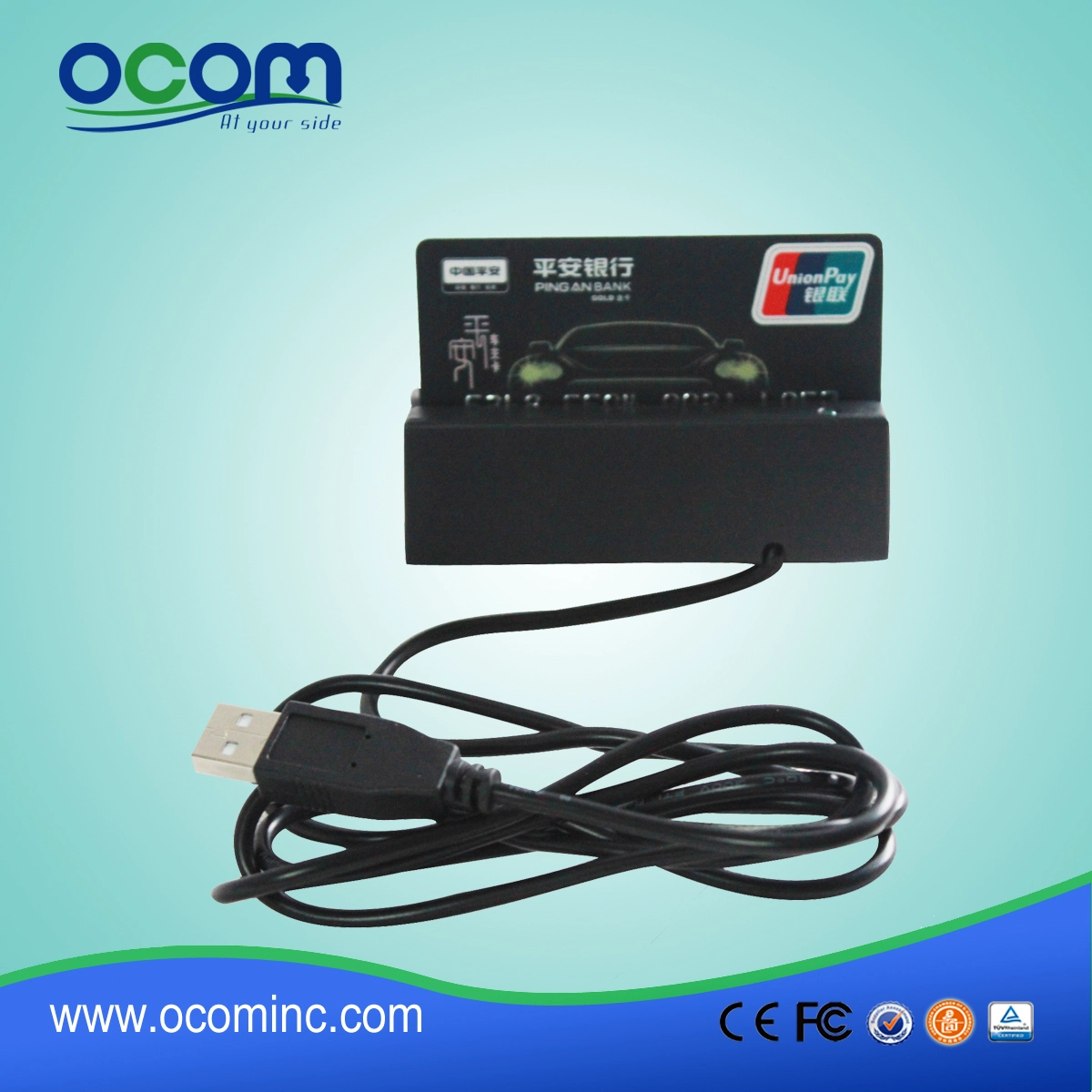

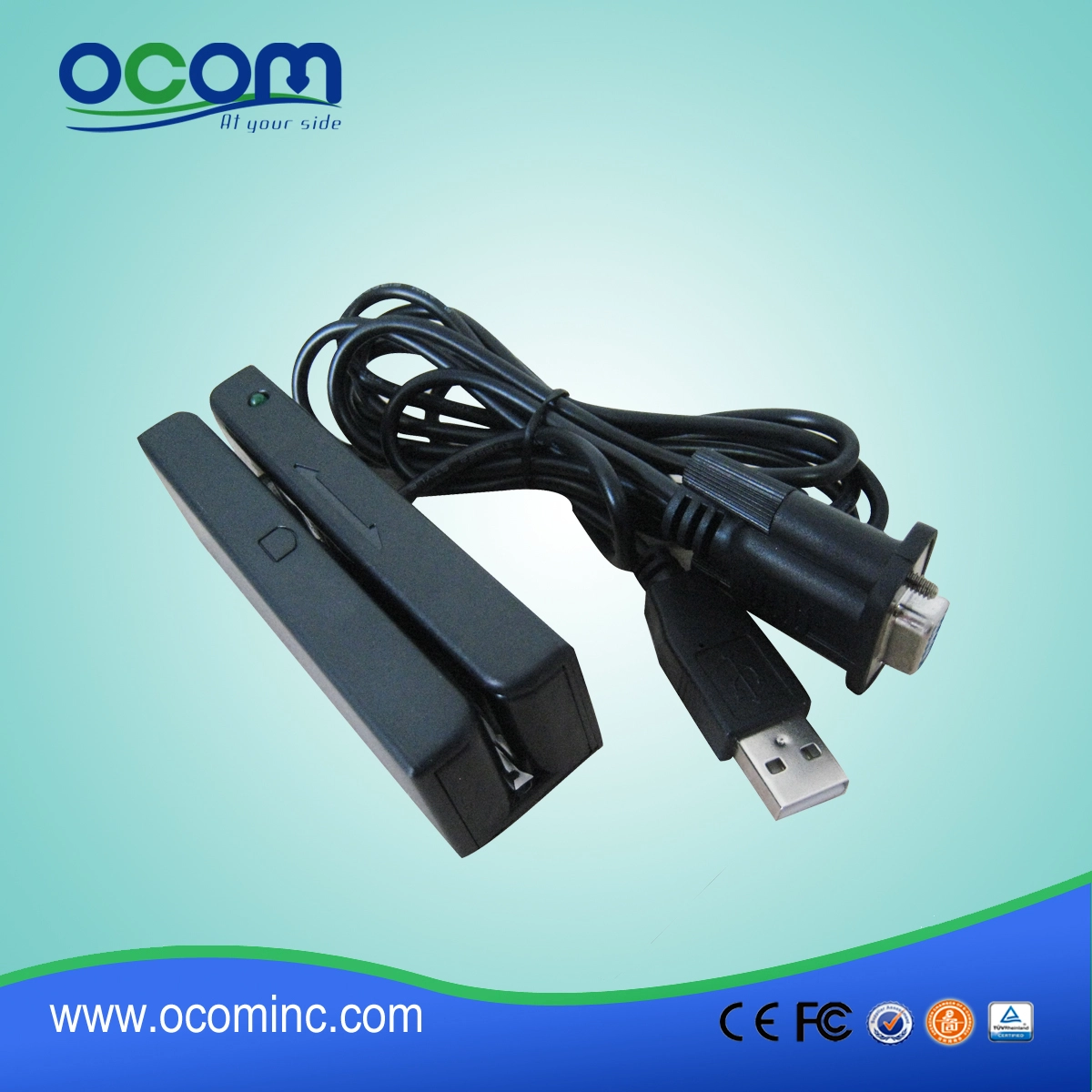

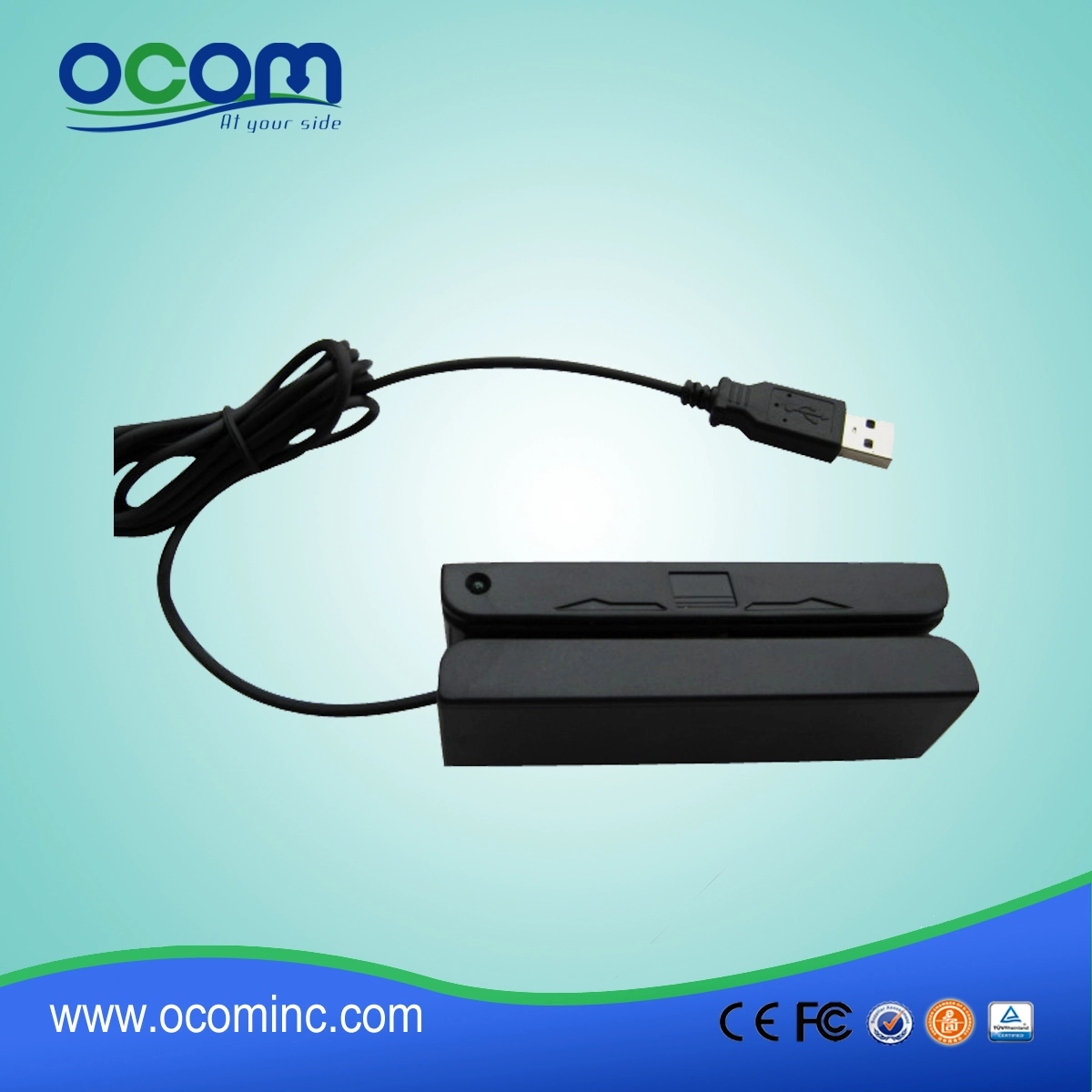

Mini USB / RS232 / TTL Interface Magnetic Card Reader

  • Compatible with Android System;
  • All 3 tracks can set to 75/210 BPI;
  • USB or Serial interface;
  • Long service life (500,000 card passes);
  • Suitable for all ISO7811/7812, ANSI, AAMVA and CA DMV magnetic cards;
Mini USB / RS232 / TTL Interface Magnetic Card Reader
(Model: CR1300)

Specifications:

Dimension

90mm(L) x 26mm(W) x 28mm(H)

Weight

85g(approx.)

Power Supply

+5V DV ±5%

Power consumption

40mA (max.)

Operation Locus

Indoor use

Card Standard

ISO7811/7812

Track Position

ISO 1 (IATA)

ISO 2 (ABA)

ISO 3 (MINTS)

Recording Density

210 BPI

75 BPI

210 BPI

Recording Capacity

79 Characters (7bits)

40 Characters (5bits)

107 Characters (5bits)

Interface

USB / Serial

Card Thickness

Plastic 0.76 ± 0.08mm

Head Function

Read only 1.5mm

Operation Speed

10 ~ 150cm/sec

Life of Head

500,000 card passes (1 pass : one swipe)

Error Rate

Less than 0.5% (JSE Test card)

Temperature

Storage : -30°C to +70°C Operating : -20°C to +70°C

Humidity

Storage : 0% to 95% RH Operating : 20% to 90% RH


Product Details:
