(OCBS-W700) Portable Wireless Barcode Scanner(OCBS-W700) Portable Wireless Barcode Scanner(OCBS-W700) Portable Wireless Barcode Scanner(OCBS-W700) Portable Wireless Barcode Scanner(OCBS-W700) Portable Wireless Barcode Scanner(OCBS-W700) Portable Wireless Barcode Scanner

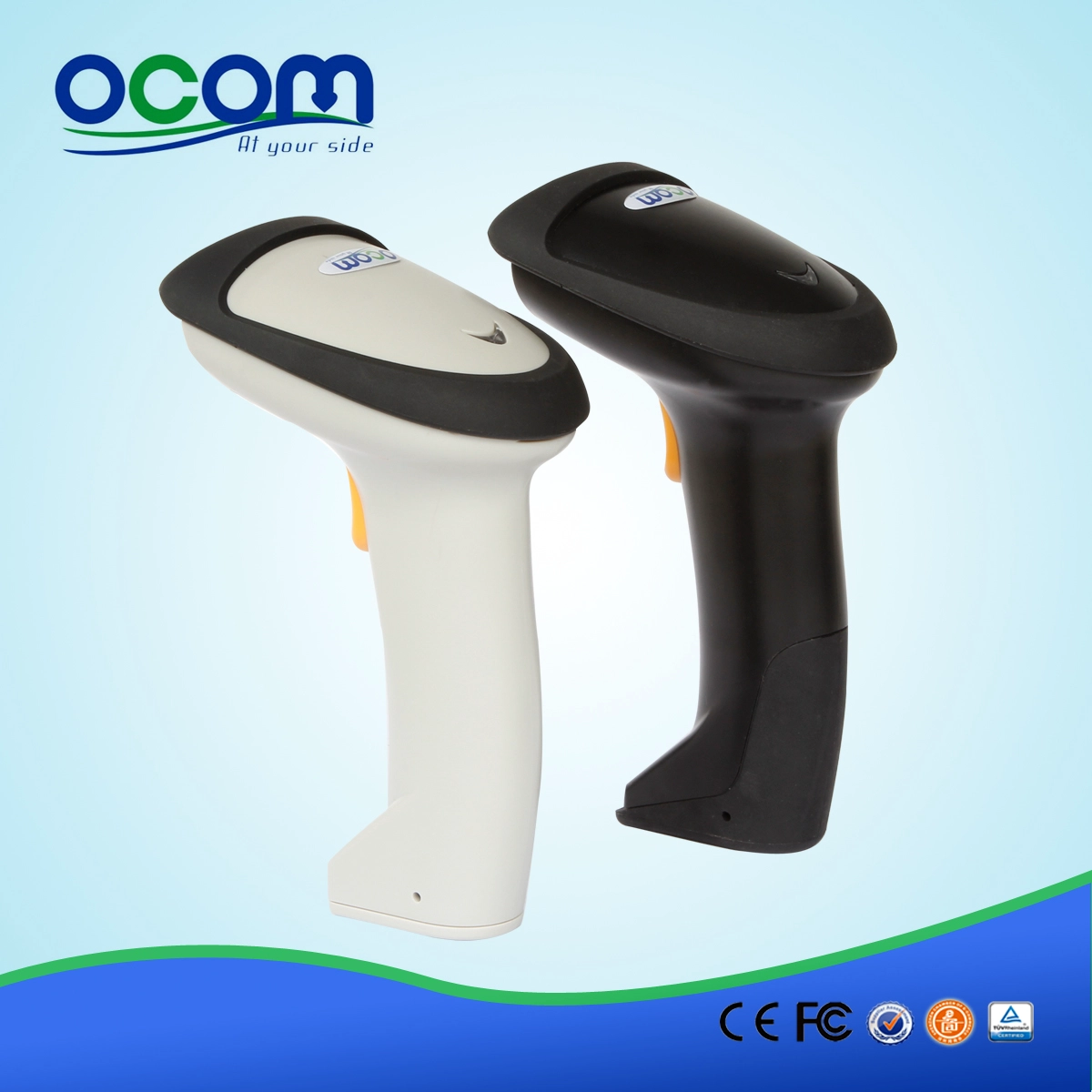

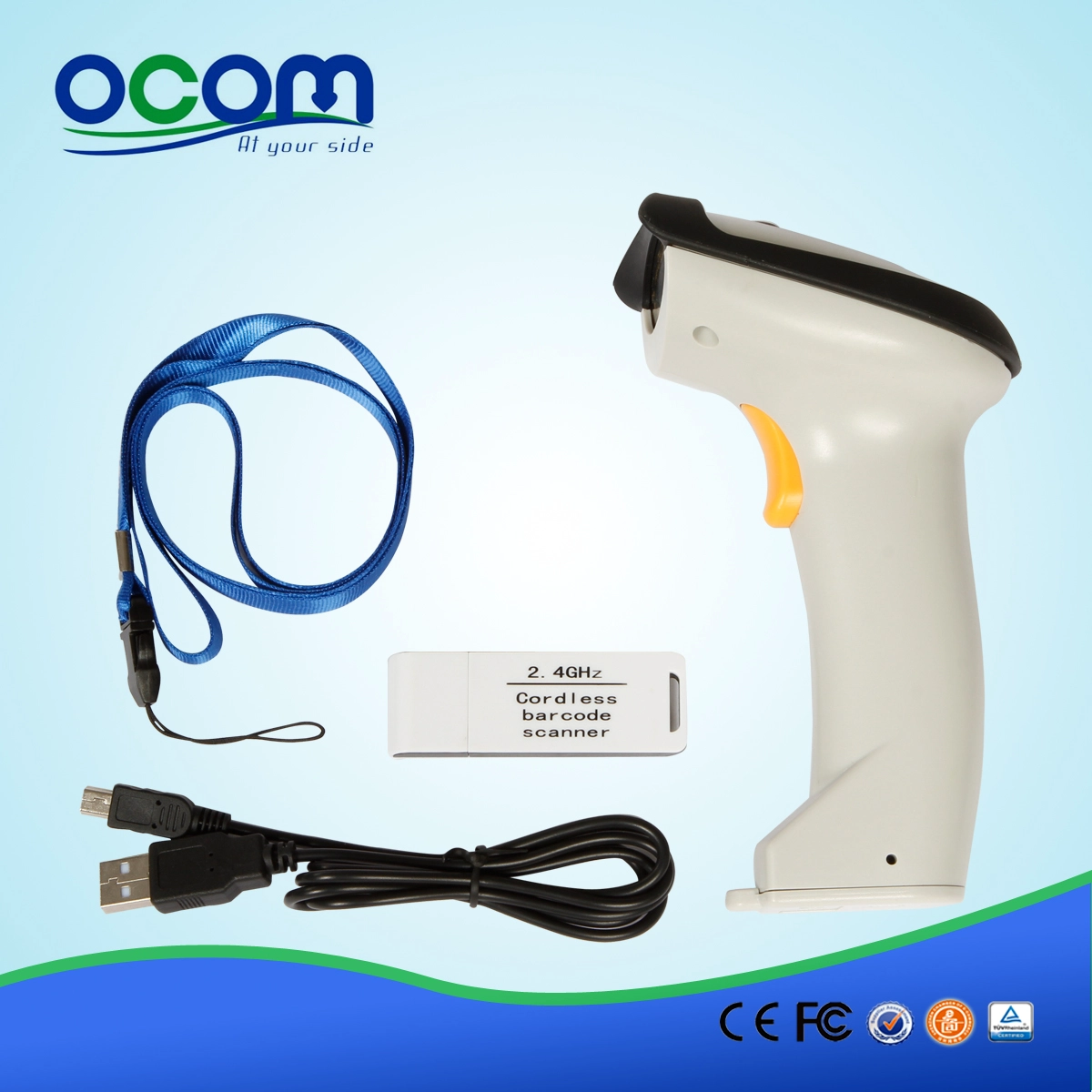

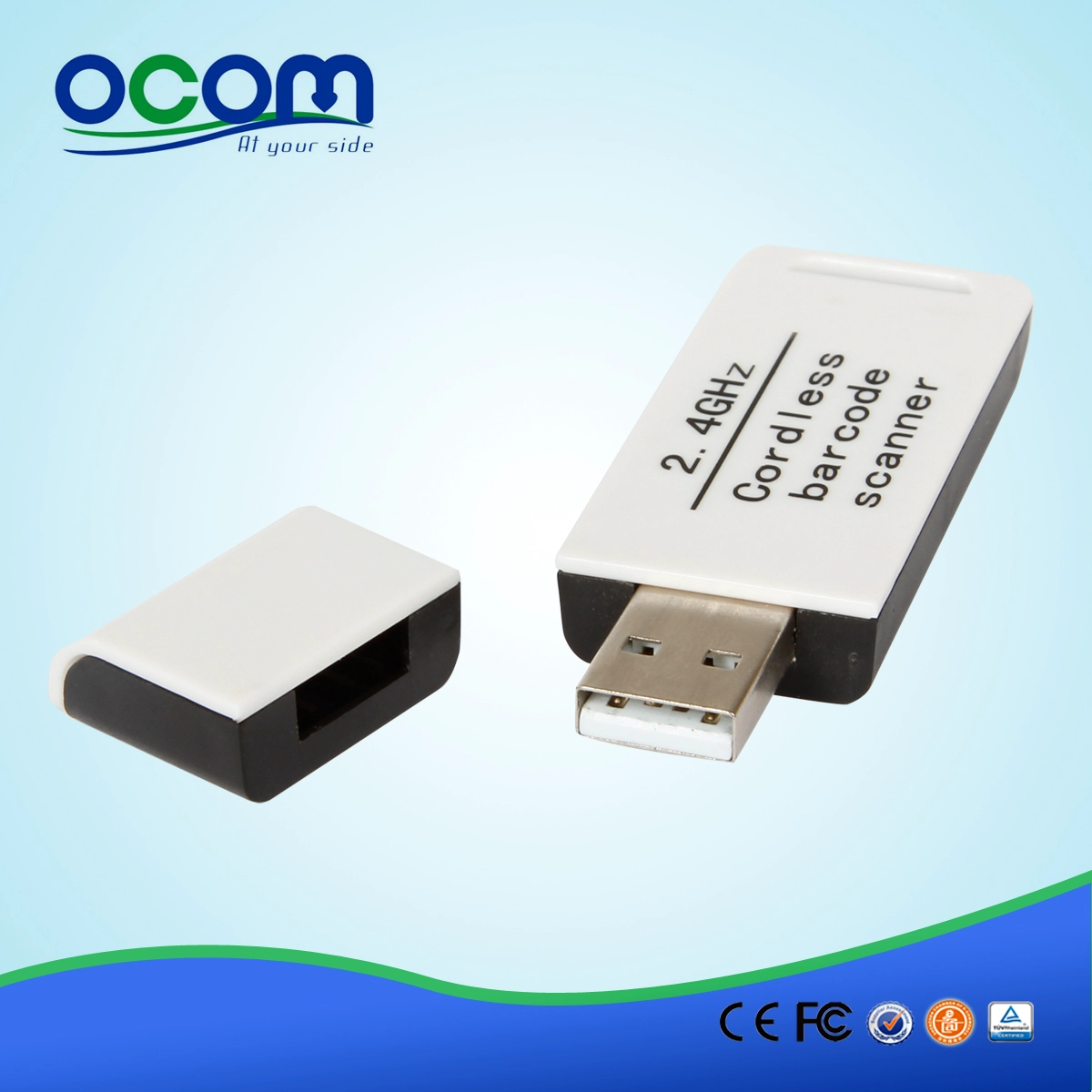

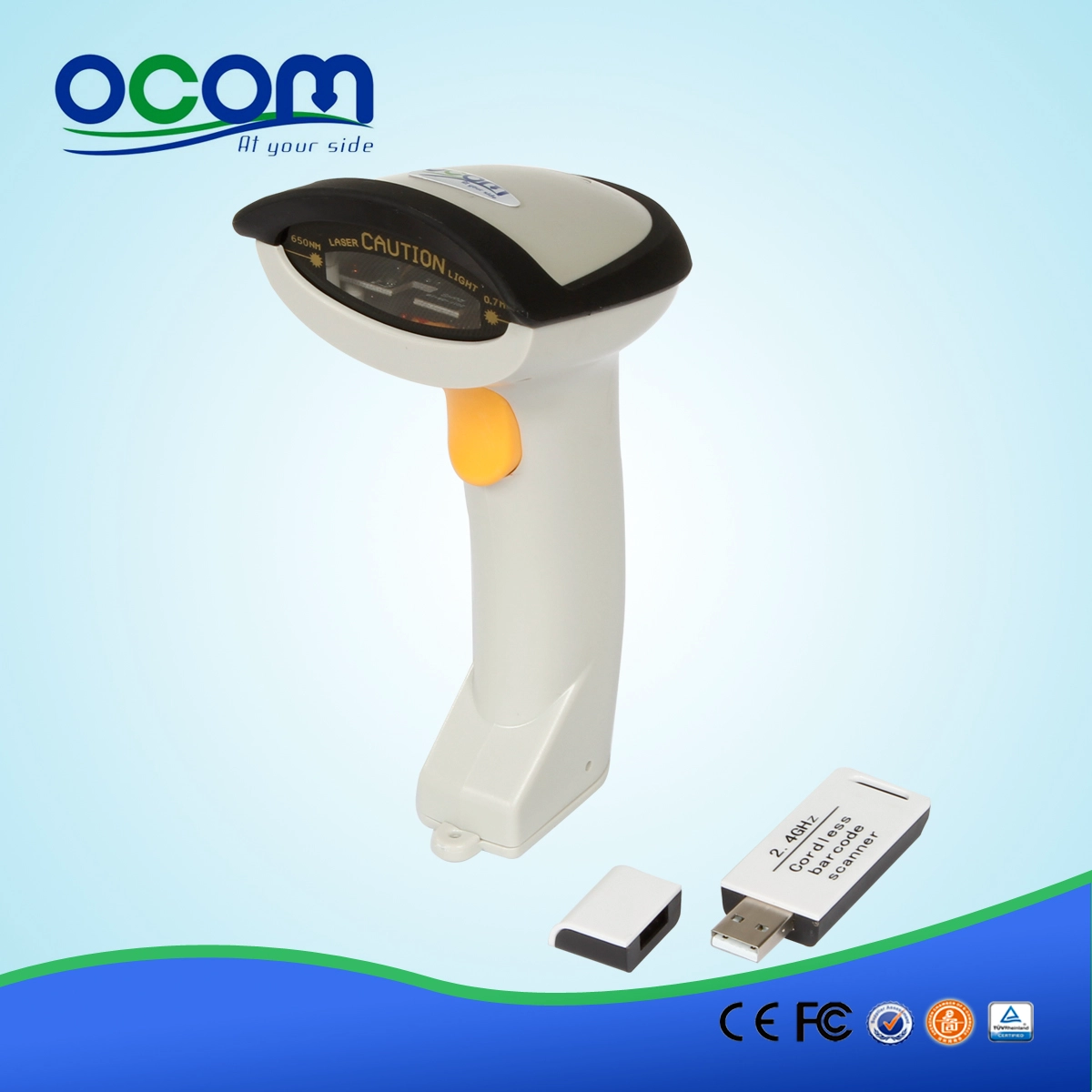

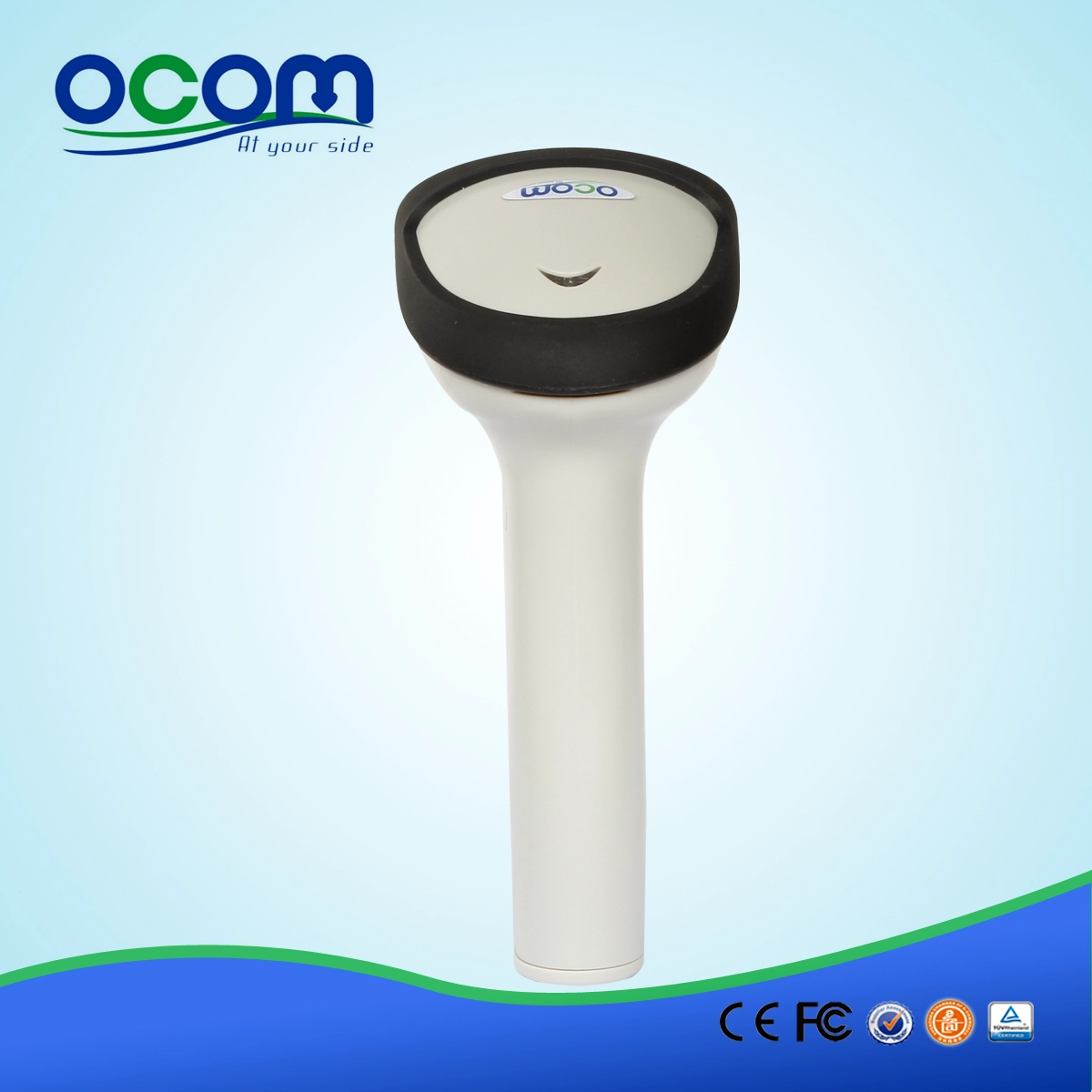

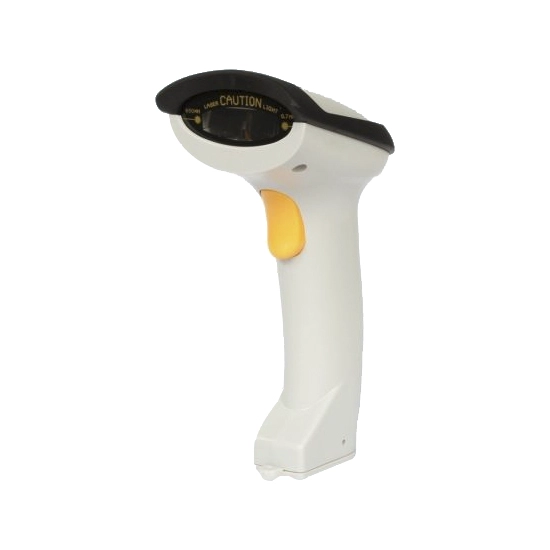

(OCBS-W700) Portable Wireless Barcode Scanner

  • Integrated non-volatile memory (can store about 500 barcodes);
  • Outside communication distance can reach 100m, inside is 20m;
  • 20 scanners can work in the same field without interfering each other;
  • Plug and play;
  • 800mA big capacity Li-battery.



PortableWireless Barcode Scanner



(Model:OCBS-W700)
Specifications:



PHYSICAL CHARACTERSTICS
Light Source:
Visible Red Laser 650 nm
Scanner Dimensions:
160mm * 70mm * 40mm(W * H * D)
Weight :
300G
Material:
ABS + PC
Scanning Mode:
One line scanning; Manual / Automatic
Indicator Way:
Buzzer and Indicator Light
PERFORMANCE CHARACTERSTICS
Width of Scan Field:
20mm@scanner window
260mm@260mm
Depth of Scan Field:
4mil (0.1mm)/5-60mm
5mil (0.12mm)/10-100mm
10mil (0.25mm)/15-250mm
35mil (0.89mm)/140-600mm
43mil (1.1mm)/150-800mm
Scan Speed:
120 scans/sec
Scan Precision:
0.10mm (pcs0.9)
Printing Contrast:
Minimum 30% reflection difference
Error Rate:
1/(6million)
Decode Capability:
International general 1D barcodes
Current:
60mA (working); 5uA(standby)
Scanning Corner:
32°
Scanning Elevation:
68°
Scanning Angle of Avertence:
52°
Working Frequency:
2.4GHz
Communication Distance:
100m (Open Places)
20m (Indoor)
Communication Interface:
USB
USER ENVIRONMENT CHARACTERSTICS
Drop Specification:
2m free fall
Laser Level:
Level-1 laser safety standard
Charge Power:
DC5V
Product Details:
  wireless barcode scanner Wireless Scanner wireless barcode scanner with memory barcode scanner with printer wireless  wireless barcode scanner Wireless Scanner wireless barcode scanner with memory barcode scanner with printer wireless  wireless barcode scanner Wireless Scanner wireless barcode scanner with memory barcode scanner with printer wireless  wireless barcode scanner Wireless Scanner wireless barcode scanner with memory barcode scanner with printer wireless  wireless barcode scanner Wireless Scanner wireless barcode scanner with memory barcode scanner with printer wireless  wireless barcode scanner Wireless Scanner wireless barcode scanner with memory barcode scanner with printer wireless  wireless barcode scanner Wireless Scanner wireless barcode scanner with memory barcode scanner with printer wireless  wireless barcode scanner Wireless Scanner wireless barcode scanner with memory barcode scanner with printer wireless
