New Bluetooth Rfid Card Reader In ChinaNew Bluetooth Rfid Card Reader In ChinaNew Bluetooth Rfid Card Reader In ChinaNew Bluetooth Rfid Card Reader In ChinaNew Bluetooth Rfid Card Reader In ChinaNew Bluetooth Rfid Card Reader In China

New Bluetooth Rfid Card Reader In China

  • 2015 Mini Portable Android Magnetic Stripe Card Reader
  • Compatible with Android System;
  • All 3 tracks can set to 75/210 BPI;
  • USB or Serial interface;
  • Long service life (500,000 card passes);
  • Suitable for all ISO7811/7812, ANSI, AAMVA and CA DMV magnetic cards;

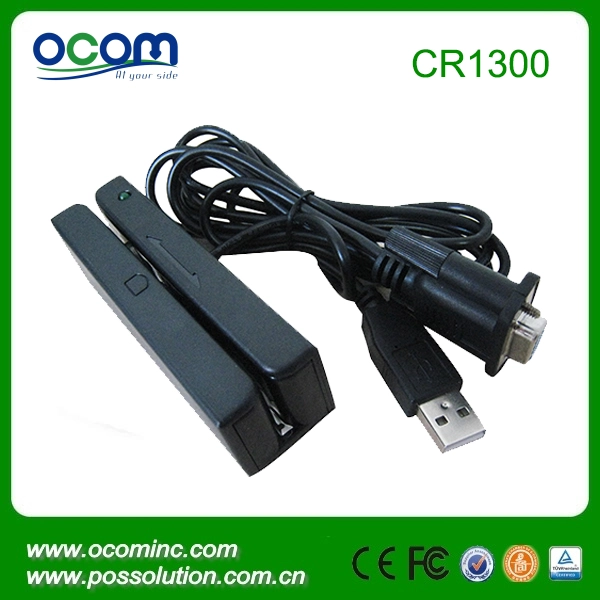

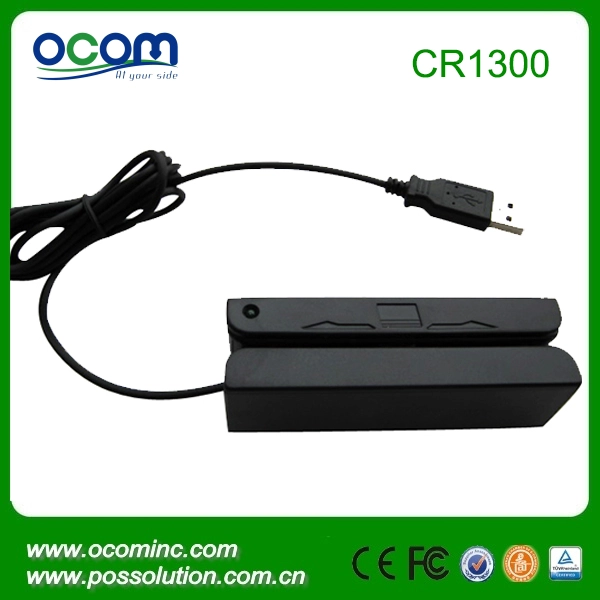

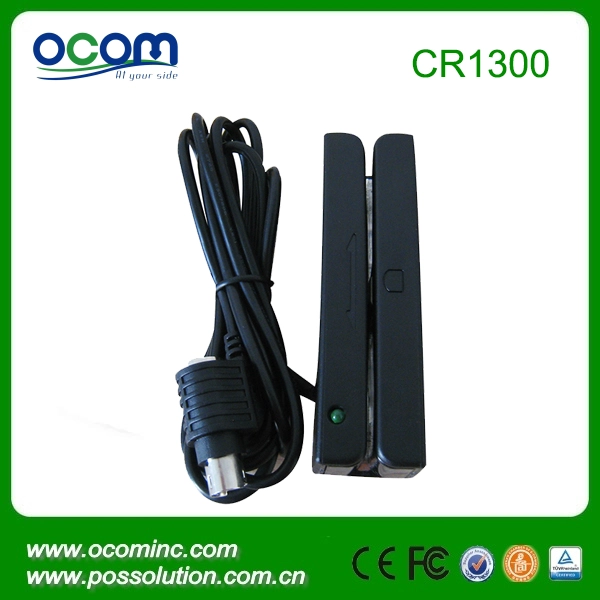

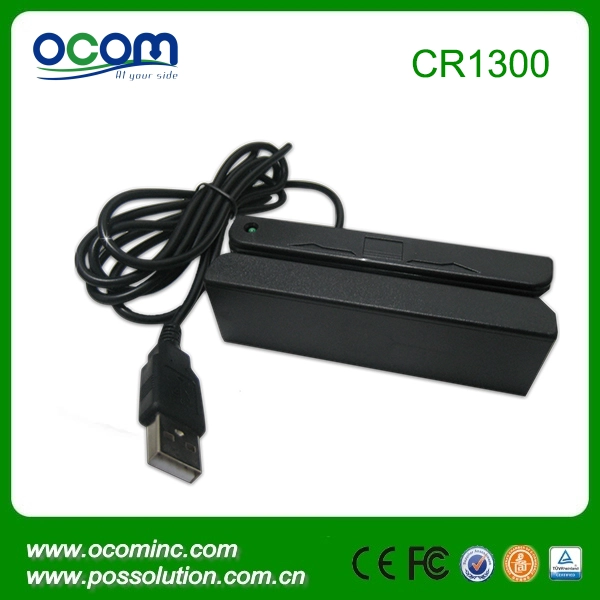

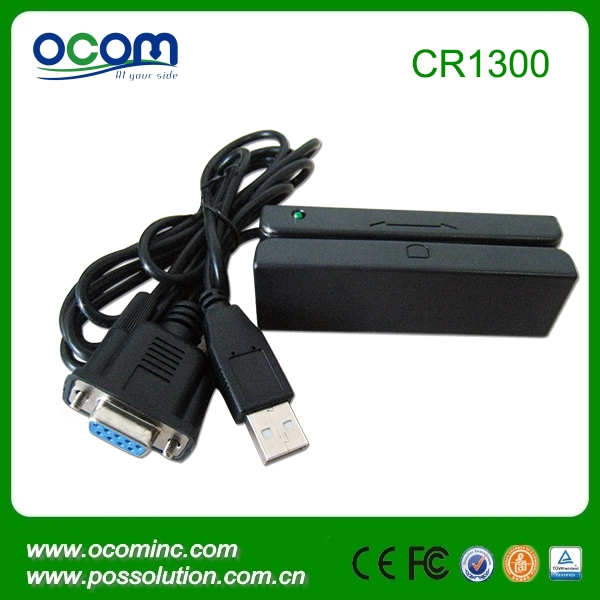

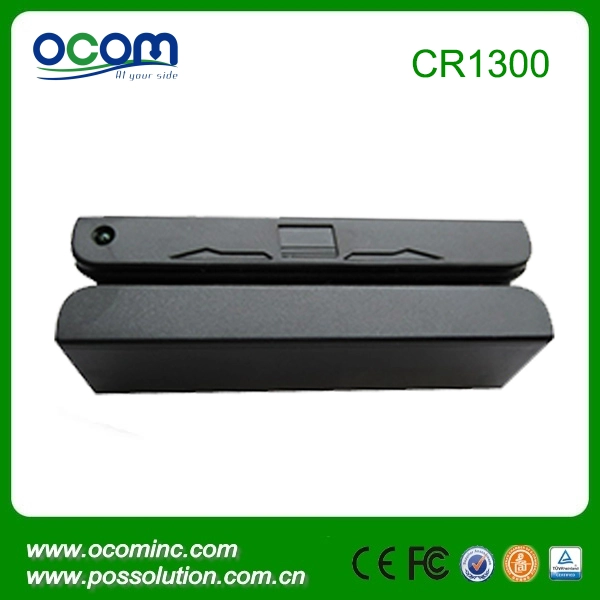

2015 Mini Portable Android Magnetic Stripe Card Reader


Features:

2015 Mini Portable Android Magnetic Stripe Card Reader
Compatible with Android System;
All 3 tracks can set to 75/210 BPI;
USB or Serial interface;
Long service life (500,000 card passes);
Suitable for all ISO7811/7812, ANSI, AAMVA and CA DMV magnetic cards;

Specifications:

Dimension

90mm(L) x 26mm(W) x 28mm(H)

Weight

85g(approx.)

Power Supply

+5V DV ±5%

Power consumption

40mA (max.)

Operation Locus

Indoor use

Card Standard

ISO7811/7812

Track Position

ISO 1 (IATA)

ISO 2 (ABA)

ISO 3 (MINTS)

Recording Density

210 BPI

75 BPI

210 BPI

Recording Capacity

79 Characters (7bits)

40 Characters (5bits)

107 Characters (5bits)

Interface

USB / Serial

Card Thickness

Plastic 0.76 ± 0.08mm

Head Function

Read only 1.5mm

Operation Speed

10 ~ 150cm/sec

Life of Head

500,000 card passes (1 pass : one swipe)

Error Rate

Less than 0.5%  (JSE Test card)

Temperature

Storage : -30°C to +70°C Operating : -20°C to +70°C

Humidity

Storage : 0% to 95% RH Operating : 20% to 90% RH


Product Details:
Relevant documents:
