OCBS -D7000-Industrial-Android-2D-Barcode-Scanner-PDA-Logistics-PDA
- Android 7.0 4.0 "portable data terminal
- Quad core 1.3 GHz Cortex A53 CPU
- 4.0 inch IPS screen 480 * 800 WVGA;
- 2 GB of RAM, 16 GB of ROM, TF card can up to 32 GB;
- Numerical and functional keyboards;
- Support 3G / 4G / Wifi / GPS / Bluetooth;
- pos rear camera 5 MP, auto focus with LED flash;
- SIM card, PSAM card, Micro SD card (TF) Expand the port;
- Rechargeable lithium ion polymer, 3.7 V, 5200 mAh;
- Sturdy drop tolerance IP65 / 1.5 m;
- Default: WIFI + BT + 4G + GPS + camera;
- 1D / 2D barcode scanner, Figerprinter, RFID LF / HF / UH / NFC for options,
- Bag and cradle for options.

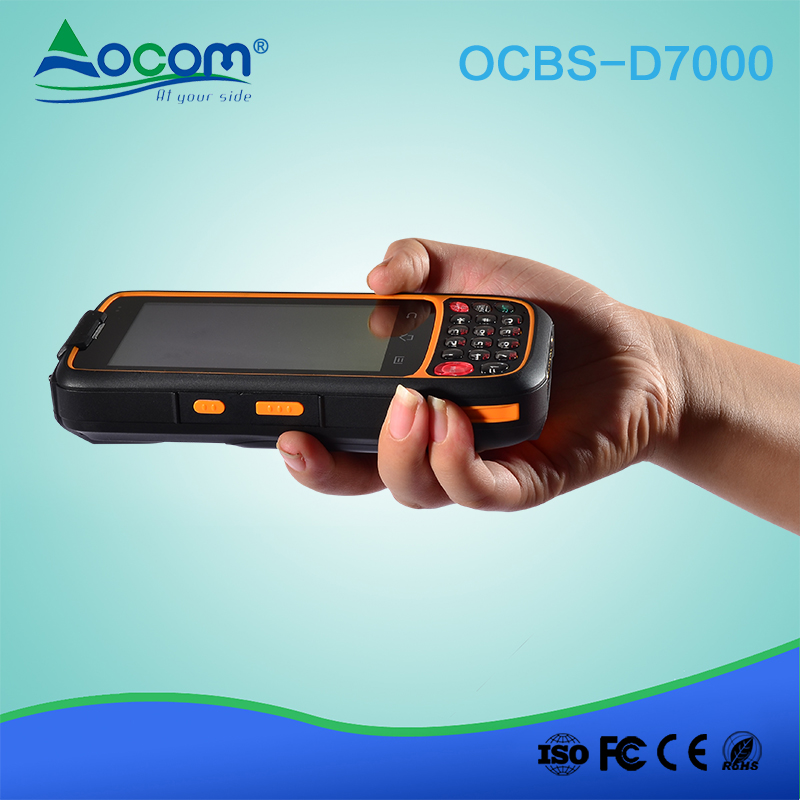

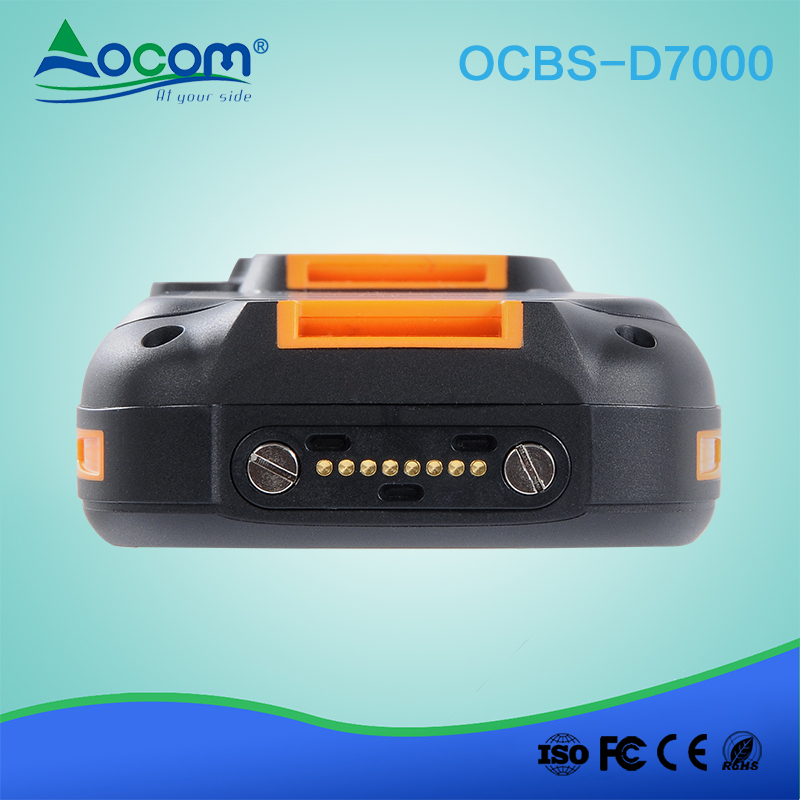

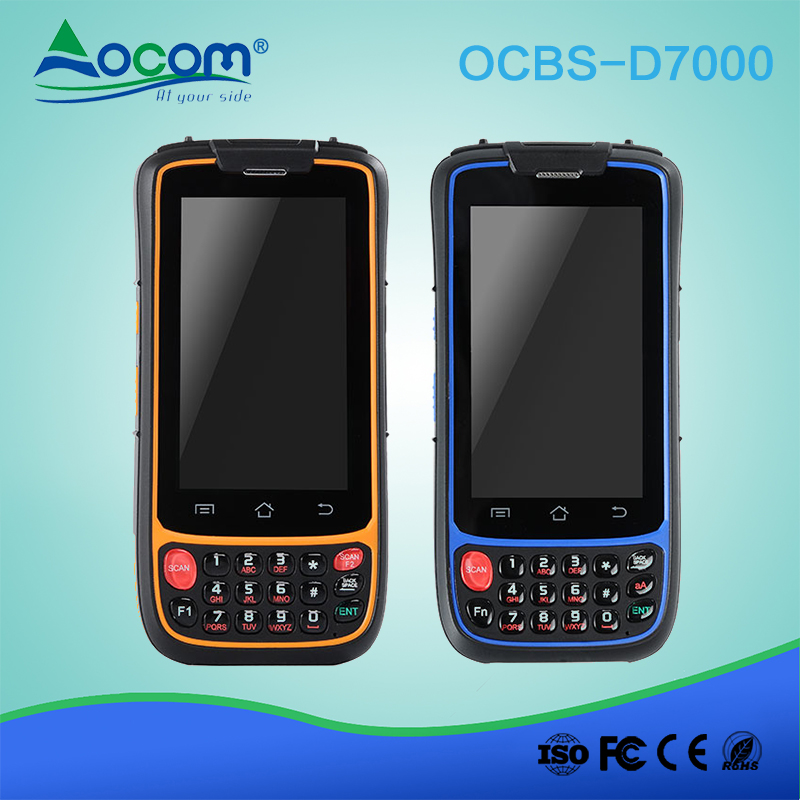

Industrial 2D barcode scanner Android OCBS -D7000 PDA Logistics PDA
(M / N: OCBS -D7000)
Features
Android 7.0
2 GB of RAM, 16 GB of ROM
4.0 inch IPS WVGA screen at 480 * 800
Optional 1D / 2D barcode scanner
RFID LF / HF / UHF / for optional
Numerical and functional keyboards
Support 4G / Wifi / GPS / Bluetooth
pos rear camera 5 MP, auto focus with LED flash
Rechargeable lithium ion battery, 3.7 V, 5100 mAh
Sturdy drop tolerance IP65 / 1.5 m
SPECIFICATIONS |
||||
PHYSICAL CHARACTERISTICS |
||||
Dimension |
158mm (H) x75mm (W) x28mm (D) ± 2 mm |
|||
Weight |
Net weight: 300 g (including battery and wrist strap) |
|||
Display |
4.0-inch TFT-LCD (WVGA 480x800) touch screen with backlight |
|||
Backlit |
LED backlight |
|||
keyboards |
3 TP keys, 17 function keys, 4 side buttons |
|||
expansions |
2 PSAM, 1 SIM, 1 TF |
|||
Battery |
Rechargeable lithium ion polymer, 3.7 V, 5100 mAh |
|||
PERFORMANCE CHARACTERISTICS |
||||
processor |
Quad-core 1.3 GHz Cortex A53 processor |
|||
Operating system |
Android 7.0 |
|||
storage |
2 GB of RAM, 16 GB of ROM, MicroSD (maximum expansion of 32 GB) |
|||
USER ENVIRONMENT |
||||
Operational Temp |
-20 ℃ to 50 ℃ |
|||
Storage Temp |
-20 ℃ to 70 ℃ |
|||
Humidity |
5% from RH to 95% RH (without condensation) |
|||
Drop specifications |
5ft./1.5 m fall into the concrete through the operating temperature range |
|||
sealing |
IP65, IEC conformity |
|||
ESD |
Air discharge ± 15kv, ± 8kv direct discharge, ± 8kv indirect discharge |
|||
DEVELOPMENT OF THE ENVIRONMENT |
||||
SDK |
HHW software development kit |
|||
language |
Java |
|||
Environment |
Android Studio or Eclipse |
|||
DATA COMMUNICATION |
||||
WWAN |
WCDMA (850/1900/2100) TDD-LTE band 38.39,40, FDD-LTEBand 1.2.3.4.7.20. |
|||
WLAN |
IEEE 802.11 b / g / n |
|||
WPAN |
Bluetooth v2.1 + EDR class, Bluetooth v3.0 + HS, Bluetooth v4.0 |
|||
GPS |
GPS (built-in A-GPS), 5 m accuracy |
|||
DATA CAPTUER |
||||
BAR CODE READER (OPTIONAL) |
||||
1D bar code |
1D laser motor |
Honeywell N431x |
||
symbologies |
All major 1D bar codes |
|||
2D barcode |
CMOS 2D imaging |
Honeywell N6603 |
||
symbologies |
PDF417, MicroPDF417, Com pos ite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Pos such Code, USA Pos Net, US Planet, UK Pos tal, Australia Pos tal, Japan Pos tal, Pos such Dutch. etc. |
|||
COLOR CAMERA |
||||
Resolution |
5.0 megapixels |
|||
lens |
Auto-focus with LED flash |
|||
RFID READER (OPTIONAL) |
||||
RFID LF |
Frequency |
125KHz / 134.2kHz (FDX-B / HDX) |
||
Protocol |
ISO 11784 and 11785 |
|||
R / W range |
From 2 cm to 10 cm |
|||
RFID HF |
Frequency |
13.56 |
||
Protocol |
ISO 14443A and 15693 |
|||
R / W range |
From 2 cm to 8 cm |
|||
PSAM SECURITY (OPTIONAL) |
||||
Protocol |
ISO 7816 |
|||
Transmission speed |
9600, 19200, 38400.43000, 56000, 57600, 115200 |
|||
Slot |
2 slots (maximum) |
|||
ACCESSORIES |
||||
Standard |
1x Power supply 1x lithium polymer battery 1xDC charging cable 1xUSB data cable |
|||
Optional |
Carrying case, cot |
