(OCBS-T204) 2D Barcode Scanning Platform(OCBS-T204) 2D Barcode Scanning Platform(OCBS-T204) 2D Barcode Scanning Platform(OCBS-T204) 2D Barcode Scanning Platform

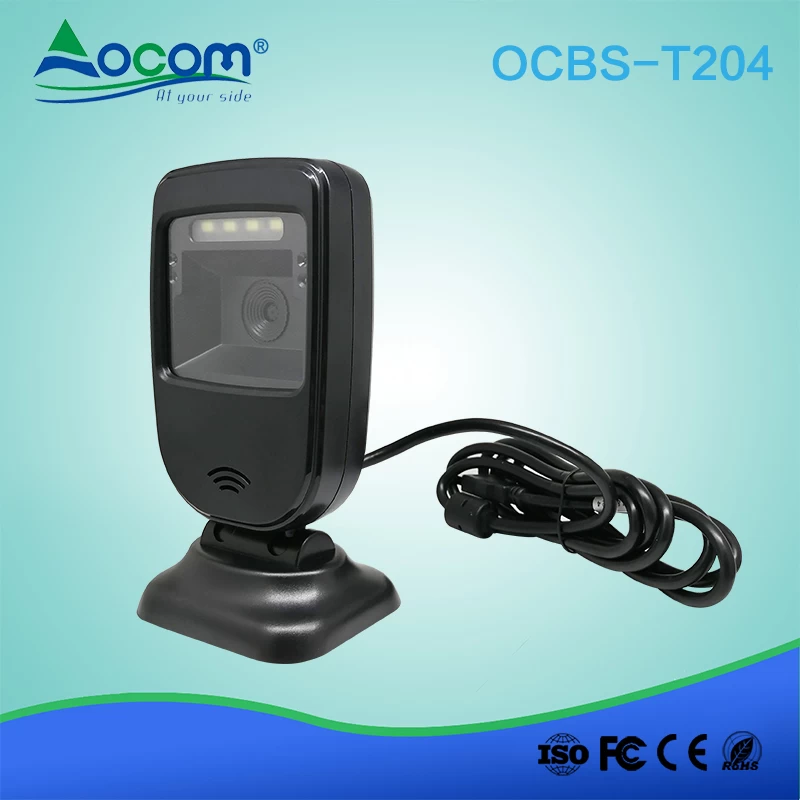

(OCBS-T204) 2D Barcode Scanning Platform

  • High speed: The camera optical technology and high-speed core architecture,Clocked at 1.2G, Design for the retail industry high speed scanning bar code.
  • Dual focus optical control technology Exclusively: High density and wide barcode available;
  • Good Screen capture ability: Payment barcode, Electronic Coupon on mobile devices can be decoding easily;
  • Anti-reflective technical Exclusively: All kinds of barcode covered by glossy or special surface can be decoding quickly. such as infusion bags, plastic medicine packaging. Applicable to retail, manufacturing, medical, logistics and other industries.

2D Barcode Scanning Platform

(M/N:OCBS-T204)




Features :

◆ High speed:

The camera optical technology and high-speed core architecture,Clocked at 1.2G, Design for the retail industry high speed scanning bar code.

◆ Dual focus optical control technology Exclusively:

High density and wide barcode available;

◆Good Screen capture ability :

 Payment barcode, Electronic Coupon on mobile devices can be decoding easily;

◆Anti-reflective technical Exclusively:

All kinds of barcode covered by glossy or special surface can be decoding quickly. such as infusion bags, plastic medicine packaging. Applicable to retail, manufacturing, medical, logistics and other industries.

Performance parameter:

Image Sensor

CMOS

Pixels

752*480 CMOS

Illumination

white light, LED







symbologies

 Code128, UCC/EAN-128, AIM-128, EAN-8, EAN-13,  ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5,Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11,Plessey, MSI-Plessey, GS1-DataBar (RSS), (RSS-14, RSS- Limited,RSS-Expand)

PDF417, QR Code (QR1/2, Micro)

Resolution

≥4mil

Motion Tolerance

2.5 m/s

Scan Angle

 Pitch

±50°@ 0°Roll and 0° Skew



 Roll

±360°@ 0°Pitch and 0° Skew



Skew

±60°@ 0°Roll and 0° Pitch

Interface

USB HID-KBW,USB virtual port

Field of View

Horizontal 44°, Vertical 33.2°

Depth of Field

EAN-13

0cm—20cm(13mil)

PDF 417

0cm-7cm(6.67mil)

CODE 39

0cm-12cm(5mil)(figure 1)

Date Matrix

0cm-4cm(10mil)

QR Code

0cm-10cm(15mil)

Operating Temperature

20℃~+50℃ (-4°F~122°F)

Storage Temperature

-40℃~+80℃ (-40°F~176°F)

Humidity

5%~95%(non-condensing)

ESD

±14 kV(air discharge),±8 kV(direct discharge)

Drop

1.2m drops to concrete(for six sides,one drop per side)

Sealing

IP 52












Relevant documents:

OCBS-T204 SPEC
