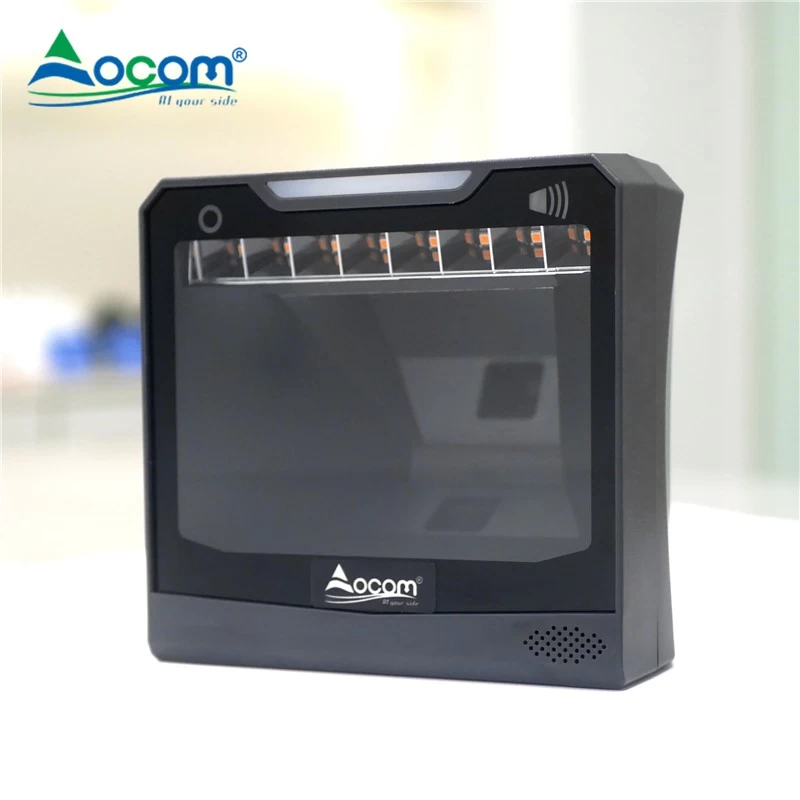

OCBS-T207 Price checker 2D desktop barcode Reader Automatic Flatbed QR Code Scanner

  • Support Multiple kinds of 1D and 2D barcodes;
  • 4mil scanning resolution;
  • 480*640 CMOS Sensor;
  • Easy to scan screen barcodes.

2D Omni-Directional Barcode Scanner

(M/N:OCBS-T207)



Features:



Support Multiple kinds of 1D and 2D barcodes;
4mil scanning resolution;
480*640 CMOS Sensor;
Easy to scan screen barcodes.



Specification

General



Model

OCBS-T207

Color

orange+black /blue+black/red+black for optional

IP grade

IP52

Material

ABS+PC

Processor

32-bit ARM MCU

Interface

USB

Invoices

support

Indicator

Buzzer+Lamp indicatorLED

Power Supply

DC 5V ±5%

Electric current

200mAstandby);231mAworking);290mAmaximum

Power Consumption

1.0Wstandby);1.16Wworking);1.45Wmaximum

Language

AmericanEnglish;Belgium;Brazil;Canada (French);Denmark;Finland,(Swedish);

TheFrench;Germany/Austria;Greece;Hungary;Israel (Hebrew);Italy;LatinAmerica;Dutch (Dutch);Norway;Poland;Portugal;Romania;Russia;Spain;

Sweden;Switzerland(German);TurkeyF;TurkeyQ;The UK;Japan
[support virtual keyboard]

OS Support

LinuxAndroidWindows XP7810MAC

Electrostatic Protection

15KV air charging

Shock Resistance

Drop Test 1.2mconcrete surface

Performance



Sensor

CMOS sensor

Moving Tolerence

25cm/sec(10mil QR code)

Reading Angles

Roll360°, Pitch45°,Yew60°

Scanning Angles

32°* 30°

Contrast

≥30%

Ambient light illumination

0~100000LUX

Error Rate

1/500Million

Reading Mode


Trigger Mode

Auto-Sensing

Resolution

Code39 4mil

Scanning Depth

Code39 4.17mil15 bytes): 7cm  -  13cm
Code39 10.83mil16 bytes):8cm  -  15cm
Data Matrix 10.83mil8 bytes): 6cm  -  11cm
Code QR 10.83mil8 bytes): 5cm  -  13cm

Decoding ability

1D:Code 128, EAN-8,Code 39,EAN-13,UPC-E0,Code 93, UPC-E1,UPC-A, Plessey, Interleaved 2 of 5, Industrial 25, Standard 25, Codabar, MSI-Plessey, UPCE0/E1, GS1-128,  GS1 Databar, Matrix 2 of 5,ITF-14, Code32,Code 11,ISBN, ISSN,Standard 25, 2D:Data Matrix ,QR,PDF417

Physical



Weight

Gross:200g

Package

190*180*123mm

20 in 1 carton

645*390*400mm/11.3kg

Environment



Working temperature& humidity

0 to 45 degrees centigrade,  10%~80%   No condensation

Storage temperature& humidity

-20 to 60 degrees centigrade , 10%~90%  No condensation
