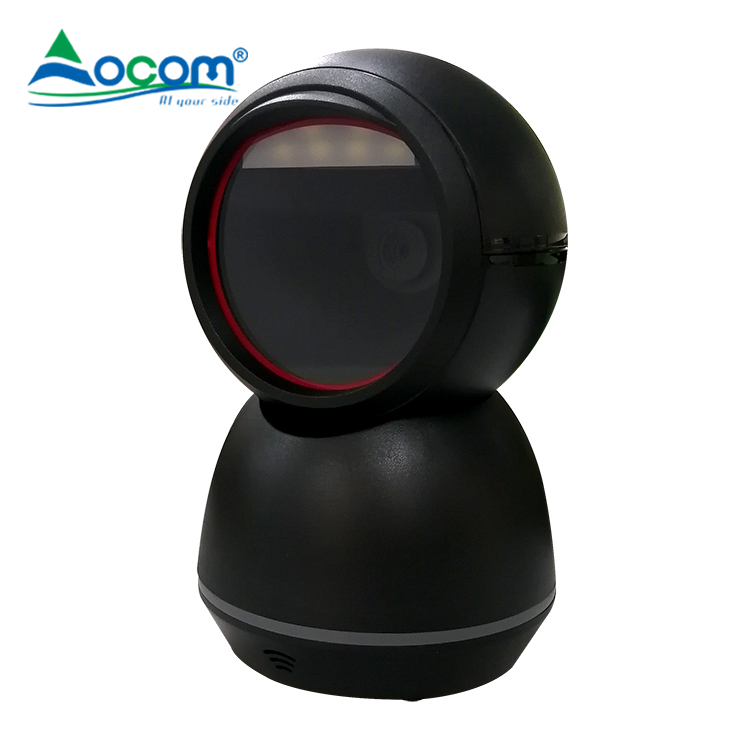

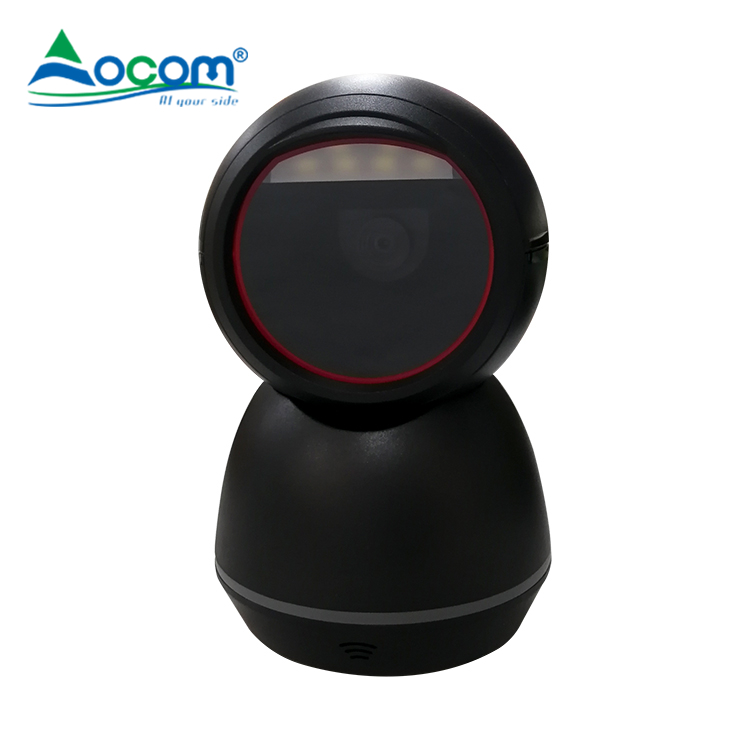

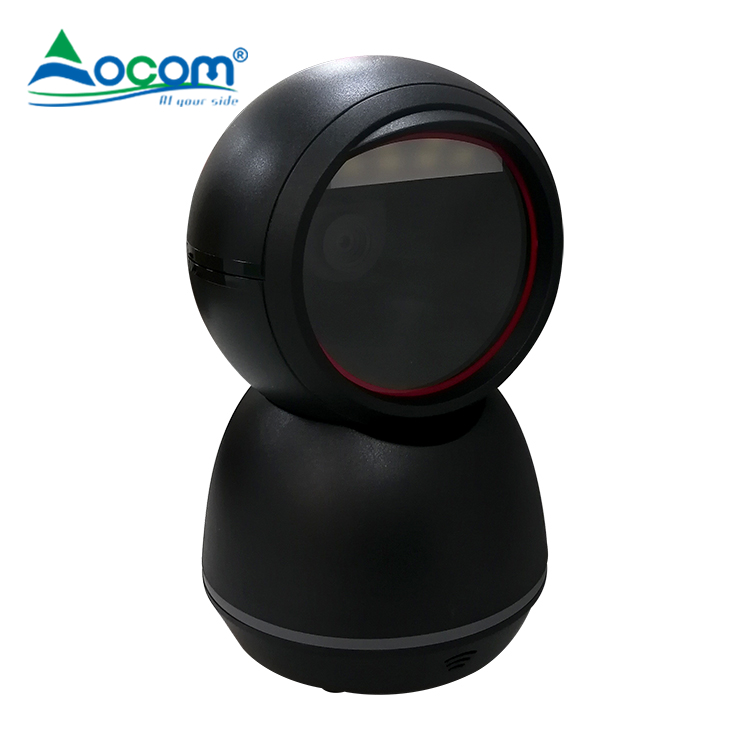

(OCBS-T209)Agood quality 4mil pos wired 2d desktop handheld qr code scanner(OCBS-T209)Agood quality 4mil pos wired 2d desktop handheld qr code scanner(OCBS-T209)Agood quality 4mil pos wired 2d desktop handheld qr code scanner

(OCBS-T209)Agood quality 4mil pos wired 2d desktop handheld qr code scanner

  • Features:
  • Stylish and compact design
  • 300,000 pixels overall situation exposure
  • Minimum resolution:4mils
  • Bright white LED for illuminating scanning surface
  • Read all mainstream 1D&2D bar codes
  • Strong body with scratch-resistant material
  • Quickly read various screen bar codes
  • Compatible with Microsoft Windows/linux/Android/IOS/MacOS

2D Omni-Directional Barcode Scanner

 (M/N:OCBS-T209)

Features:

  1. Stylish and compact design
  2. 300,000 pixels overall situation exposure
  3. Minimum resolution:4mils
  4. Bright white LED for illuminating scanning surface
  5. Read all mainstream 1D&2D bar codes
  6. Strong body with scratch-resistant material
  7. Quickly read various screen bar codes
  8. Compatible with Microsoft Windows/linux/Android/IOS/MacOS

Specification

General



Model

OCBS-T209

Color

White or black

Interfaces

RS-232; USB HID; USB COM

Cable

1.8M

Reading Indicators

LED/Buzzer(adjustable tone

Input Voltage

5 VDC (+/- 10%)/500mA

current

Working currentStandard): < 300 mA  Standby currentStandard): < 210 mA

OS Support

Microsoft Windows/Linux/Android/IOS/MacOS

ESD protection(Air discharge)

8 kV

Drop resistance

Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface

Performance



Sensor

Overall exposure CMOS sensor

Light Source

LED White LED

Motion tolerance

2M/sec

Scan speed

120fps/s

Reading Angle

Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60°

Print contrast ratio(minimum)

≥15%

Ambient light

0 -100,000 lux

Resolution(maximum)

0.102mm / 4mils

Typical depth of Filed

Precision    Barcode    Depth of Filed

5mil         CODE128  0mm—70mm

5mil          EAN-13   0mm—70mm

4mil          EAN-13   0mm—240mm

5mil          PDF417   0mm—60mm

10mil         PDF417   0mm—170mm

15mil         PDF417   0mm—270mm

20mil         DM       0mm—80mm

(The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.)

Decoding ability

1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded.

2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code

Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417

Physical



Weight

Gross:450g

Package

190*105*108mm

20 in 1 carton

560*225*400mm/10.0kg

Environment



Working temperature& humidity

0 to 45 degrees centigrade,  10%~80%   No condensation

Storage temperature& humidity

-20 to 60 degrees centigrade , 10%~90%  No condensation
