    (OCBS-W010) USB cord Laser Barcode Scanner Comply Cord And 2.4g Wireless Or Bluetooth Communication(OCBS-W010) USB cord Laser Barcode Scanner Comply Cord And 2.4g Wireless Or Bluetooth Communication(OCBS-W010) USB cord Laser Barcode Scanner Comply Cord And 2.4g Wireless Or Bluetooth Communication

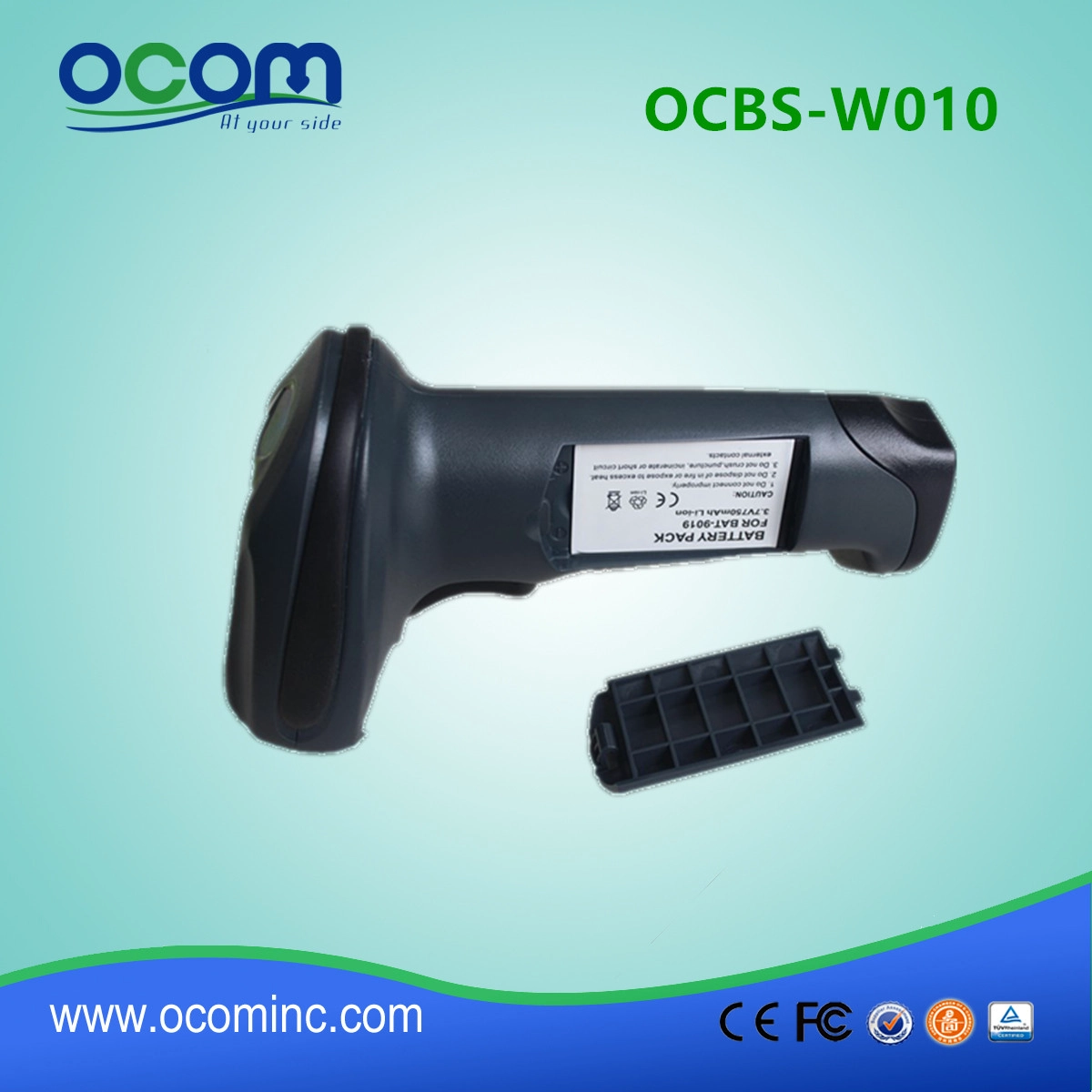

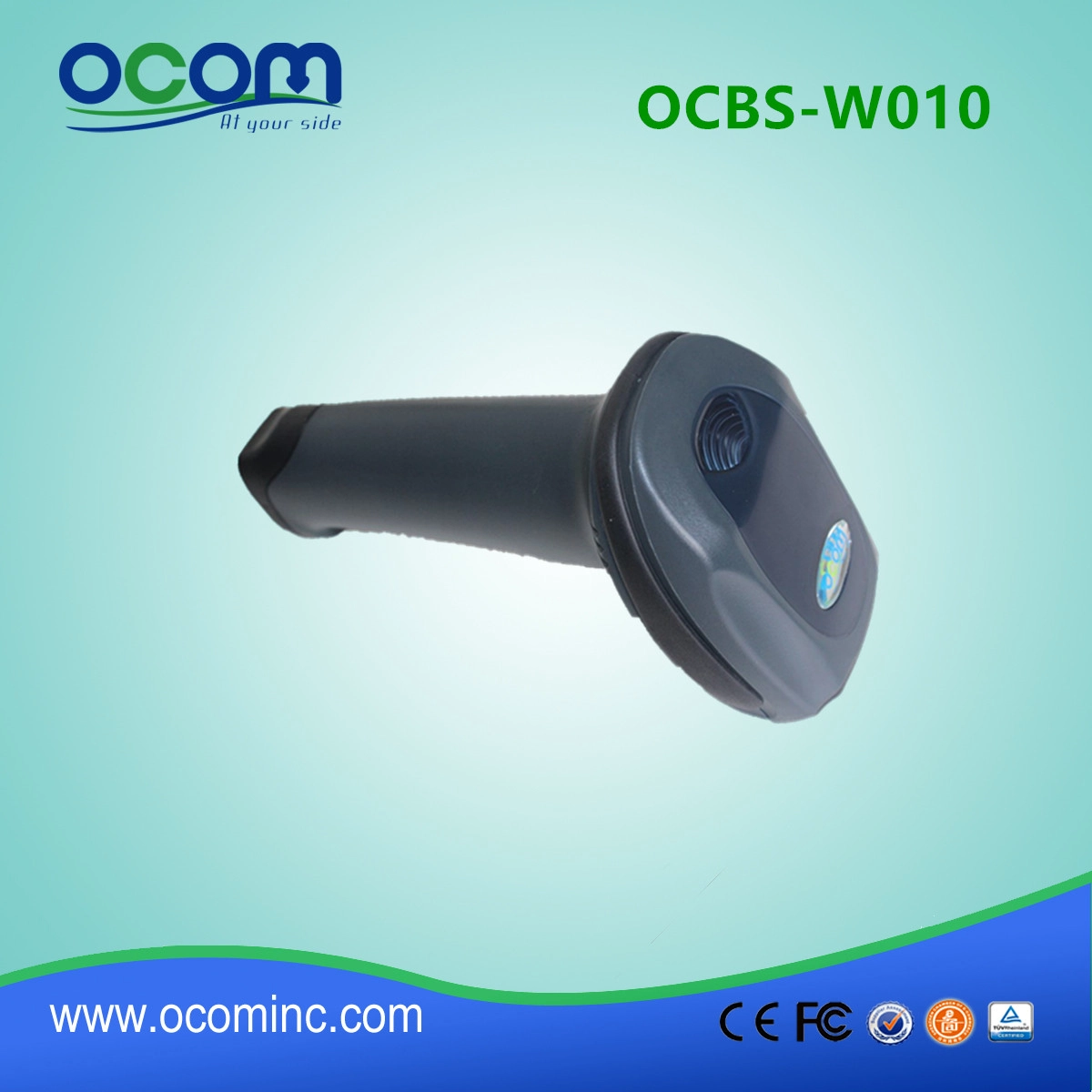

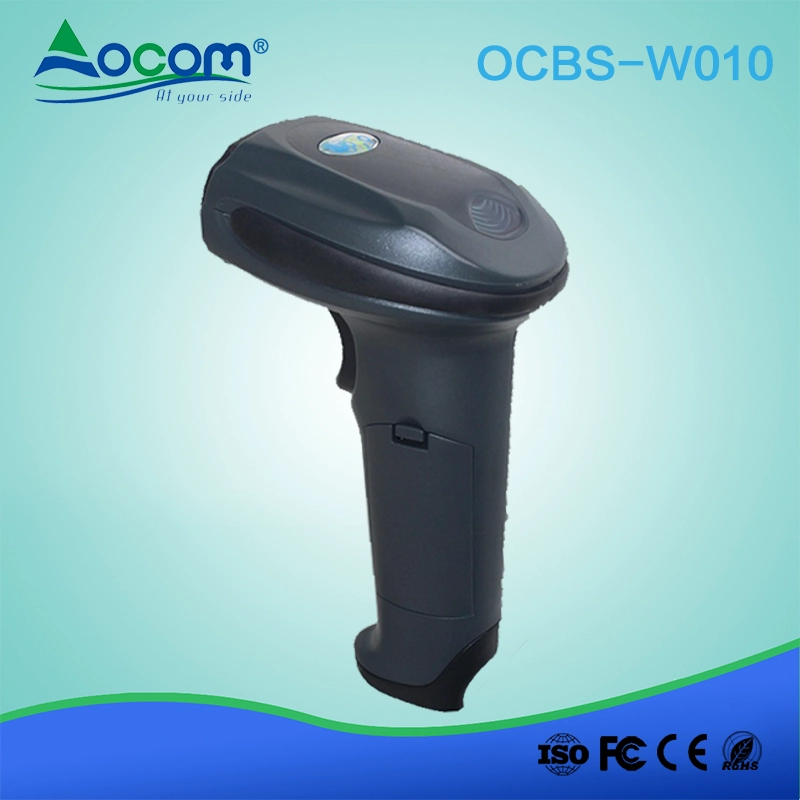

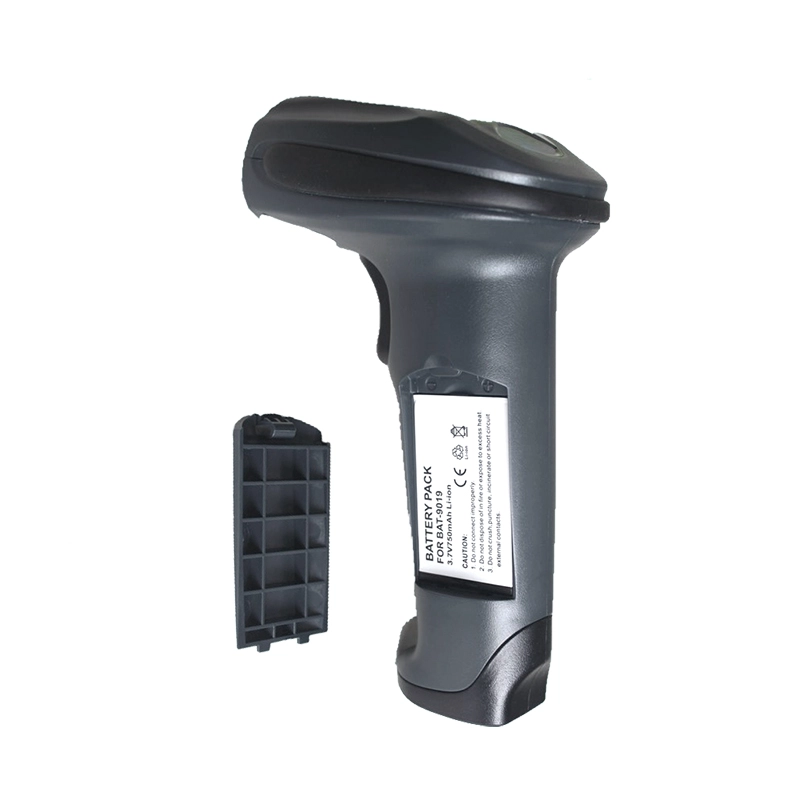

    (OCBS-W010) USB cord Laser Barcode Scanner Comply Cord And 2.4g Wireless Or Bluetooth Communication

    • 32bit decoding chip
    • Up to 200 scans/sec scan rate
    • Can scan broken barcodes and screen barcodes
    • Bluetooth communication mode, more flexible and portable
    • 8KB memory, can store thousands of barcodes
    • USB port can charger and communicate with PC

                                                                                                                                USB cord Laser Barcode Scanner Comply Cord And 2.4g Wireless Or Bluetooth Communication


    Model: OCBS-W010


    FEATURE:

    l  32bit decoding chip

    l  Up to 200 scans/secscan rate

    l  Can scan brokenbarcodes and screen barcodes

    l  Bluetoothcommunication mode, more flexible and portable

    l  5. 8KB memory, canstore thousands of barcodes

    l  USB port cancharger and communicate with PC



    Parameters:



    Scanning Performance

    Interface

    2.4GHz&USB

    decoding speed

    200 Times/SEC

    Read code system

    EAN-13,EAN-8,UPC-A,UPC-E,ISSN,ISBN,Codabar,

    Code 128,Code 93,ITF-6,ITF-14,Interleaved 2 of 5

    Industrial 2 of 5,Matrix 2 of 5,GS1 Databar, Code 39,

    Code 11,MSI-Plessey,Plessey

    Read the precision

    ≥4mil

    The light source

    LED (610nm~640nm)

    Read the depth of field

    Code 39 5mil):65mm~175mm

    EAN-13 (13mil)55mm~605mm

    Barcode sensitivity

    incline      ±60° @0°Roll and 0°Skew

    rotate       ±30° @0°Pitch and 0°Skew

    deflection   ±60° @0°Roll and 0°Skew

    Symbol contrast

    ≥30% Differences with

    Mechanical/electrical Parameters

    Rated power

    0.30W

    Working voltage

    3.2~3.6V DC

    Electricity flow

    working current  100mA

    standby current   10uA

    The power adapter

    inputAC100~240V, 50~60Hz;

    output :DC 5V ,1000mA

    Appearance of size

    168mm*93mm*72mm

    Heavy volume

    198g

    Environmental Parameters

    Working temperature

    -20 ~ +60

    Storage temperature

    -40 ~ +85

    Working humidity

    5% ~ 95% ( No condensation)

    Ambient light

    0~100000LUX
