OCPP-80G 3 inch Android POS 80mm Thermal Receipt PrinterOCPP-80G 3 inch Android POS 80mm Thermal Receipt PrinterOCPP-80G 3 inch Android POS 80mm Thermal Receipt PrinterOCPP-80G 3 inch Android POS 80mm Thermal Receipt Printer

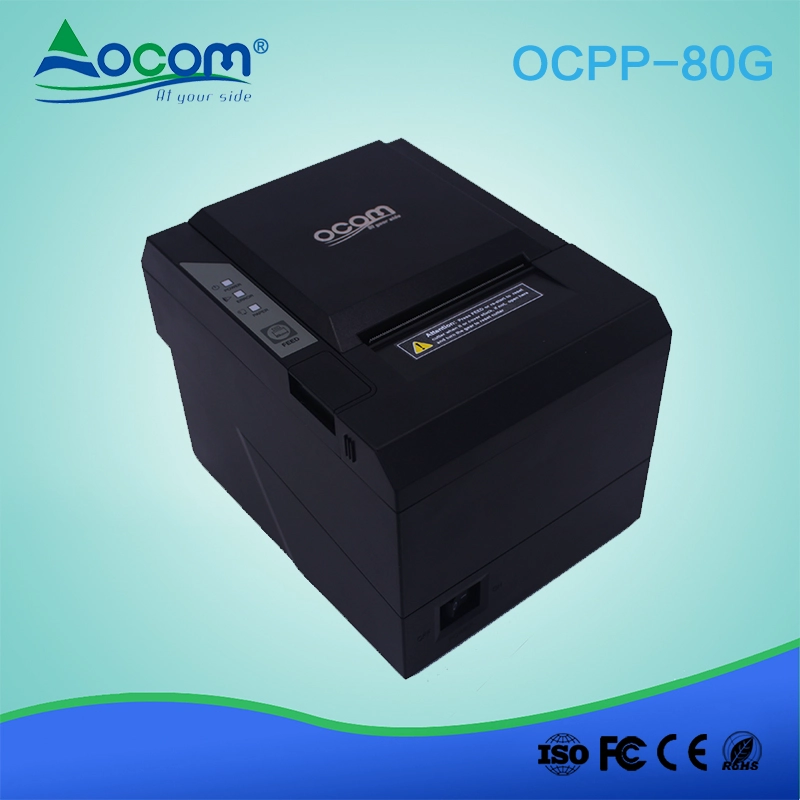

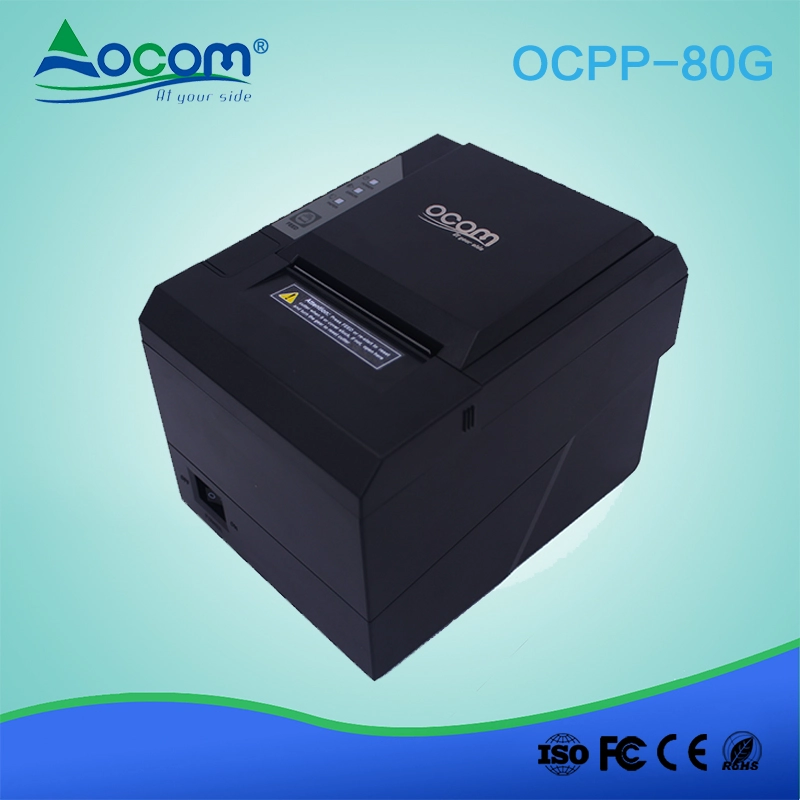

OCPP-80G 3 inch Android POS 80mm Thermal Receipt Printer

  • 80mm Thermal Receipt Printer
  • Cutter: Auto-cutter;
  • Interface: USB+RS232+LAN, 36P parallel, RS232 +USB, LAN for option;
  • Printing speed: MAX=260mm/s;MCBF(life): 100km;
  • Support 256K NV logo download and printing;
  • Support multiple 1D and 2D (QR and PDF417) barcode printing;
  • LAN interface support printing status monitoring function;
  • Support black mark detection (triple interfaces);
  • Desktop or wall-mounted type for option.
  • Support a variety of languages;
  • Driver avaiable for Windows and Linux;
  • Compatible with ESC/POS command.

OCPP-80G 3 inch Android POS 80mm Thermal Receipt Printer

(Model No.: OCPP-80G)



Features:

1. Desktop or wall-mounted type for option.

2.Supports multi 1D barcodes and 2D codes printing.

3.100M Ethernet port, ultra high speed data transmission.

4.Supports 256KB NV Logo storage and 2M big buffer memory.

5.Supports black mark detection and order reminding function,

 compatible with OPOS driver.

6.Supports printing status monitor and anti-losing order function.


Technical parameters:

Printing method:

Direct thermal

Printing speed:

230mm/s 、260mm/s

Roll width:

79.5±0.5mm

Print diameter:

Φ80mm

Paper thickness:

0.06-0.08mm

Column capacity:

576dots/line512 Dots/line

Line’s pacing :

3.75mm(Adjustable by commands)

Print command:

Compatible with the ESC/POS command

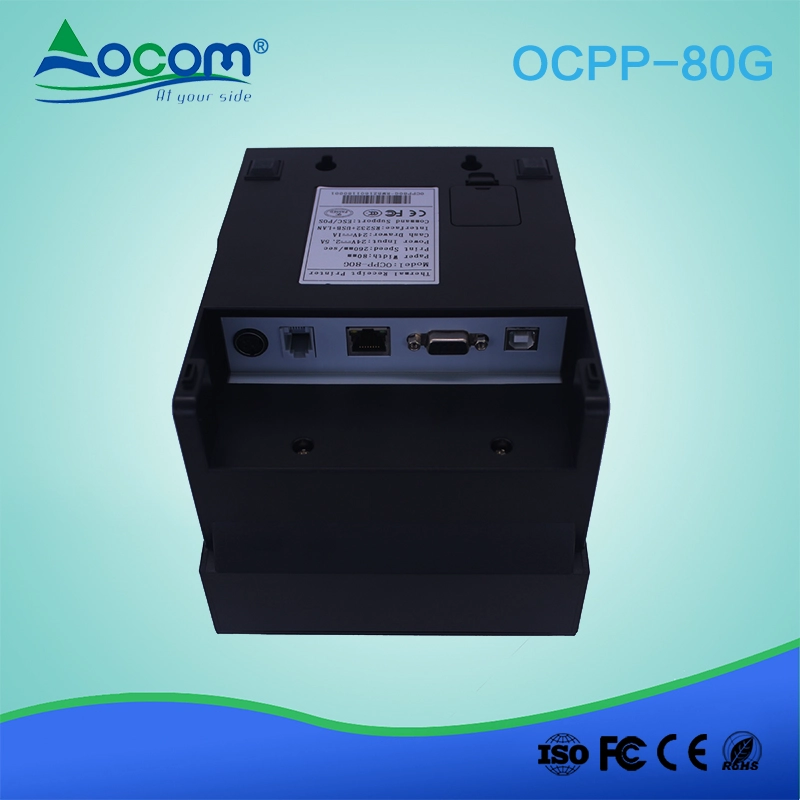

Interface type:

Serial+USB+Lan/36P parallel port/25P serial +USB/LAN

Cutters life:

1million cuts

Print head life:

100 km

Input buffer :

2048Kbytes

NV Flash:

256Kbytes

Power adaptor:

AC110V/240V、50~60Hz

Power supply:

DC 24V/2.5A

Cash drawer supply:

DC 24V/1A

Work environment:

Temperature(0~45) humidity(10~80%)(Non- condense)

Work environment:

Temperature(0-45) degree centigrade, humidity(10-80%) Non- condense

Storage environment:

Temperature(-10~60℃); Humidity(10~90%)

Character size:

ANK,FontA:1.5*3.0mm/ FontB:1.1*2.1mm

Barcode:

UPC-A/UPC-E/JA(EAN13)/JAN8(EAN8/CODE39/ITF

/CODE93/CODE128/QRCode/PDF417 (options)

Characters:

PC347(Standard Europe)、Katakana、PC850(Multilingual)、PC860(Portuguese)、PC863(Canadian-French)、PC865(Nordic)、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866(Cyrillic#2)、PC852(Latin2)、

PC858、IranII、Latvian、Arabic、PT151(1251)

Physical characteristics:

Weight: 1.25Kg;  Appearance size: 190×145×143mm (length * width * height)
