(OCPP-M086) 80mm mini portable thermal receipt printer with big paper roll(OCPP-M086) 80mm mini portable thermal receipt printer with big paper roll(OCPP-M086) 80mm mini portable thermal receipt printer with big paper roll(OCPP-M086) 80mm mini portable thermal receipt printer with big paper roll

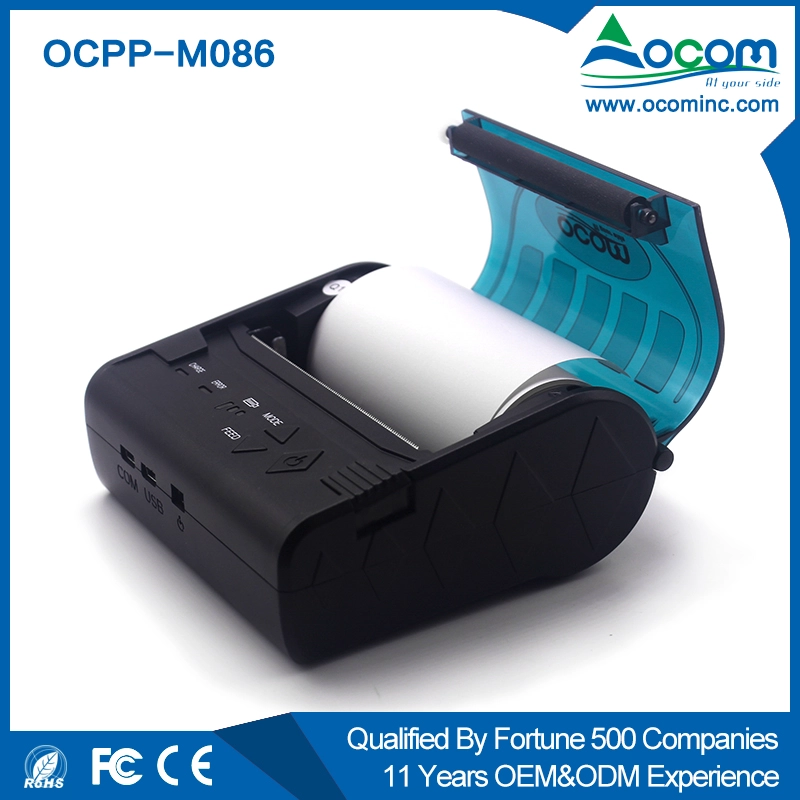

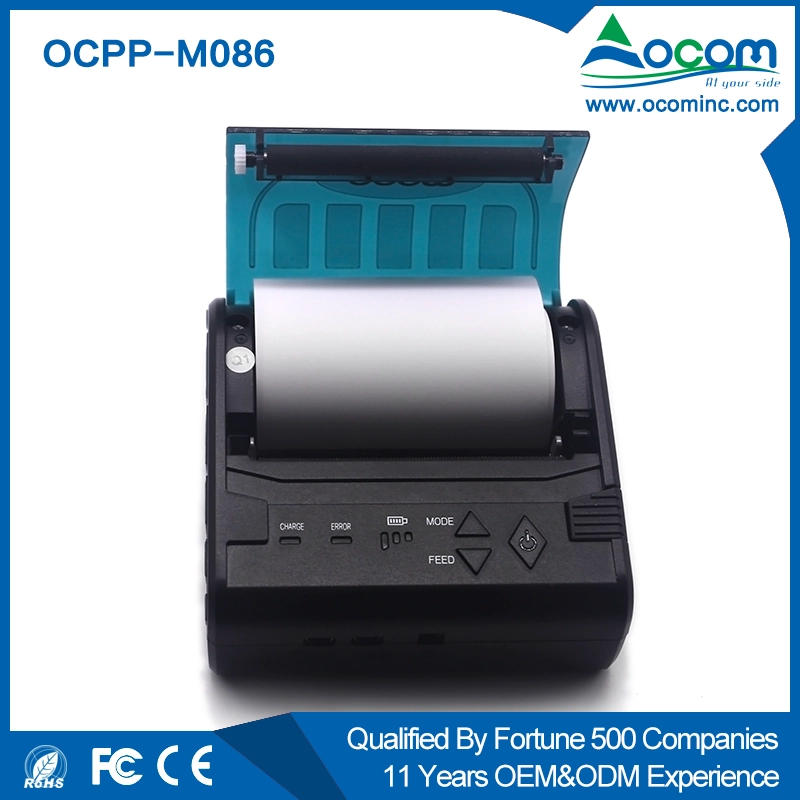

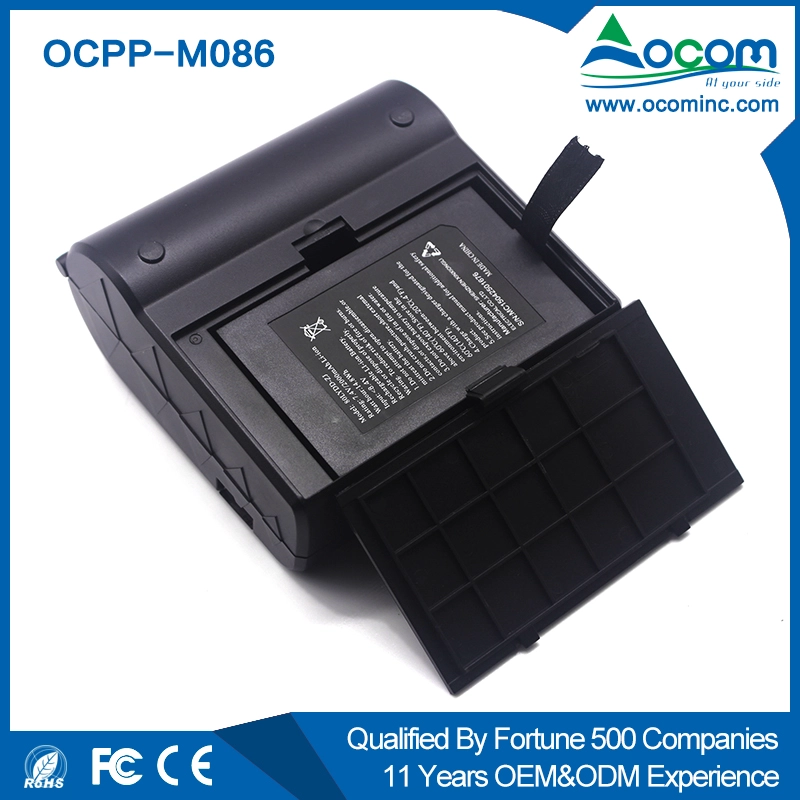

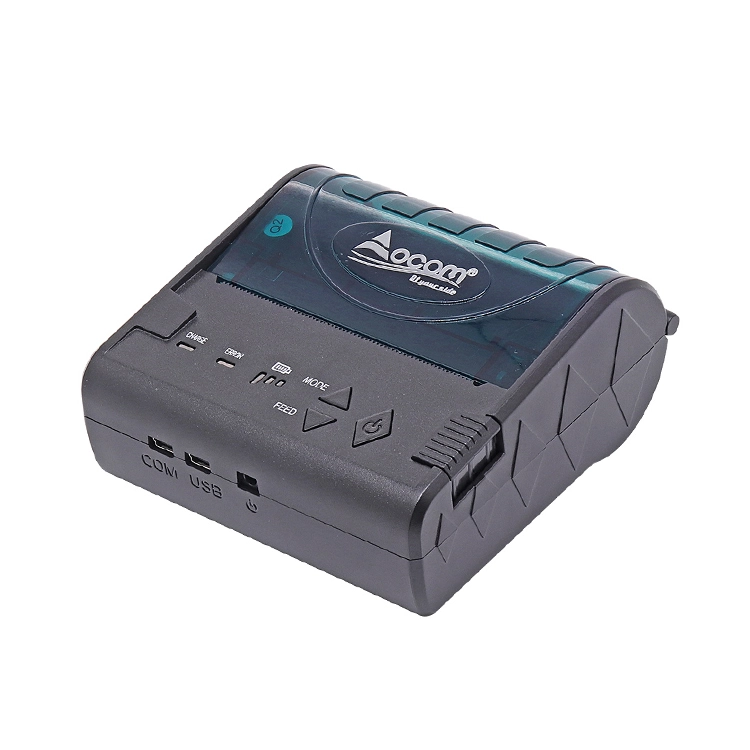

(OCPP-M086) 80mm mini portable thermal receipt printer with big paper roll

  • Support Windows, Java, Android and IOS .
  • Bluetooth,wifi, USB and RS232 communication for option.
  • Battery charge indicator, easy to know rest power.
  • Higher print speed 90mm/sec.
  • 100km TPH Life.
  • Low power consumption and large capacity Lithium battery.

 80MM Bluetooth/wifi Thermal Printer

(Model Number: OCPP- M086)





Features:



Support Windows, Java, Android and IOS .

Bluetooth,wifi, USB and RS232 communication for option.

Battery charge indicator, easy to know rest power.

Higher print speed 90mm/sec.

100km TPH Life.

Low power consumption and large capacity Lithium battery.



Specification:

Overall Dimension (W×D×H)

98×103×45mm

Weight

280

Color

Black

Effective print width

72mm

Print method

Thermal line printing

Print commands

ESC/POS compatible command set

Print speed

Up to 90mm/sec

Resolution

8 dots/mm(203dpi)

Print font

12x24/ 24x24

Column capacity

48 columns/ 24columns

Character size

1.5 x 3.0 mm(W x H)/ 3.0x3.0mm(WxH)

Paper dimensions

80.0±0.1mm x diameter 40.0mm

Paper thickness

0.06 to 0.08mm

Character set

Alphanumeric/ Chinese Kanji

Interface

USB, RS-232Bluetooth,wifi (optional)

Data buffer

Up to 5K bytes

Power Adapter

9V DC/2A

Battery Power

7.4V DC/ 2000mAh; battery can stay by for 4-5 days, when it is full power, it can print 120-150m paper

Other features

Paper detection, power detection, Manual shut down

Working conditions

Temperature:-10~50,Humidity:10%~90%

Storage conditions

Temperature:-20~70,Humidity:5%~95%



Relevant documents:

      OCPP-M086 Spec
