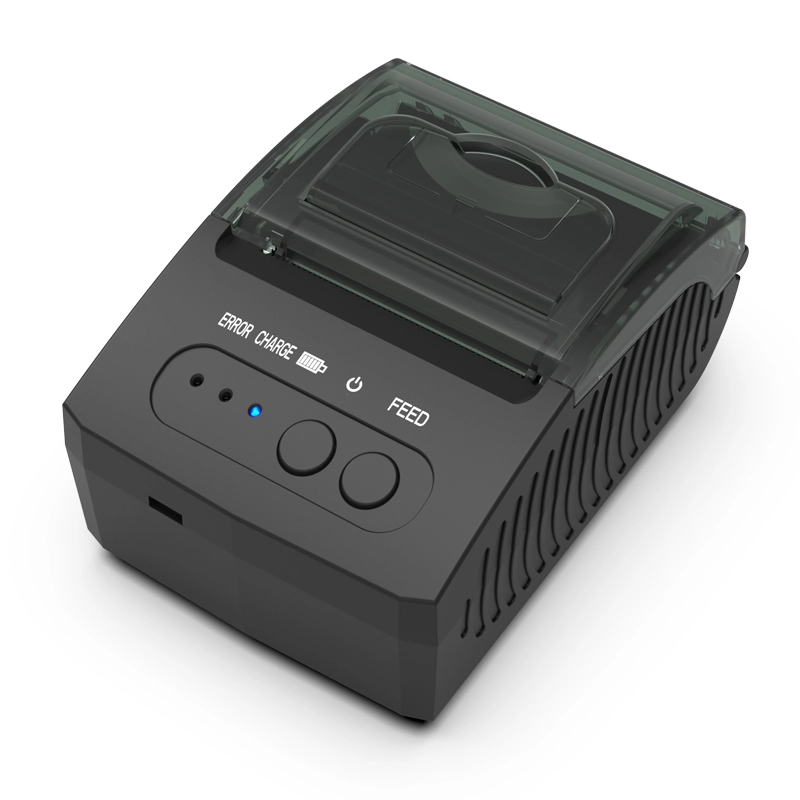

(OCPP-M15) Mini Portable 58mm Bluetooth Thermal Printer
- Windows,Android,IOS operation system supported;
- SDK for Android /IOS available;
- 1D, 2D barcode (QR code), and image printing supported;
- Can change the printer name, password, baud rate online;
- 2000mAh 18650 battery package;
- Support USB port charge
- Higher print speed 70mm/sec;
- 50km thermal printer head life;
- Multiple languages supported;
- ESC/POS command set compatible.
Mini Portable 58mm Bluetooth Thermal Printer
(Model Number: OCPP- M15)
Features:
Windows,Android,IOS operation system supported;SDK for Android /IOS available;
1D, 2D barcode (QR code), and image printing supported;
Can change the printer name, password, baud rate online;
2000mAh 18650 battery package;
Support USB port charge
Higher print speed 70mm/sec;
50km thermal printer head life;
Multiple languages supported;
ESC/POS command set compatible.
Specification:
|
Interfaces |
USB / Bluetooth 4.0 |
|
Print Comand |
ESC/POS |
|
Print Method |
Thermal Line Printing |
|
Pirnt Speed |
70mm/sec (can up to 90mm/s) |
|
Resolution |
203DPI (8dot/mm) |
|
No. of Total Dots |
384 dots/Line |
|
Print Width |
48mm |
|
Character Size |
1.5 x 3.0mm (W x H)/3.0 x 3.0mm (W x H) |
|
Print Font |
12 x 24; 24x 24 |
|
Character Set |
Alphanumeric /Chinese Kanji |
|
Data Buffer |
UP to 50K bytes |
|
Compatible OS |
Window Systems ; Android & IOS Operate Systems |
|
Paper |
|
|
Type |
Roll Paper |
|
Width |
57.5± 0.5mm |
|
Roll Diameter |
φ≤40mm |
|
Paper Thickness |
0.06-0.08mm |
|
Electrical |
|
|
Battery |
7.4VDC/2000mA |
|
Charging mode |
DC 5V/2A |
|
Standby Time |
4 days after fully charged |
|
Continuous Printing |
120 pieces Thermal Roll for fully charged battery |
|
Physical |
|
|
Dimension |
112*83*54mm |
|
Unit Weight |
440g (including accessories: lithium-ion batteries, cable, test paper) |
|
Carton Size |
47x38x34cm |
|
GW per carton |
18kg (40pcs/CTN) |
|
Color |
Black |
|
Environmental |
|
|
Temperature |
Working: -10 to 50 Degrees |
|
Humidity |
Working: 10%-90% |
|
Warantty |
12 months at least |
|
Certificates |
CE& FCC ROHS ISO9001:2008 |
|
Other Features |
Paper detection, Power detection, Manual shut down, 1D&QR Code Print; Led indicator; Big Paper Warehouse; Quick-acting USB Charging |
|
Accessories |
|
|
USB Cable |
1 x 1M Cable |
|
CD Driver |
1 Piece |
|
Adapter |
5V /2A |
|
Thermal Roll |
1 Piece |
|
Manual |
1 Piece |
