    (OCBS-T103) Desktop Omni-directional Barcode Scanner(OCBS-T103) Desktop Omni-directional Barcode Scanner(OCBS-T103) Desktop Omni-directional Barcode Scanner(OCBS-T103) Desktop Omni-directional Barcode Scanner(OCBS-T103) Desktop Omni-directional Barcode Scanner

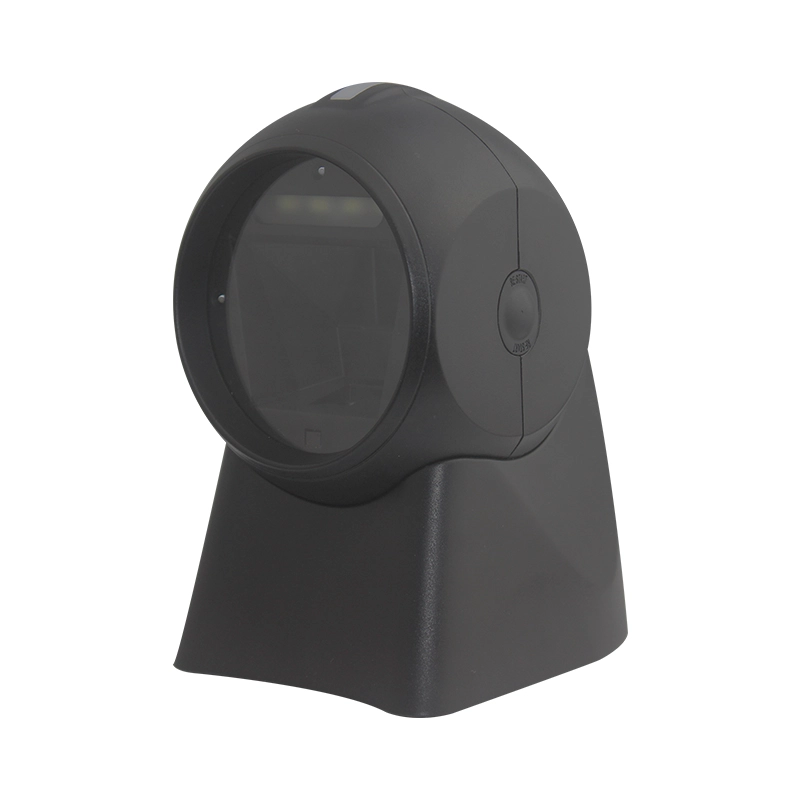

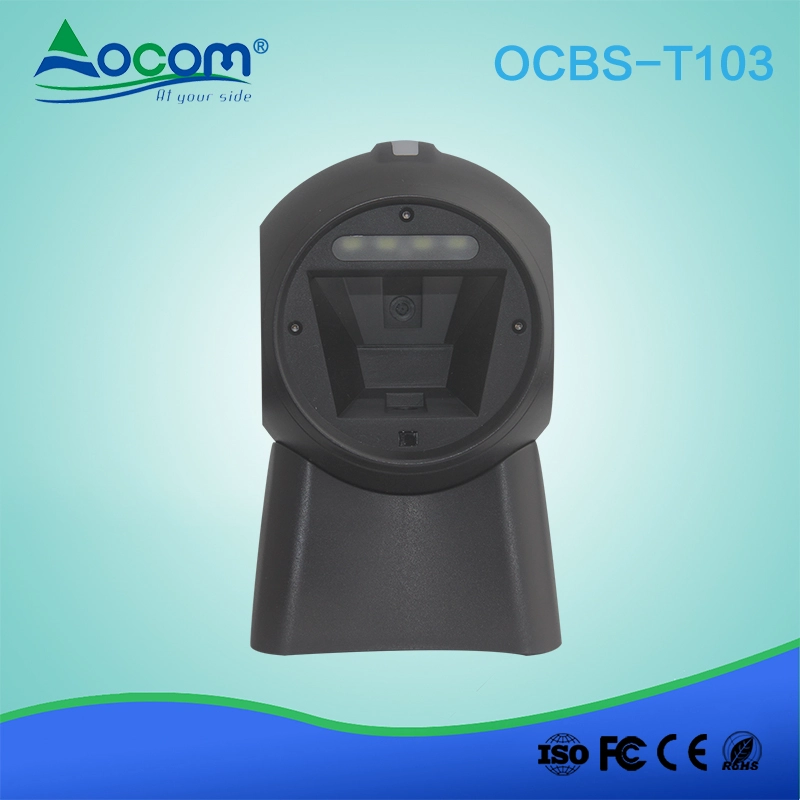

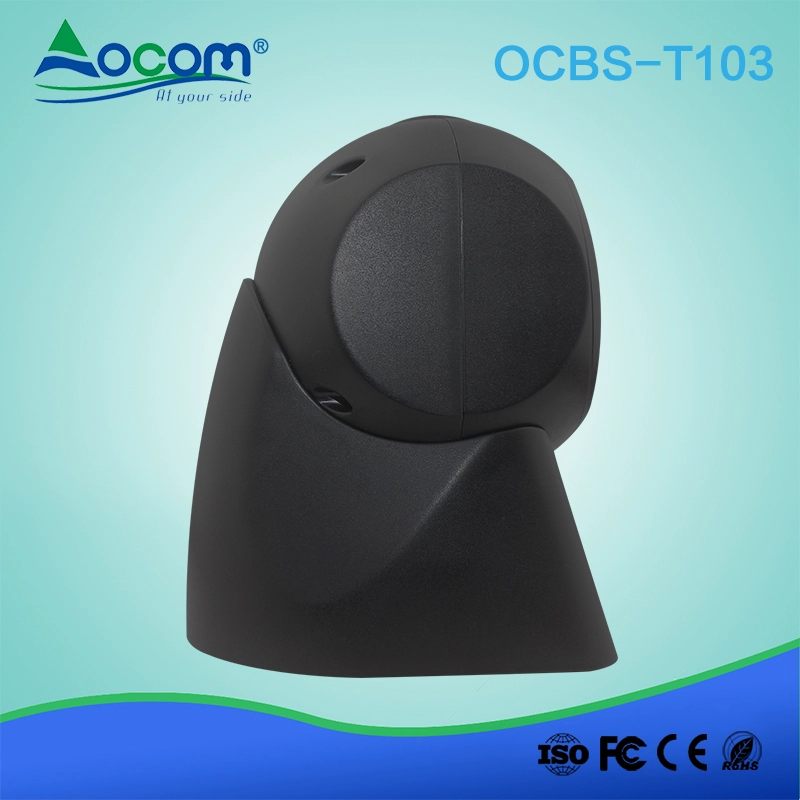

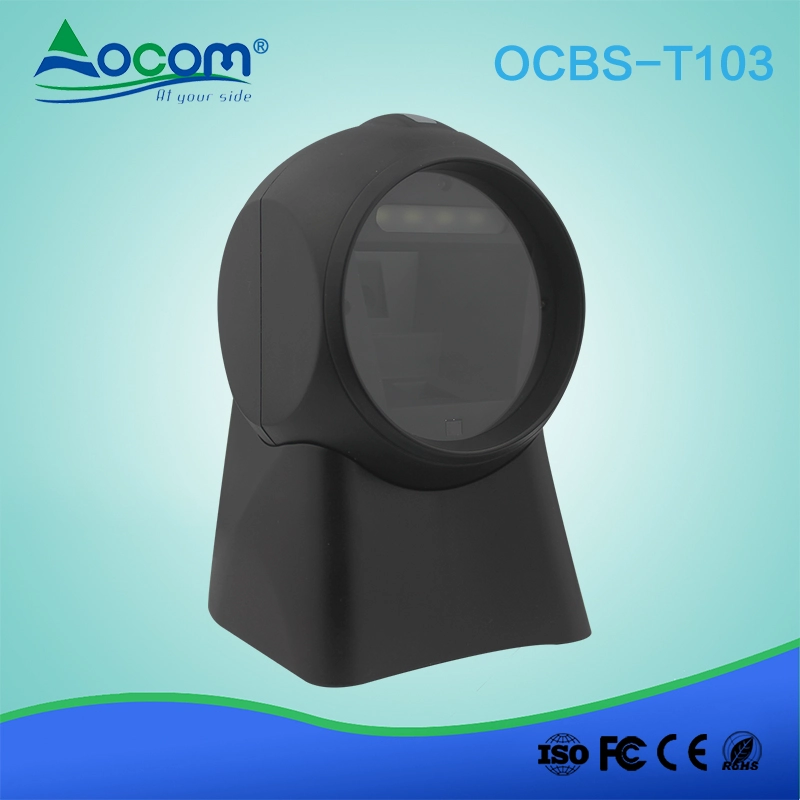

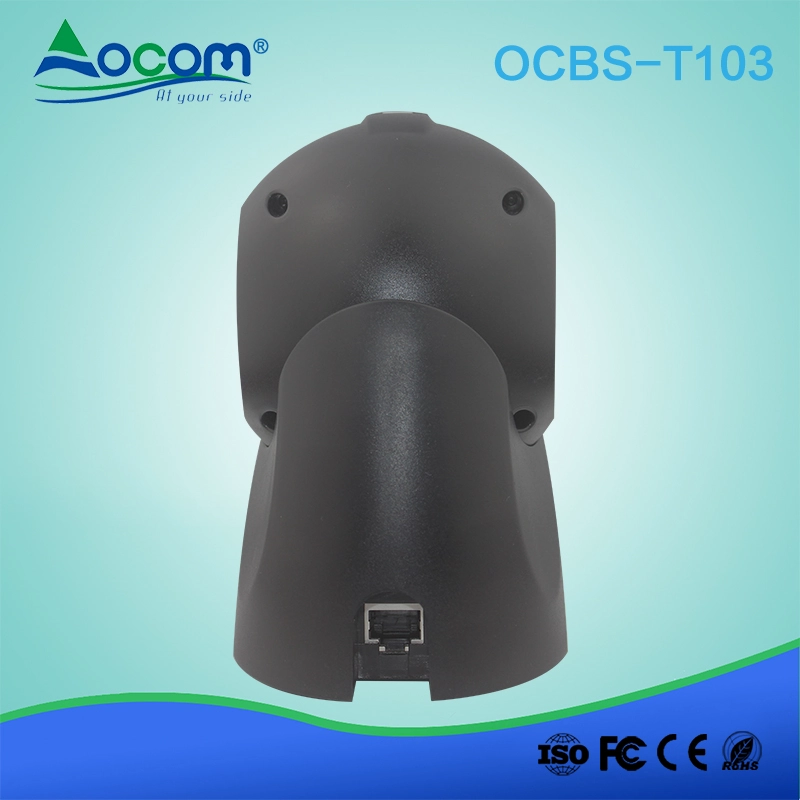

    (OCBS-T103) Desktop Omni-directional Barcode Scanner

    • High performance 32 bit hardware decoding ;
    • 20 scanning lines five directions;
    • Multiple/Single line scanning capability
    • Scan window supports adjustment angle
    • Support various types of suffix settings

    Omni-directional Barcode Scanner

    (Model: OCBS-T103)



    Feature:

    • High performance 32 bit hardware decoding ;
    • 20 scanning lines five directions;
    • Multiple/Single line scanning capability
    • Scan window supports adjustment angle
    • Support various types of suffix settings



    Specification:

    Performance parameters

    Light source

    650 nm visible laser diode laser

    System interface

    KBW,RS232,USB

    Physical parameters

    Volume(Lx W x H)

    Without stand: 140mm * 83mm * 75 mm
    With stand:157 mm * 98.3 mm * 100 mm

    Weight

    Net Weight(282g);With stand(379g)

    Stand

    Fixed install stand

    Color

    Black

    Electrical parameters

    Input voltage

    5.0 VDC+/-10%

    Rated current

    275mA

    Power

    2W

    Laser Class

    CDRH Class IIa; IEC 60825-1: Class I

    Environmental parameter

    operating temperature

    0° C - 40° C

    Storage Temperature

    -40°C -70°C

    Humidity

    5% to 95% relative humidity (no condensation)

    Antiknock characteristic

    To withstand from 1.2 meters high drop.

    Light resistance

    indoor lighting, Sunlight, fluorescence,  incandescent light,  mercury vapor light,  sodium vapor light: 450 Ft Candles(4844 Lux)
    daylight: 8000Ft Candles(86111 Lux)

    Scanning parameters

    Scanning mode

    Omni directional 20 line, 5 directions,20 scan lines

    Scanning speed

    1500 times per second

    Scanning Angle

    0~360 degree(Omni-directional)

    Scanning deviation

    +/-50 degree

    Printing contrast

    Minimum 25% reflection difference

    Scanning depth of filed

    0~216mm@ 13mil(100%UPC/EAN)

    Rated operating range

    5 mil: (38%) 10~64mm

    7.8 mil: (60%) 0~152mm

    10.4mil: (80%) 0~190mm

    13mil: (100%) 0~216mm

    Lowest resolution

    5mil

    Decoding ability

    UPC/EAN/JAN, UCC/EAN 128, Code128, Code 39, Code 39 Trioptic, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 93, Code 11, Code bar, MSI etc.
