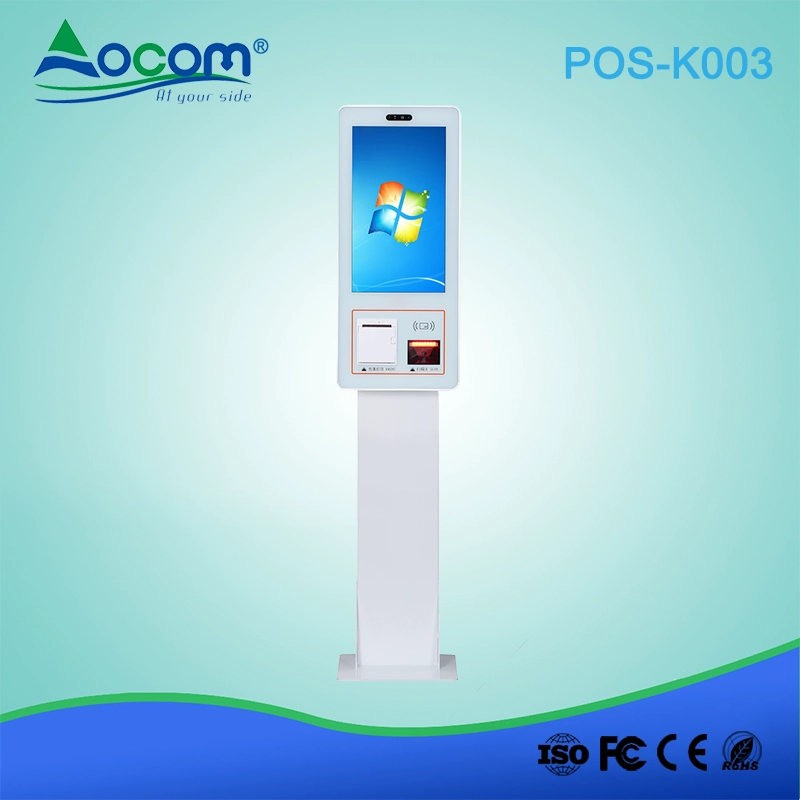

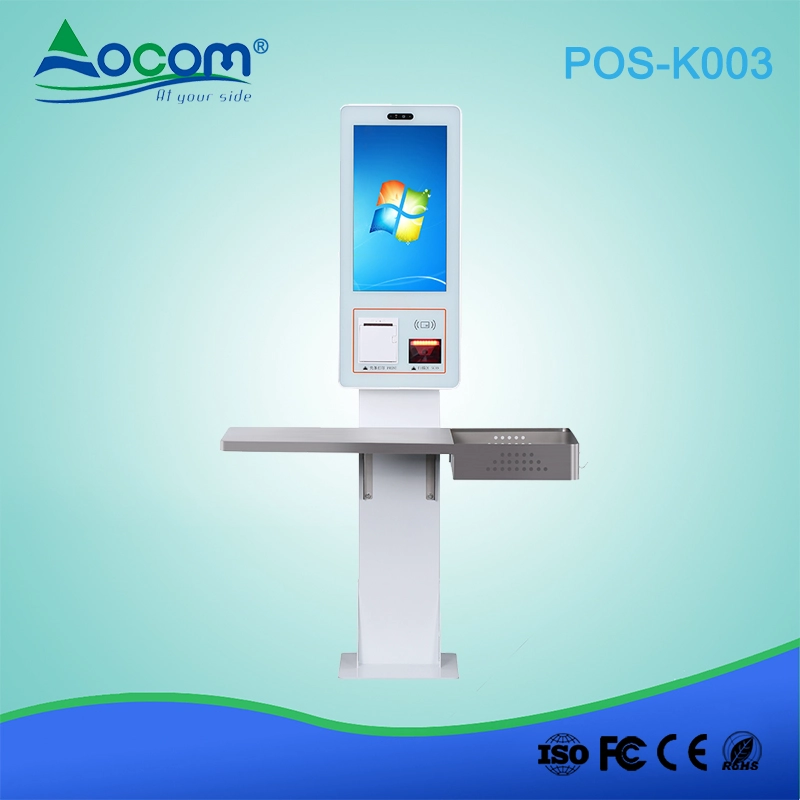

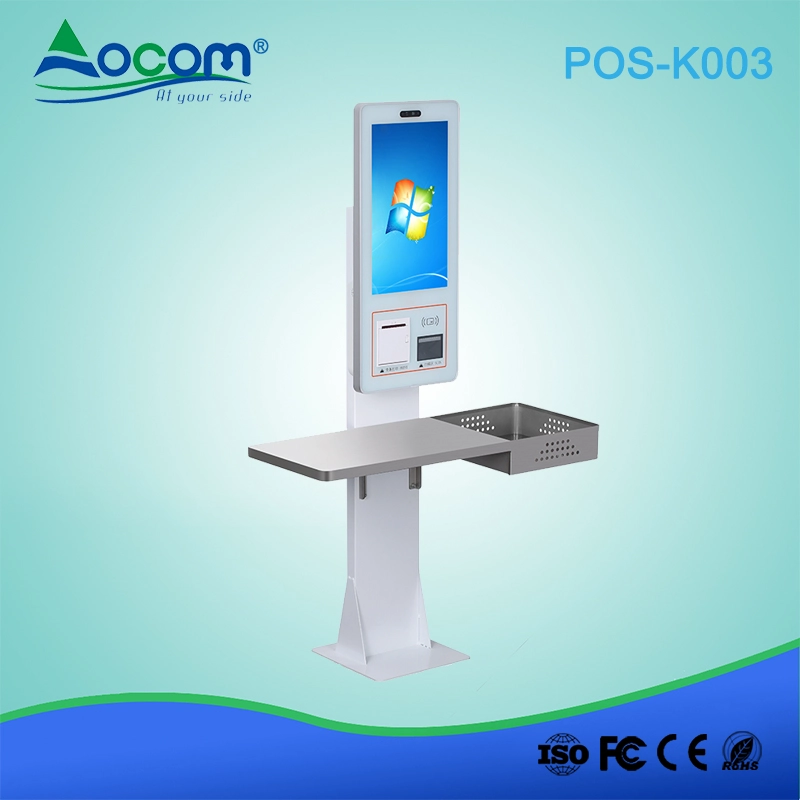

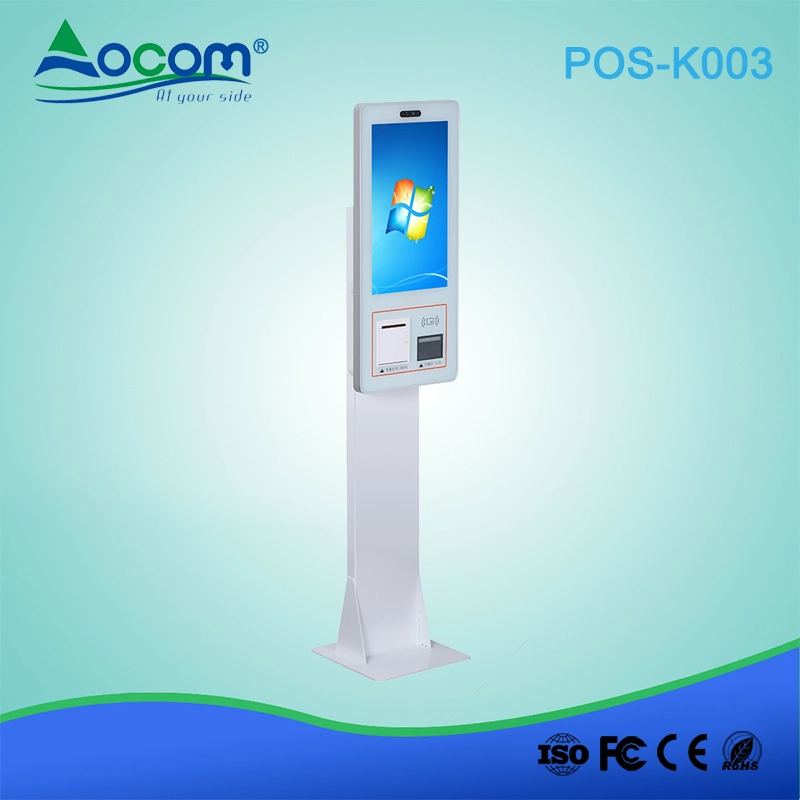

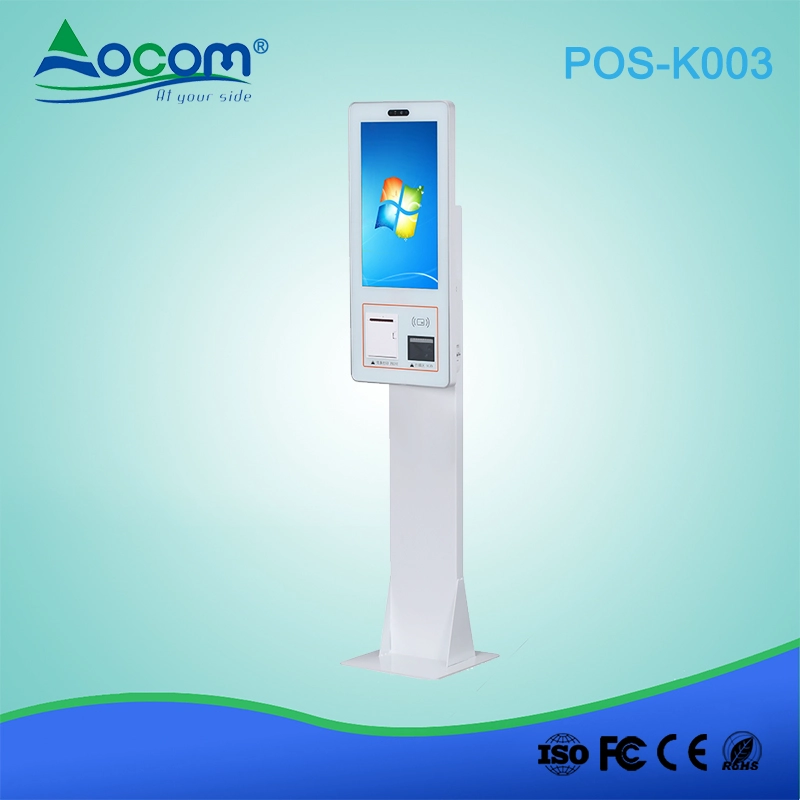

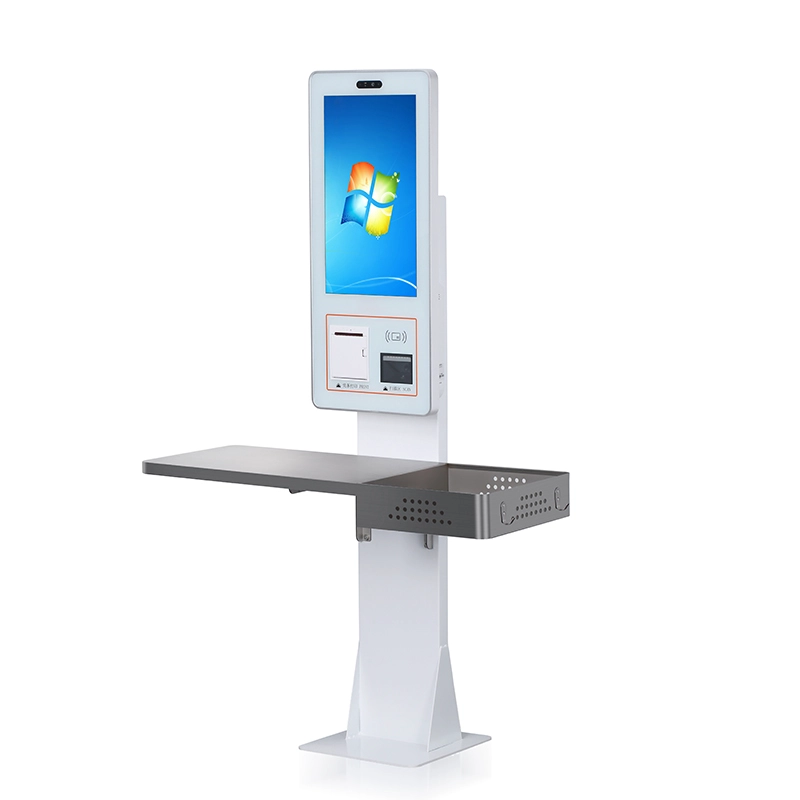

(POS-K003) 21.5 Inch Windows/Android Self-Service POS System

Top design in this kiosk industry,quick respones,run stably;
Highly intergrating multi-function,space-saving,easy to operate;
Best shopping experience and improving the store image;
Labor cost-saving;
Time saving for the customers waiting at cashier front desk;
High quality scanner make goods-scanning quickly;
Support the payment of Wechat and Alipay;
Support wall-mounting and standing alone.

21.5 Inch Windows/Android Self-Service POS System

(M/N:POS-K003)

Features:

Top design in this kiosk industry,quick respones,run stably;

Highly intergrating multi-function,space-saving,easy to operate;

Best shopping experience and improving the store image;

Labor cost-saving;

Time saving for the customers waiting at cashier front desk;

High quality scanner make goods-scanning quickly;

Support the payment of Wechat and Alipay;

Support wall-mounting and standing alone.

Specification

Model	POS-K003-W		POS-K003-A
Name	21.5 inch all in one touch screen Kiosk
Housing	plastic with metal combined
Color	whole white color
Display
Main screen size	21.5 inch touch screen monitor		21.5 inch touch screen monitor
Resolution	1920*1080		1920*1080
colorBrightness	250cd/m2
View angle	Horizon: 178; Vertical :178
Touch screen	10-point projected G+G capacitive touch
Performance
Motherboard	Intel Celeron Bay Trail J1900 2.0GHz or intel core I3 / I5 4th generation CPU for option	ARM Cortex-A17 -RK 3288 quad core 1.8GHz CPU
System Memory	1SO-DIMM DDRIII slot, support1333/1600 4GB	On board 2GB DDRIII
Storage device	Msata SSD 64GB	16GB eMMC
Audio	On board Real Tek ALC662 audio chip	On board Real Tek audio chip ALC5640
LAN	10/100Mbs,Realtek RTL8111F Lan chip	10M/100M,RTL8201F
WIFI	Support 802.11 a/b/g	Support 802.11 a/b/g
Speaker	Built in 8ohm/10watt speakers
Camera	Face recognition for payment (option)
Operating System	Windows7/8/10, Embedded,WEPOS,Linux	Android 7.1
Connectivity
External I/O port (J1900/RK3288)	Power switch*1
	100V-240V 50HZ/60HZ AC power Socket*1
	USB*2
	LAN:RJ-45*1
Scanning platform	package
Light Source	Illumination:617nm red LED
Power supply	5V DC
Support 1D	UPC,EAN, Code128, Code 39,Code 93, Code11, Interleaved 2 of 5, Matrix 2 of 5, Codabar, MSI Plessey,GS1 DataBar,China Postal,Korean Postal, etc....
Support 2D	PDF417,Micro PDF417,Data Matrix,Maxicode,QR Code,Micro QR,Aztec,Hanxin, etc......
Barcode precision	4 mil code39
Barcode Sensitivity	Pitch:±60°@ 0°Roll and 0°Skew Roll:±360°@ 0°Pitchand0°Skew Skew:±65°@ 0°Roll and 0°Pitch
Prompt Mode	Buzzer
Interface	USB
Printer
80mm thermal printer	Direct thermal printing
	150mm/s pringting speed
	79.5-/+ 0.5mm paper width and printable width 72mm
	Auto cutter function
	Power DC 24V
	Resoluiton 203DPI
Environment
Operating temperature	0 to 40 degrees centigrade
Storage temperature	-10 to 60 degrees centigrade
Working humidity	10%~80% No condensation
Storage humidity	10%~90% No condensation
Accessories
Power cable	Power cable plug compatible with USA /EU / UK etc and customized available
CD driver	Motherboard driver and touch driver inside (Option)
Other
Compliance	FCC Class A/CE Mark/LVD/CCC
