Triple-track Bi-directional Swipe Reading Magnetic Stripe Card ReaderTriple-track Bi-directional Swipe Reading Magnetic Stripe Card ReaderTriple-track Bi-directional Swipe Reading Magnetic Stripe Card ReaderTriple-track Bi-directional Swipe Reading Magnetic Stripe Card Reader

Triple-track Bi-directional Swipe Reading Magnetic Stripe Card Reader

  • Compliance with ISO 7811, AAMVA and CA DMV, ANSI;
  • Multiple interface for option: USB (default), PS2 (optional), RS232 (Optional);
  • Bi-directional swipe reading;
  • All 3 tracks can set to 75/210 BPI;
  • Reliable for 500,000 card swipes;

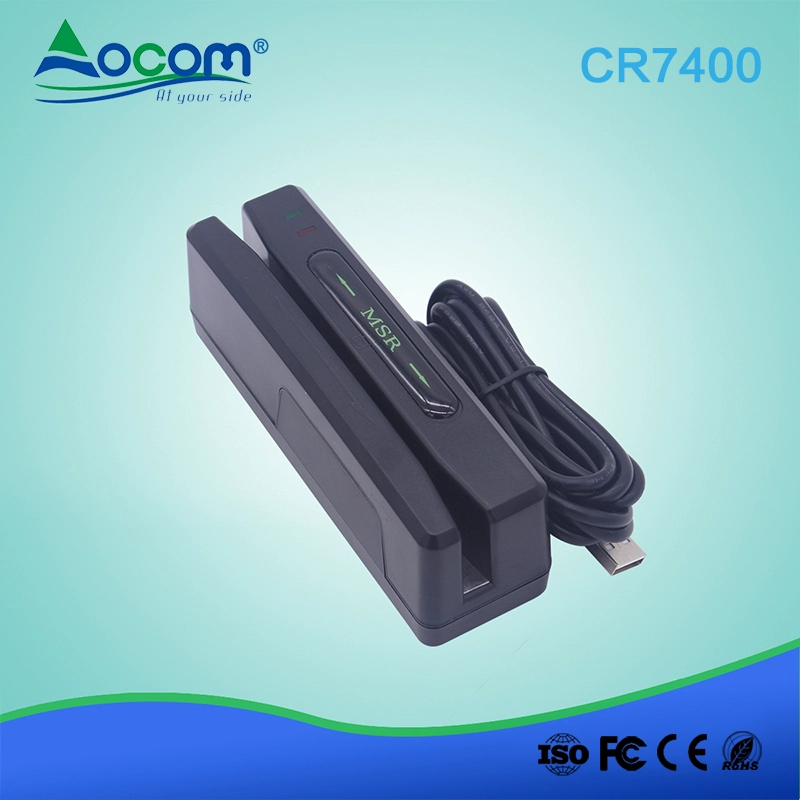

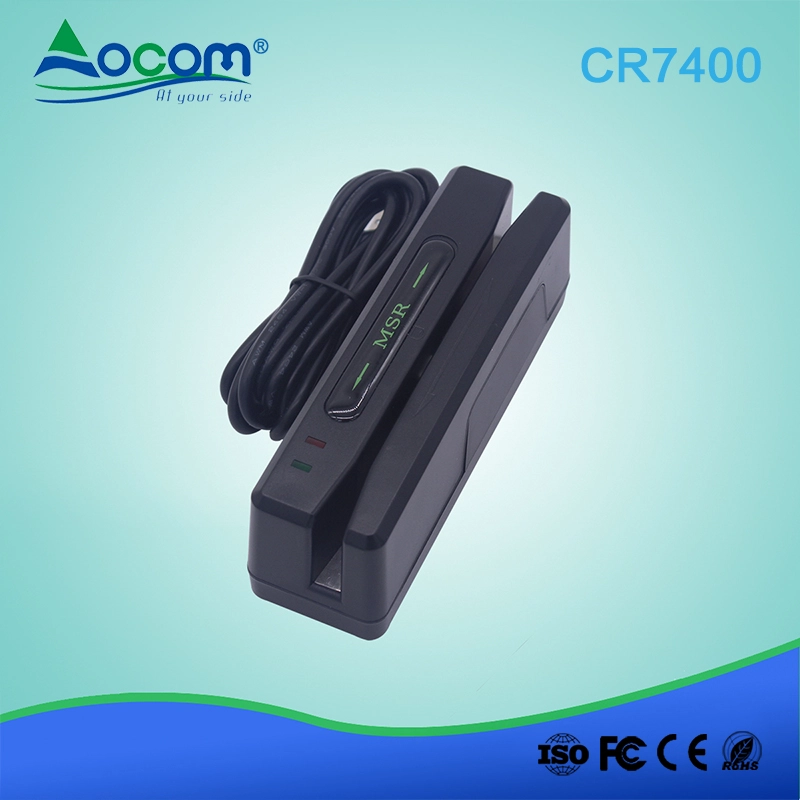

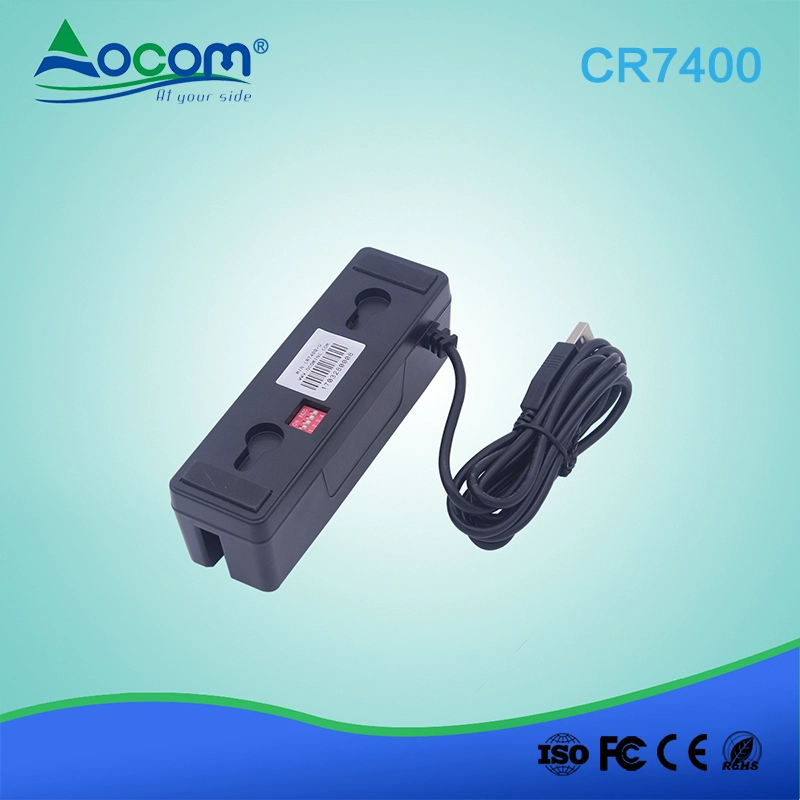

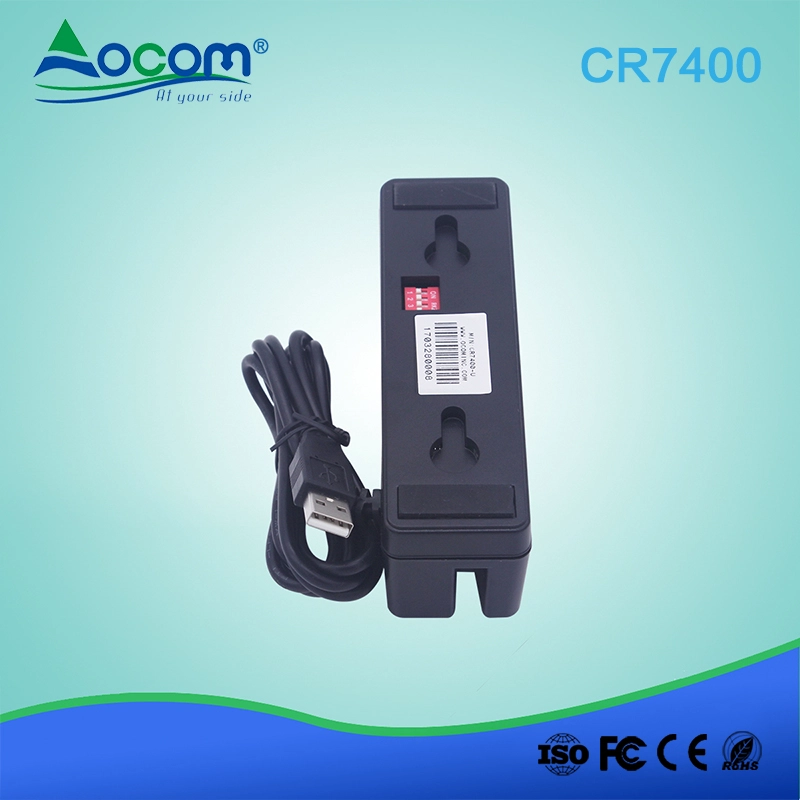

Triple-track Bi-directional Swipe Reading Magnetic Stripe Card Reader

(CR7400)

Features:



 COmpliance with ISO 7811, AAMVA and CA DMV, ANSI;

 Multiple Interface for option: USB (default), PS2 (optional), RS232 (Optional) ;

 Bi-directional swipe reading;

 All 3 tracks can set to 75/210 BPI;

 Reliable for 500,000 card swipes;



Specifications:



Dimension

170Mmx44Mmx42Mm

Weight

0.2Kg

Power Supply

+5V DV ±5%

Power consumption

<10mA

Card Standard

ISO7811, AAMVA, CA DMV

Track Pos ition

Track 1

Track 2

Track 3

Recording Density

210 BPI

75 BPI

210 BPI

Recording Capacity

76 Characters

37 Characters

107 Characters

Interface

USB (default), PS2 (optional), RS232 (Optional)

Head Function

Read only 1.5mm

Operation Speed

10 ~ 100cm/sec

Life of head

500,000 card Swipe

Error Rate

LeSs Than 0.5% (JSE Test card)

Temperature

Storage : -30°C to +70°C Operating : -20°C to +50°C

Humidity

Storage : 0% to 95% RH Operating : 20% to 90% RH



FAQ:

1). MOQ policy
No MOQ limitation for the standard products, but the unit price is different, bigger quantity better price.
For customized production, you can discuss the MOQ with our sales representative directly.

2). Sample Availability & Policy
After customers confirmed the specification, we are very glad to provide samples for testing and qualification.
All samples should be paid before shippment, the samples price is a higher than mass order. When the mass order placed, we can return you the samples cost, or send you more piece products with the shippments.

You can buy the samples from us directly using t/t, western uion, or paypal . And you can also buy it on our online store at aliexpress: http://www.aliexpress.com/store/403448?tracelog=minisite_CI.

3). Warranty
OCOM is dedicated to providing most cost-effective products and services with reliable quality that will meet customers'satisfication;

We was qualified by global fortune 500 company, and we have the top 1 level trade assurance which 100% protect your money and lead time.

Our warranty of the products is about 12+1 months from the shipment normally, some designated models can have as long as 24 months warranty;

Any product within 30 days of delivery failure occurs shall be considered invalid delivery (DOA). DOA products will give priority to the replacement, and shipped by courier.

For mass order, we would like to supply some spare parts with shipment for local quickly repair. And after that, you can returned failure parts for rework and analysis.

4). Payment Terms
For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others. About samples order, T/T, Western Union, Escrow, Paypal are acceptable. Escrow Service is powered by Alipay.com. You can pay using Moneybookers, Visa, MasterCard and bank transfer. You can also pay with select debit cards including Maestro, Solo, Carte Bleue, Pos tePay, CartaSi, 4B and Euro6000.
