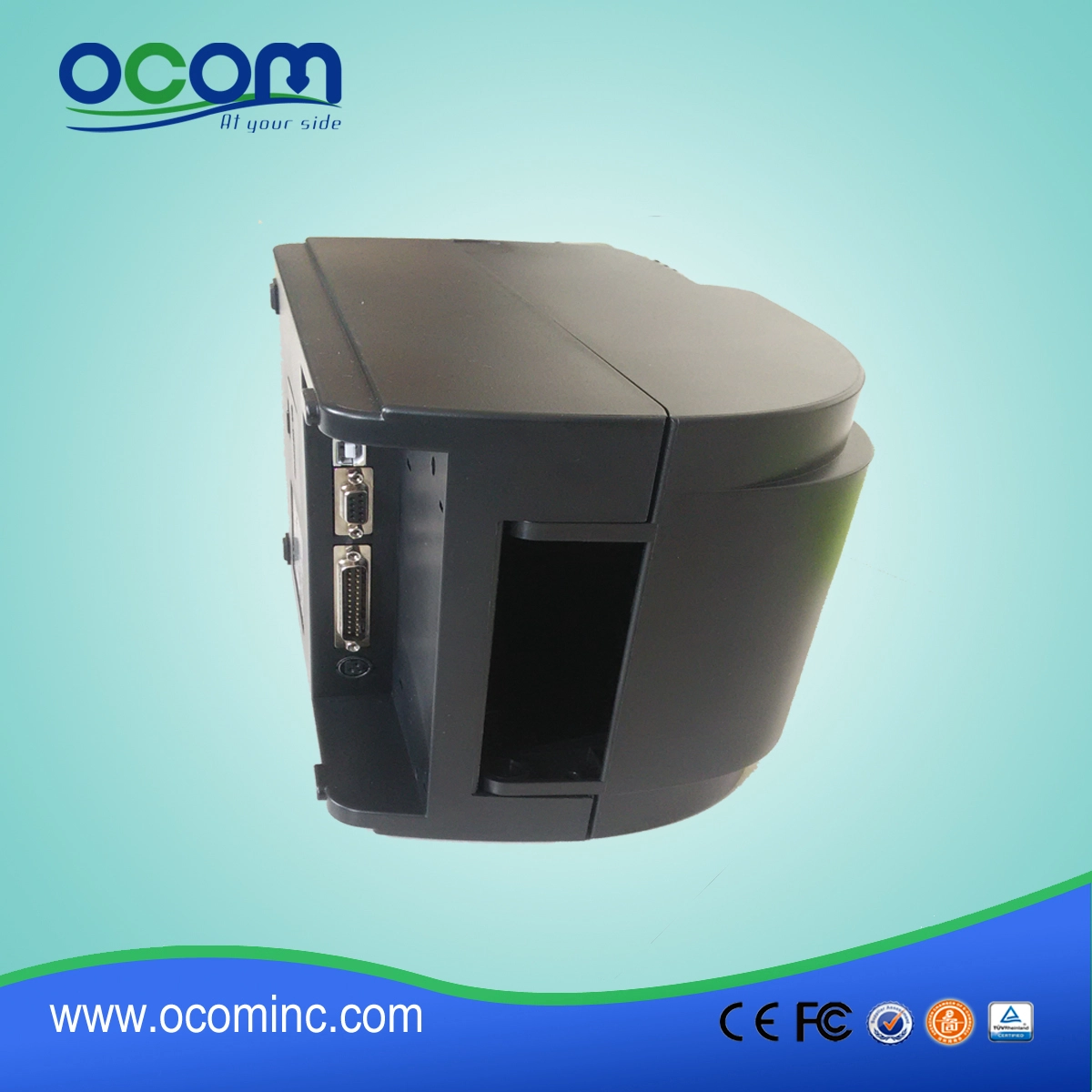

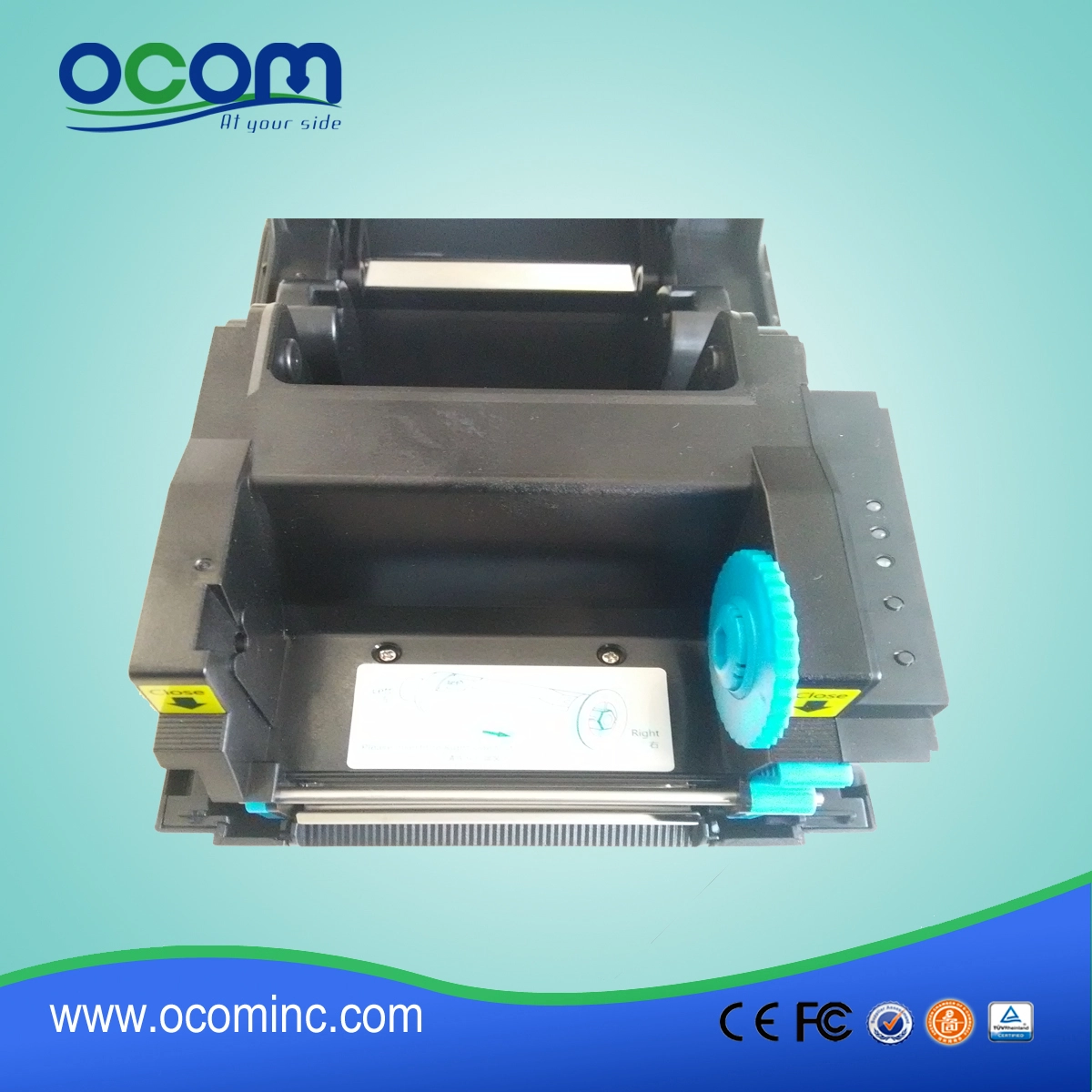

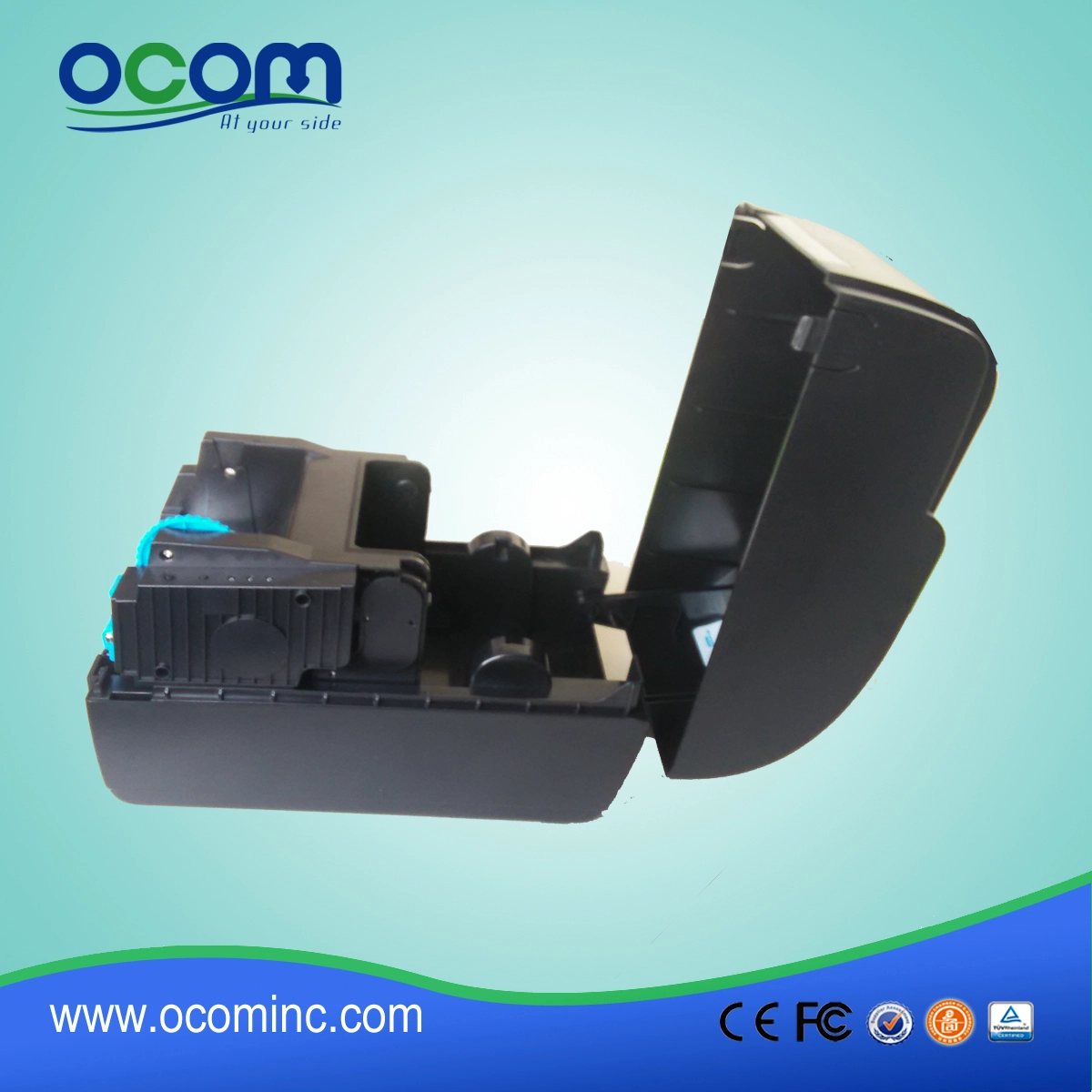

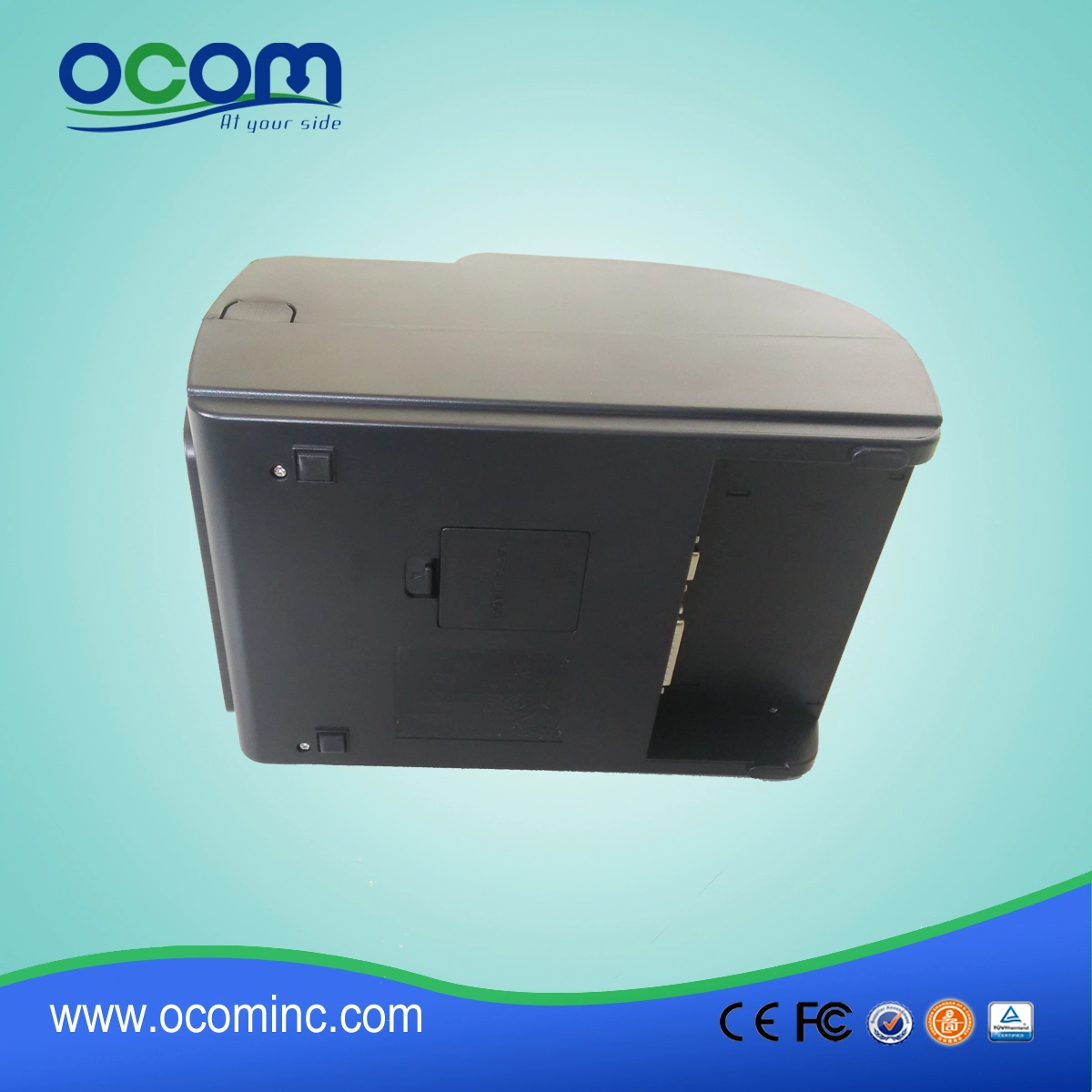

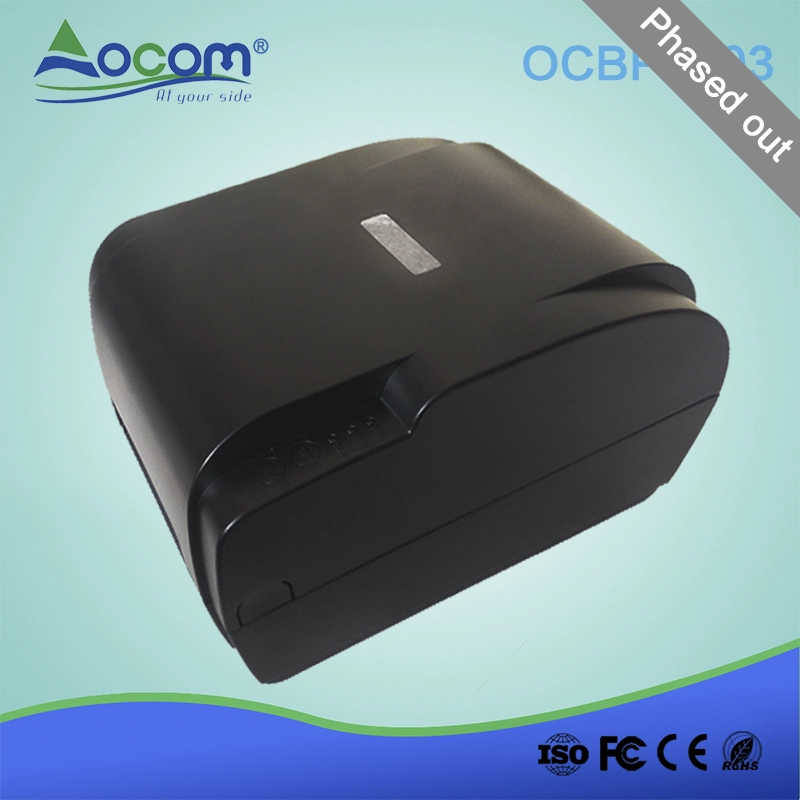

(OCBP-003) 2 Inches USB Direct Thermal Label Printer
- Feature:
- 1.Support thermal roll paper / adhesive paper
- 2.The print head with adjustable pressure
- 3.Automatic paper checking function
- 4.Temperature adaptive control
- 5.Modular design, to meet different application requirements
2 Inches USB Direct Thermal Label Printer
(Model:OCBP-003)
Feature:
1.Support thermal roll paper / adhesive paper
2.The print head with adjustable pressure
3.Automatic paper checking function
4.Temperature adaptive control
5.Modular design, to meet different application requirements
Specification:
|
Printing method |
Direct thermal |
|
Resolution |
203DPI |
|
Print width |
20-60mm |
|
Printing speed |
MAX:127mm/s；MIN:50.8mm/s |
|
Memory |
DRAM: 4M FLASH: 4M |
|
Print head temperature |
Thermistor |
|
Paper exists detection |
The micro switch |
|
Interface |
USB |
|
Paper presence detection |
Paper presence detection |
|
Barcode |
CODE128、EAN128、ITF、CODE39、CODE93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CODABAR、POSTNET、UPC-A、UPCA+2、UPCA+5、UPC-E、UPCE+2、UPC-E+5、CPOST、MSI、MSIC、PLESSEY、ITF14、EAN14 Qrcode、 DM Code、 PDF417 |
|
Internal font |
FONT 0 to FONT 8 |
|
Enlargement & rotation |
（0°、90°、270°、 360°） 1 to 10 times enlargement in both direction; 0°、90°、270°、 360° rotation |
|
Image |
Monochromatic PCX, BMP image files can be load to FLASH, DRAM |
|
Paper type |
Paper roll, sticker, adhesive sticker, etc |
|
Paper width |
20mm～60mm |
|
Roll external |
MAX 80mm |
|
Roll inner diameter |
MIN 25mm |
|
Paper off type |
Tear off |
|
Power supply input |
DC12V, 3A |
|
Weight |
1.04KG |
|
Dimensions |
190(D) x 135(W) x 137(H)mm |
|
Work environment |
5～45℃, 20－80%RH(no condensation) |
|
Storage |
－40～55℃，≤93%RH（40℃） |
|
environment |
