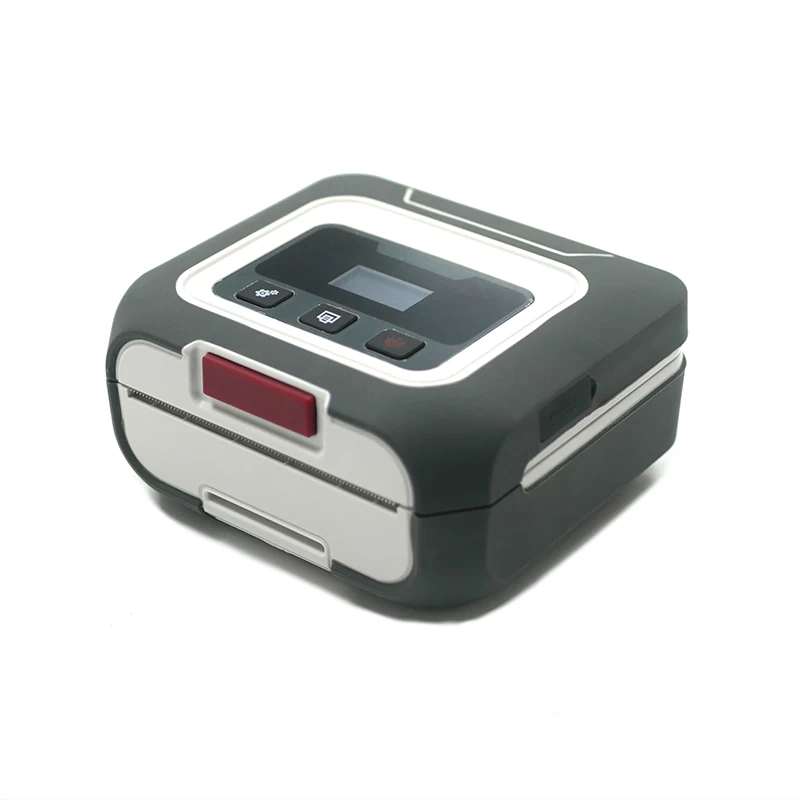

    (OCBP-M80) Bluetooth Portable Barcode Thermal Label Printer

    • 1.Can print Label sticker and Receipt Paper
    • 2.Easy to set the print density and Langue
    • 3.Multi-interface and different paper size support
    • 4.LCD display can show the printer parameter settings
    • 5 Can quickly print imge barcodes and forms.
    • 6.Multiple Sensor Supported Black mark,Label interval
    • and Paper end detection

                             Bluetooth  Portable Barcode Thermal  Label Printer

                                           (M/N:OCBP-M80)


    Feature:

    1.Can print Label sticker and Receipt Paper

    2.Easy to set the print density and Langue

    3.Multi-interface and different paper size support

    4.LCD display can show the printer parameter settings

    5 Can quickly print imge barcodes and forms.

    6.Multiple Sensor Supported Black mark,Label interval

    and Paper end detection


    thermal label printer,portable thermal label printer,bluetooth label printer



    Printing Method

    Thermal Line

    Printing Speed

    80mm/s ( Thermal Paper )

    70mm/s ( Label Sticker )

    Resolution

    8 dots/mm

    576 dots/line

    Effective Printing Width

    72mm/48mm/37.5mm

    Character Set

    ASCII, GB18030 (Chinese), BIG5, Codepage

    Print Font

    Font A: 12*24; Font B: 8*16

    Self-defined Character

    Yes

    Paper Type

    Thermal paper/Label Paper

    Paper Width

    80mm/58mm/44mm for thermal paper

    Paper Roll Diameter

    40mm(max.)

    Roll Core Inner Diameter

    13mm(min.)

    Paper Thickness

    0.06~0.16mm

    Paper Supply Method

    Drop-in easy paper loading

    TPH

    50km

    Barcode

    1D: EAN-13, EAN-8, UPC-A, UPCZ, CODE39, CODE93, CODE128, CODABAR, INTERLEAVED 25

    2D: PDF417、QRCODE、DATA Matrix

    Emulation

    CPCL/ESC-POS

    Driver

    Windows 98 / ME / 2000 / NT / XP / 2003 Server/Vista/Win7/Win 8

    Sensor

    Paper End Sensor,Black Mark, Label Interval

    Interface

    USB/Bluetooth

    Button

    Power, Feed, Mode

    Indicator

    Power, Feed, Mode

    Memory

    Flash: 512kb; RAM: 128kb

    Receive Buffer Size

    32K

    SDK

    Windows CE; Windows Mobile 5.0/6.0; Symbian; Blackberry and Android

    Multi-languages

    46 codepages

    Power Supply (Adapter)

    DC9V/2A

    Battery Power

    7.4V, 1.65A rechargeable Li-ion battery

    Battery Charge

    100m continuous printing

    Charge Time

    less than 3 hours

    Battery Duration

    360 hours

    Net Weight

    196g

    Gross Weight

    360g (Including battery & roll paper)

    Printer Dimension(WxLxH)

    104mm x109mm x 48mm

    Color

    Black

    Operating Temp

    -10-50°C

    Operating Humidity

    10%-80%

    Application

    Restaurants, Department Stores, Kitchen, Convenience Stores, Specialty Retail, Supermarket

    Accessories

    Battery,Charger USB Cable,CD Driver,Leather Case and Paper-roll

    Option: vehicle charger

    PackageSize

    210mm x 155mm x 90mm(1.5kg)
