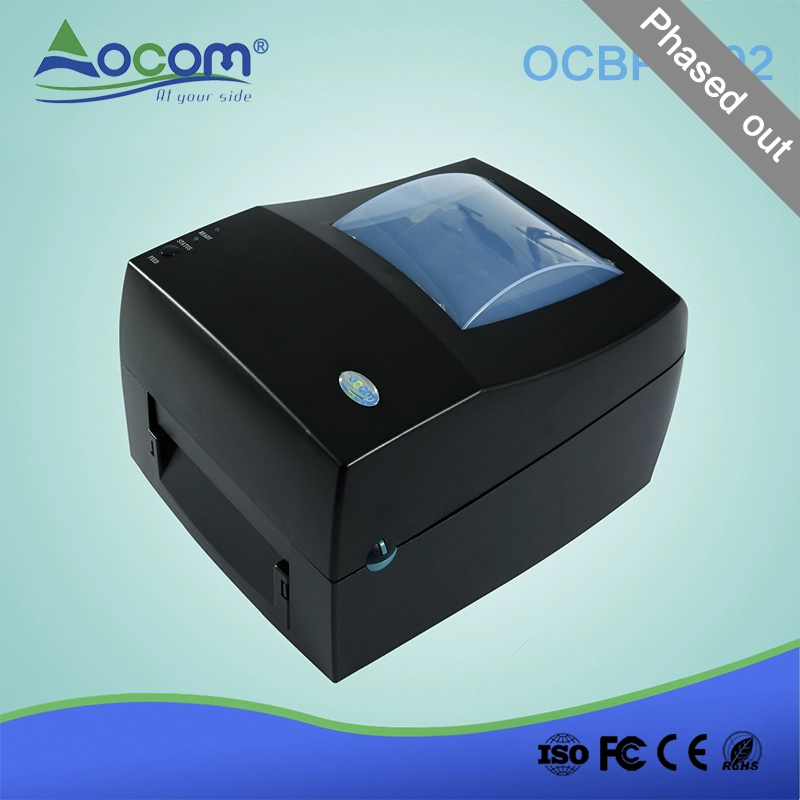

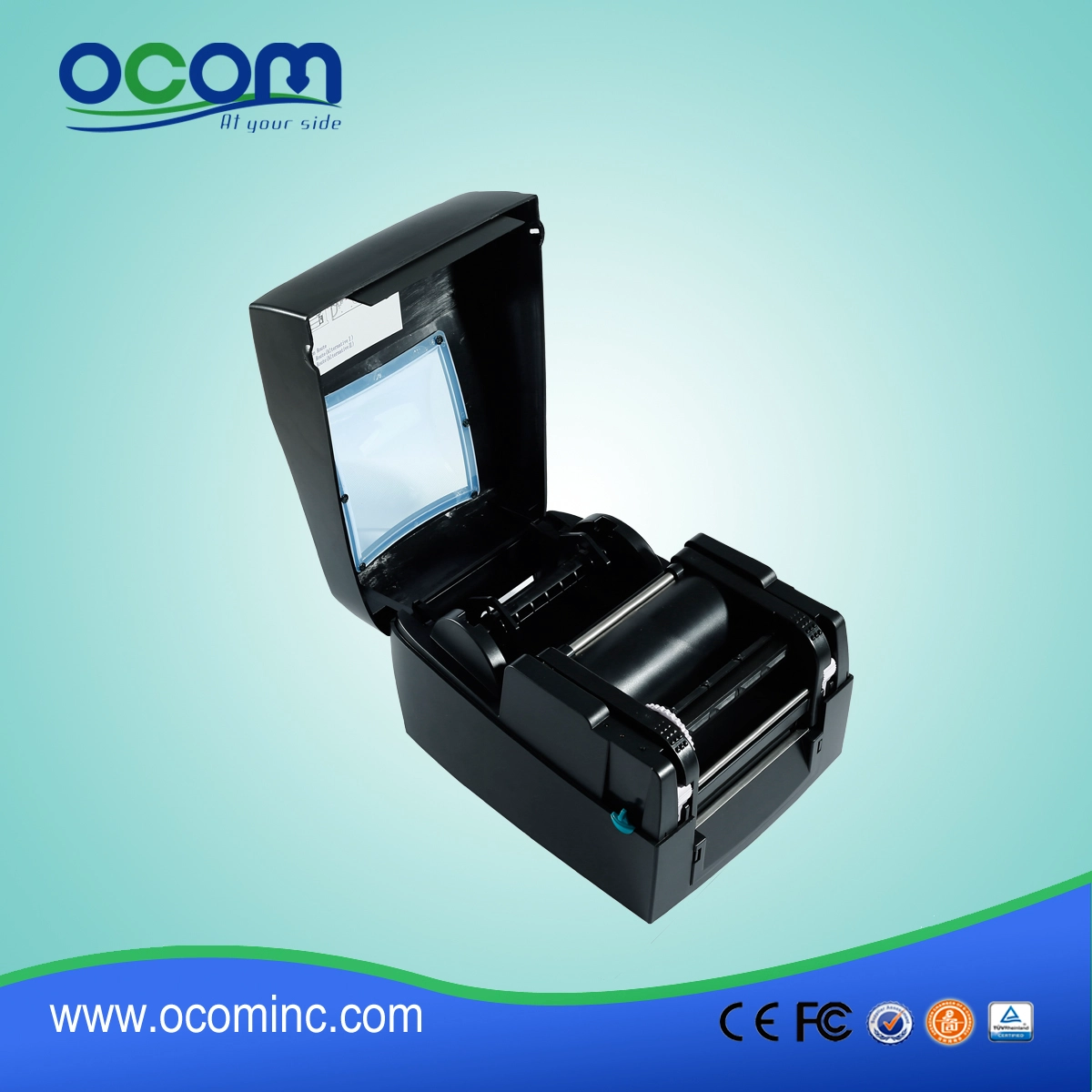

    (OCBP-002) Thermal Transfer and Direct Thermal Barcode Label Printer

    • Two printing methods available: Thermal Transfer with ribbon and Direct Thermal;
    • Label paper auto position;
    • Labels peel off, tear off automatically;
    • Compatible with plenty of label software;
    • BMP, PCX images download store;
    • Support Parallel and USB together;
    • Support PDF417, QR CODE, DOT MATRIX;
    • Suit for thermal paper rolls or self-adhesive labels;

    Thermal Transfer and Direct Thermal Barcode Label Printer

    (Model: OCBP-002)

    Specification:

    Printer Model

    OCBP-002

    Resolution

    203 DPI (8 dot/mm)

    Printing Method

    Direct Thermal / Thermal Transfer

    CPU

    32 BIT

    Sensor

    Type: Label gap and black mark sensing

    Detection: label length auto sensing or program command setting

    Printing Speed

    50.8 mm -101.6 mm / Sec

    Printing Length

    1727 mm

    Printing Width

    25 mm ~ 104 mm

    Media

    Paper Roll External Diameter: Maximum Diameter 105 mm

    Paper Roll Axis: 26 mm

    Paper Width: 25 mm ~ 110 mm

    Paper Thickness: 0.06 mm ~ 0.3 mm

    Media Type: Label gap, Back mark, Continuous

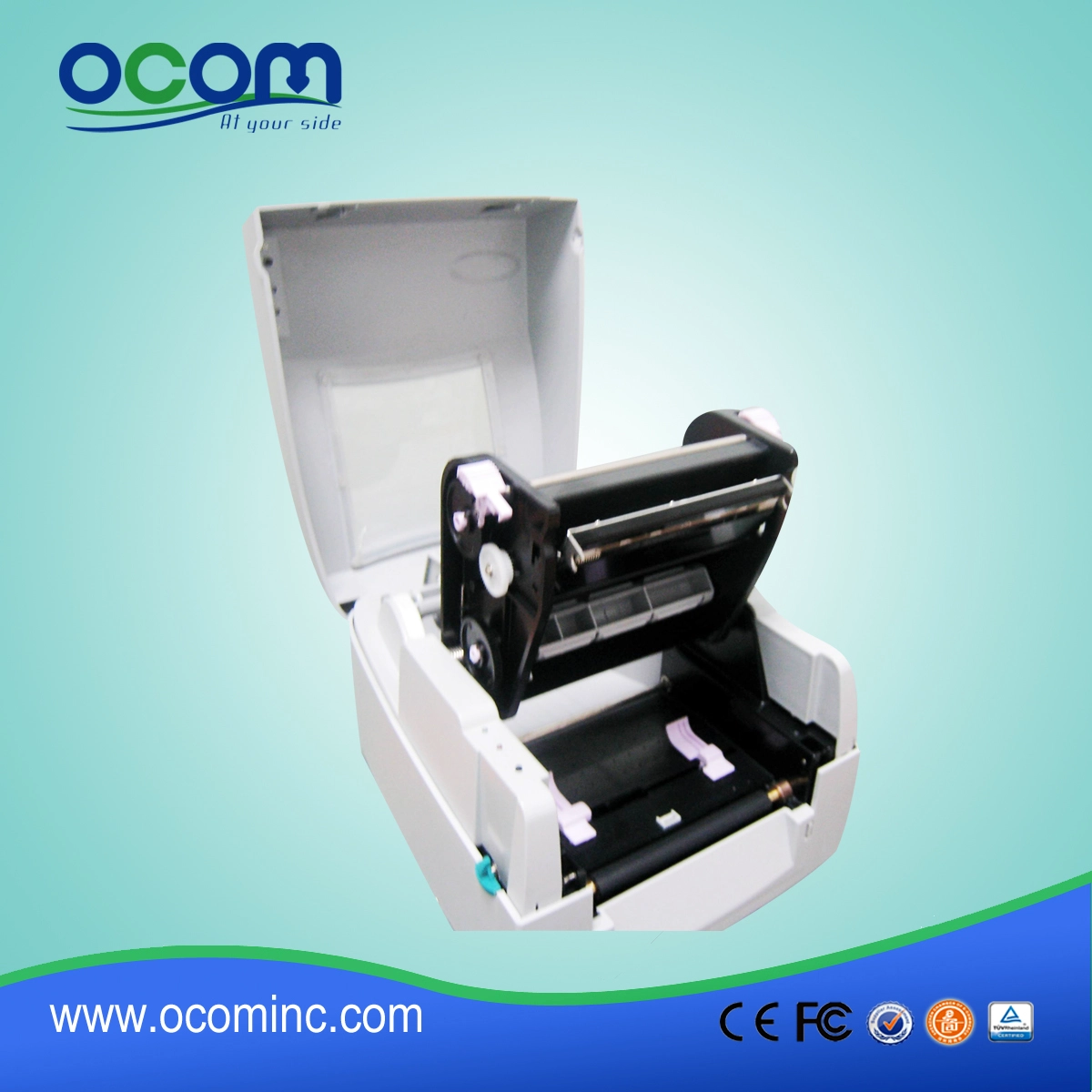

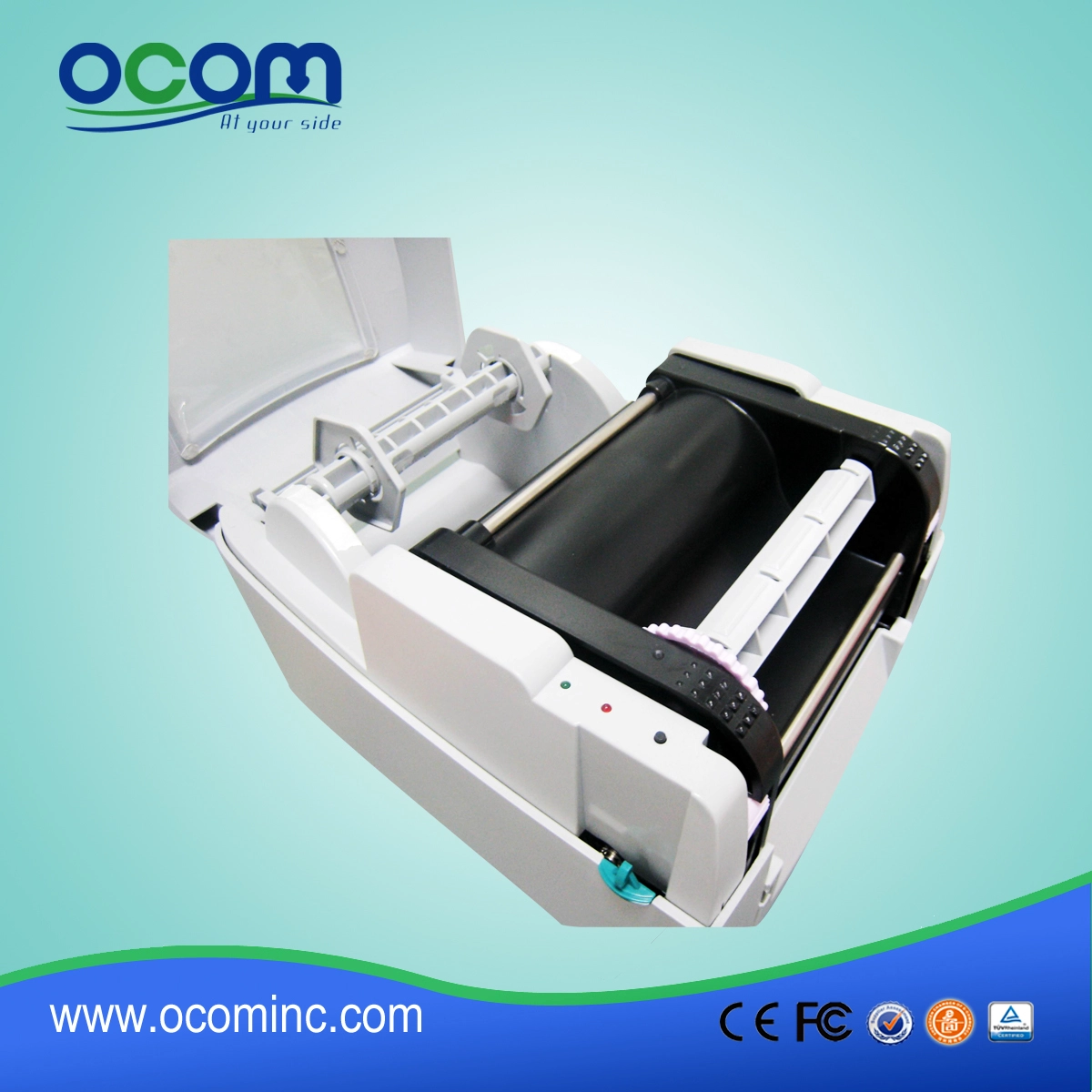

    Ribbon

    Types: Outward Roll

    External Diameter: 64mm (Max)

    Length 300M

    Width: 30 mm ~ 110 mm

    Core Inner Diameter: 25.4mm (1inch)

    Material: General Wax Type, Wax/Resin Mixed Type, Resin Type

    Memory

    2MB Flash Rom, 2MB DRAM


    Monochrome PCX, BMP (support after the software control: ICOWMFJPGEMF Picture, can control the picture amplification, reduced, rotation, mirror image and highlight

    Bar Code

    Code39, Code93, Code128 (subset A, B, C), UPC A/E (add on 2 & 5), Interleaved 2 of 5, EAN 8/13 (add on 2 & 5), Code bar, China Postal Code, Industrial 2 of 5, Matrix 2 of 5, PDF417 and Data matrix Code, (QR Code Available), Data Matrix

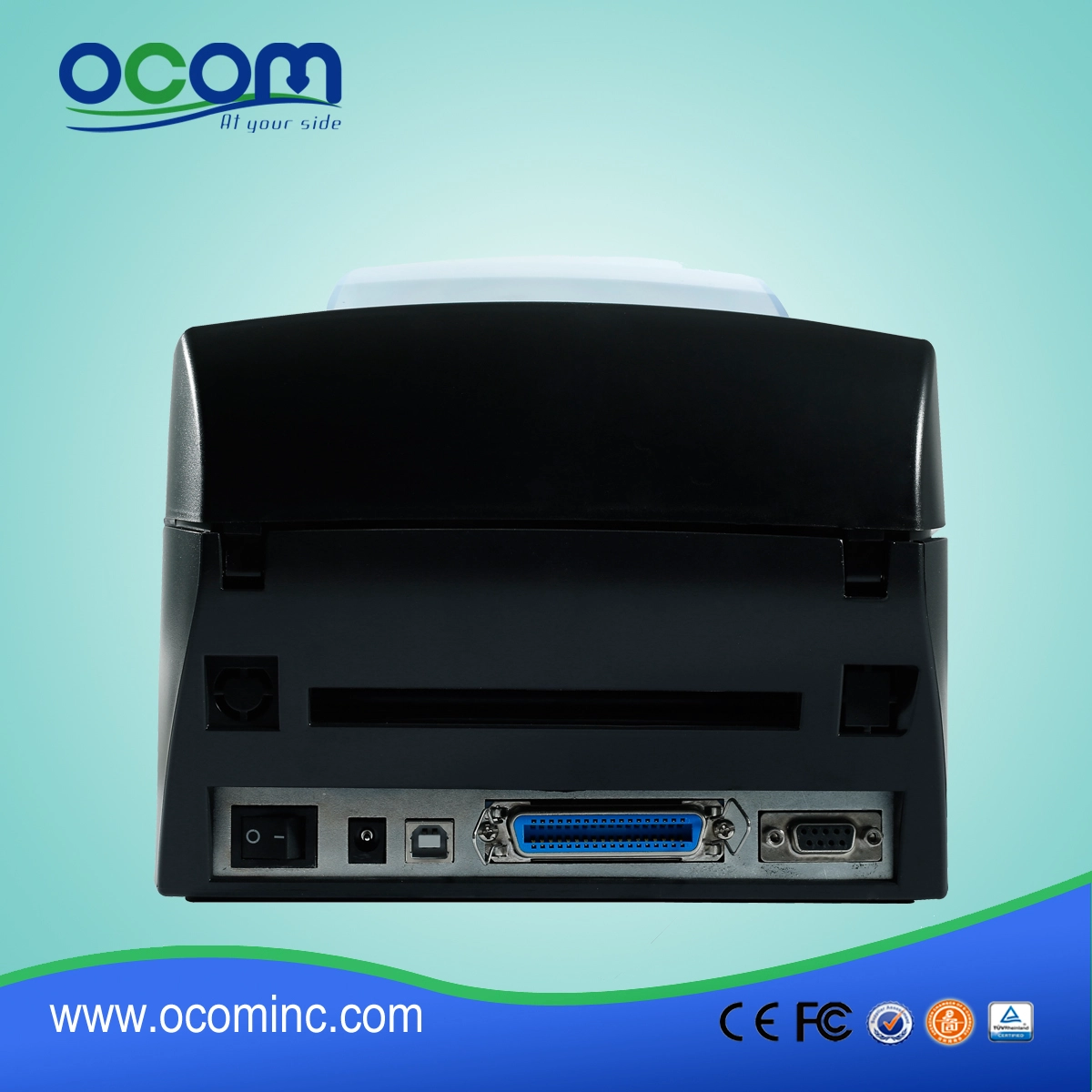

    Interface

    Parallel Port+ USB

    Transmission Setting

    Baud Rate 9600, XON/XOFF, RTS/CTS

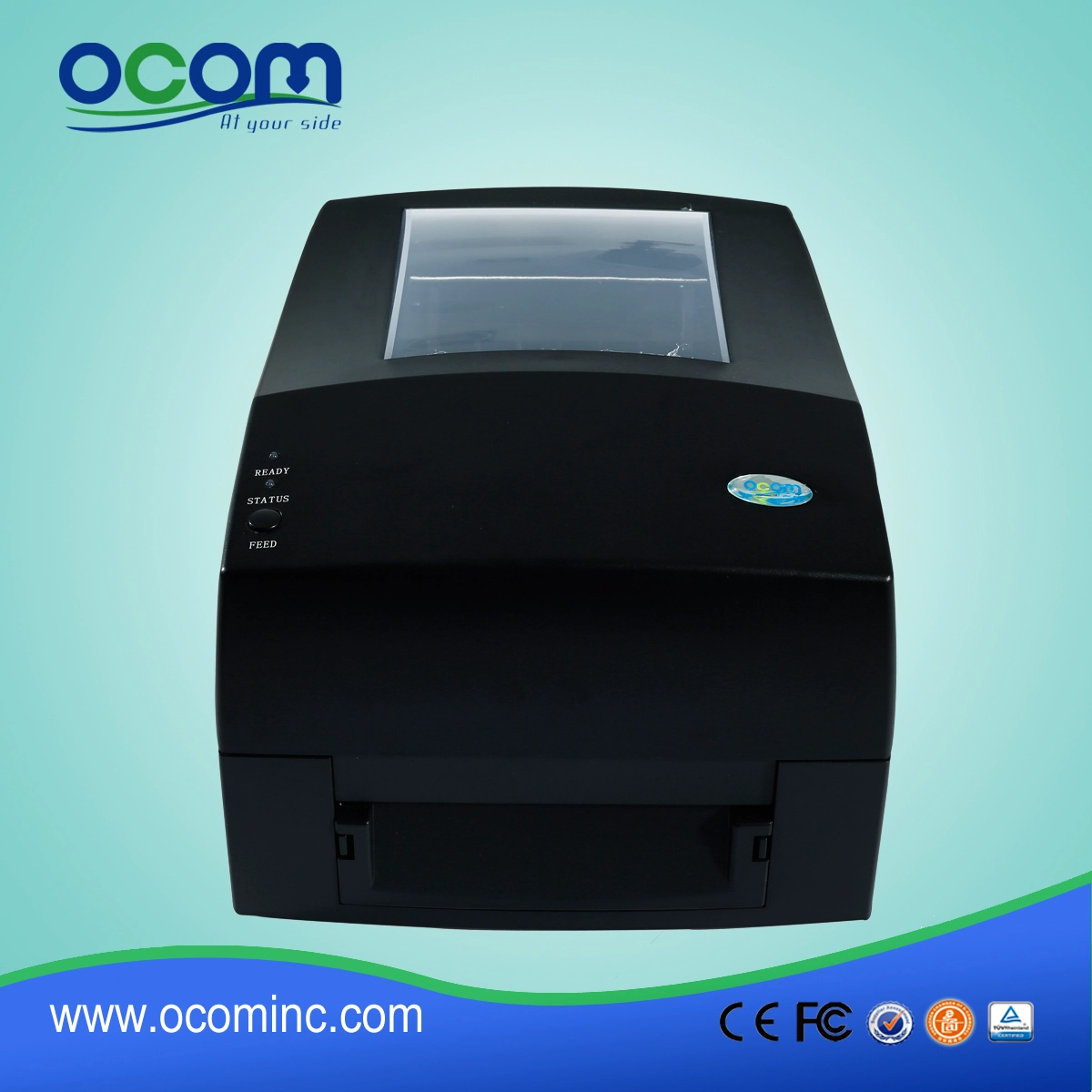

    Control panel

    LED*2: Ready, Status

    Function Key*1: Feed

    Power

    AC 18V, 4000mA

    Environment

    Operating Temperature: 40 Degree F to 104 Degree F (5 Degree C to 40 Degree C)

    Storage Temperature: -40 Degree F to 122 Degree F (-20 Degree C to 50 Degree C)

    Operating Humidity: 30% ~ 85%, non-condensing, Free air

    Storage Humidity: 10% ~ 90%, non-condensing, Free air

    Physical Dimension

    Size: L286mm * H176mm *W233mm

    Weight: 2.43KG (net)
