    (OCBP-M1001) 100mm mini bluetooth thermal barcode label printer(OCBP-M1001) 100mm mini bluetooth thermal barcode label printer(OCBP-M1001) 100mm mini bluetooth thermal barcode label printer(OCBP-M1001) 100mm mini bluetooth thermal barcode label printer

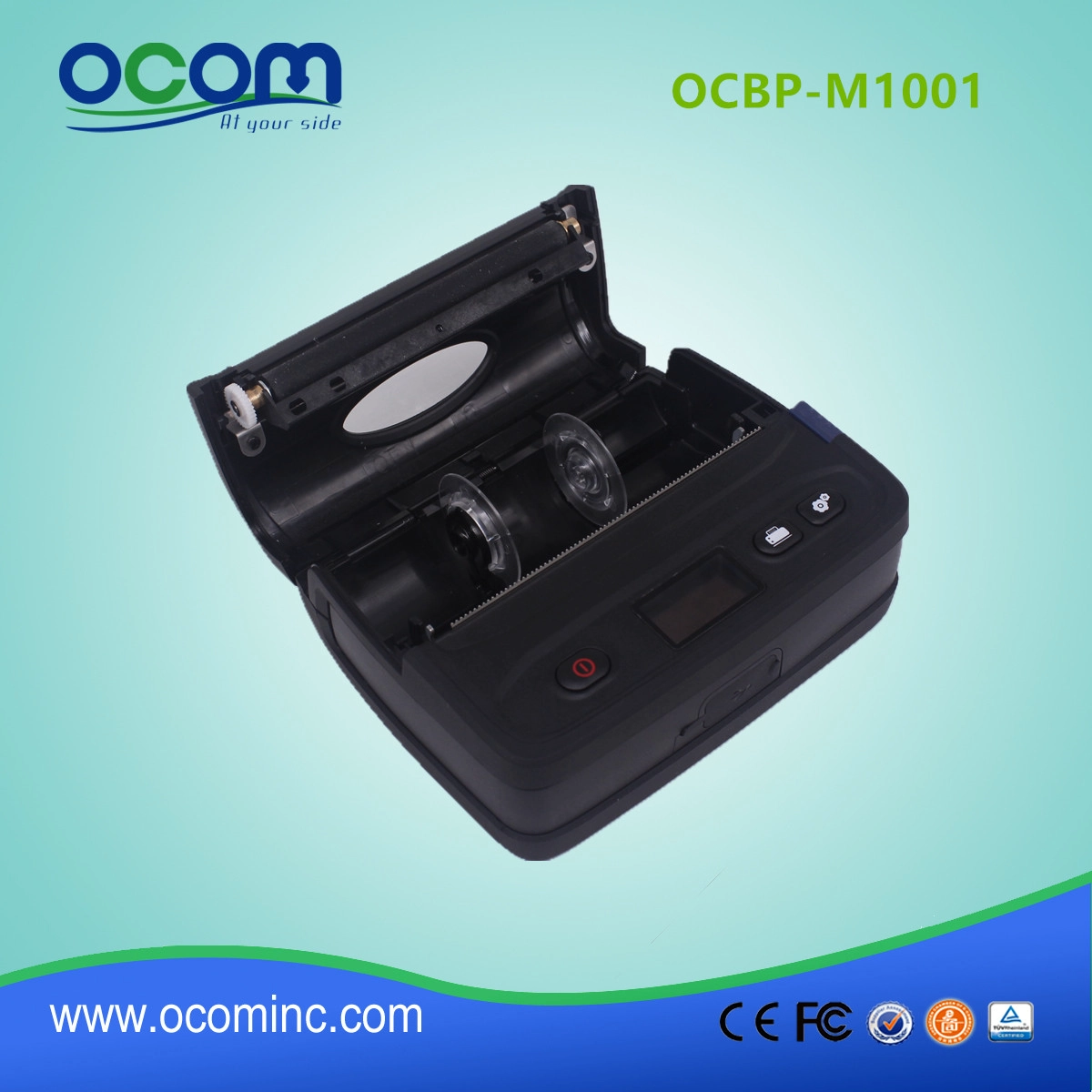

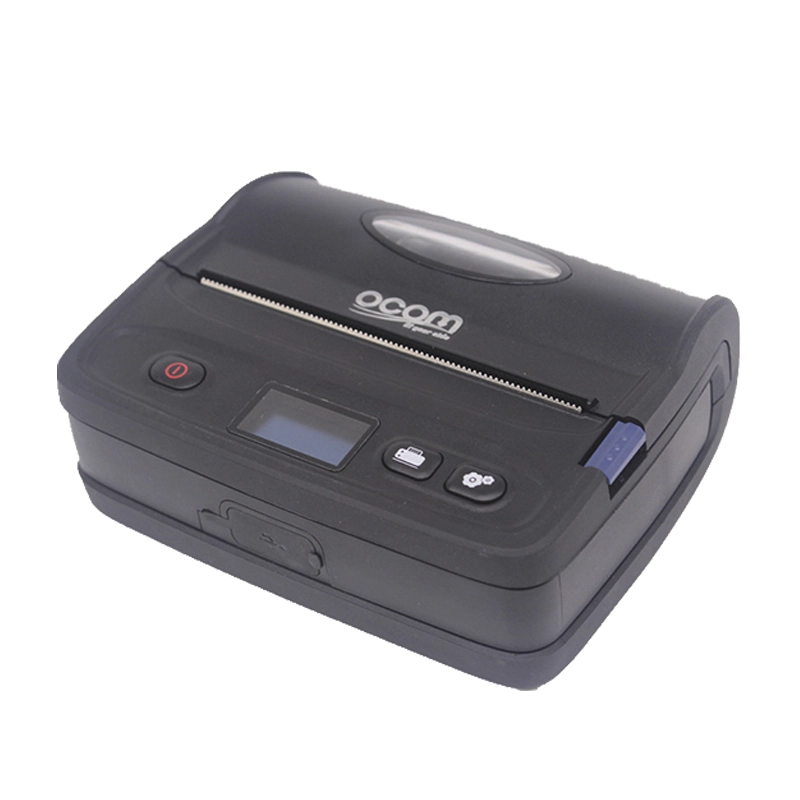

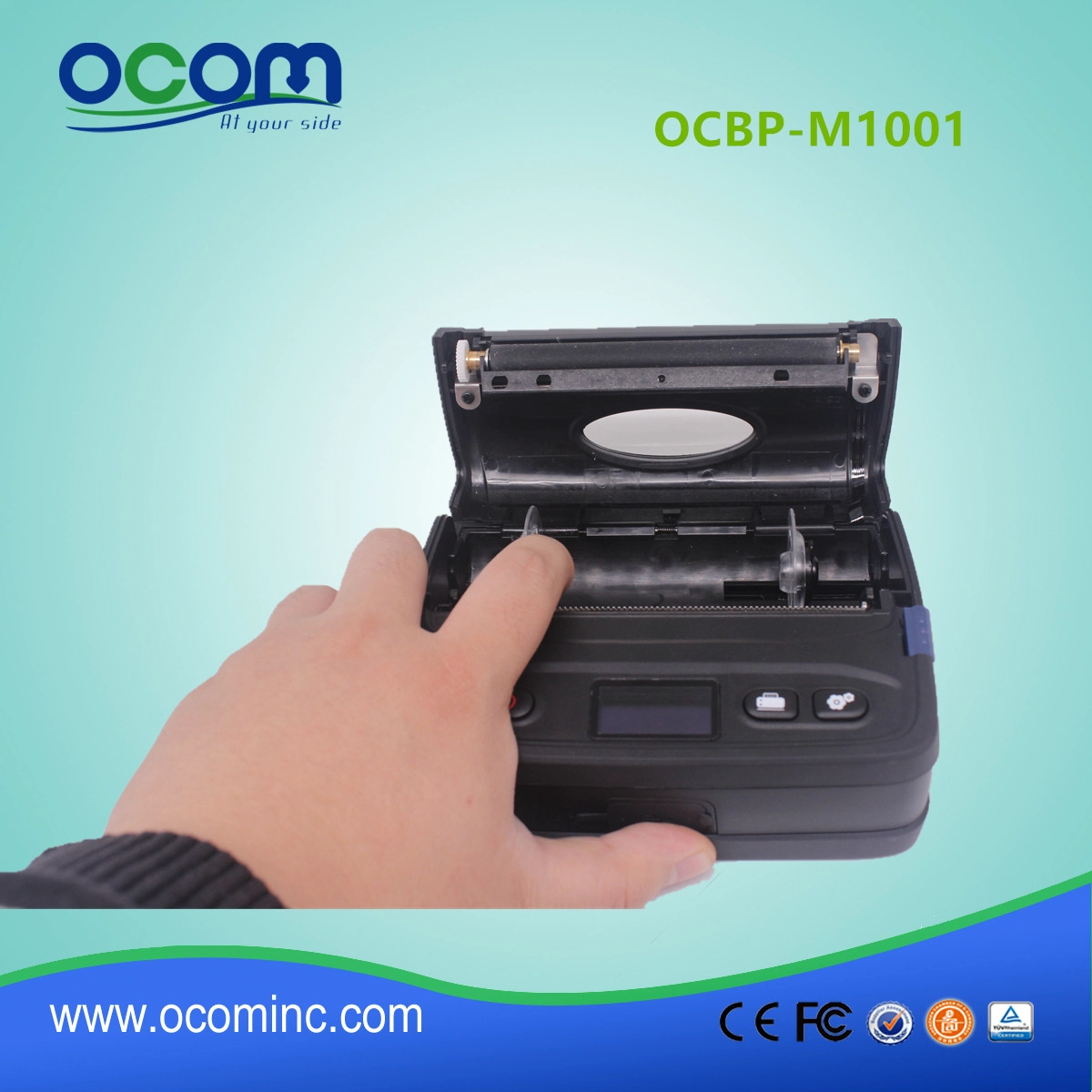

    (OCBP-M1001) 100mm mini bluetooth thermal barcode label printer

    • 1. Can print Label sticker and Receipt Paper
    • 2. Easy to set the print density and Langue
    • 3. Multi-interface and different paper size support
    • 4. LCD display can show the printer parameter settings
    • 5. Can quickly print image barcodes and forms.
    • 6. Multiple Sensor Supported Black mark, Label interval
    • and Paper end detection

    100mm mini bluetooth thermal barcode label printer

    (M/N: OCBP-M1001)


    Feature:

    1. Can print Label sticker and Receipt Paper

    2. Easy to set the print density and Langue

    3. Multi-interface and different paper size support

    4. LCD display can show the printer parameter settings

    5. Can quickly print image barcodes and forms.

    6. Multiple Sensor Supported Black mark, Label interval

    and Paper end detection



    Printing Method

    Thermal Line

    Printing Speed

    80mm/s ( Thermal Paper )

    70mm/s ( Label Sticker )

    Resolution

    8 dots/mm

    Effective Printing Width

    100mm/72mm/48mm/37.5mm

    Character Set

    ASCII, GB18030 (Chinese), BIG5, Codepage

    Print Font

    Font A: 12*24; Font B: 8*16

    Self-defined Character

    Yes

    Paper Type

    Thermal paper/Label Paper

    Paper Roll Diameter

    40mm (max.)

    Roll Core Inner Diameter

    13mm(min.)

    Paper Thickness

    0.06~0.16mm

    Paper Supply Method

    Drop-in easy paper loading

    TPH

    50km

    Barcode

    1D: EAN-13, EAN-8, UPC-A, UPC-E, CODE39, CODE93, CODE128, CODABAR, INTERLEAVED 25

    2D: PDF417QRCODEDATA Matrix

    Emulation

    CPCL/ESC-POS

    Driver

    Windows 98 / ME / 2000 / NT / XP / 2003 Server/Vista/Win7/Win 8/Win10

    Sensor

    Paper End Sensor, Black Mark, Label Interval

    Interface

    USB/Bluetooth

    Button

    Power, Feed, Mode

    Indicator

    Power, Feed, Mode

    Memory

    Flash: 512kb; RAM: 128kb

    Receive Buffer Size

    32K

    SDK

    Windows CE; Windows Mobile 5.0/6.0; Symbian; Blackberry and Android

    Multi-languages

    46 codepages

    Power Supply (Adapter)

    DC9V/2A

    Battery Power

    7.4V, 2300mAg  rechargeable Li-ion battery

    Battery Charge

    100m continuous printing

    Charge Time

    less than 3 hours

    Battery Duration

    360 hours

    Gross Weight

    500g (Including battery)

    Printer Dimension(W x L x H)

    140mm x115mm x 51mm

    Color

    Black

    Operating Temp

    -10-50°C

    Operating Humidity

    10%-80%

    Application

    Restaurants, Department Stores, Kitchen, Convenience Stores, Specialty Retail, Supermarket

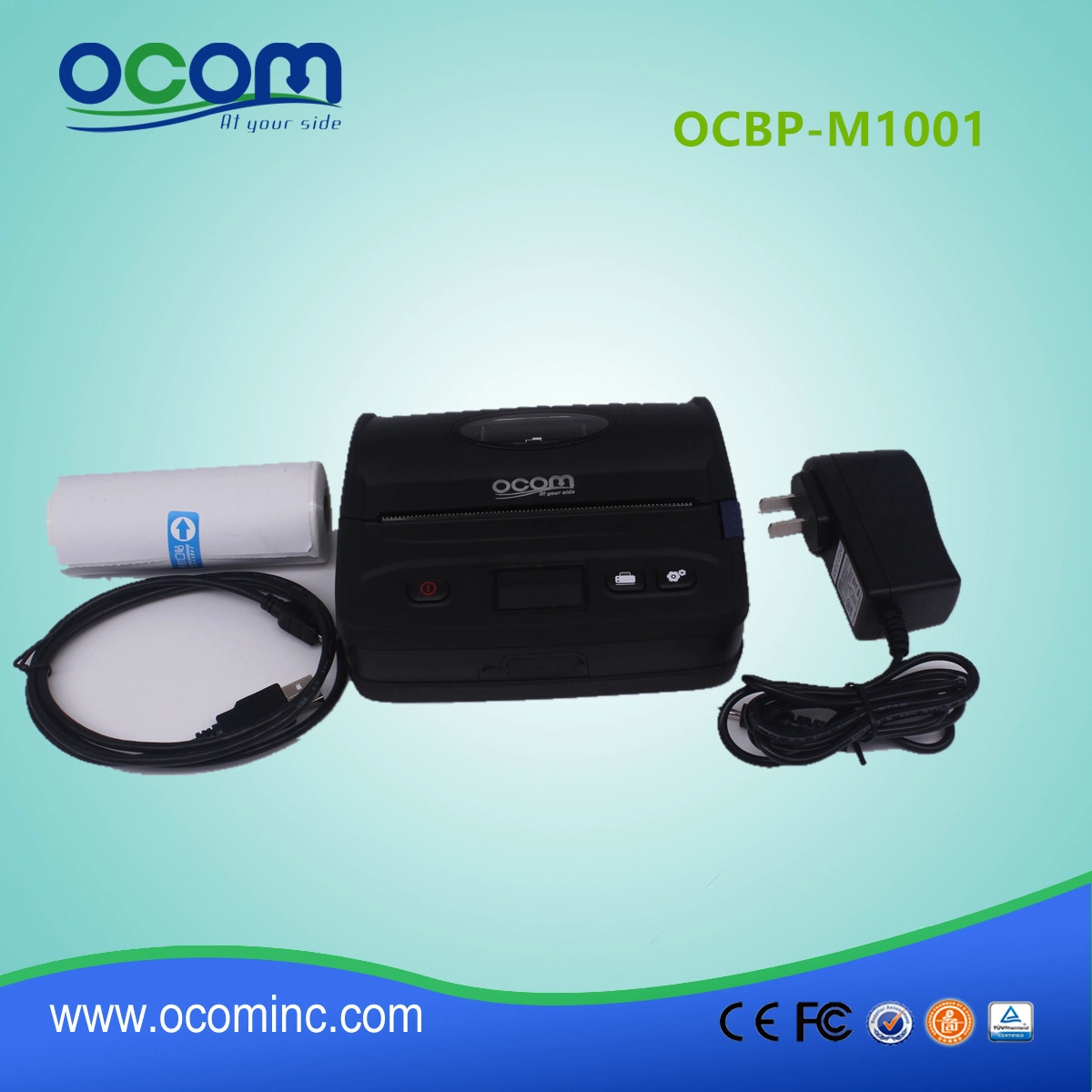

    Accessories

    Battery, Charger USB Cable, CD Driver and Paper-roll

    Option: vehicle charger, Leather Case
